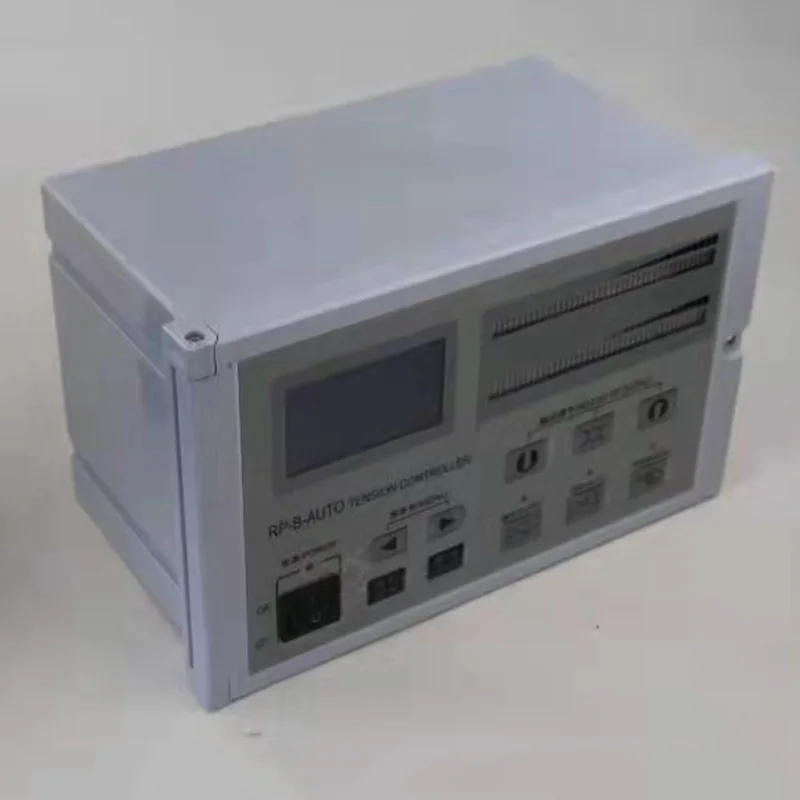

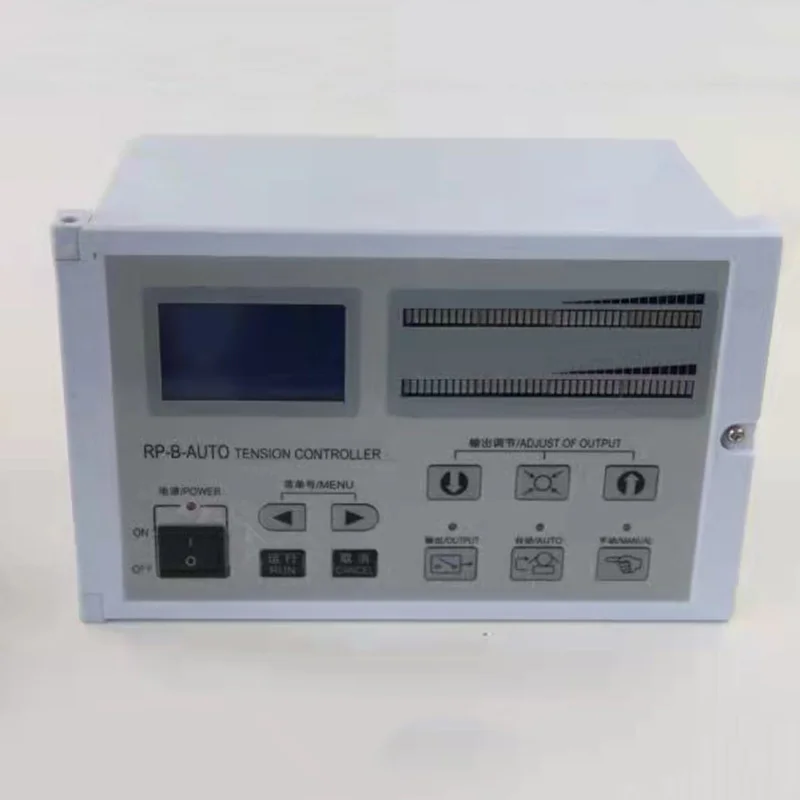

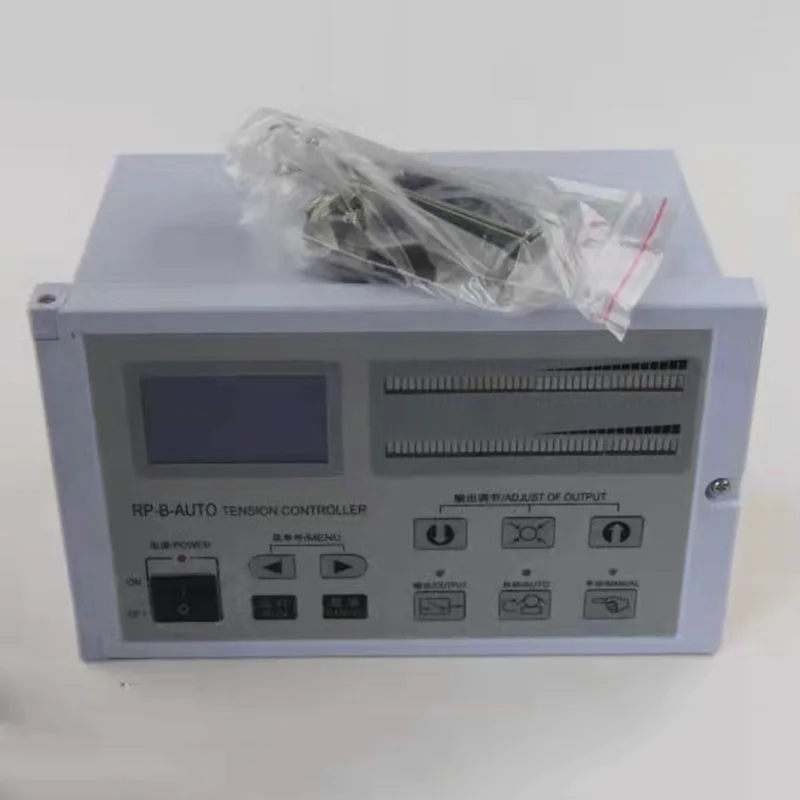

ZXT-B-2000 Digital Automatic Constant Tension Controller with Load Cell For printing and Textile

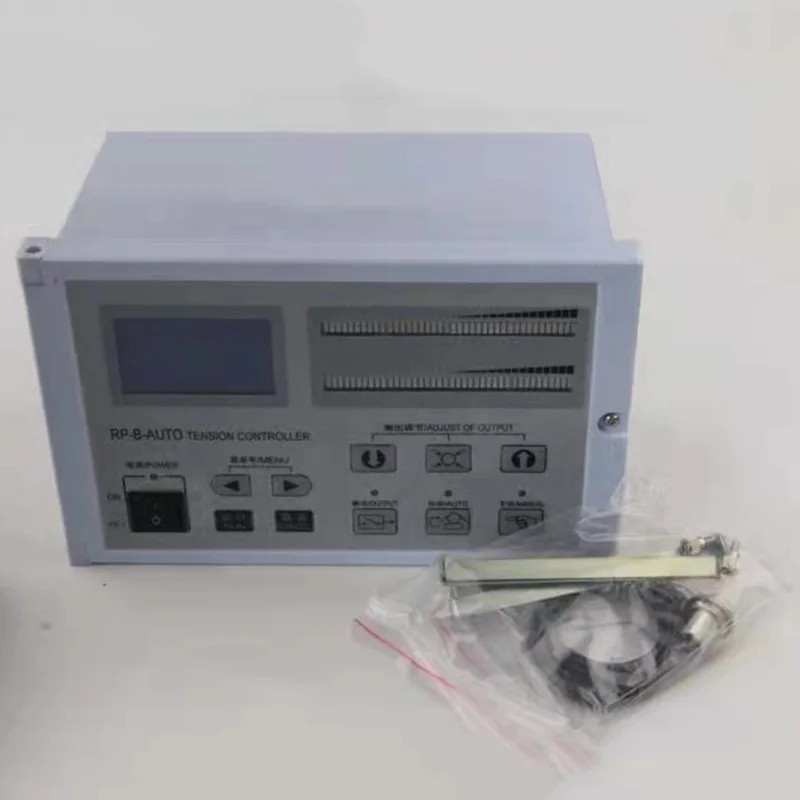

Order include : 1 PCS tension controller , 2 pcs Tension loadcell

Description:

ZXT-B-600 All-Digital High-Precision Automatic Constant Tension Controller, which is mainly composed by the tension detector, high-precision A / D, D / A converters, high-performance single-chip and other components. The automatic constant tension controller is a measure of the tension coil by tension detector compared with the target set by the tension by SCM PID calculation automatically adjust D / A output to change the magnetic clutch, brake or servo motor excitation current torque to achieve constant tension coil. It can be widely used in various occasions where need for precise measurement and control of tension, with the use of flexible and broad applicability.

1. LCD display has two languages for choice, Chinese or English display.

2. Easy to change automatic or manual mode.

3. tension detector wiring easy.

4. convenient to set parameters.

5. exchange with duplex output shaft

Main Technical Parameter:

Measurement accuracy

<±1N

Sampling speed

100MS

Output mode

DC0-2A Adaptive load impedance 8-12Ω

Auxiliary output

DC 0-5V(MAX 10MA) Analog signal output

Overall dimensions

245×155×140(mm)

Installation sizes

230×150×120(mm)

Power supply

AC 180-245V 50/60Hz

Application:

It is widely used in the industries of printing, packing, paper-making, cable, rubber, electron battery and textiles printing.
