TZT Mini 1300 HF/VHF/UHF Antenna Analyzer 0.1-1300MHz with 4.3 inch TFT LCD Touch Screen

Specifications:
- Frequency Range: 0.1-1300MHz
- HF/VHF/UHF continuous coverage
- In/Out Impedance: 50
- Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
- Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
- SWR Measurement Range: 1.0-1999（Single Point Mode), 1.0-20.0 (Scan Mode)
- Display Modes: Numerical display, curve display, simith chart
- Connector Type: UHF N-type connector
- VNA: SMA
- SMA OPEN-SHORT-LOAD Calibration Kit x 1
- LCD size: 480x272 4.3" TFT LCD display
- Touch Screen Type: Capacitive
- All capacitive touchscreen on the display – no buttons are needed
- Power Source: USB or Internal Power Supply
- Built-in charging circuitry and DC-DC booster
- Maximum charging current: 5V/1.5A
- External Storage Method: TF card
- Dimensions: 133 x 85 x 29 mm (Not including the size of prominent ports)
- Weight: 550g

Package Included:

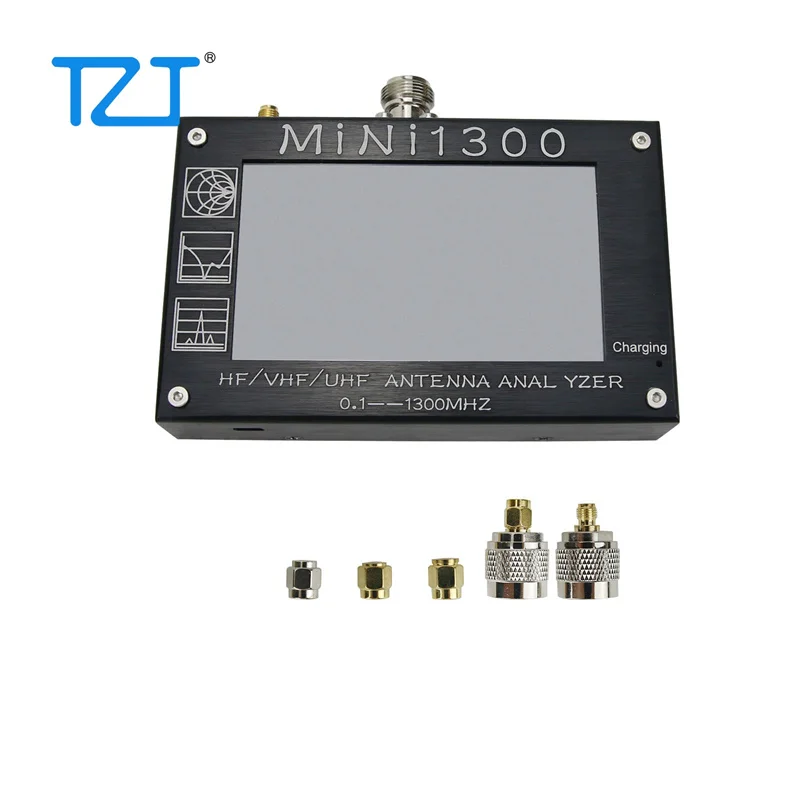

- 1 x Antenna Analyzer

Note: If the product has parameter changes, the actual test will prevail.
