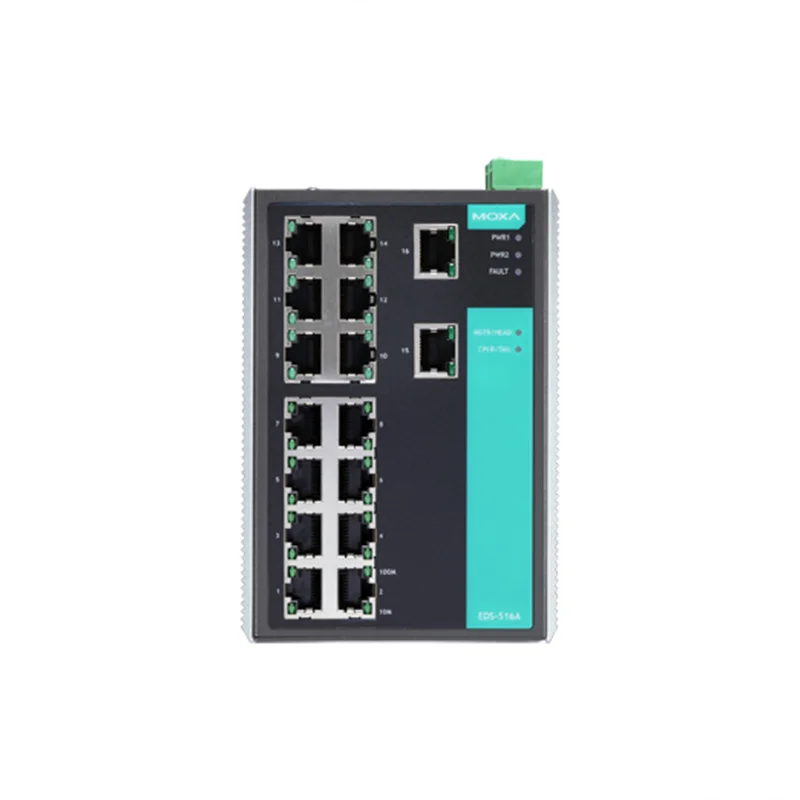

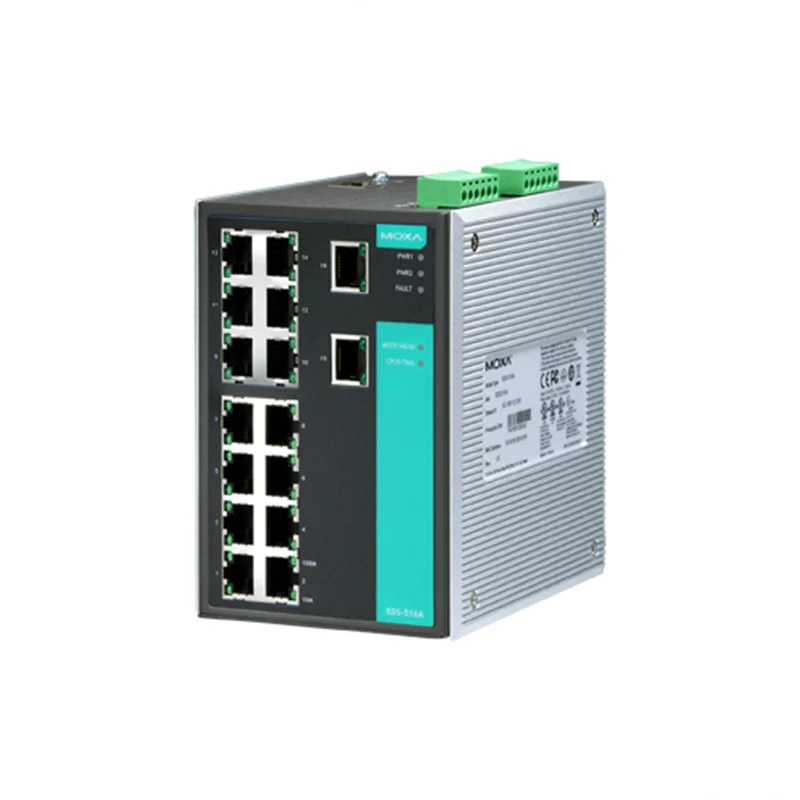

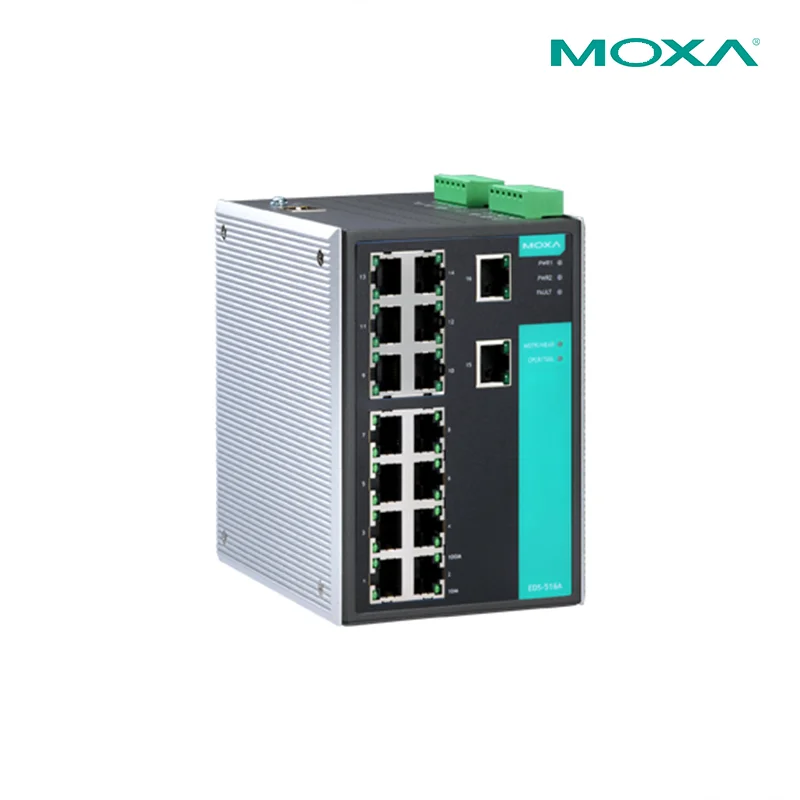

  • Moxa controlled switch 16x10/100basetx eds-516a | Электронные компоненты и принадлежности - Фото №1
  • Moxa controlled switch 16x10/100basetx eds-516a | Электронные компоненты и принадлежности - Фото №1
  • Moxa controlled switch 16x10/100basetx eds-516a | Электронные компоненты и принадлежности - Фото №1
  • Moxa controlled switch 16x10/100basetx eds-516a | Электронные компоненты и принадлежности - Фото №1
  • История цены

    *История изменения цены! Указанная стоимость возможно, уже изменилось. Проверить текущую цену - >

    Месяц Минимальная цена Макс. стоимость Цена
    Sep-19-2025 0.52 руб. 0.75 руб. 0 руб.
    Aug-19-2025 0.36 руб. 0.38 руб. 0 руб.
    Jul-19-2025 0.39 руб. 0.89 руб. 0 руб.
    Jun-19-2025 0.36 руб. 0.8 руб. 0 руб.
    May-19-2025 0.19 руб. 0.16 руб. 0 руб.
    Apr-19-2025 0.29 руб. 0.6 руб. 0 руб.
    Mar-19-2025 0.56 руб. 0.71 руб. 0 руб.
    Feb-19-2025 0.25 руб. 0.74 руб. 0 руб.
    Jan-19-2025 0.38 руб. 0.49 руб. 0 руб.

    Новые товары

    Характеристики

    Moxa controlled switch 16x10/100basetx eds-516a | Электронные компоненты и принадлежности

    Описание товара


    Interface

    The total number of ports

    16

    Level switch

    L2

    Connector type for "Twisted Pair"

    RJ45Technology

    Standards

    IEEE 802.3 for 10BaseT, IEEE 802.3u for Baset (X) and BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP

    Industrial Protocols

    Ethernet/IP, Modbus/TCP

    Control Protocols

    IPv4/IPv6 SNMP v1/v2c/V3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BOOTP, TFTP, SMTP, RARP, telnet, Syslog, SNMP inform, flow control, back pressure flow control

    Protocols filtration

    802.1q VLAN, port-based VLAN, GVRP, IGMP V1/V2, GMRP

    Protocols backup

    STP, RSTP, MSTP, turbo ring V1/V2, turbo chain, link aggregation

    Security protocols

    Radius, tacacs +, SSL, SSH, Port lock, broadcast storm protection

    Protocols sync time

    SNTP, NTP server/client

    Flow Control

    IEEE 802.3x flow control, back pressure flow control

    MAC address table

    8000

    Packet buffer size

    2 МбитаVLAN and IGMP functions

    The maximum number of VLANS

    64

    Range VLAN ID

    1 ~ 4094

    Number of groups IGMP

    25610/100 Mbps Fast Ethernet ports

    Twisted pair (RJ45 connector)

    16Discrete input

    Number of channels of discrete input

    2.

    Voltage log. 1.

    + 13 ~ + 30 V Post.

    Voltage log. 0

    -30 ~ + 3 v

    Maximum current, MA

    8Relay output

    Number of relay output channels

    2.

    Load capacity relay

    1 A at 24 V Post.Function backup

    The backup connection

    'Binder woodworking spinning tree
    Turbo Chain
    Turbo ring back ring
    Link Aggregation
    RSTP
    MSTPSupport intelligent functions

    Automatic Power breakage alert

    Using the relay, by e-mail, by SNMP

    Automatic notification of communication breakage by Port

    Using the relay, by e-mail, by SNMPLED lights

    LED lights

    PWR1, PWR2, fault, Mstr/Head, CPLR/tail, 10/100mControl device

    Control Interface

    Console RS-232

    RS-232 console port connector

    RJ45

    MIB-base

    MIB-II Ethernet Like MIB P-BRIDGE MIB Q-BRIDGE MIB Bridge MIB RSTP MIB RMON MIB Group 1, 2, 3, 9

    DIP switches

    Turbo ring, master, couplerPower requirements

    Working voltage

    24 V Post. (12 ~ 45 V)

    Current consumption

    0.35 A at 24

    Power supply backup connection

    There are

    Power Connector

    Terminal

    Protection against incorrect polarity

    There areOperating conditions

    Operating temperature, °c

    0 ~ + 60

    Storage Temperature, °c

    -40 ~ + 85

    Working humidity, %

    5 ~ 95Protection

    Dust and moisture protection

    IP30

    Over current protection

    There areStructural properties

    Case material

    MetalSize and weight

    Overall dimensions, mm

    94x135x143

    Net weight, kg

    1.59Mount

    Mount

    DIN rail
    Desktop/wall mounted (optional)The presence of the international certificate

    Safety

    CSA C22.2 No. 60950-1
    EN 60950-1
    UL508
    UL60950-1

    Explosion Proof

    ATEX zone 2 ex NA NC IIC T4 GC
    UL/cul class 1 Division 2

    Electromagnetic compatibility (EMI)

    CISPR 32
    FCC Part 15 Subpart B Class A

    Electromagnetic compatibility (EMS)

    IEC 61000-4-3 RS
    IEC 61000-4-5 surge
    IEC 61000-4-6 CS
    IEC 61000-4-8
    IEC 61000-4-2 (ESD)
    IEC 61000-4-4 (EFT)

    Electromagnetic compatibility (EMC)

    EN 55032/24

    Application in marine systems

    DNV
    GL

    Bangs

    IEC 60068-2-27

    Free drop

    IEC 60068-2-32

    Vibration

    IEC 60068-2-6

    Average time of work for failure (MTBF), hours

    247000Kit

    Kit

    Charger
    Plugs for unused ports
    Short User Manual
    Cable cn20070 (rj45-db9 'Mama')
