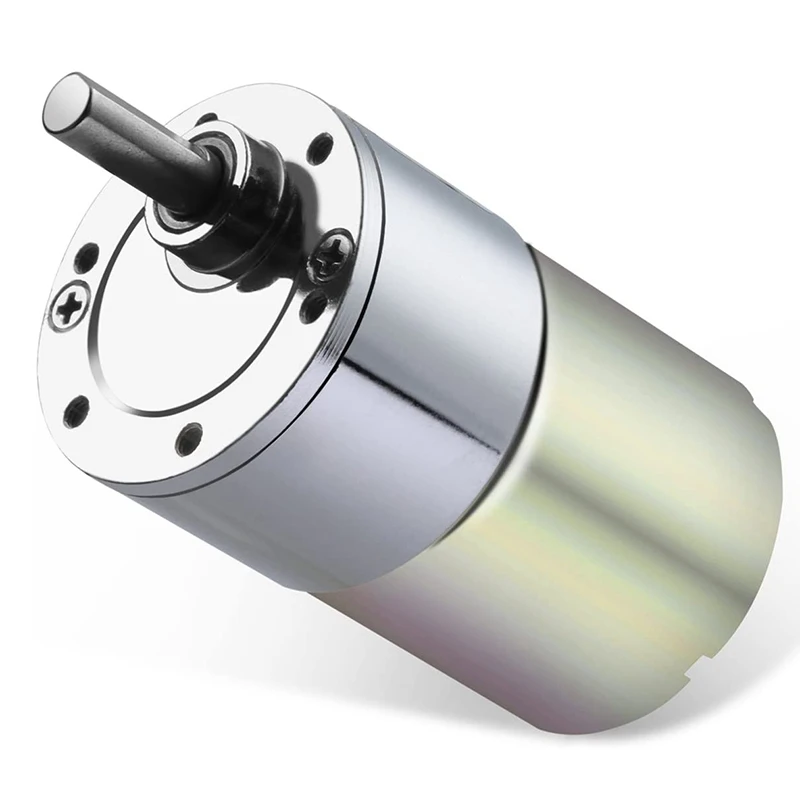

DC 12V 30RPM Gear Motor High Torque Electric Mini Speed Reduction Geared Eccentric Output Shaft 37Mm Gearbox |

Brand NameNoneOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack12 028,76 ₽-34%2 028,76 ₽-34%1 339,21 ₽1 339,21 ₽there are seller's couponsAdd to CartBuy now1 339,21 ₽loaderReviews

5,0

1 review10000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalstefan v.9 June 2022

Show moreOpen 1 reviewDescription body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; }

[ALL-METAL GEARS]: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.
[PURE COPPER WIRE CORE ROTOR]: With precision winding technology, the geared motor power instant increased by 30%.
[D SHAPED OUTPUT SHAFT]: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
[POSITIVE-NEGATIVE ROTATION]: You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.

Rated Voltage: DC 12V
Reduction Ratio: 1:148
No-Load Speed: 30RPM
Rated Torque: 12Kg.cm
Rated Current: 0.92Amp
D Shaped Output Shaft Size: 6x14mm (0.24inch x 0.55inch) (D*L)
Gearbox Size: 37 x 26.5mm (1.46inch x 1.04inch) (D*L)
Motor Size: 36.2 x 33.3mm (1.43inch x 1.31inch) (D*L)
Mounting Hole Size: M3 (not included)
Application: Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc.
PLEASE NOTE:
1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2.Handling motors: Gently, as far as possible the use of motor shell part.

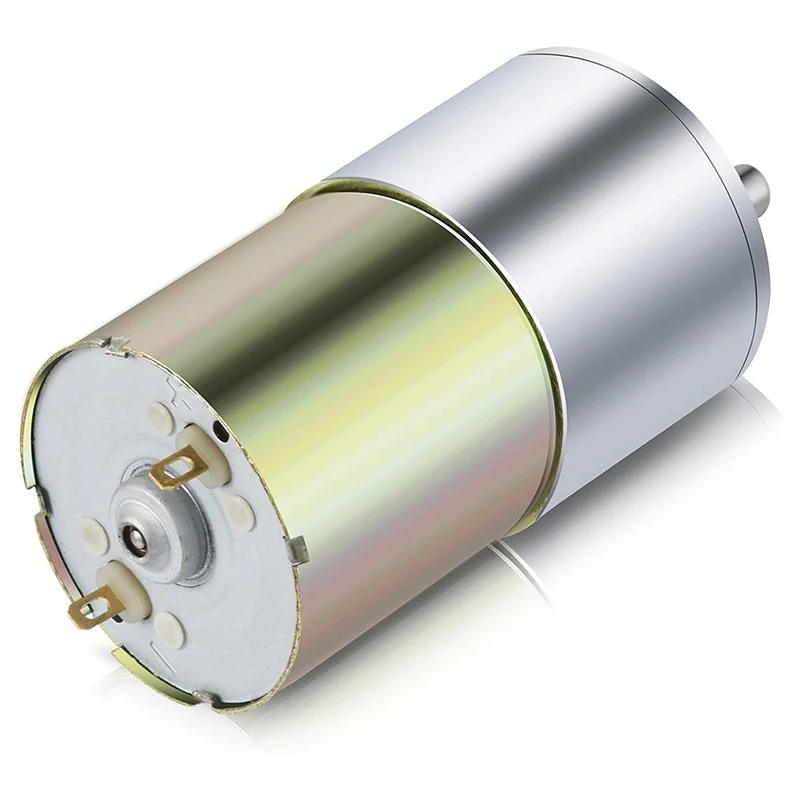

3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5.Motor storage:
Storage temperature: 0 Celsius - 40 Celsius
Storage humidity: 15% -90% RH
Avoid placing in high temperature, high humidity and corrosive gases
Motor use temperature: 0 Celsius - 70 Celsius
Colour: silver
Material: metal
Size: 36.2 x 33.3mm

Package Contents:
1 * Gear Motor

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
