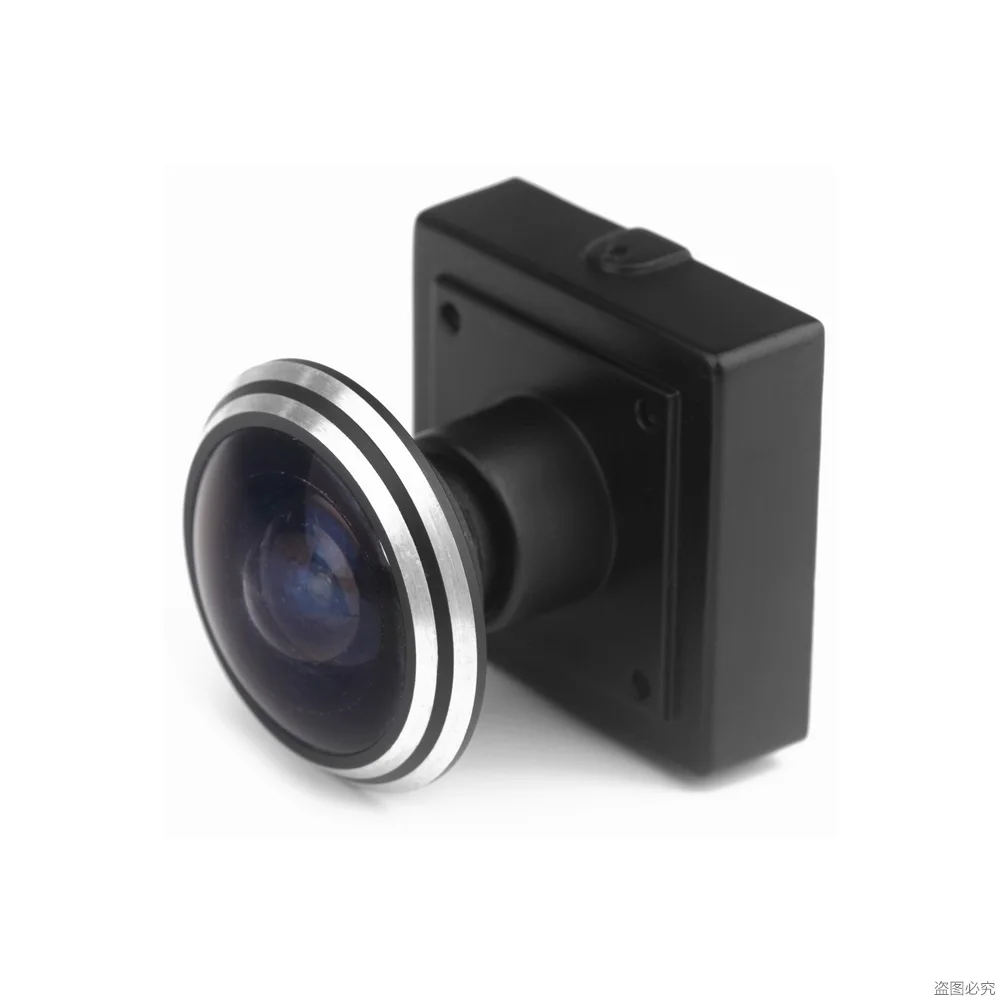

1.3MP Low light starlight NVP2431H+IMX238 1/3" Sony CMOS 0.0001Lux 34*34mm 1.78mm Fisheye Lens wide angle AHD Color micro Camera |

1.3MP Low light starlight NVP2431H+IMX238 1/3" Sony CMOS 0.0001Lux 34*34mm 1.78mm Fisheye Lens wide angle AHD Color micro Camera |

Order symbol:

AHD130I238M34-F1.78       34mm MINI AHD Camera with 1.78mm Fisheye Lens View 170°

AHD130I238M34-L1.8         34mm MINI AHD Camera with 1.8mm Board Lens View of 150°

AHD130I238M34 -L2.8        34mm MINI AHD Camera with 2.8mm Board Lens

AHD130I238M34 -L4.2        34mm MINI AHD Camera with 4.2mm Board Lens

AHD130 I238M34-L6           34mm MINI AHD Camera with 6mm Board Lens

AHD130I238M34-L8            34mm MINI AHD Camera with 8mm Board Lens

AHD130 I238M34 -L12        34mm MINI AHD Camera with 12mm Board Lens

AHD130I238M34-L16          34mm MINI AHD Camera with 16mm Board Lens

Series of  mini spy camera with a pinhole lens. The size of  Mini camera can be 34x34mm. AHD Mini spy surveillance camera is the highest resolution model and supports 1.4MP resolution. This camera comes with a series lens which provides a wide angle of view from30-150degree. This spy camera is extremely small in size yet has the same lens angle of view and great picture as many of our other high resolution security cameras. This camera uses a 1/3" Sony cmos sensor that includes an advanced OSD menu to adjust settings such as back light compensation, day/night mode, color, contrast, sharpness, hue, gain. etc. This spy camera comes with a U type holder /mount, as well as the power and video cable leads, and OSD joystick. These cameras can easily be hidden in walls, ATM, Fpv Hobby, clocks, toys, and just about any object you want. Custom hidden spy cameras can be fabricated from just about anything to conceal these mini CCTV cameras.

Featues:

Color 1/3"Sony 1.3MP CMOS

1.3 Megapixel 960P

0.0001 Lux, Day to night

DC 12V, 80mA

Dimension:34(W)*34(L)mm

Weight: 100g

PAL or NTSC optional

Manual focus 1.78mm Fisheye Lens

BNC Connector Standard

AV connector optional

U Type Holder Bracket

Used: Banks'ATM,Hidden, FPV

Features:Pinhole,Hidden,Day to Night,White Balance,Auto

Can be customized by your requirements

M34 Series

Model

AHD130I238M34-F1.7   34mm MINI AHD Camera with 1.78mm Lens

AHD130I238M34-L1.8   34mm MINI AHD Camera with 1.8mm Board Lens

AHD130I238M34 -L2.8  34mm MINI AHD Camera with 2.8mm Board Lens

AHD130I238M34 -L4.2  34mm MINI AHD Camera with 4.2mm Board Lens

AHD130 I238M34-L6     34mm MINI AHD Camera with 6mm Board Lens

AHD130I238M34-L8      34mm MINI AHD Camera with 8mm Board Lens

AHD130 I238M34 -L12   34mm MINI AHD Camera with 12mm Board Lens

AHD130I238M34-L16     34mm MINI AHD Camera with 16mm Board Lens

Name

AHD Mini Camera

Camera

Image Sensor

Sony IMX238

DSP

NVP2431H+IMX238

Resolution

AHD:1.3MP 960P,Analog:1200TVL

Min.Illumination

0.0001Lux

Effective Pixels

PAL:1280(H)×960(V); NTSC:1280(H)×960(V)

Frame

PAL 25fps, NTSC 30fps

Standard Lens

3.7 mm Super Pinhole lens @ F1.2 View angle:90°

Optional Lens

2.8 mm Wide Angle Super Pinhole Lens

Elec Shutter

1/50(1/60)s to 1/100,000s

Day& Night

Electronic

White Balance

Auto

Synchronization

Internal Synchronization

Video Output

1Vp-p Composite Output (75Ω/BNC)

S/N Ratio

More than 48dB

BLC

Auto

AGC

Auto

Industrial
Standard

Power Supply

12 V DC ± 10%

Working Temp

-20 °C - 60 °C (14 °F-140 °F),

Humidity 90% or less (non-condensing)

Impact Protection:

IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10.

Output

BNC Connector

Shell Color

Black

Dimension

34*34mm

Weight

110g

Accessories

Free

Brackets *1,Screw *2,Cable *1,Manul book *1
