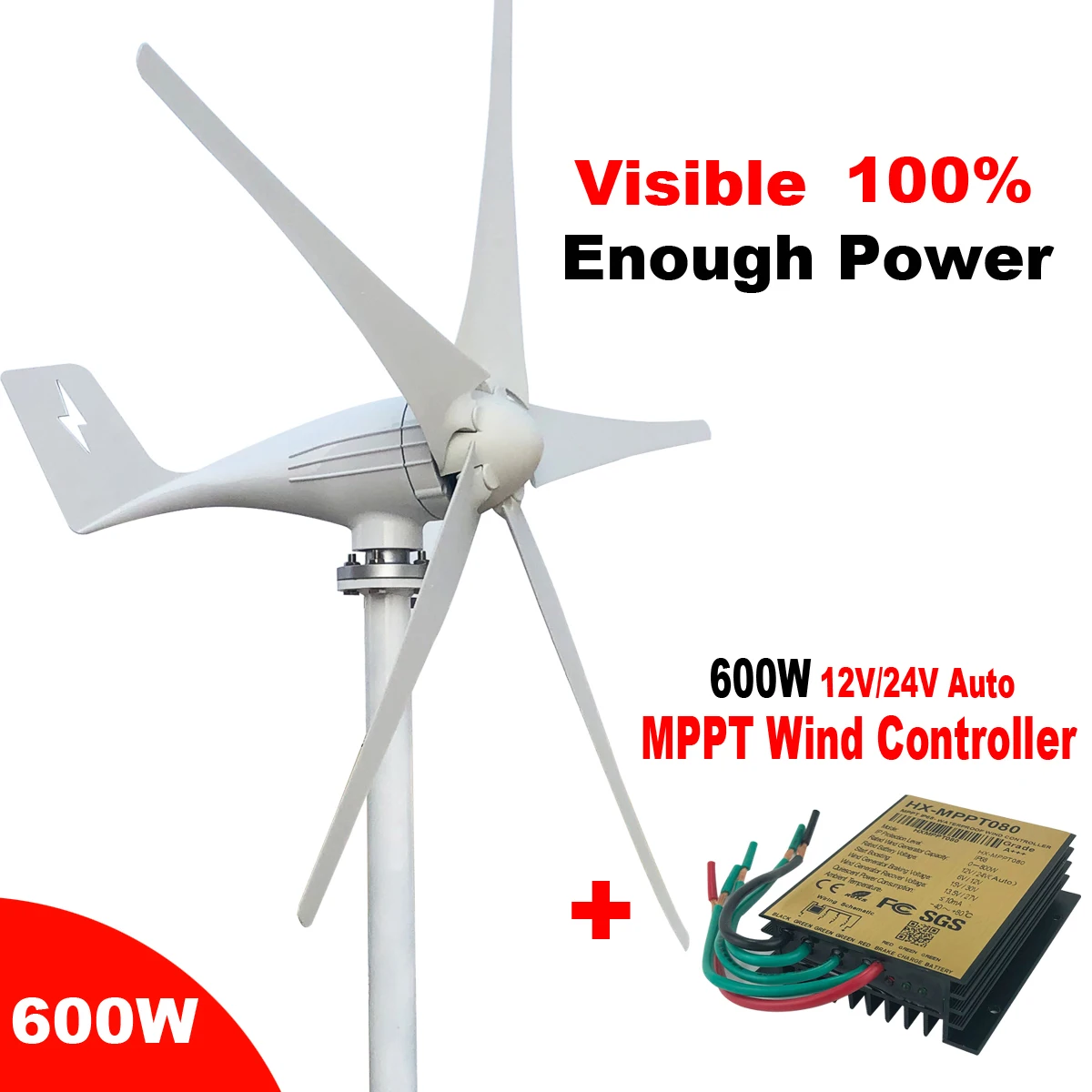

12V 24V 48V AC 600W Horizontal Axis Wind Turbine Generator Kit Micro Home Power Windmill With LED Light Free MPPT Controller

1.About Wind Generator

Wind turbine generator can transfer wind power to electricity. Wind is an important renewable resources. To meet most of customers' requirements, we promote an economy Medium（600-1200W） wind turbine generator which is cheap and good quality. Considering the generator can start easily, our engineers develop the lower start-up wind speed. Start the wind turbine generator only needs 2m/s wind speed. 20-year long life-span wind power generator is deserved you to own it.

System Parameter

Model

S5-400

M5-600

M5-800

M5-1000

M5-1200

M5-1500

Rated power

400W

600W

800W

1000W

1200W

1500W

Maximum power

600W

830W

1000W

1200W

1500W

1600W

Rated voltage

12VAC or 24VAC

12VAC or 24VAC or 48VAC

24VAC or 48VAC

Start-up wind speed

2.0m/s

2.5m/s

3.5m/s

Rated wind speed

12m/s

10m/s

Survival wind speed

50m/s

40m/s

weight

8.5kg

10.5kg

11.kg

11.5kg

12kg

12.6kg

Wheel diameter

1.2m

1.3m

Number of blades

5PC

Blades material

Germany Nano nylon glass fiber

Generator type

Three phase permanent magnet AC synchronous generator

Magnet material

NdFeB

Generator case

Casting aluminum alloy

Control system

Electromagnet/wind wheel yaw

Speed regulation

Automatically adjust windward direction

Working temperature

-50  to 60 degree

Design life

20 year

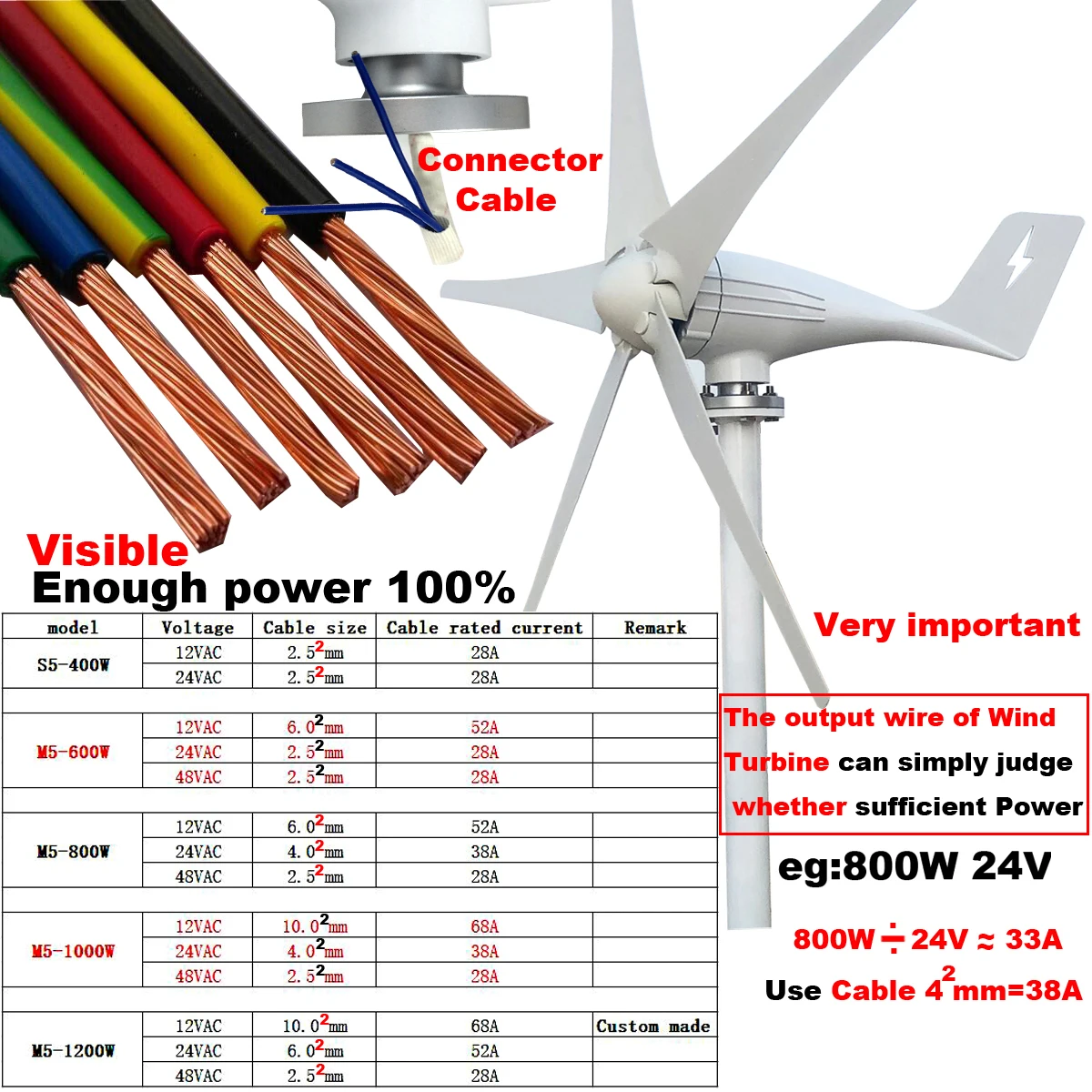

Wind turbine generator interface cable size（square mm)

The output wire of Wind Turbine can simply judge whether sufficient Power

model

Voltage

Cable size （square

Cable rated current

Remark

S5-400W

12VAC

2.5 mm2

28A

24VAC

2.5 mm2

28A

M5-600W

12VAC

6.0 mm2

52A

24VAC

2.5 mm2

28A

48VAC

2.5 mm2

28A

M5-800W

12VAC

6.0 mm2

52A

24VAC

4.0 mm2

38A

48VAC

2.5 mm2

28A

M5-1000W

12VAC

10.0 mm2

68A

24VAC

4.0 mm2

38A

48VAC

2.5 mm2

28A

M5-1200W

12VAC

10.0 mm2

68A

Custom made

24VAC

6.0 mm2

52A

48VAC

2.5 mm2

28A

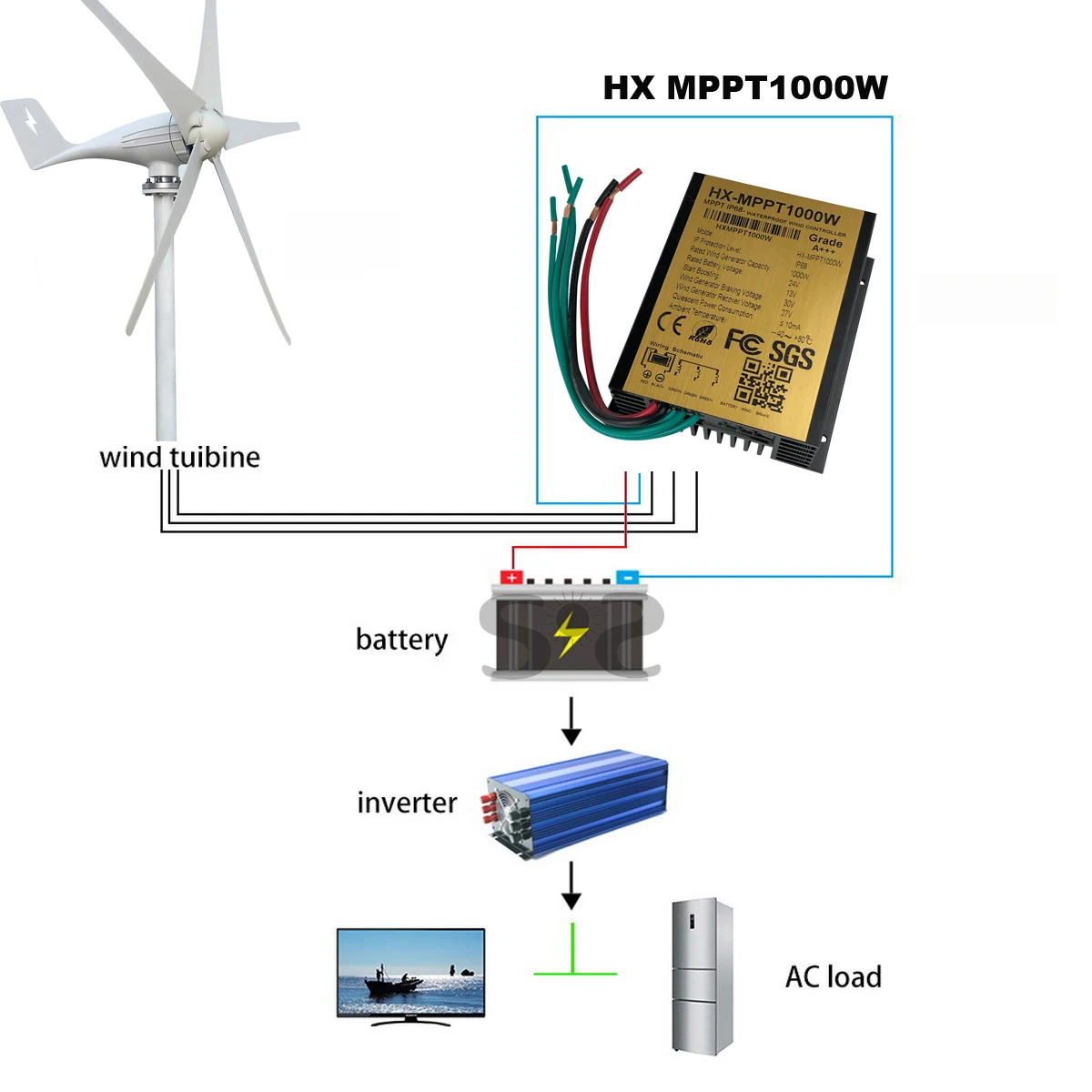

2.About  MPPT Controller

Product Features / Advantage

Generally speacking, wind turbine is three phase and the output voltage is not very stable. Wind controller is an important components in the wind system. This wind controller is with top quality and excellent performance.

1.Low Voltage Chargiing---MPPT

2. this controller can control wind turbines to charge the battery automatically .When the battery is fully charged, brake can be controlled automatically by the interior circuit. When the battery voltage drops to restore voltage level, wind turbine can automatically recover to the battery charging, so as to protect the wind turbine and the battery.

3. Voltage and current limiting are be enabled during recharging to ensure the best charging effect. Meanwhile, it provides the maximum protection to the wind turbine and battery.

4. Unique reverse connect protection circuit. For improper operation the positive and negative of battery, don't need to replace the fuse, only to reset the positive and negative in correct point. So the whole system will be more reliable.

5. LED indicate circuit working condition, concise, intuitive, and clear

6. With the independent intellectual property rights of modular design, which makes the performance of the whole system to get the biggest safeguard. Rectification of this controller and braking circuit part, have adopted the company design integration module, no matter from heat, or reliability, further than the traditional design.

7. The comprehensive waterproof protection. If the controller without waterproof but used in easy ooze water environment or the humidity is heavy, then the controller is easy to be corroded and damaged. Our product adopts full seal completely waterproof design which adapt to the heavy humidity, salinity, such as ground water operational environment. The protection grade reaches the IP68 above, even in water can steadily work normally for a long time.

8. Approved ISO9001 quality management system, our factory strictly controls the production and testing quality which guarantees the high quality in maximum. Workable temperature is from - 40 ~+ 80degree.

Technical Parameters

Model

HX-MPPT600

HX-MPPT800

HX-MPPT1000

HX-MPPT1500

Wind Power

600W

800W

1000W

1500W

MAX Power

850W

1050W

1250W

1650W

Battery rated voltage

12V / 24V / 48V

Wind discharge voltage

14.5V/29V/58V

Wind discharge recover voltag

13.5V/27V/54V

Braking start voltage

15.0V/30V/60V

Braking recover voltage

13.5V/27V/54V

Battery over discharge recover voltage

12 / 24V / 48V

Display mode

LED

Control  model

MPPT(Charging Efficiency 30%higherthan PWM Type)

Ambient Temperature

-40~+80oC

Quiescent current

≤10 mA

IP Protection Level

IP68(In water can steadily work normally for a long time)

Main function

Wind charge cruuent detection, wind generator and battery transposition protection, battery,  overcharge.protection,short circuit protection, autobrake function.
