4K HDMI 2x6 Switch/ Splitter/Extender

Introduction :


This 2x6 HDMI Splitter/Extender over single Cat 5E/6 can connect 2 HDMI signals sources with multiple HDMI
display terminals,It can easily split 1 or 2 HDMI signal to more than one HDTV or HDMI projector.
And it can extend HDMI signal up to 100-120m by one cat5E/6 ethernet cable-----this function needs to be used
with 4K RJ45 Cat6 ethernet RX/ Receiver-- Optional






Features :

1.Long distance transmission up to 100M.

2.Video transmission up to 4K/30Hz,and support 720P/1080P standard regular format.
3.Support 4-ways UTP extension


SPECIFICATIONS :

HDMI version ........................................................................... HDMI 1.4/HDCP 1.4
HDMI resolution .......................................... 4K30/1080p/1080i/720p/576p/576i/480p/480i
Support video format .............................................................. 24/30/36 bit deep color
Support audio format .............................. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI input port .................................................................................................. 2
HDMI output port ................................................................................................ 2
RJ45 port ............................................................................................................ 4
Max bandwidth ....................................................................................... 340MHz
Max baud rate .................................................................................. 3.4Gbps x10
Input cable distance ......................... AWG26 HDMI 1.4 standard cable up to 15 meters
Output cable distance ................................. Cat5e/cat6 standard cable up to 100 meters
Max working current ................................................................................. 1600mA
Power adapter format ........................... AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range .......................................................... (-15℃ to +55℃)
Dimension (L x W x H) ................................................................approx. 189x129x25.3 (mm)
Weight ........................................................................................................approx. 437g




EDID setting:

Noted: the dial switch to dial downward is 1, dial upward is 0.


Remote Control Introduction:

1) Press the key 1 to switch to the input 1, L1 indicator lights up.
2) Press the key 2 to switch to the input 2, L2 indicator lights up.

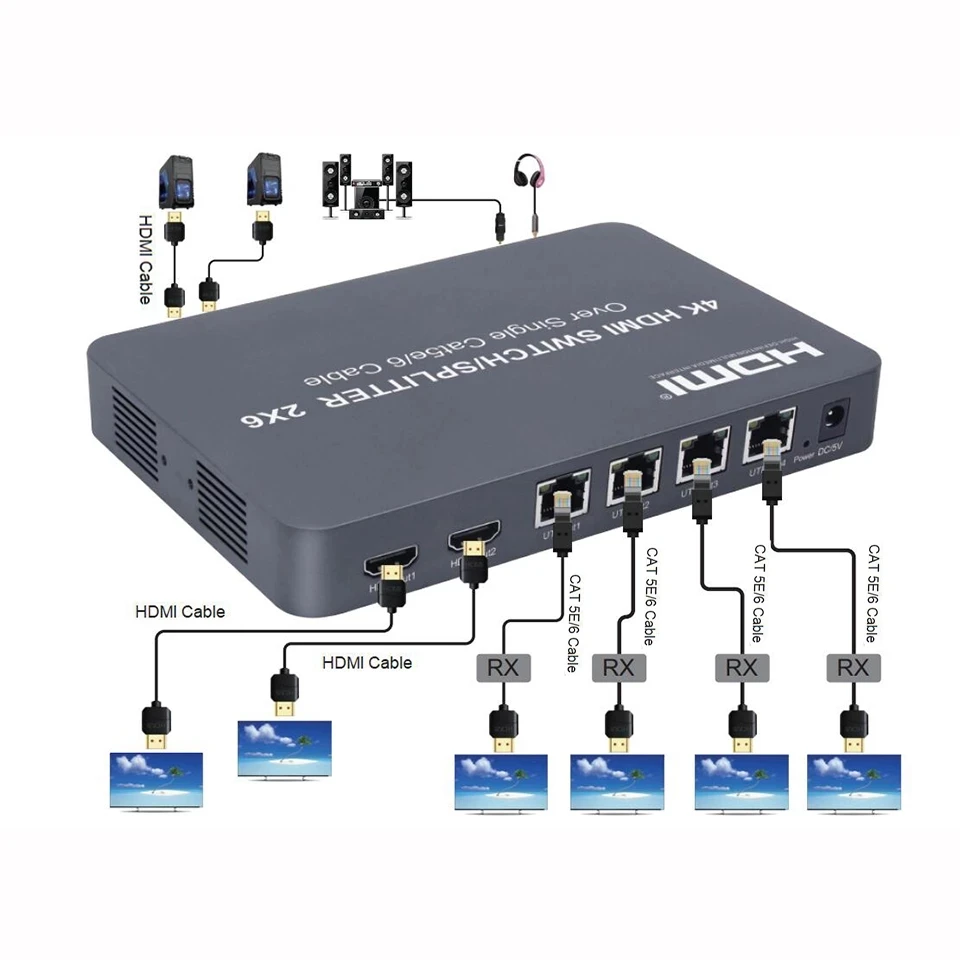

Application diagrams:

Connection Diagrams :

Operating and Connecting :

1. Use HDMI cable connect the HD signal source to the input of HDMI Splitter/Extender.
2. Use HDMI cable connect the HD displayer device to the output of HDMI Splitter/Extender.
3. it can extend to 100-120m between receiver and transmitter by using cat5E/6 cable instead of HDMI cable.
(CAT6/6e cable is recommended)
4. Connect 5V/2A power adapter with the HDMI Splitter/Extender.


Accessories :

1. 2x6 HDMI Switch/Splitter 1pcs
2. IR Remote Control without battery 1pcs
3. Power adapter 1pcs
4. User Manual 1pcs

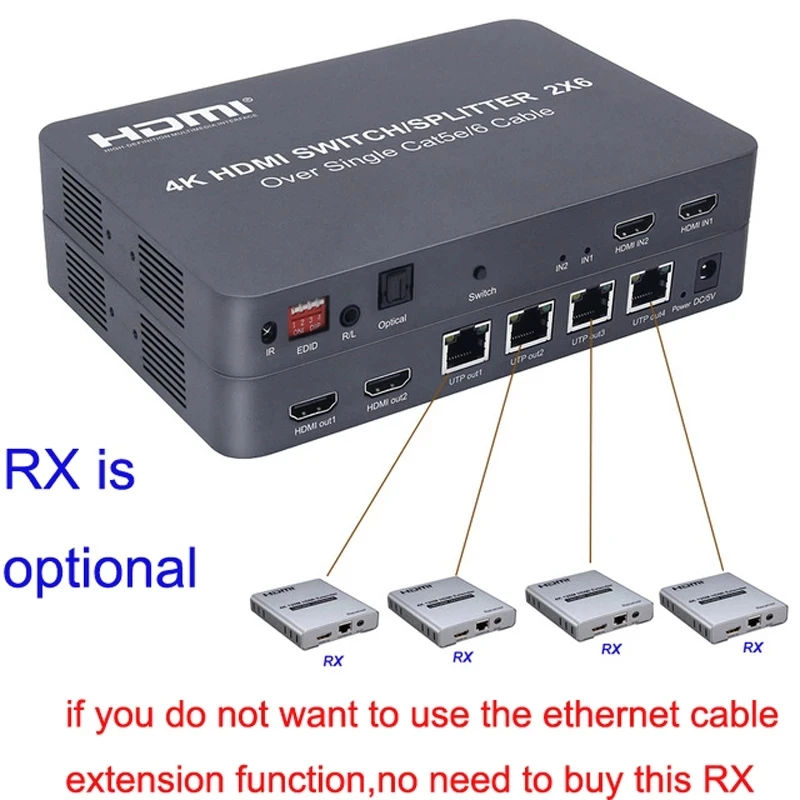

5. RX & RX Power adapter (optional)--- max. need 4 RXs to match one 2x6 HDMI Switch/Splitter Device.
if you do not want to use the ethernet cable extension function,no need to buy this RX.
No retail box,if need,pls contact us first to add shipping cost.

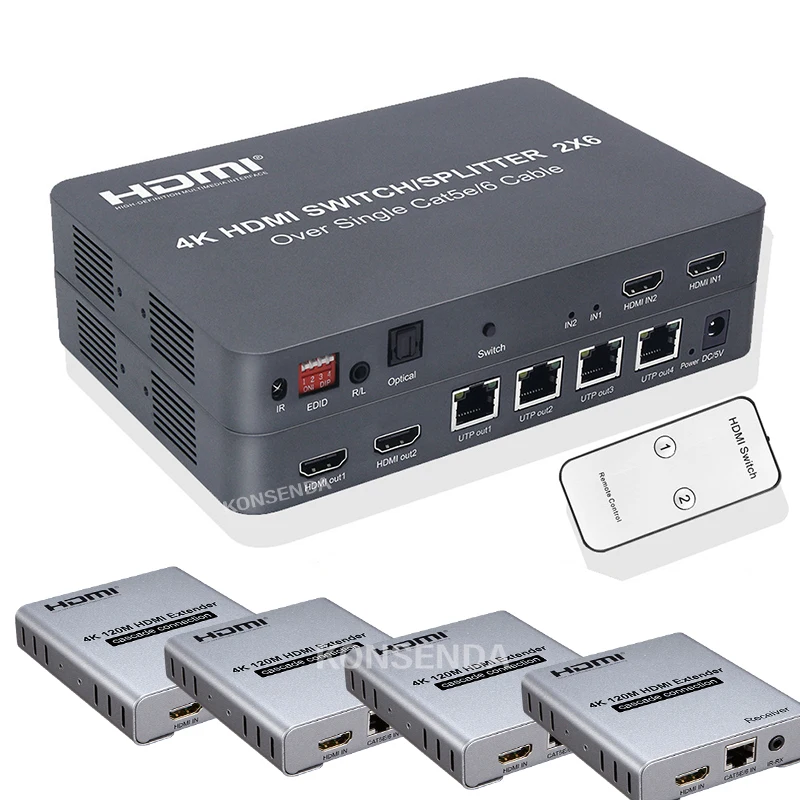

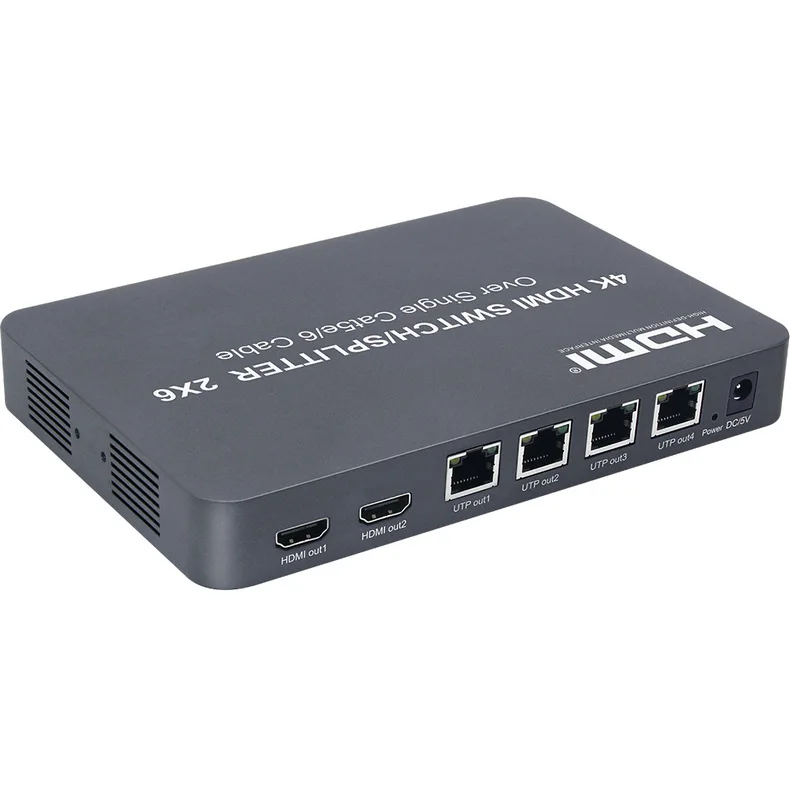

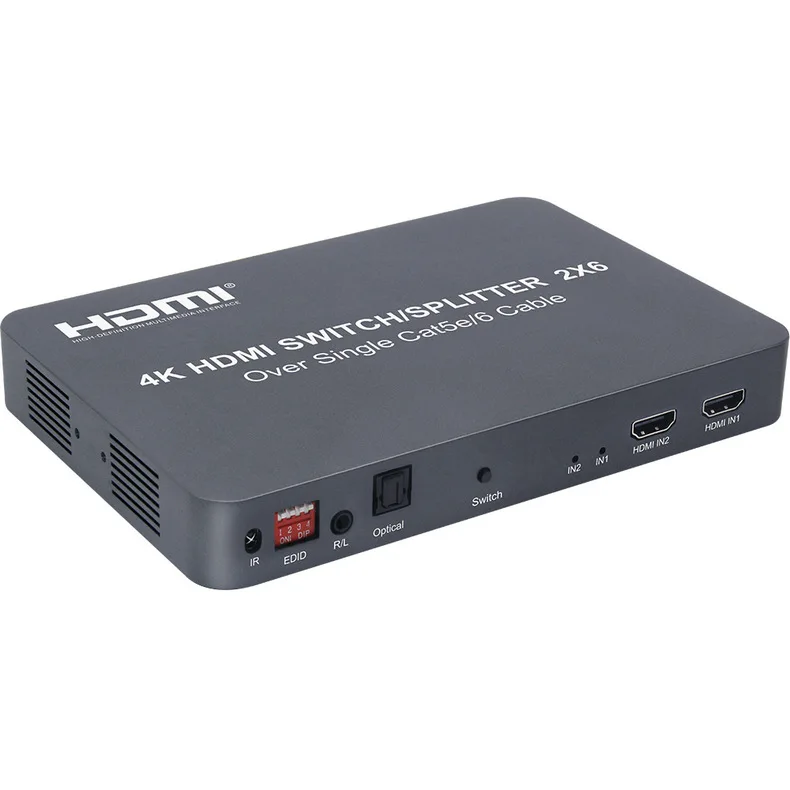

2x6 HDMI Switch/Splitter:

4K 120M Cascade Connection Receiver (RX):
