MPPT 100A 12V 24V Solar Charger and Discharge Protection LCD Controller For 96V Solar Panel Battery Regulator 0 Layer Pricnciple

Overview:

MPPT series solar charge controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 98%.

All the Various Real-time data show on one display ,Convenient user to check.

The Solar Panel input voltage up to 96V, suitable for various specifications of solar panel.

The power supply uses ultra low power chip ,reducing static standby power consumption ,reduce energy loss.

USB 5V Output for phone charging.

Support Remote Display.

Support 0 layer pricnciple=scrolling No browsing operating system

1.Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%.

2.High quality components, perfecting system performance, with maximum conversion efficiency of 98%.

3.Ultra-fast tracking speed and guaranteed tracking efficiency.

4.Wide MPP operating voltage range.

5.12/24VDC automatically identifying system voltage.

6.LCD panel display design, dynamically displaying tool‟s operating dataand working condition

7.Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.

8.Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.

9.Battery temperature compensation function.

10.Multiple load work modes.

Parameter Table:

Model

K60

K80

K100

Maximum power

current

60A

80A

100A

Load output current

40A

40A

40A

Installation

Lin（mm2）

18

20

20

Installation

Line(AWG)

6#

4#

4#

Weight

2100g

2300g

2300g

Peak power of

solar cell panel

( Max Wp)

≤800

≤1040

≤1300

Battery capacity

configuration

≥600AH

≥800AH

≥800AH

Dimensions

300*200*100(mm)

Original Value:

Battery float voltage

13.8V(12V system) / 27.6V(24V system)

Battery (under voltage)  protection

10.6V(12V system) / 21.2V(24V system)

Battery (under voltage) recovery voltage

12.6V(12V system) / 25.2V(24V system)

System load loss: ≤13mA

Loop Buck: ≤100mV

Operating Temperature:-10℃~60℃

Storage Temperature: -30℃~70℃

Humidity requirements:≤90％, No condensation

Temperature compensation: -4mV/Cell/℃

Maximum open circuit voltage of the solar panel

18V-48V(12V system)/36V-96V

(24V system)

Solar panels maximum open circuit voltage (V)

≤96V

Installation and Execution Standards:

System

Solar panel

MAX.PV input power

Battery  voltage

Open

circuit

voltage

Max.

Power.

voltage

60A

80A

100A

12V system

≤48V

(Voc)

≤36V

(Vmp)

780W

1040W

1300W

24V system

≤96V

(Voc)

≤(Vmp)

72V

1560W

2080W

2600W

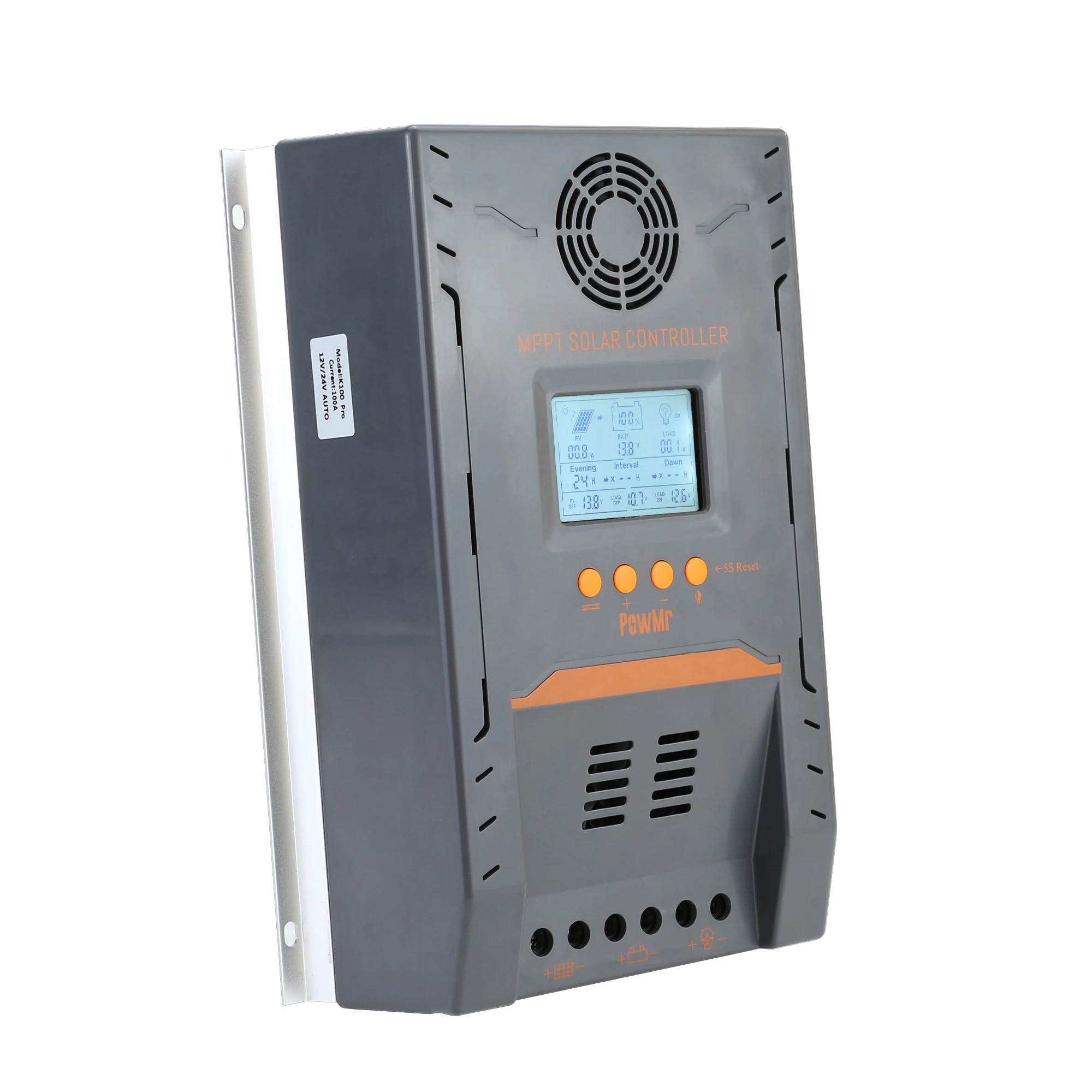

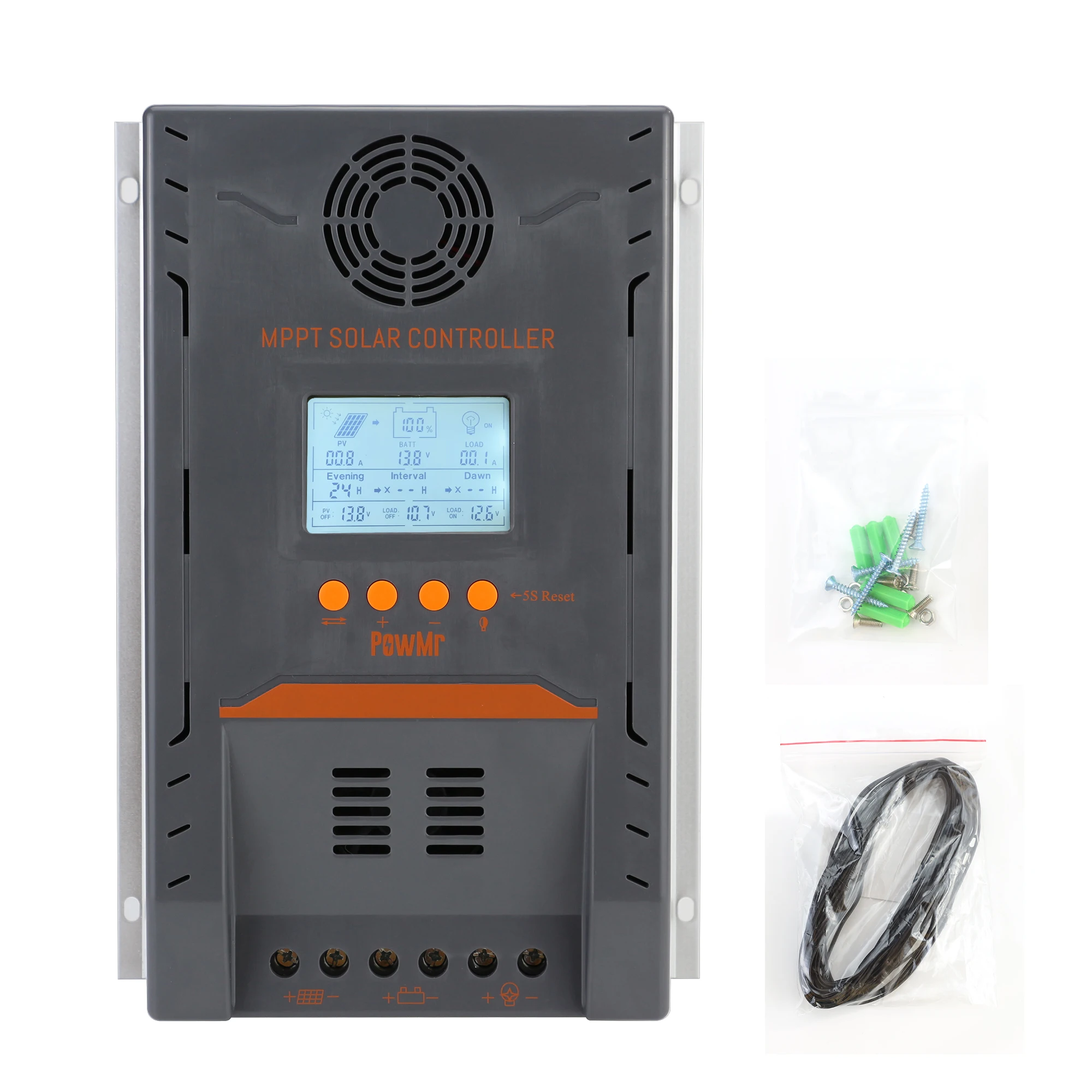

Product Picture
