Description:
1.10C 50K-250M 400MHz-2GHz Malachite Receiver SDR DSP Software Radio Shortwave Radio Receiver Malahite AM SSB NFM WFM

1. The PCB adopts a 4-layer board structure.
2. Shell, shield double shielding.
3. Touch chip, more sensitive touch.
4. Cavity double-diaphragm speaker.
5. No standby power consumption, the battery is more durable.
6. The radio is originally built based on the SDR, and the function is determined by the loaded software.
7. Frequency range from 50kHz to 250MHZ and 400MHz to 2GHz.

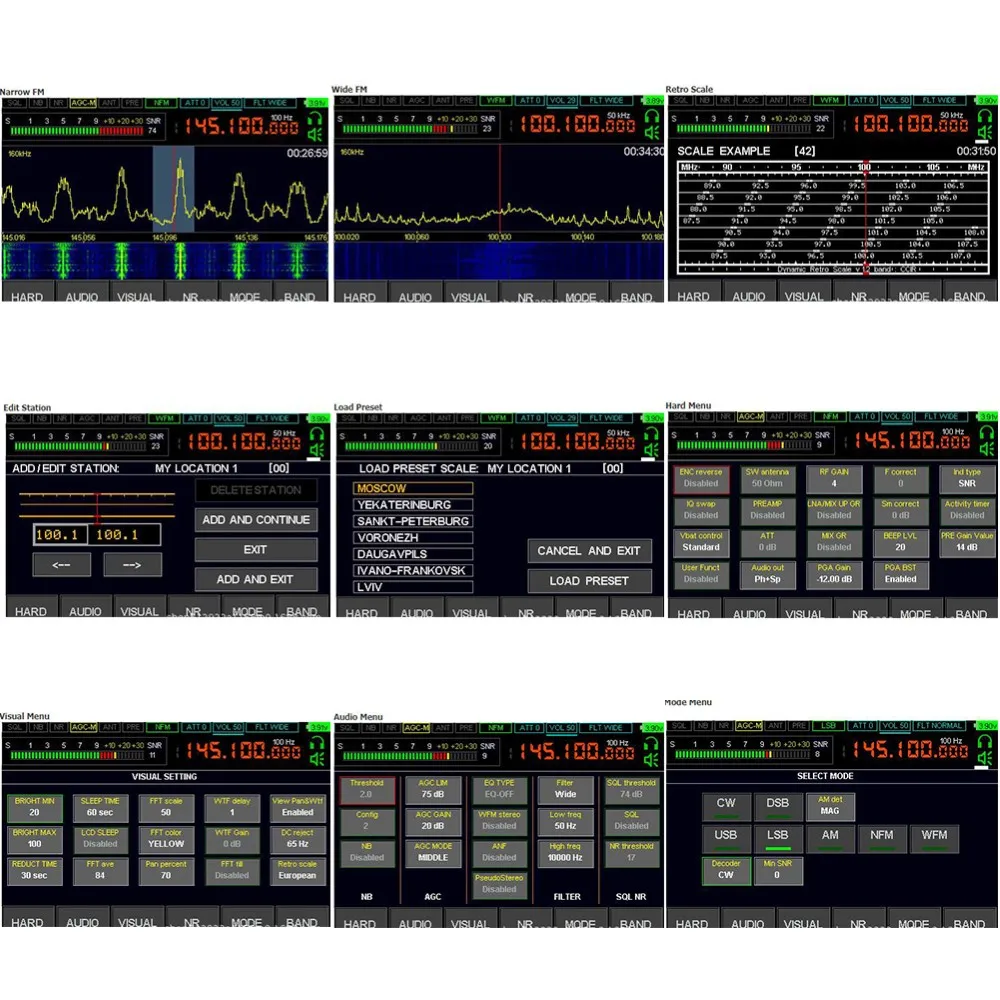

8. So types of analog modulation: AM SSB (LSB USB) NFM WFM.
9. Variable filter width, adaptive noise suppressor, threshold noise suppressor, Noise equalizer.
10. Use chip MSI001.
11. The powerful STM32h743 with a clock frequency of 480MHz is applied.
12. 3.5-inch IPS display with touch.
13. There is a built-in UHF.

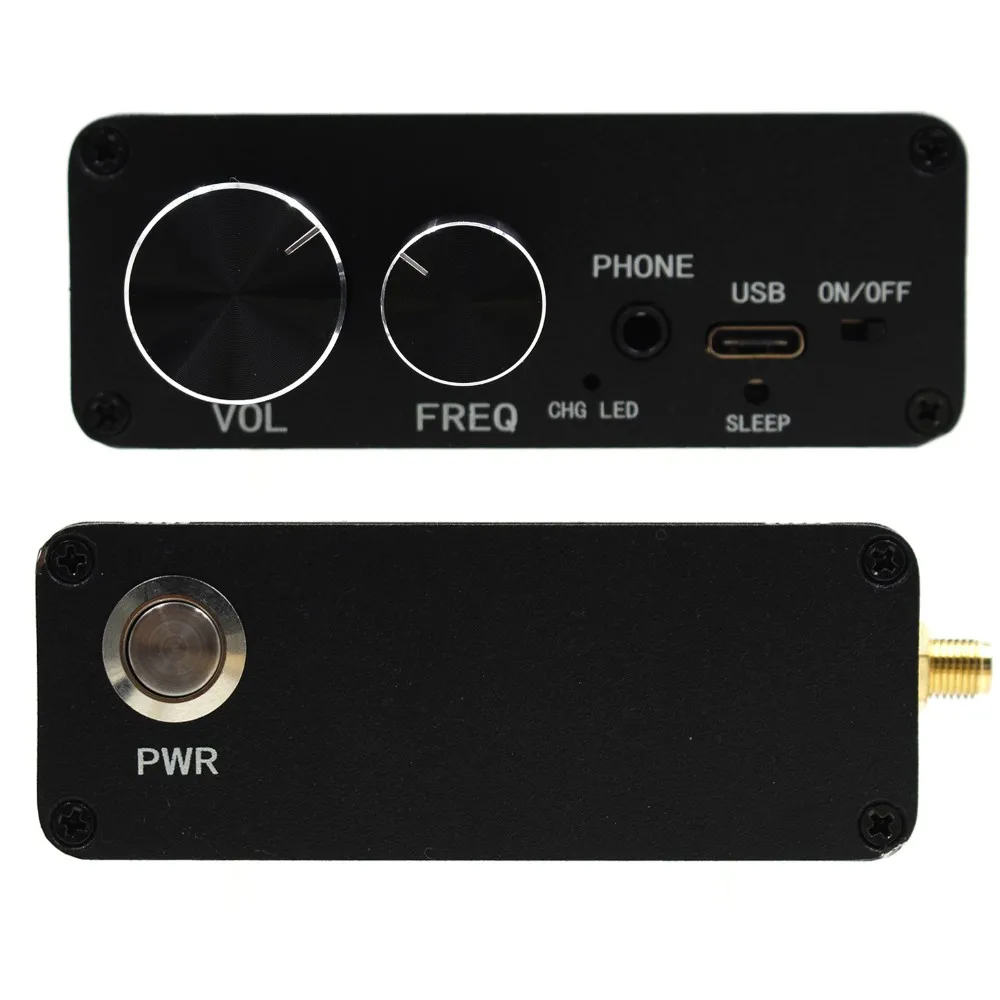

14. Controls 2 encoders with buttons and touch screen.
15. The power supply is powered by the external TYPE-C interface, which can be charged by the TYPE-C interface.
16. The current consumption in headphone mode is 300mA.
17. Built-in receiver module to improve HF reception on the antenna, an add-on board with source follower has been developed, the add-on board will be built into the standard receiver design.
18. Link to computer via USB, can transmit CAT, IQ and audio
160kHz span, with scalability.
19. Sensitivity, up to 250MHz, 0.3μV=10dB at s/w.
20. Due to the characteristics of the MSI001 chip used, the dynamic blocking range is about 85dB.
21. SMA female antenna socket.

Specifications:

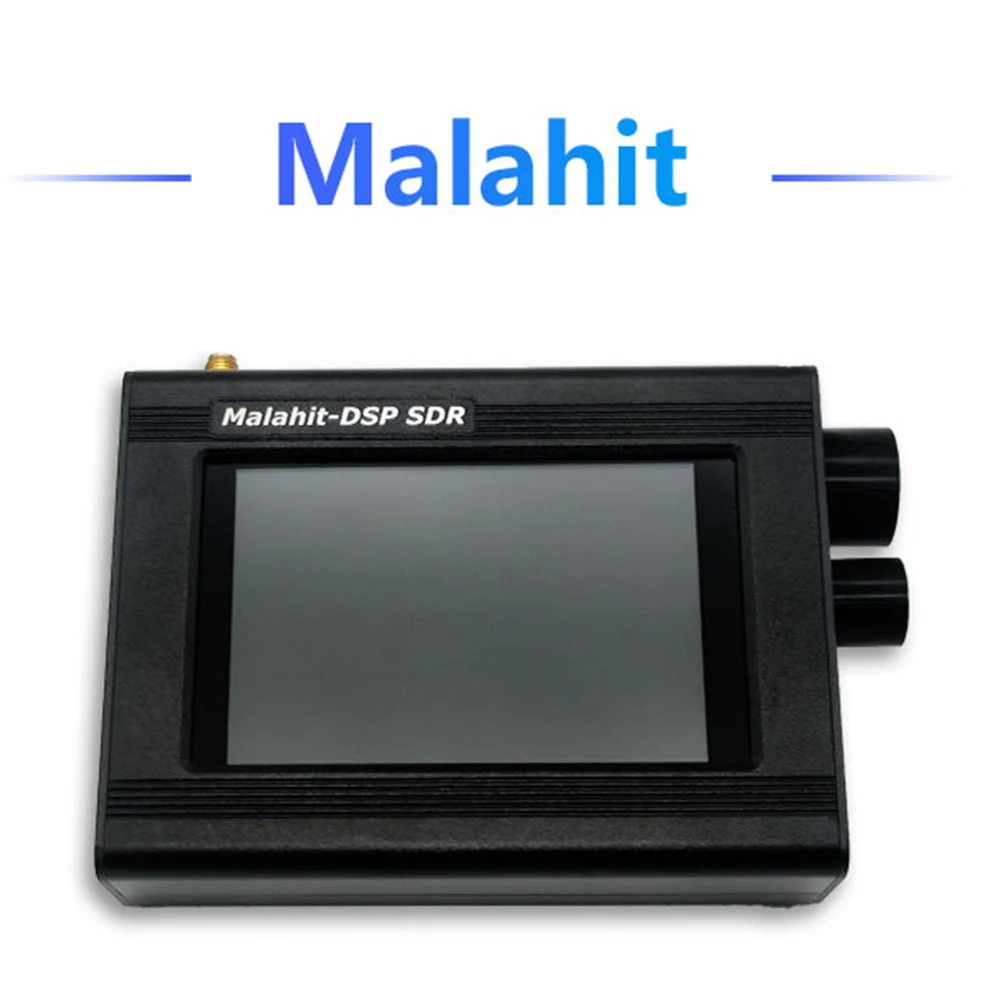

Item name: Malachite Receiver
Color: Black
Size: 113 x 85 x 32mm
Type: sdr radio receiver
Type: sdr receiver
Type: malachite sdr receiver
Type: malachite sdr radio
Type: malachite receiver

Note:
- There might be little error of size for manual measurement.
- The colors deviation might differ due to different monitor settings, please kindly understand.

Packing list

1 x SDR receiver (built-in cavity dual-diaphragm speaker)
1 x type-c charging cable
1 x Antenna
1 x Precision Instrument Screen Wipe
