Монитор с задней камерой AHD 720P или 1080P CCD HD с объективом FishEye 170 градусов стекло ночного видения с динамической траекторией.

Монитор с задней камерой AHD 720P или 1080P CCD HD объективом FishEye 170 градусов стекло ночного видения динамической траекторией.

CCD HD 1280x720P 170 Degree Fisheye Glass Lens Night Vision Dynamic Trajectory Guide Line Vehicle AHD Rear View Camera

AHD1280*720P

* Intelligent Dynamic Trajectory Parking Line Fits any AHD parking monitor and Android Car DVD Player . (Before Buying , Please check your monitor is supports AHD Signal or CVBS Signal ?)
* Does not require path box, CANBUS, or OBD interfaces, contains built-in reverse tracking module .

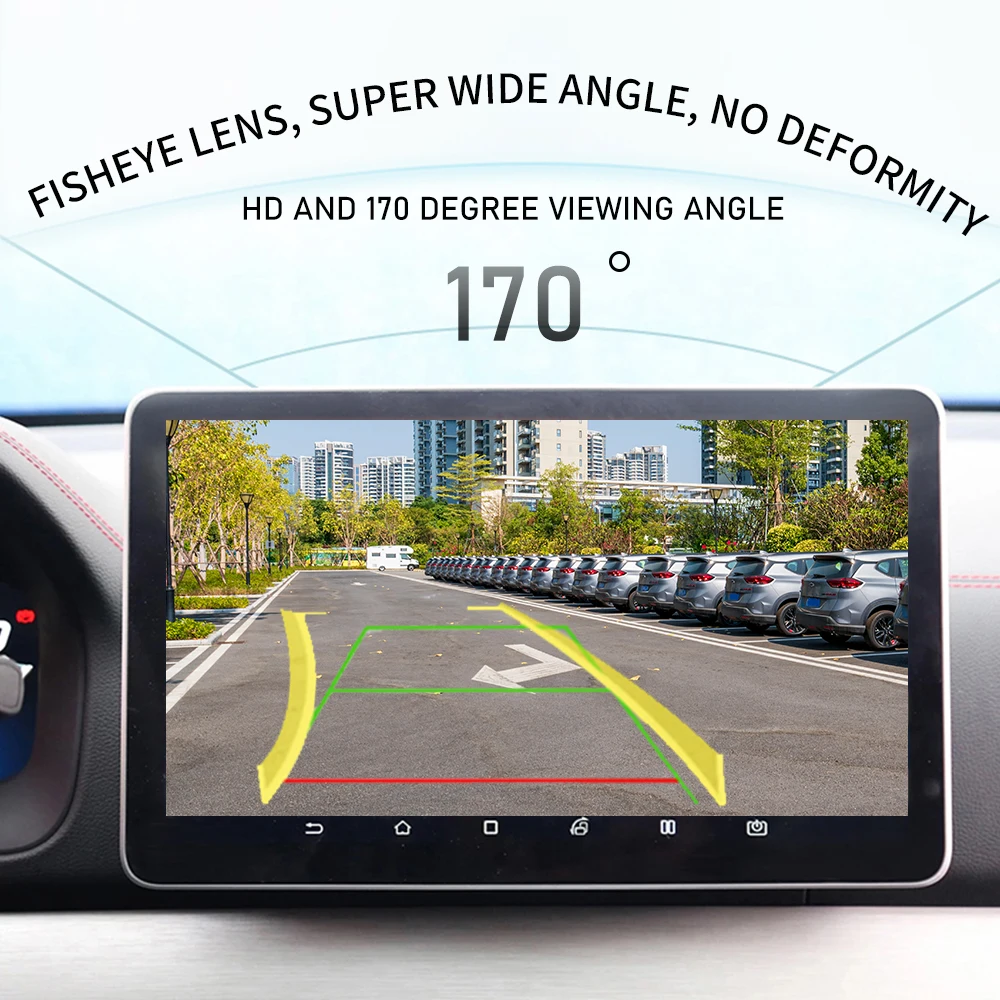

* Super wide angle Fisheye lens (170 degrees), image recognition technology, precise trajectory reversing. excellent image clarity, stability, and night vision.

Note:

1. the trajectory line is adjust the track automatically according to the moving position and speed of car body and angle. it is not following the steering wheel .
2. the Camera can not remove the trajectory parking Line .

Installation Steps:

1. Find a flat surface(parallel to ground) for mounting camera, then secure the nut and bolt in place.

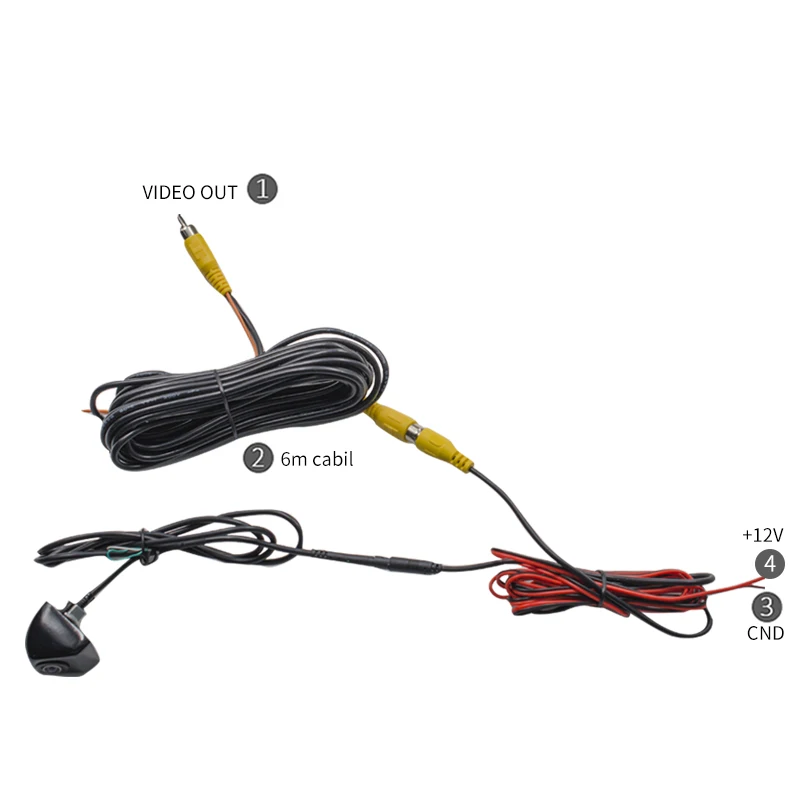

2. Connect the power cable to reversing light power supply.
3. Connect the 6m extension wire of backup camera to the head unit/other monitors of your car.
4. Start the vehicle and gear on reverse to test the camera.
5. Re-install the head unit/other monitors.

* Viewing angle: Real 165 Degrees Visible Range .

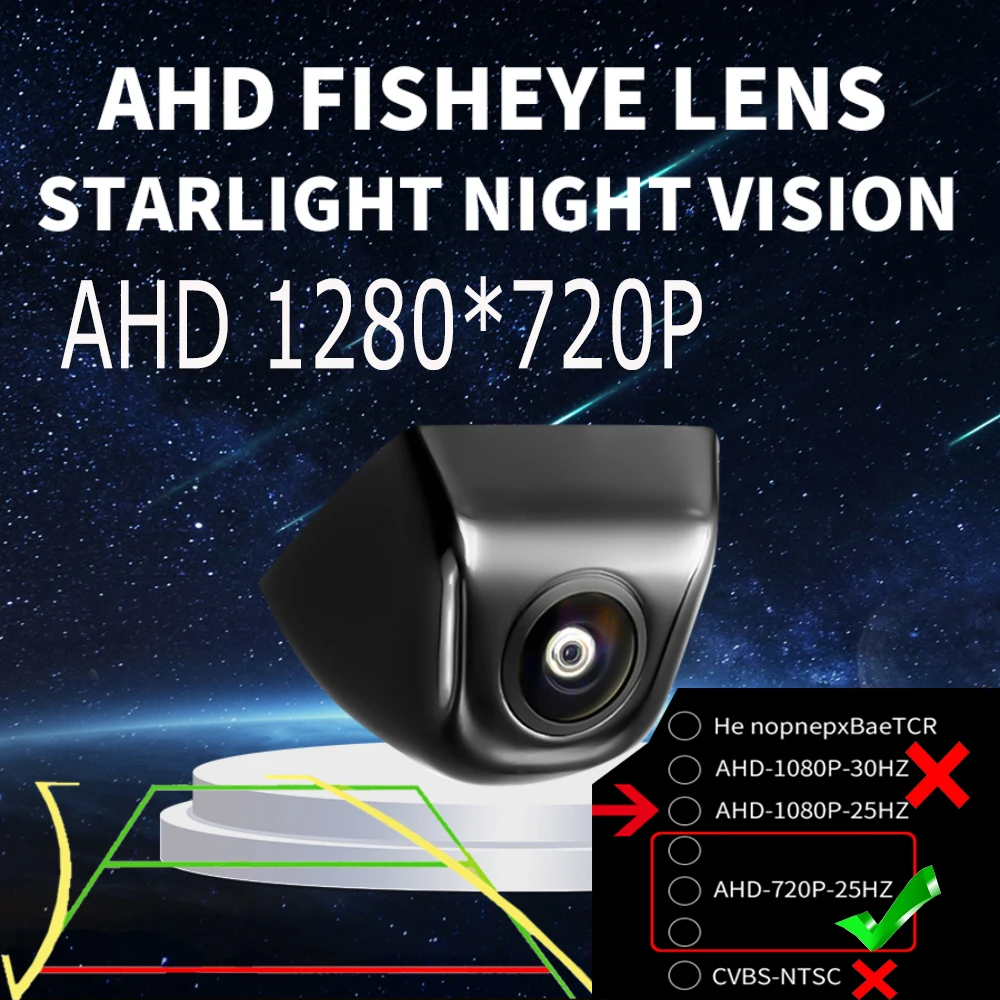

* Effective pixels : AHD 1280*720P or CVBS 960*720P .
* Signal format: NTSC
* Image resolution: 130W pixels
* Video output: AHD or CVBS Video Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V~24V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

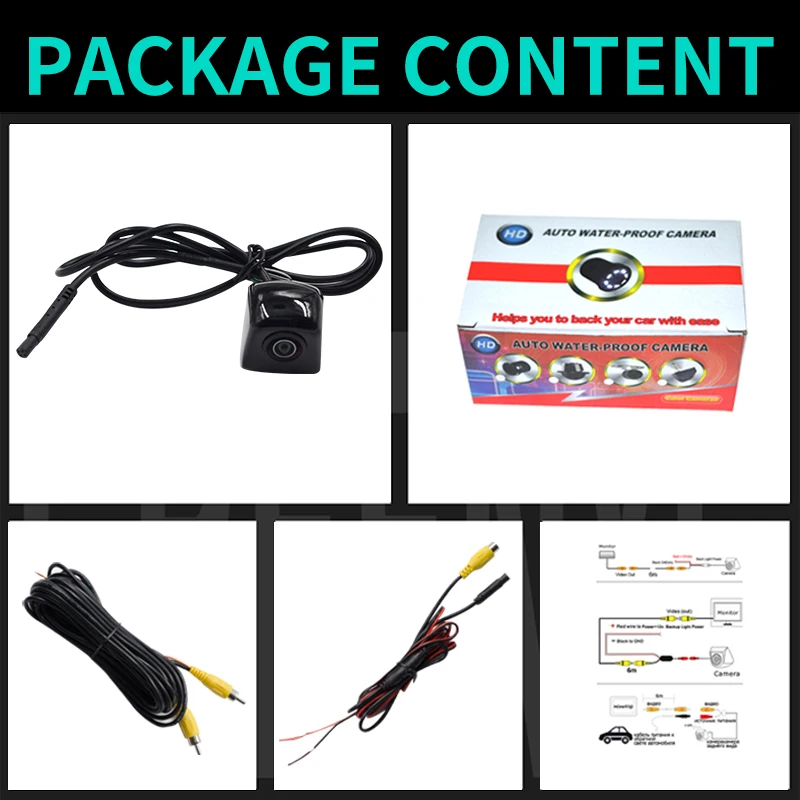

Package includes:

1 x Trajectory Camera
1 x 6m Video Cable
1 x 1.5m Power Cable
1 x Self-tapping screw
1 x Angle adjustment

NOTE:

* Please test the backup AHD camera before routing video cable from back to front.
* If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
* Some cheap Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all , hope you understand.
* There is a pink color wire on your Android DVD head unit usually, please connect it with the 6M video cable's triggering wire
* If the image on the screen is blurry, flickering or has horizontal/vertical strips, please check all your power and video connections. Try to use a different ground point(iron part) and wrap power and video plugs with electrical tape to insulate from interference. If still the same problem, please order a 12V DC power adapter filter rectifier to solve it, especially needed for Ford VW AUDI BMW Mercedes Benz vehicles.

Warranty

• All our items are tested to ensure working properly before shipping and come with a 12-month Manufacture Warranty.
• If this item has any problem when arriving, please feel free to contact us and give us chance to solve your problem.
• This link support " no reason to return goods within 15 days". The goods returned by the buyer shall not affect the secondary sales of the merchants.For the expenses incurred in returning and returning goods, the principle of responsibility shall be followed.
