Overview:

[PROTECTIVE ARMOR] for RED V-RAPTOR Minimizes Wear and Supports Accessories

[MOUNTING POINTS] include NATO Rail, ARRI Compatible Rosette, Cold Shoe, 1/4''-20 and 3/8''-16 Threads with Locating Pins

[TOP HANDLE] Offers Secure Option for Handling, Operating, and Mounting Accessories

[LWS BASEPLATE] Compatible with Tilta Standard Dovetails and Arri Dovetails via Optional Adapter

[15MM ROD SUPPORT] Attach 15mm Rods to your System via LWS Baseplate or Side Rod Holders

Arm your camera with the Basic Kit for RED V-RAPTOR.

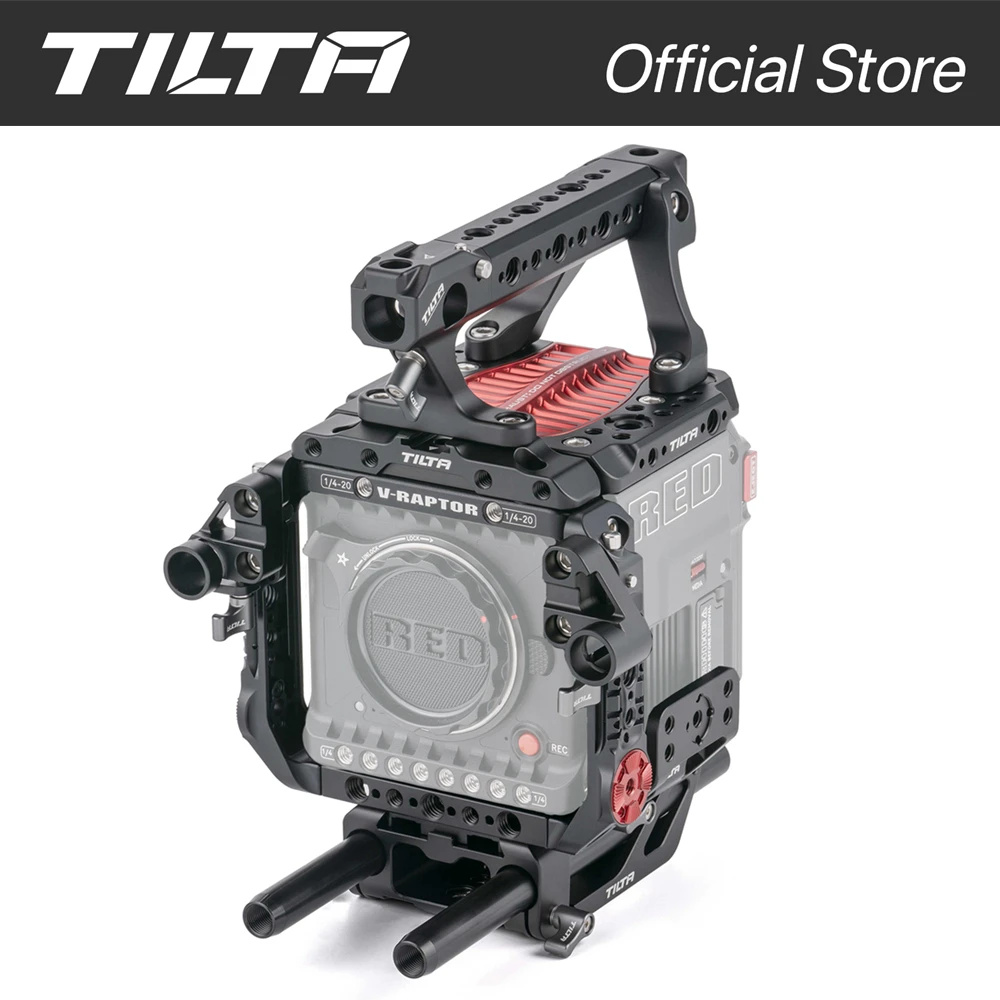

The Full Camera Cage provides protective armor for the RED V-Raptor and greatly expands your options for mounting accessories.

The cage features both ¼''-20 and 3/8''-16 threads, integrated NATO Rails for Side Handles and two Arri compatible rosettes.

The base of the cage also provides several mounting options for attaching your camera to various quick release systems and natively supports the included LWS Baseplate.

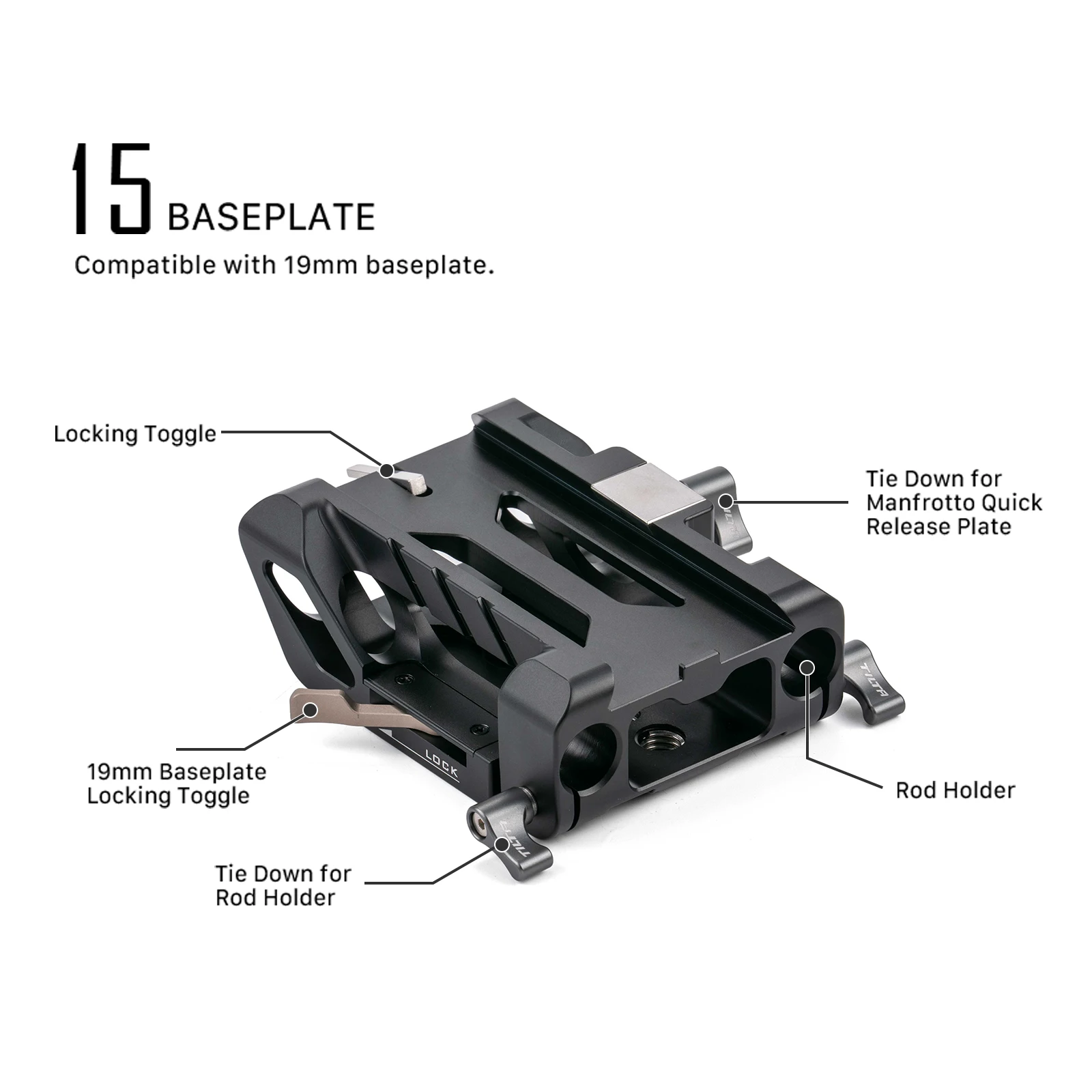

The included 15mm LWS Baseplate and two 15mm Rods allow you to utilize rod based accessories such as matte boxes and follow focus systems.

Under the Baseplate you'll find a Tilta Standard Dovetail Receiver which can be adapted to support Arri Standard Dovetails via our optional Tilta Standard to Arri Standard Multi-Functional Baseplate.

This baseplate can also mount to third party quick release plates via 1/4″-20 and 3/8″-16 threads.

The Top Plate and Rear Top Plate offer expanded options for mounting accessories without interfering with the camera's ventilation.

The Top Plates include 1/4″-20 and 3/8''-16 mounting points both with and without locating pins and a Cold Shoe Receiver.

The Rear Top Plate also includes exhaust vents engineered to mimic the V-Raptor's integrated ventilation system in order to provide maximum cooling capability.

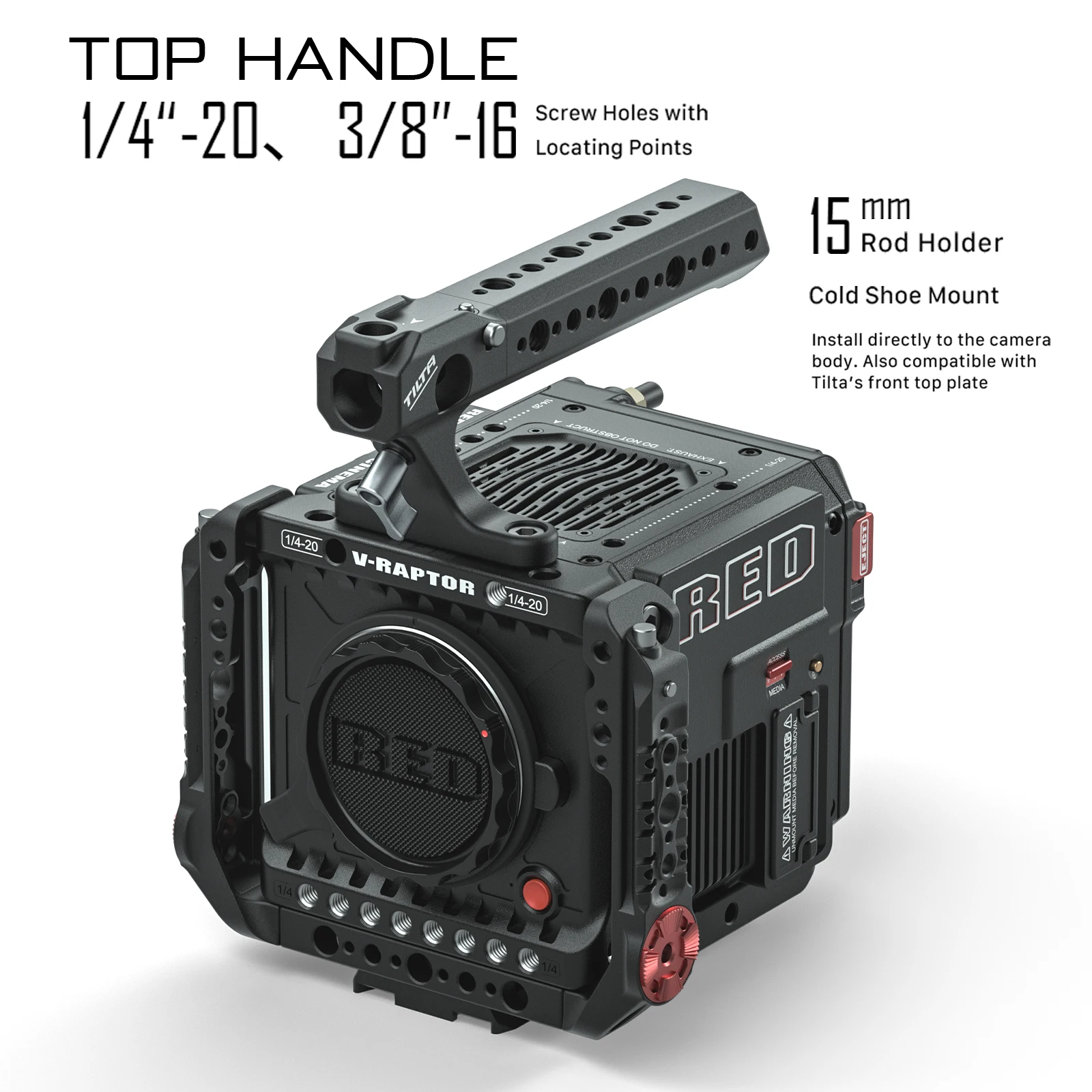

The Top Handle attaches to both the Top Plate and Front Top Plate which creates a secure point of contact for handling and operating your camera while also providing additional mounting points for accessories.

This Top Handle features both 1/4''-20 and 3/8''-16 mounting points with locating pins as well as one cold shoe receiver.

This Top Handle can also be broken down into a more compact configuration that only requires the Front Top Plate to mount, which better accommodates lightweight camera builds.

The Top Handle's newly designed 15mm rod mount allows you to mount a single 15mm rod either parallel or perpendicular to the Top Handle, allowing for more flexibility when mounting electronic viewfinders or external monitors.

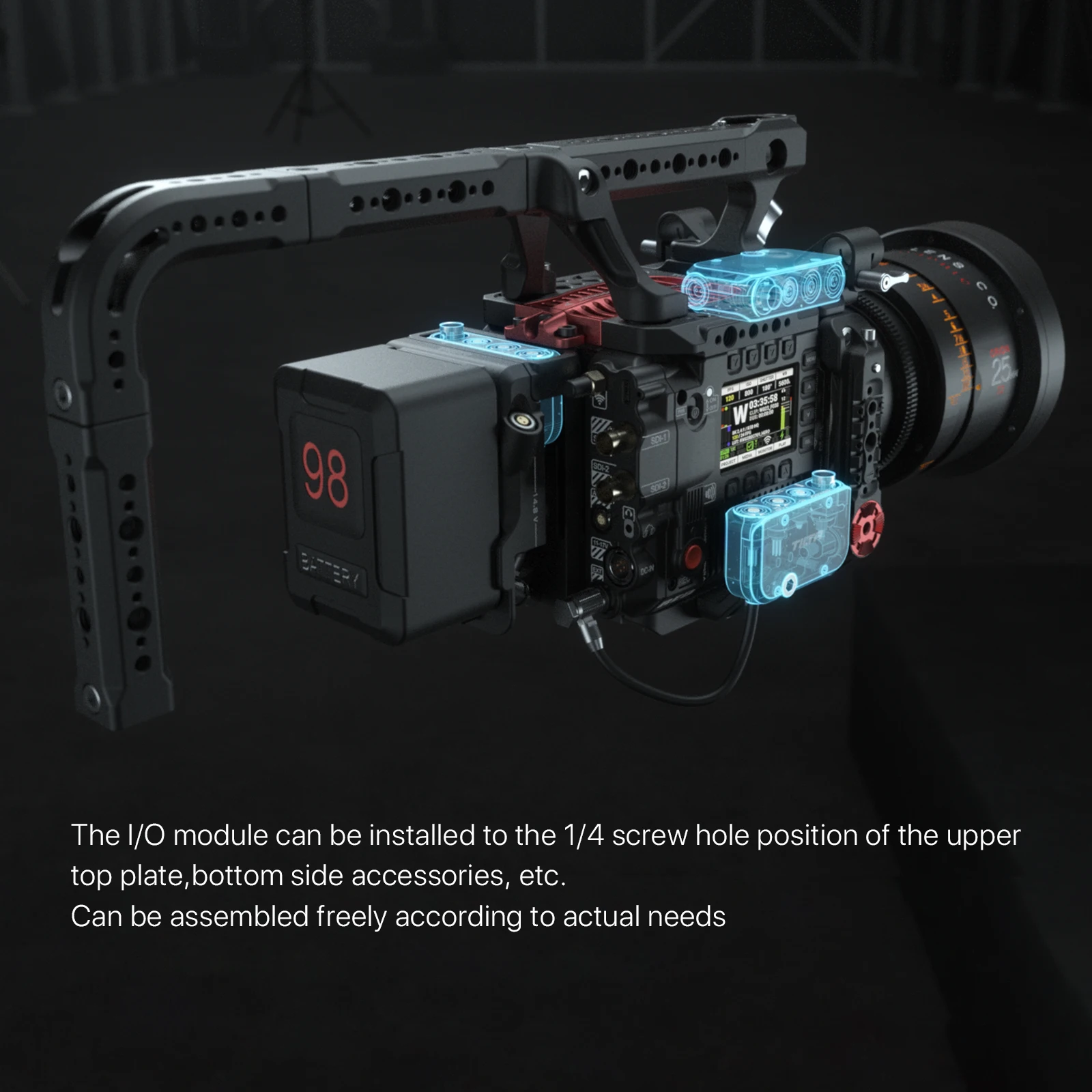

The included Bottom Mounting Plate attaches near the bottom of the Camera Cage, offers additional ¼''-20 mounting points with locating pins, and serves as an alternative location to mount the Advanced I/O Module. (not included)

The Right and Left Side Single Rod Holders mount along the side of the Full Camera Cage and provide a lightweight alternative to the baseplate.

Feature:

Dimensions: 16.5 x 9.5 x 6 inches

Weight: 4.9 lbs

Materials: Aluminum Alloy, Stainless Steel

Color: Black / White

Packing list:

ESR-T08-A

1.Full Camera Cage for RED V-RAPTOR（ESR-T08-FCC）*1

2.Front Top Plate for RED V-RAPTOR（ESR-T08-FTP）*1

3.Rear Top Plate for RED V-RAPTOR（ESR-T08-RTP）*1

4.Bottom Mounting Plate for RED V-RAPTOR（ESR-T08-BMP）*1

5.Aluminum Rod 15*200mm Black(Pair)（R15-200-B-P）*1pair

6.15mm LWS Baseplate for RED V-RAPTOR（ESR-T08-BSP）*1

7.Left Side Single Rod Holder for RED V-RAPTOR（ESR-T08-LRH）*1

8.Right Side Single Rod Holder for RED V-RAPTOR（ESR-T08-RRH）*1

9.Top Handle for RED V-RAPTOR（ESR-T08-TH）*1

ESR-T08-B-AB

1.Camera Cage for RED V-RAPTOR Basic Kit（ESR-T08-A）*1

2.Advanced I/O Module for RED V-RAPTOR(ESR-T08-IOM)*1

3.Battery Plate for RED V-RAPTOR – Gold Mount（ESR-T08-BP-AB)*1

ESR-T08-B-V

1.Camera Cage for RED V-RAPTOR Basic Kit（ESR-T08-A）*1

2.Advanced I/O Module for RED V-RAPTOR(ESR-T08-IOM)*1

3.Battery Plate for RED V-RAPTOR – V Mount（ESR-T08-BP-V)*1
