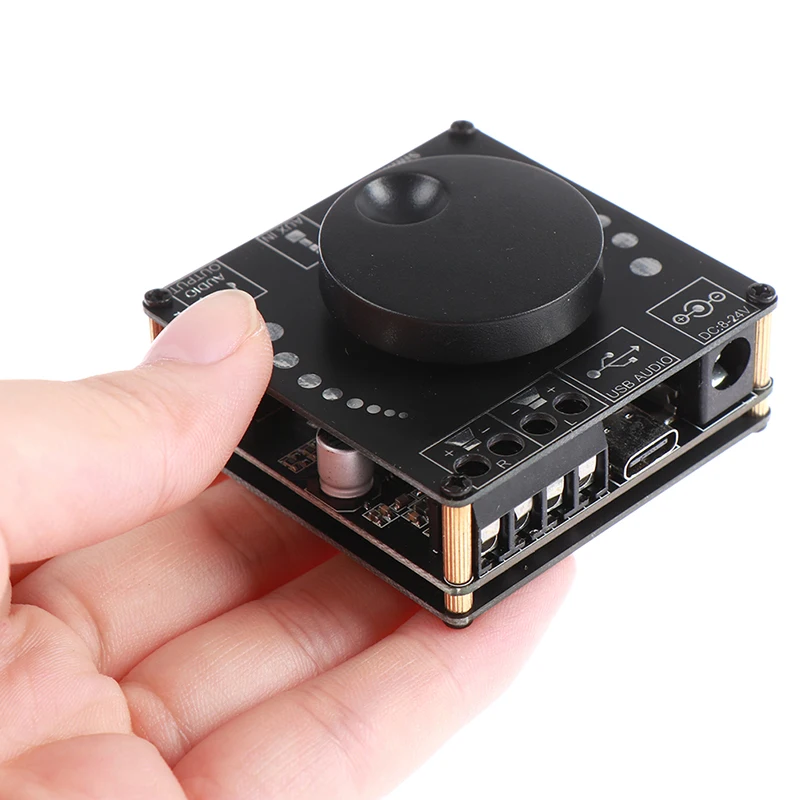

HIFI 10W/15W/20W XY-AP15H Stereo Bluetooth-compatible Digital Amplifier Board AUX USB-C Input 12V/24V

Features:
Using original XY-AP15H chip, High power rejection ratio, high AM rejection, high power conversion efficiency

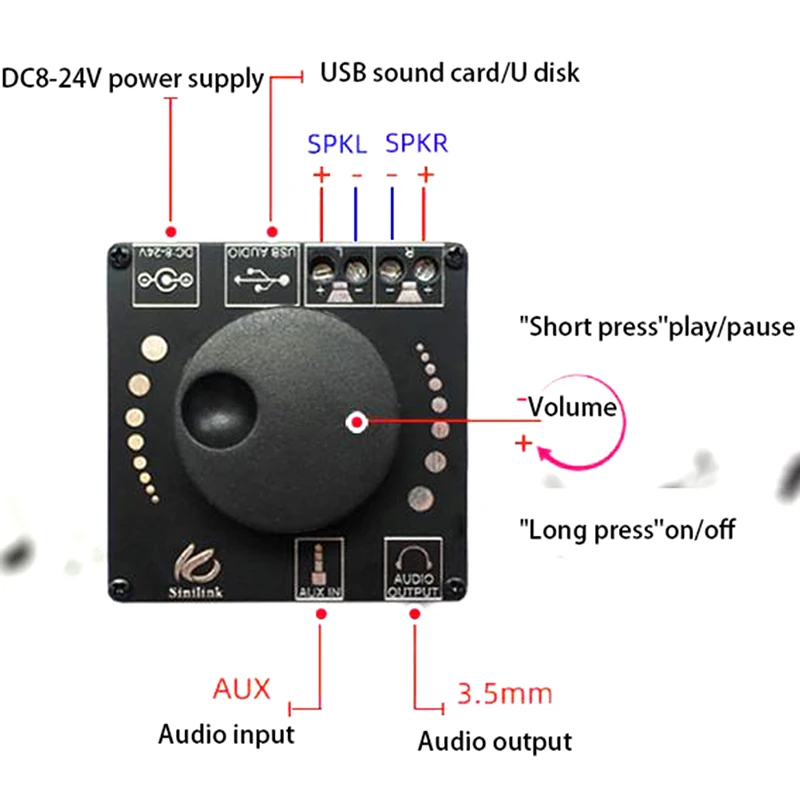

4 audio input mode: Bluetooth / AUX / USB-C disk / USB-C sound card
App control , it can be used to switch audio input mode / play mode / sound effect
Left+Right channel output (stereo)
Support active and passive speakers
Protection:  anti-static , reverse polarity , short-circuit , over-heat , over-voltage , under-voltage, DC protection

Parameter:
Name: 20W+20W bluetooth amplifier board
Model: XY-AP15H
Chip: 1 * TPA3116D2 (Class D)
Input voltage: DC 5-27V / 2A above
Bluetooth version: 5.0
Channel quantity: 2 (Left+Right stereo)
Audio input: Bluetooth / AUX / USB-C disk / USB-C sound card
Output : LC filter output, high-definition sound quality
Transmission distance: more than 15meters (Unobstructed)
Speakers range； 10W-200W , 4Ω/8Ω
Output power:
         10W*2@12V,8Ω 20W*2@12v,4Ω
         20W*2@18V,8Ω 40W*2@18V,4Ω
         30W*2@22V,8Ω 50W*2@21V,4Ω

Package include:
1Set Bluetooth Digital Amplifier Board

Note:
The protection board and heat sink need to be installed by yourself

APP download address:

Apple IOS: Search in Apple Store: Xinyilian or sinilink

Android: //m.pp.cn/detail.html?ch_src=pp_dev&appid=7921907&ch=default or go to the official website to download: http://www.sinilink.com/release.apk

Or download the APP on your mobile phone: PP assistant, search for 'Xinyilian' in the PP assistant to download or scan the code to download the APP

(Note: The major Android markets have been listed on the Xiaomi market, and the Huawei market has recently been listed)

For foreign customers, please download in Google Market, search for 'sinilink' to download
