Tuya Smart Switch Brazil 4/6 Gang WiFi Touch Switches 100-250V Neutral Wire Required Works with Alexa Google Home Life APP |

Tuya Smart Switch Brazil 4/6 Gang WiFi Touch Switches 100-250V Neutral Wire Required Works with Alexa Google Home Life APP |

ITEM DESCRIPTION

APP Remote Control

The smart switch can be remote controlled via Smart Life APP or Tuya Smart APP.

Voice Control

Voice control via Alexa or Google Home speakers by simple voice command.

Timer Function

Make a suitable daily/cycle timer according to you own living habits to turn on/off the smart switch on time.

Relay Status Function

Never worry about power off,there are 3 modes( on/off/restart memory ) you can set in app after power restore.

Multi-Control Function

After setting the multi-control association in app,the smart switch can achieve multi-way control.

Slight Backlight

You can turn on/off the backlight in app according to your own needs.

Sharing Function

Share the smart light switch to your family in app ,enjoying smart life together.

Group Control

Switch group control is available after setting in app,one-tap to control all.

WARNING NOTE

1.The smart wall switch can only work with 2.4GHz,please make sure that the WiFi is 2.4GHz network.
2.Please pay attention to that the circuit breaker power is off before you install the smart switch.
3.Please notice that the wire between the bulb and switch is L line.
4.This smart switch doesn't have smart scene function now.

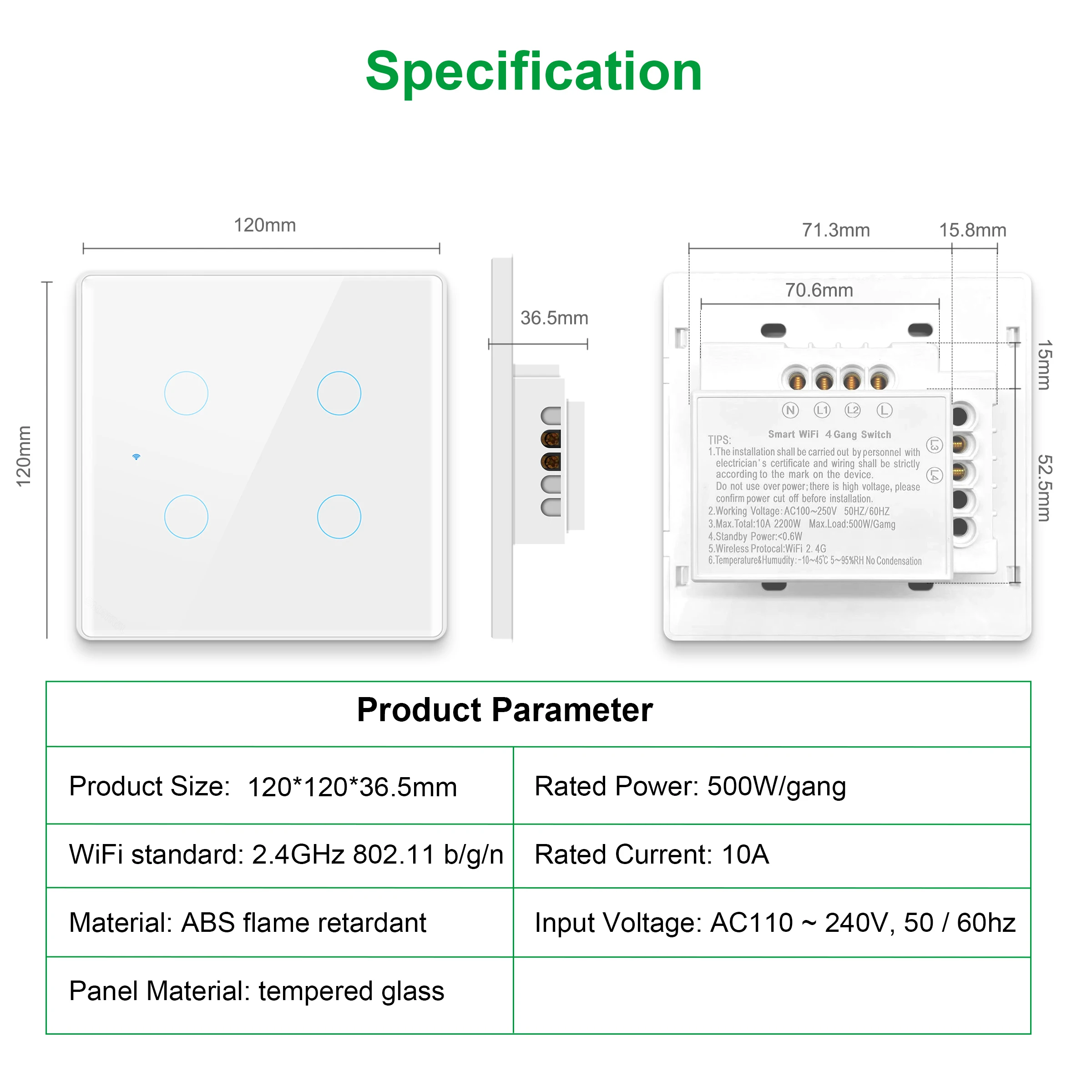

Specification

Type:Brazil Light Switch

Size:120*120*36.5mm

Working Voltage: 100-250V AC,50Hz/60Hz

Max. Total current:10A(pure resistive load)

Max. Charging power:2200W

Wireless Type: WiFi 2.4GHz

Working Temperatur:0℃~40℃

Working Humidity:5-95%RH

Support System:Android/iOS

Touch Panel:Tmepered Glass Panel

APP:TuyaSmart/Smart life APP

Voice: Alexa/Hey Google

Standby Power:≤0.6 W

APP Remote Control

Remote control the smart switch by Smart Life or Tuya Smart APP.

Voice Control

Voice control the smart switch via Alexa or Google Home Assistant by simple voice command.

Timer Schedule

Setting a daily/cycle timer schedule to turn on/off the wifi switch on time.

Milti-Way Control

Multiway control is easy to achieve after setting a multi-control association in app.

How to Set Multi-Control Association

Relay Status Function

Don't worry about the power failure,it has relay status function.

3 Kinds of Restart States

Normal on/Power Off/Restart Memory

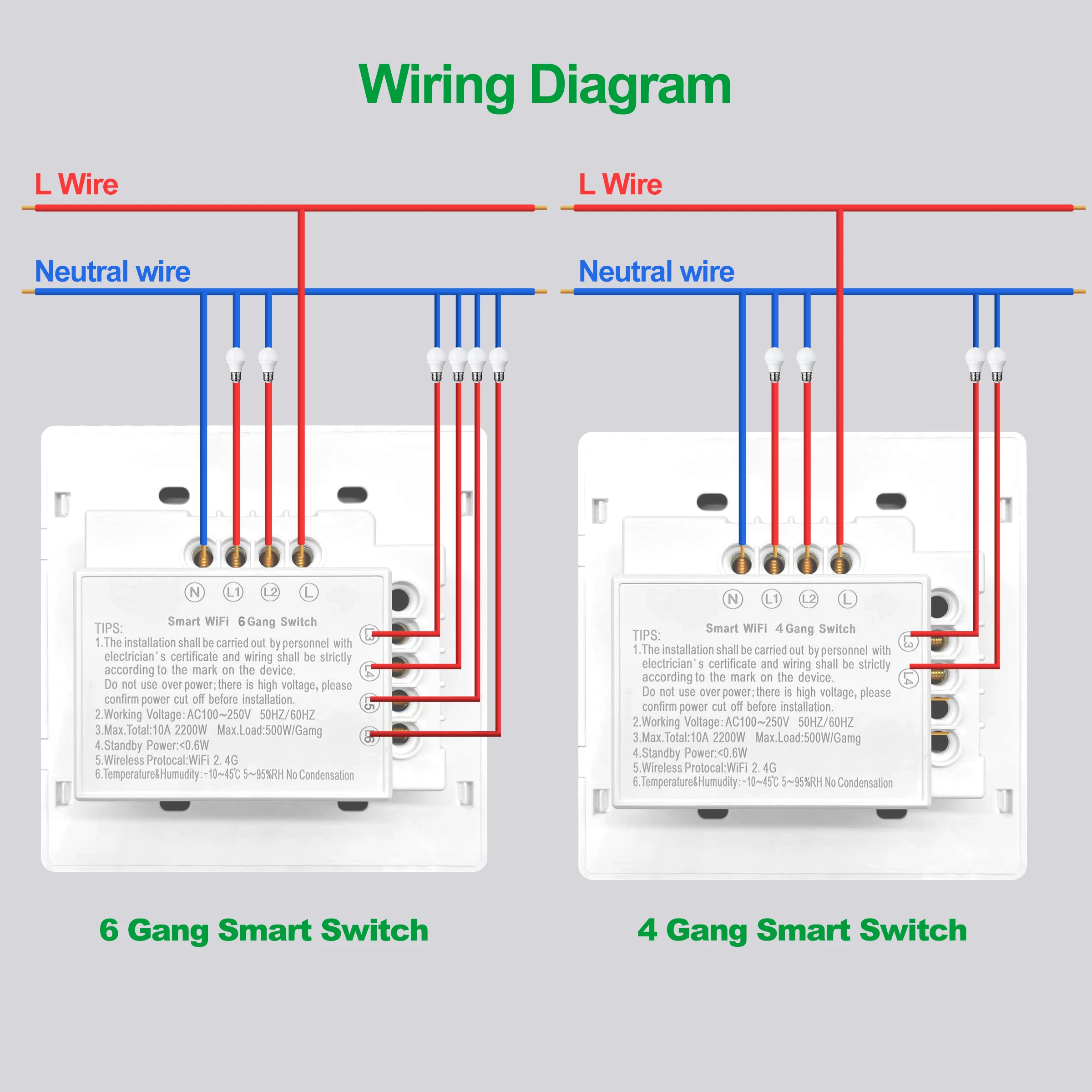

Wiring Diagram

Sharing Function

Share the smart light switch to your family in app ,enjoying smart life together.

Slight Indicator

You can turn on/off the indicator in app.

Tempered Glass

Specification

Product Display

FAQs

Q1:Can this switch achieve 2-way control?

A:Yes,it can.After setting a multi association in app ,the switch can achieve multi-control.And you don’t need to make a physical 2-way wiring.

Q2:Does it need a hub?

A:No,it’s a WiFi smart switch,it doesn’t need hub.

Q3:Can I make a linkage to other devices?

A:No,it doesn’t have smart scene function now.

Q4：Can it share directly to my family?

A:Yes,it can be shared directly in app.
