433МГц Беспроводной универсальный пульт дистанционного управления, переключатель переменного тока 110В 220В 30А высокой мощности, приемник и передатчик реле для насоса, света и вентилятора.

433МГц Беспроводной универсальный пульт дистанционного управления переключатель переменного тока 110В 220В 30А высокой мощности приемник и передатчик реле для насоса света вентилятора.

Smart Switch 433Mhz RF Universal Remote Control Swtich High Power AC 110V 220V 30A Interruptor and Transmitter,for Pump Light

Technical Parameter
1.Receiver

Working vlotage  :  AC 90~250V
Max current  :  30A
Maximum power  :  6600W
RF frequency  :  433MHz
Receiving Sensitivity  :  -105bd
Amount of storage remote controls  :  16 pieces
Support encoding  :  1527 Leaning code
RF Operating mode  :  ASK superheterodyne wireless reception
Receiving range  :  Open space is more than 50 meters
Remote operating mode  :  Momentary Mode /Toggle Mode/Latch mode/Delay mode
Size: 85*44*30 mm
Weight:71g

Main Feature
( Note : This module is rf 433MHz only. )
1. 30A high power: The receiver adopts 30A relay, which can load high-power electrical appliances to ensure long-term stability control.  Each receiver can store about 20 transmitters. And One transmitter can control multiple receivers too( the transmitter need to match with receiver ).
2.433Mhz RF wireless remote control switch.Stable and reliable performance with high reception sensitivity (> - 105dBm). Strong signal can pass walls, floors, doors
3. Extremely easy to set up and reset. There are 4 operating mode(momentary/toggle/latched mode/Dealy mode) can be chosen.You can easily set up by yourself depends on your needs. 5/10/15/20 seconds delay mode: turn off automatically
4. Up to 50 meters remote range: the more obstacles, the shorter the distance, the more serious the signal loss.
5. Family share: One switch can be controlled by almost 20pcs remotes
6. Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.You can remotely operate every device connect with the relay receiver through the remote control. such as lights, pump, wireless security alarm, fan, Lamp, wireless door alarm, ventilation device, monitor, printer, fountain and other electrical equipment etc.

Product Display

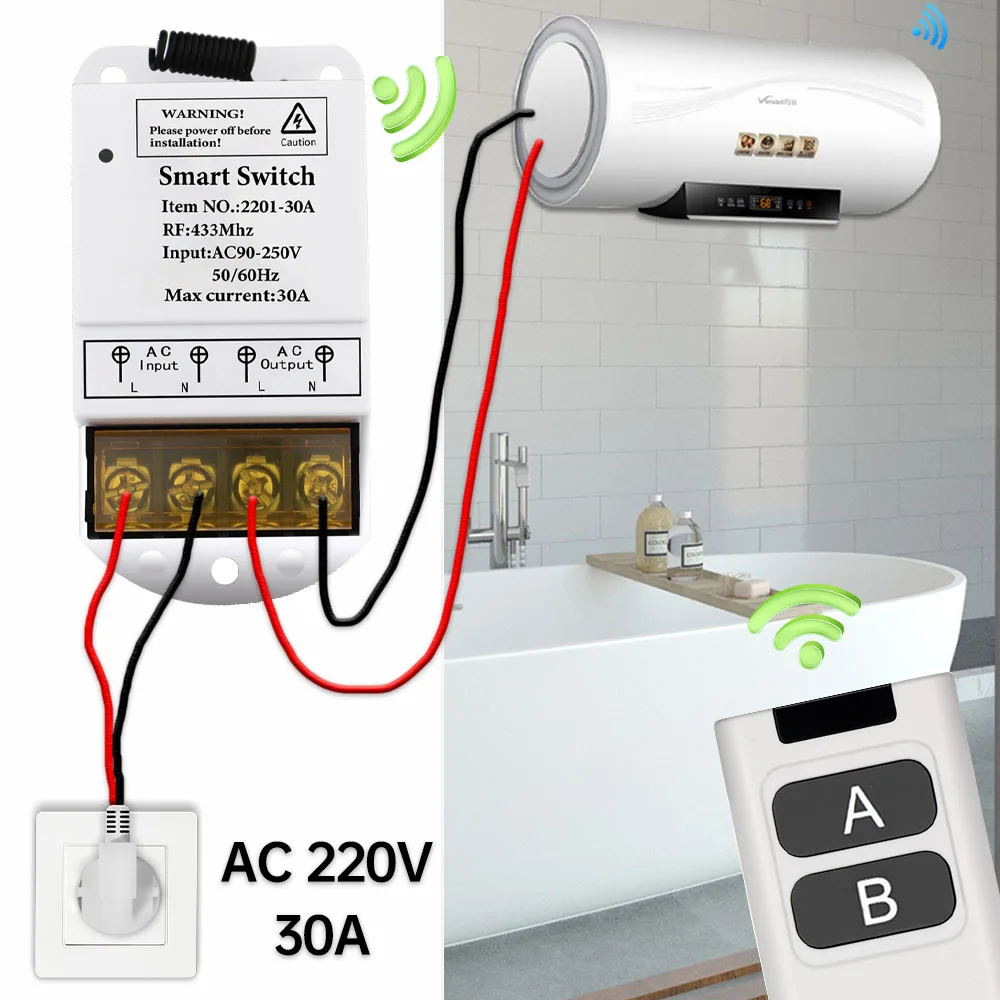

Circuit Diagram

1.Momentary mode
Press and hold on A button,The switch will turn ON;  relese the button,The switch will turn OFF
2.Toggle mode
Press A button, The switch will turn ON;  Press A button,The switch will turn OFF
1.Latch Mode
Press A button -> The switch will turn ON;  Press B button->The switch will turn OFF
2.Delay Mode
Press and hold on one button -> The switch will turn ON;  Release the button->The switch will turn OFF in 5/10/15/20 seconds

How to clean modes

Clean data:
Press learning button 9 times,the data will be cleaned.All remotes cannot control this receiver.

How to set up
- 1. Momentary Mode:
Program :
1. Press the learning button(on the Receiver) 1 time. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
- 2. Toggle Mode:
Program :
1. Press the learning button(on the Receiver) 2 time. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.
- 3. Latched mode:
Program :
1. Press the learning button(on the Receiver) 3 time. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
3. Press button "B" on the remote control. Wait for 3 seconds. Succeed.
- 4. Delay mode:
Program :
1. Press the learning button(on the Receiver) 4/5/6/7 time. Wait for 3 seconds;
2. Press button "A" on the remote control. Wait for 3 seconds.
Note:  Reset the receiver before you want to change the operating mode of one remote control.

Package include
220V 30A receiver,
Remote control,
