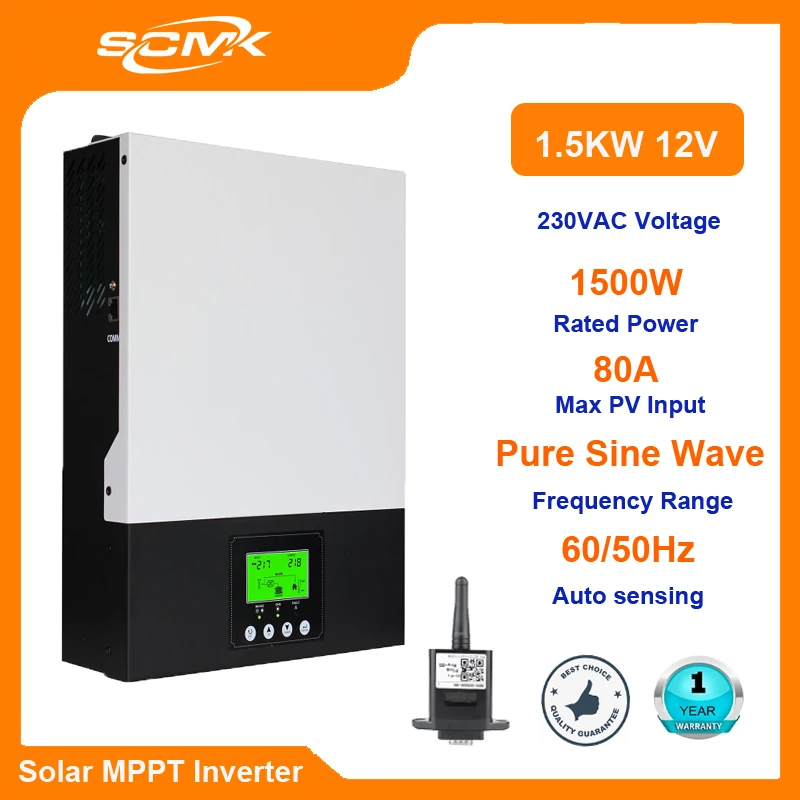

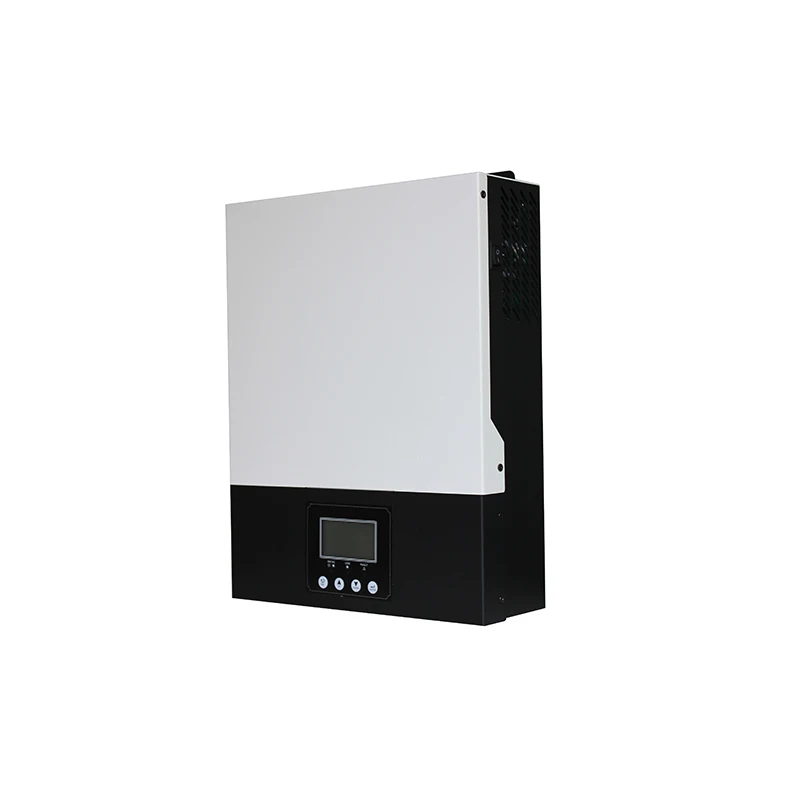

SCMK 1500W 2400W Inverter 12V 220V MPPT Pure Sine Wave Solar Power Bank Supply Mini Converter for Home Using

The payment link for the customers from the other countries as following:

https:/item/1005005115205595.html?spm=5261.ProductManageOnline.0.0.3ecb4edf0ilbnP

Product Parameter

Line Mode Specifications

VM 1.5K

VM 3K

Rated Output Power

1500VA / 1500W

3000VA / 2400W

Input Voltage Waveform

Sinusoidal (utility or generator)

Nominal Input Voltage

230Vac

Low Loss Voltage

170Vac±7V (UPS)

90Vac±7V (Appliances)

Low Loss Return Voltage

180Vac±7V(UPS)

100Vac±7V (Appliances)

High Loss Voltage

280Vac±7V

High Loss Return Voltage

270Vac±7V

Max AC Input Voltage

300Vac

Nominal Input Frequency

50Hz/ 60Hz (Auto detection)

Low Loss Frequency

40±1Hz

Low Loss Return Frequency

42±1Hz

High Loss Frequency

65±1Hz

High Loss Return Frequency

63±1Hz

Output Short Circuit Protection

Circuit Breaker

Efficiency (Line Mode)

>95% ( Rated R load, battery full charged )

Transfer Time

10ms typical (UPS); 20ms typical (Appliances)

Inverter Mode Specifications

Output Voltage Waveform

Pure Sine wave

Output Voltage Regulation

230Vac±5%

Output Frequency

50Hz

Peak Efficiency

91%

Overload Protection

5s@ ≥150% Ioad; 10s@ 110%-150% Ioad

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

12Vdc

24Vdc

Cold Start Voltage

11.5Vdc

23.0Vdc

Low DC Warning Voltage

@ load < 50%

11.0Vdc

22.0Vdc

@ load >50%

10.5Vdc

21.0Vdc

Low DC Warning Return Voltage

@ load < 50%

11.5Vdc

22.5Vdc

@ load >50%

11.0Vdc

22.0Vdc

Low DC Cut off Voltage

@ load < 50%

10.2Vdc

20.5 Vdc

@ load >50%

9.6Vdc

20.0Vdc

High DC Recovery Voltage Frequency

14.0Vdc

32Vdc

High DC Cut off Voltage

16.0Vdc

33Vdc

No Load Power Consumption

<25W

<30W

Charging Mode Specifications

Charging Algorithm

3-Step

AC Charging Current(Max)

60Amp
(@VI/P=230Vac)

60Amp
(@VI/P=230Vac)

Bulk Charging Voltage
Flooded Battery
AGM/Gel Battery

14.6

29.2

14.1

28.2

Floating Charging Voltage

13.5Vdc

27Vdc

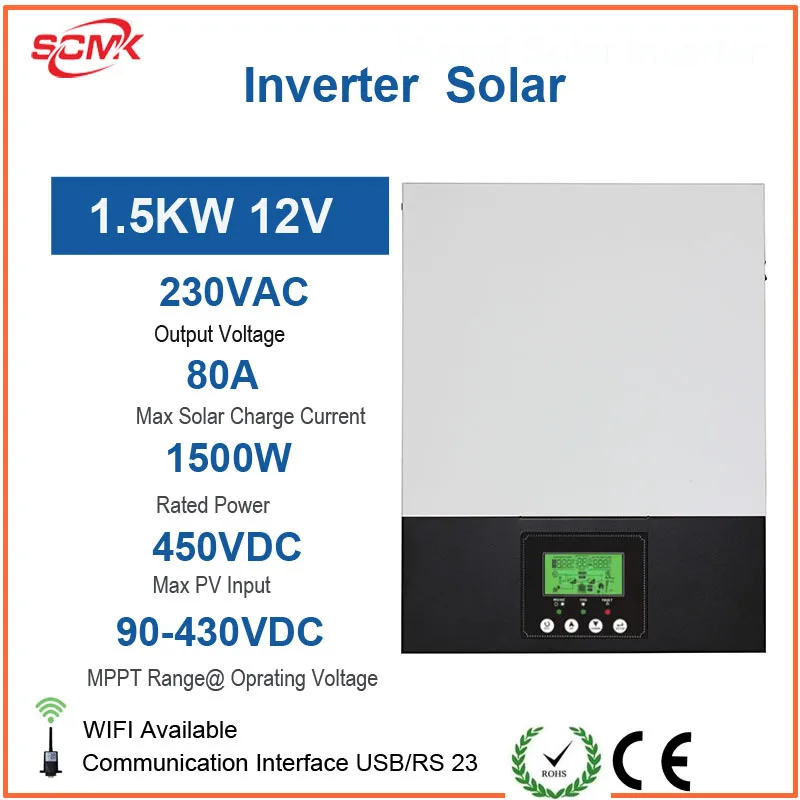

MPPT Solar Charging Mode

Max PV Array Power

2000W

3000W

Nominal PV Voltage

240Vdc

PV Array MPPT Voltage Range

90-430Vdc

Max PV Array Open Circuit Voltage

450Vdc

Max Charging Current
(AC charger plus solar charger)

80Amp

Safety Certification

CE

Operating Temperature Range

-10°C~ 50° C

Storage Temperature

-15°C~ 60° C

Humidity

5%to95% Relative Humidity(Non-condensing)

Dimension (D*W*H),mm

348X270X95

Net Weight, kg

5.1

6.2
