Переключатель металлический с красной-зеленой светодиодной кнопкой 16 мм 12 В для автомобиля с защелкивающимся нажатием ВКЛ./ВЫКЛ. (PM162F-11ZDT/R-G/12V/S/IP67 с символом питания CE ROHS).

Переключатель металлический с красной-зеленой светодиодной кнопкой 16 мм 12 В для автомобиля защелкивающимся нажатием ВКЛ./ВЫКЛ. (PM162F-11ZDT/R-G/12V/S/IP67 символом питания CE ROHS).

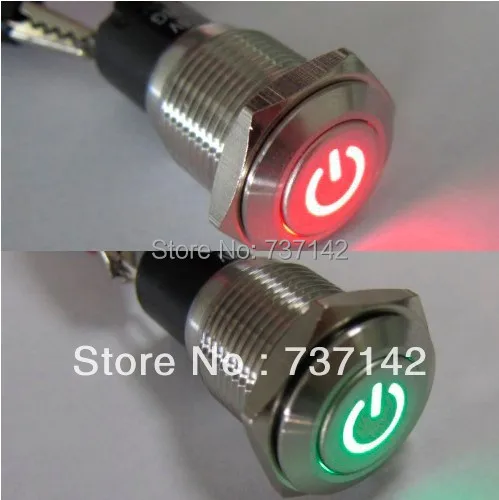

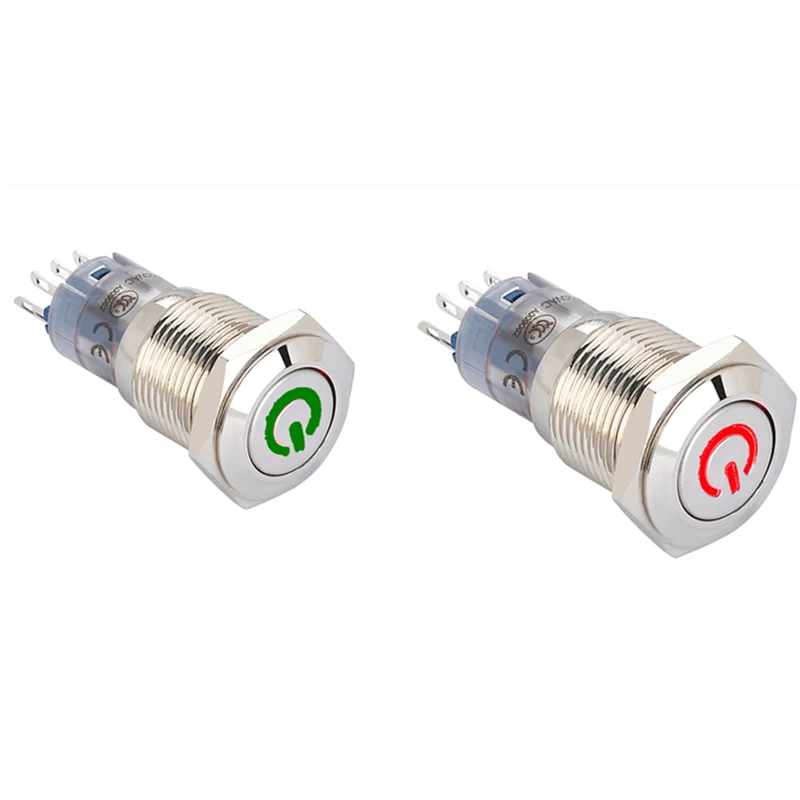

16mm 12V Car Auto Red-green dual LED Metal Switch Latching Push Button ON/OFF

Part number:

PM162F-11ZDT/R-G/12V/S/IP65 with illuminated power symbol

Install diameter:16mm

Switch rating: 3A/250VAC

Shape: Flat head

Function: Latching (1NO1NC)

Led type: Power symbol illuminated

LED Color: From positive to negative is Red color,

                 From negative to positive is Green color.

 (We can make other dual color for you, pls contact us)

Noted:To change the color of the led, the polarity of the led pins need to be interchanged.

Voltage:  2.8V to 250V

Terminal: Pin terminal

Crust material: stainless steel

IP rating: IP65

Temperature: - 40 to 75 Degree

We can make below special requirement(It will take extra charge, pls contact us first before you order):

1. Laser engraving for different symbol or Illuminated symbol.

2. Different metal body color can be make like Red,Green,Yellow,Blue,White,Orange,Golded.

3.Special design for the big diameter to 35mm or small diameter to 8mm.

4. We accept different payment way, like paypal,T.T,Escrow and so on.

5. Other special pls contact me, OEM or ODM for you!!!!

Noticed:

For the free freight charge by CHINA Post not have stable shipping time, sometimes need 60days to ship, so pls consider this before order.
