VJOYCAR Waterproof Mini GPS tracker Car Ebike Motorcycle Van Bikes 12V to 60V Free Tracking Software and Shipping! | Автомобили и





Attention:

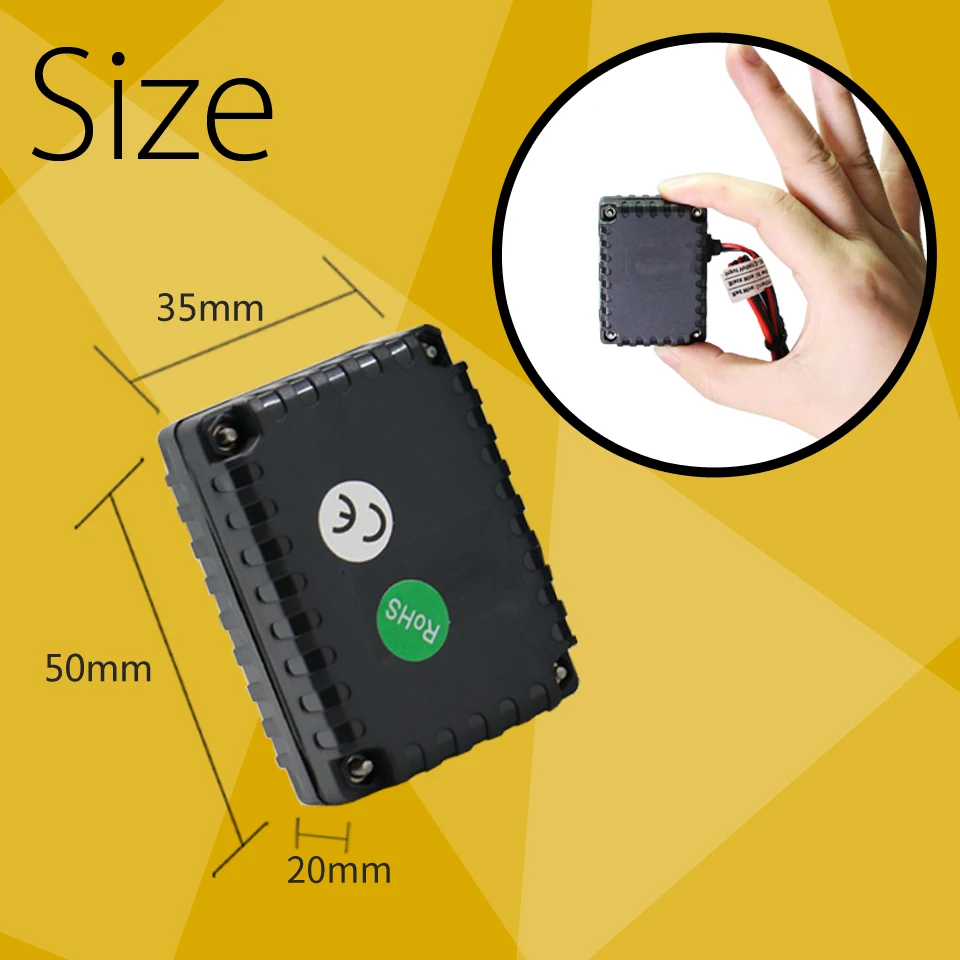

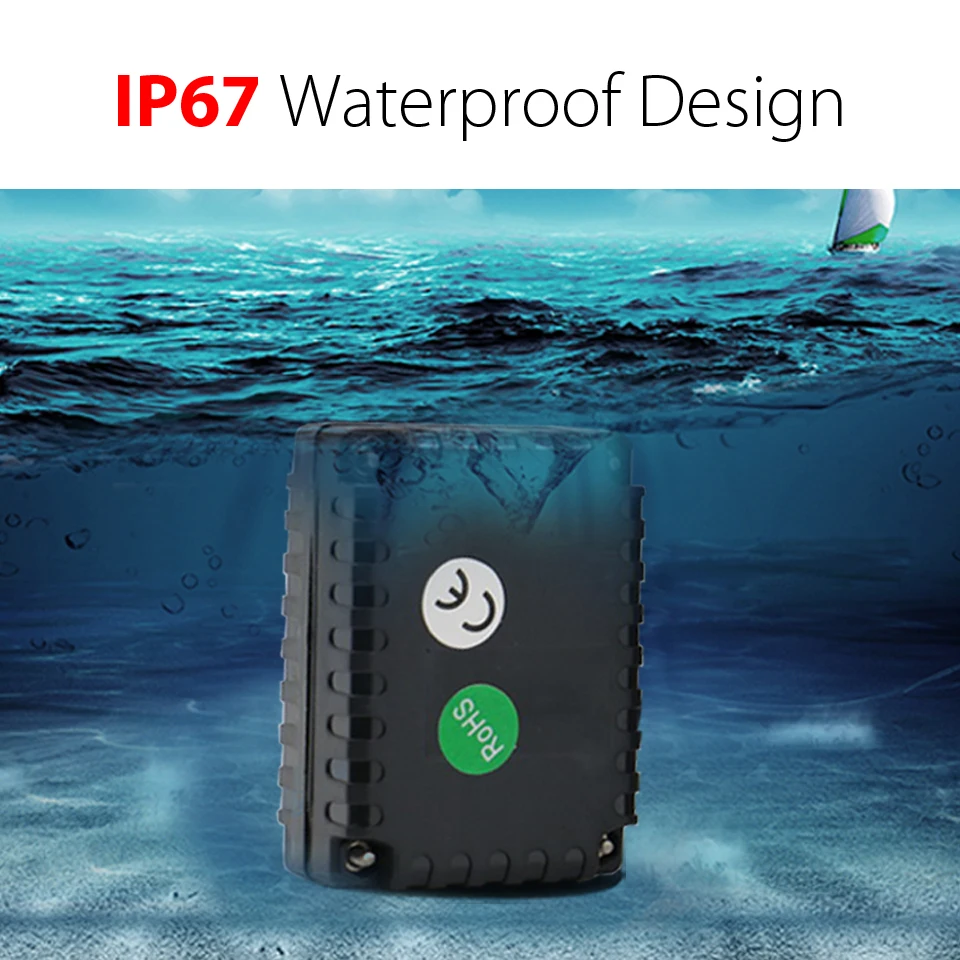

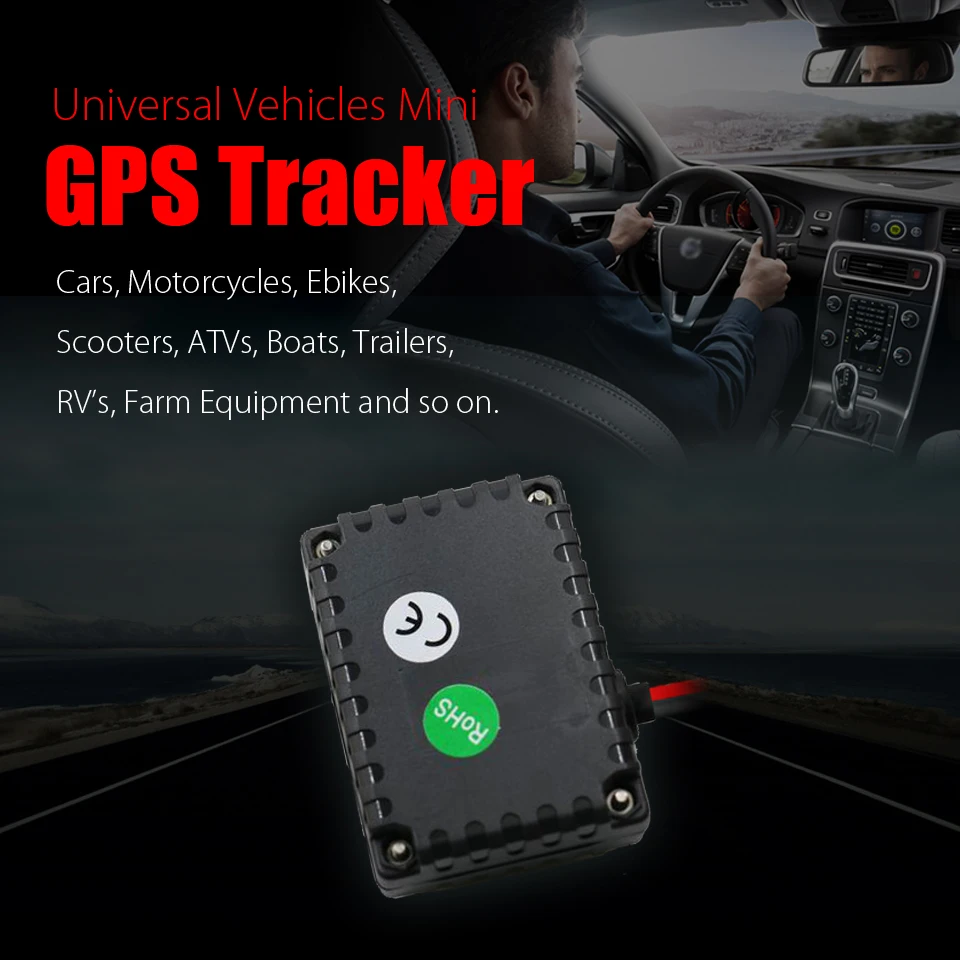

This is 2G GPS tracker, it's said Austrlia,Singapore,Mexico,Canada and USA will stop 2G service since 2017. If you are from above countries, please kindly buy 3G gps trackers.  ​ Product Photo:   Sales Points: 1)Waterproof Level IPX7; 2)Micro GPS tracker design,size is only 52*40*20mm  3)2 Input voltage selection:12-60V,can be widely used on the motorcycle,electric bike,car and other vehicles; 4)Just two cable,white and black,very easy to install,free from professional installation,cost effective.   Main Features: 1.Instant call alert for anti-theft when detect the vehicle moved on AUTOMATICALLY after installation; 2.Wide input voltage selection:   12-60V   ; 3.GSM 850/900/1800/1900 quad band,can be used on every country. 4.Built-in GPS/GSM antenna. 5.Web based real time tracking platform. 6.Can be tracked via SMS from the mobile phone. 7.Built-in watchdog CPU to avoid system crash. 8.Built-in motion sensor to save power. Size:52*40*20mm   Tech Specifications: Storage Temp: -40 to 85°C Operating Temp: -10 to 55°C GPS:   G6010-ST, 50 channel Antenna: Internal Frequency: L1 1575.42 MHz Position Accuracy: <5m Sensitivity: Tracking: –161 dBm Cold starts: –148 dBm Hot starts: –156 dBm Cold start:  <27s  Warm Start: <5s Hot Start:   1s A-GPS:     AssistNow Online and AssistNow Offline services, OMA SUPL compliant GPRS:    MTK 6260D Quad band; 850/900/1800/1900 MHz GPRS Class 12 Antenna: Internal   SMS Commands List: Function Command Description APN Setting *apn*AXXX*BXXX*CXXX* This command sets the telecom Access Point Name. BXXX refers to user name, CXXX refers to password. eg,*apn*cmnet* Master Setting

*master*123456

*+1XXXXXXXXXXXX*

+1 refers to the country code. XXXXXXXXXXXX is the cellphone number. Please make sure country code is included, and 0 is not needed before cell phone number eg,*master*123456*+8613621925935* Password Changing *password*654321* Original password is default as 123456. 654321 refers to new password. Vibration Sensitivity Setting *sensitive*1-5* 1 being the most sensitive, 5 the least. Default setting is 1. Motion Alert *callalert* Call alert will call master number 2 times when motion is detected after 3 minutes non-movement. *smsalert* SMS notification will sent to master number when motion is detected after 2 minutes non-movement. *alertoff* End Call/SMS alert Period Motion Alert On *continuousalert* 0-23*0-23* Device will enable motion alert function at appointed period of time *periodlocateoff*  End Period Motion Alert LLC Query *locate* Latest information of latitude, longitude, date, time and ranking. Address Query *locateaddress* Address information of current location. Google Map Search *locatemap* Google Map link with current location. Audio Monitoring

*callin*

 (T0024 don't have this function)

Call the device to start listening within 30mins after the SMS is sent. Call in Audio Monitoring

*callback*

(T0024 don't have this function)

The device will call the master phone number and enabling the Maser Controller to listen when the call is accepted. Call back Real-time Tracking *routetrack*1-99* 1-98 represents hours of accumulated data, 99 means always on. eg,*routetrack*1* (routetrack,rsampling and rupload only upload data when device is moving.) Sampling Interval *rsampling*1-999* 1-999 represents seconds of data collecting interval, default as 10 seconds. eg,*rsampling*10* (routetrack,rsampling and rupload only upload data when device is moving.) Upload Interval *rupload*60-999* 60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60. *rupload*60* (routetrack,rsampling and rupload only upload data when device is moving.) Real-time Tracking Off *routetrackoff* End routetrack function. Check Location *check*0-99* Track by hour. 0-99 represents hours of data upload interval, default as *check*0*  eg, *check*1* (check and checkm upload data when device both stationary and moving.) *checkm*10-99* Track by minute. 5-99 represents minutes of data upload interval eg,*checkm*10* (check and checkm upload data when device both stationary and moving.) *checkoff* / *check*0* End check function Period Tracking

*periodlocate*

XXXXXXXX**XXXXXXXX*

GPS location data will be uploaded to server at appointed periods, up to 3 time periods. *periodlocateoff* End period tracking function. Appointed Time Tracking

*timinglocatemap*

XXXX*XXXX**XXXX*

Check map location at appointed time *timinglocateoff* End appointed time tracking function Upload Alert *uploadalert*on* All alerts will be uploaded to server *uploadalert*off* End upload alert function Online Control *onlineon* Enable online control function *onlineoff* End online control function Deep Sleep Setting *sleep*1-99*  1-99 represents hours of deep sleep period.eg, *sleep*1* Period Motion Sleep * sleepv*1-99* Period Motion Sleep. 1-99 represents hours of deep sleep period. eg, *sleepv*1* Motion Sleep * sleepv* Motion Sleep function with motion alert.  Sleep Off *sleepoff* End Deep Sleep function.  Status query *status* Check system status Multi Controller *multiquery* Enable multi controller function *multiqueryoff* End multi controller function Device Information *about* Software edition information and device’s serial number.
      SMS Configration Steps:   Free Web Tracking Platform:     CE Certifications:

  Our Factory:

  Payment Terms:

We accept payment by Visa Card,Master card,Alipay,Qiwi Wallet,Western Union and Bank Transfer T/T.

Shipping Terms:

1.       FREE shipping by singapore post mail service, and paid EMS/DHL/Fedex/TNT/Fedex supportd.

2.       All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will send a email to you include the track number and the package photos.

3.       We will be responsible for all problems in China Customs to ensure all orders pass by China Customs successfully. However, all buyers are responsible for your local Customs, do assistance to make clearance, and pay for Custom taxes and duties if it happens.

4.       Drop shipping are welcome always, so please just leave us the right contact number and address;



Warranty Terms: 1.       All orders will be in good quality, package condition and will be strictly checked before shipment. We will try our best to avoid any unhappy problem from quality or package, therefore, please kindly let us know if you feel not satisfied when receive the orders.

2.       All orders enjoy 12months quality warranty since shipment. We offer free repairmen always whether it’s with or without warranty period, but buyers need pay for the accessories cost and shipping cost.

3.       Please kindly note that, because different display and/or computer monitor, the color will be a little aberration. Therefore, wish you would understand. If you are not happy with the orders, please feel free to let us know.
