This product is a SDI (Serial Digital Interface) switcher,it can switch 2 channels of SDI signal to a SDI signal,and it support Full-HD SDI signal input and output,it also very easy to be use with high stability and reliability.And it is widely used at all the TV station and other work place,safe security monitoring,training venue and so on.
Function1:SDI switcher
Please connect the device according to the "installation steps",the SDI switch would work,it support SD-SDI(270mBPS),Full HD-SDI(10485Gbps) and Full 3G-SDI(2.97Gbps) video format,to make sure 2 channels of the SDI signal input to 1 channel of the SDI signal output.
2:Extend
This product with a build-in Equilizer, Reclocker and Cable Driver,support the Max cable length(Belden-1694A).
SDI cable input and output instance:SD support 400M,HD support 200M,3G support 100M(theoretical value,depends on the cable quality)
3:Wide voltage design
This item with a build-in wide voltage design,support DC 5V-36V voltage input(support up to 2W),it is more fitter to the project.
4: Kinds of the control
It support button and remote control to switch to the channel you want to.
VI.SpecificationPower adapter
Range:DC5V~30V Power:<2W
Power port diameter:2.1mm Standard:5V/1A power adapter

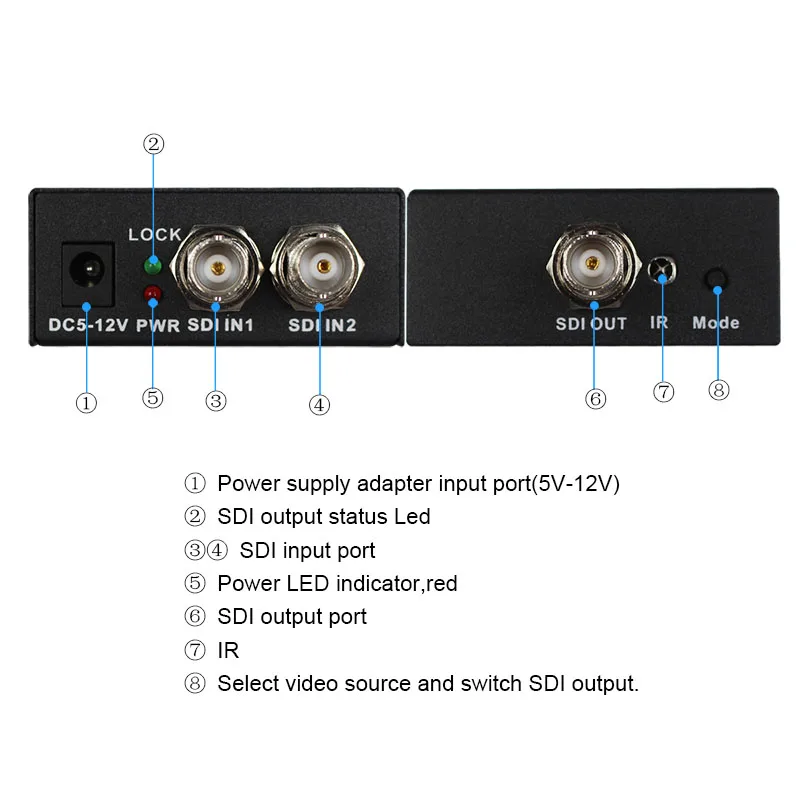

SDI input port
BNC SDI×2 (depends on the mode of the device)
SDI output port
BNC SDI×1
SDI standard
Compatible SMPTE 424M,SMPTE 292M and SMPTE 259M-C
SDI signal format
SD-SDI HD-SDI 3G-SDI
SDI speed
143-2970MB/S
SDI resistance
75Ω
SDI input resolution
480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/
SDI output resolution
480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080p@24@25@30@50@60Hz
SDI signal output range
800mVp-p
Net weight
205g/340g
Size(L×W×H)
105×62×24(mm)/170×68×24(mm)
Temperature
0℃~60℃

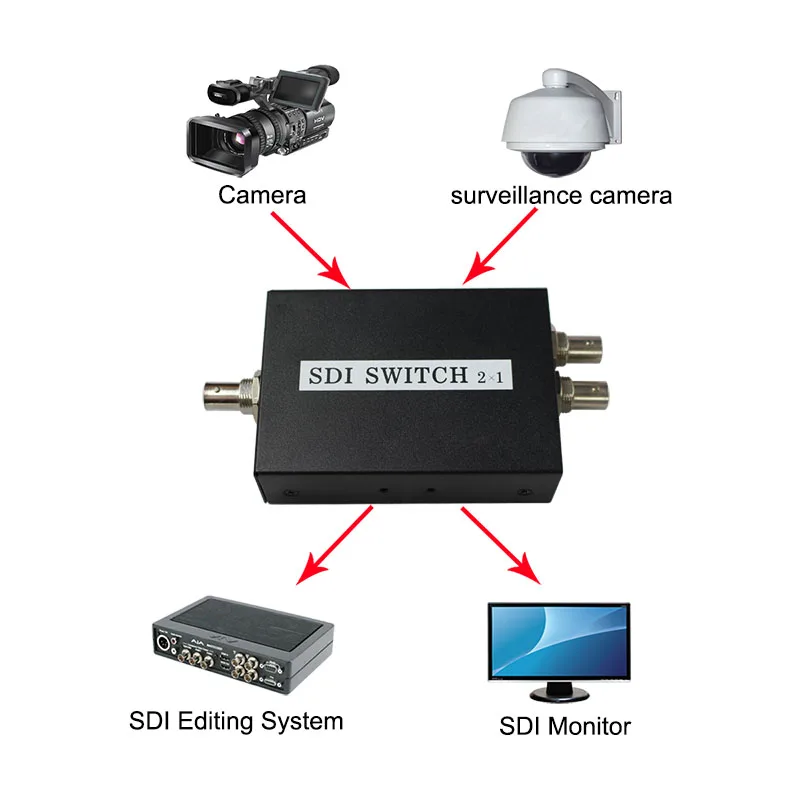

Application
