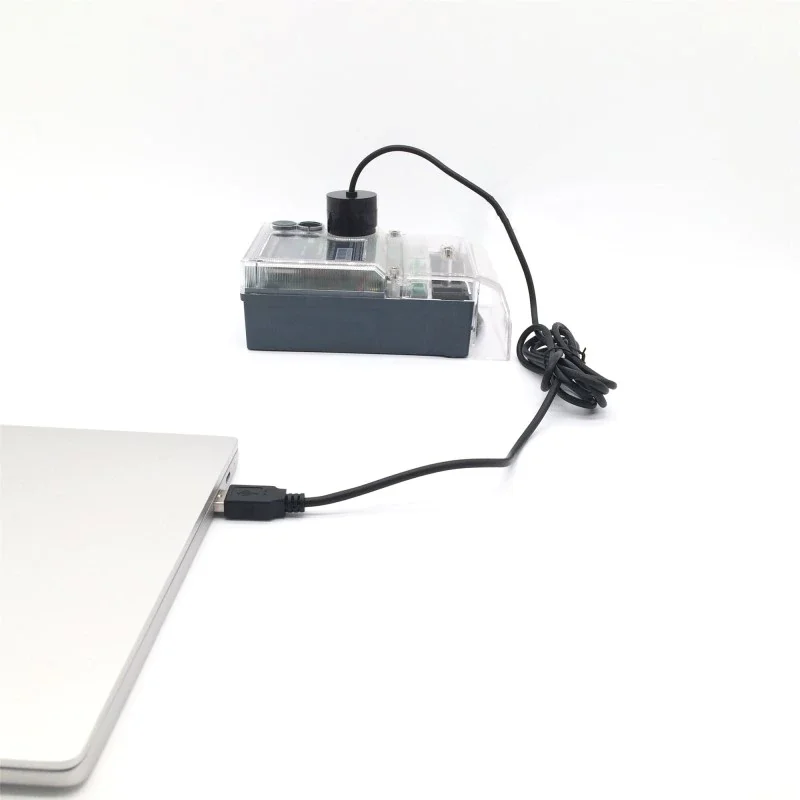

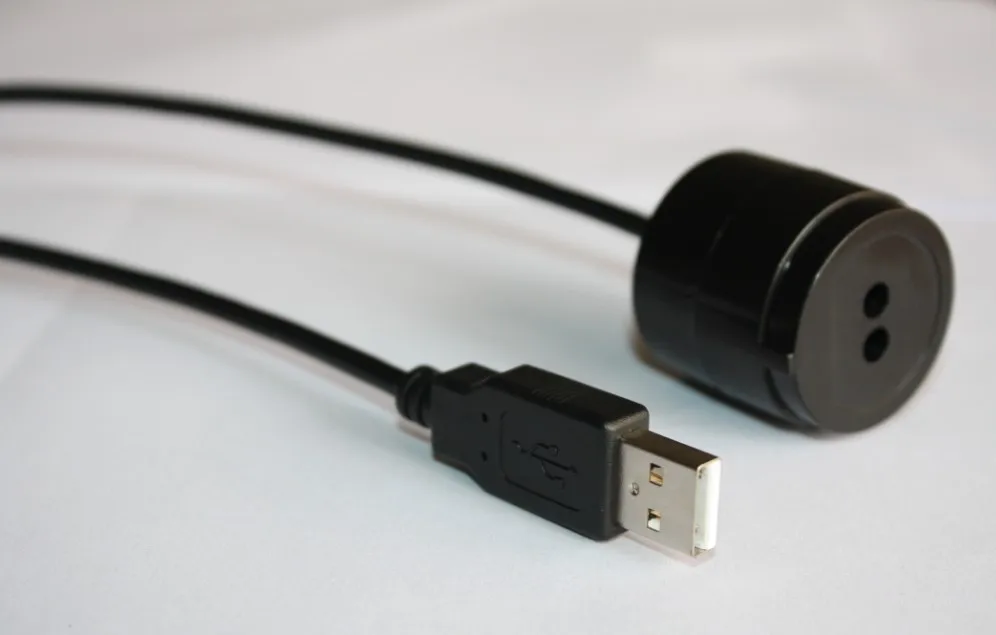

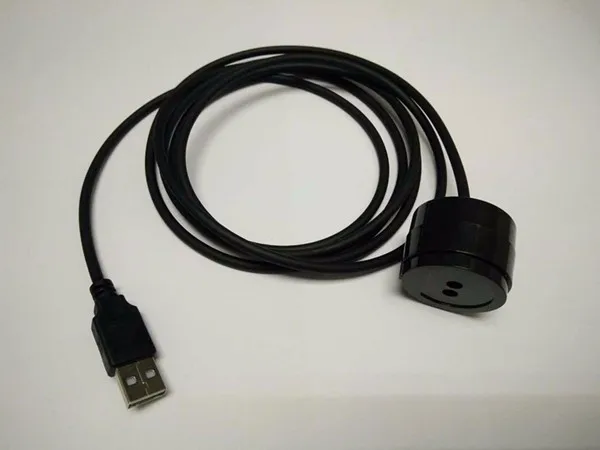

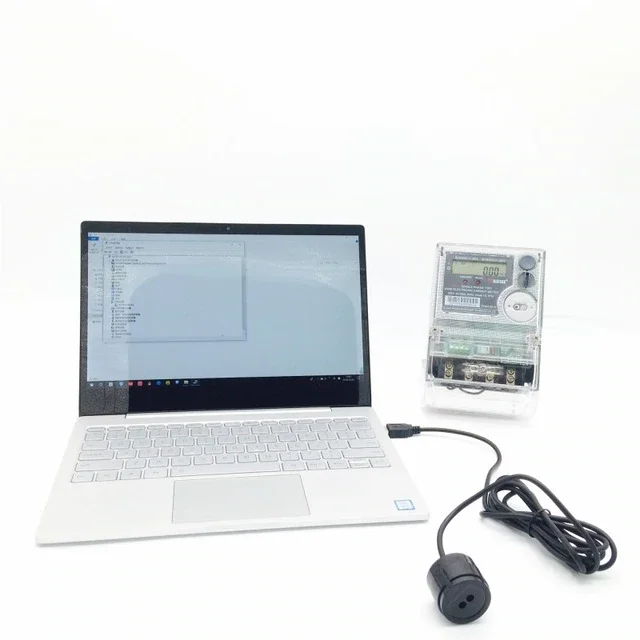

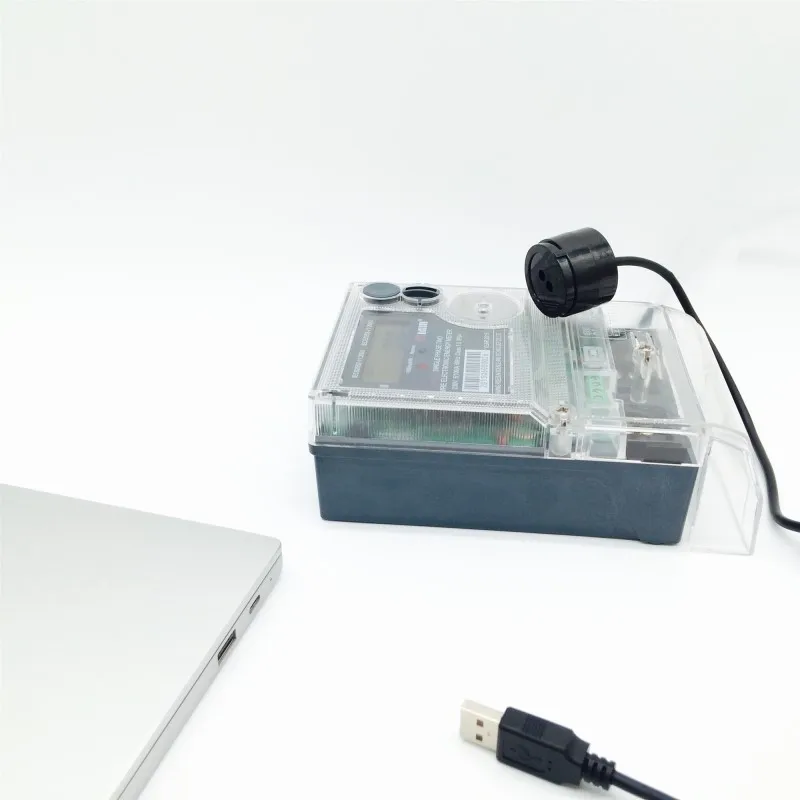

black color 2 meters (6.5 feet) straight cable IEC62056-21 protocol smart meter infrared usb optical probes  Model No: RJ-OPUSB-IEC-C The RJ-OPUSB-IEC optical probes are bi-directional interface devices utilising infra-red light. Connecting to the serial port of a computer or hand-held terminal they permit galvanically isolated communication with utility tariff meters as specified in European Standard IEC 62056-21:2002 (formerly IEC1107:1996).   Probes are available for use with lap-top or desk-top computers, and also for use with a variety of the hand-held computers commonly used for field data collection. ​ The optical probe is manufactured in accordance with the standard IEC 62056-21 (IEC 1107) and is compatible with all consumption meters that support this European standard.     The optical probe has on one end a four-wire cable with usb connector, There is a fix mounted magnetic ring on the other end of the optical reading head, which will be docked on your meter.

 Please note that additional ,specific software is necessary to exchange data between the consumption meter and your peripheral device. and we provide the optical probe only . pls get the software from your meter supplier.

​​* we provide HK post and DHL AIR shipping . if you want Fast delivery . pls select the DHL . *

Netherlands ,Spain and France buyer if you want shipping by POST , pls contact us....

Specifications: Standard: IEC 62056-21 standard(Formerly IEC1107) Interface: Infrared optical Connector: USB connector with USB 2.0 standard Maximum B.R.: Up to 38400bps Fastening: Strong magnetic adhesion complied with IEC62056-21 Computer compatibility: Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 Cable: 2 meters (6.5 feet) straight cable. Enviroment: -15°C ~ 80°C (5°F - 176°F)
Windows USB Probe Driver File Installation   For USB optical probes to function on a Microsoft Windows computer it is necessary for usb driver to be installed. The driver files need only be installed on a PC once.  They will then be loaded automatically each time the probe is plugged in. When the drivers are installed the optical probe will appear to Windows as a serial (COM) port.  The meter-reading application must then be set to use this 'virtual' COM port.   *Important* : Leave an email address in your order for sending USB driver file. ​better not Gmail and Hotmail . thanks   ​

About Software:

 Please note that additional ,specific software is necessary to exchange data between the consumption meter and your peripheral device. and we provide the optical probe only . pls get the software from your meter supplier





RS232 DB9 Plug Version: (click for more details)
