Features:

Laser Level (Automatic leveling in the range of 3 degrees)

Automatic self leveling mechanism. Audio warning when beyond auto leveling range.

Adjust feet

360 rotating base with fine tuning knob

5 laser lines (4 vertical and 1 horizontal),6 points

Power:AC 110-240v / 3 x 1.5V AA Dry Battery( Does not include battery),

Laser power< 5mW (Class IIIA)

Wavelength: 635nm

Vertical and Horizontal Precision:  1mm /8m

Line width< 2mm / 5 meters

Launch angle> 120 degree

Cartesian precision: 1mm /3m

Working distance:. Indoor working radius of about 15m , outdoor 10m (without Receiver).  When using an outdoor receiver operating radius about 70m.

Continuous working time: about 20 hours by Battery, or long time by AV Power

Working temperature: -10 Degree C - 45 degree C

Special features: can be used with outdoor detectors ( outdoor model )

How to use:

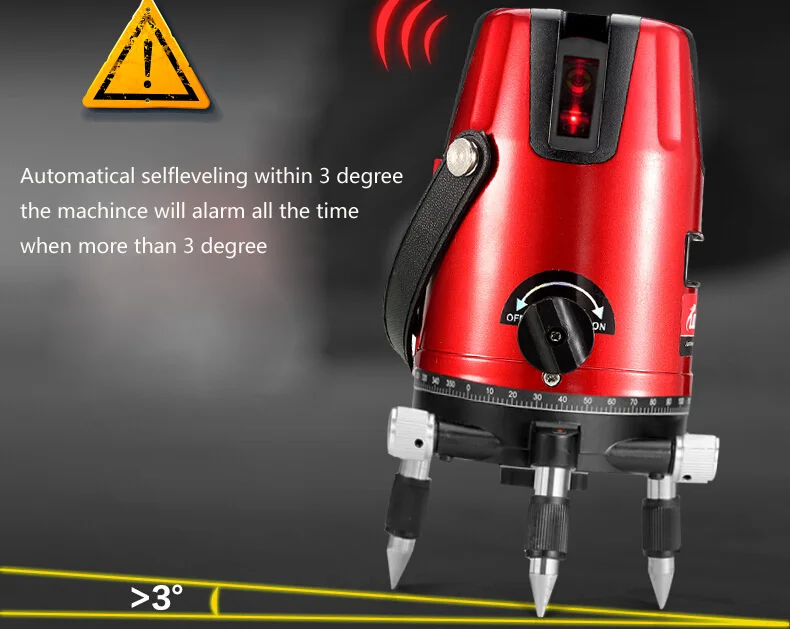

Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range (3 degrees), the laser tube will automatically turn off (or if audible alarm)

Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam

Turn the instrument, the laser beam toward goals

Gently adjust knob, find work orientation

When work is over, turn the switch knob counterclockwise, turn off the instrument

With light point designed outdoor environments, provide convenience for the construction

Note to User:
1, How to get a slash: Long press the "Outdoor" button for 2 seconds.
2, Four operating modes (H/VH/2VH/4VH) :
    a, Open the Power, Press the "H" Button,  H modes;
    b, then  Press the "V" Button one time, VH modes;
    c, then  Press the "V" Button the sencond  time, 2VH modes;
    d, then  Press the "V" Button the third  time, 4VH modes.
3, Press "outdoor" Button when using outdoor Environment. outdoor 10m (without Receiver). When using an outdoor receiver operating radius about 70m.

Please kindly note that the item do not include the tripod   please kindly contact us if you need the tripod    $25 for the tripod thanks
