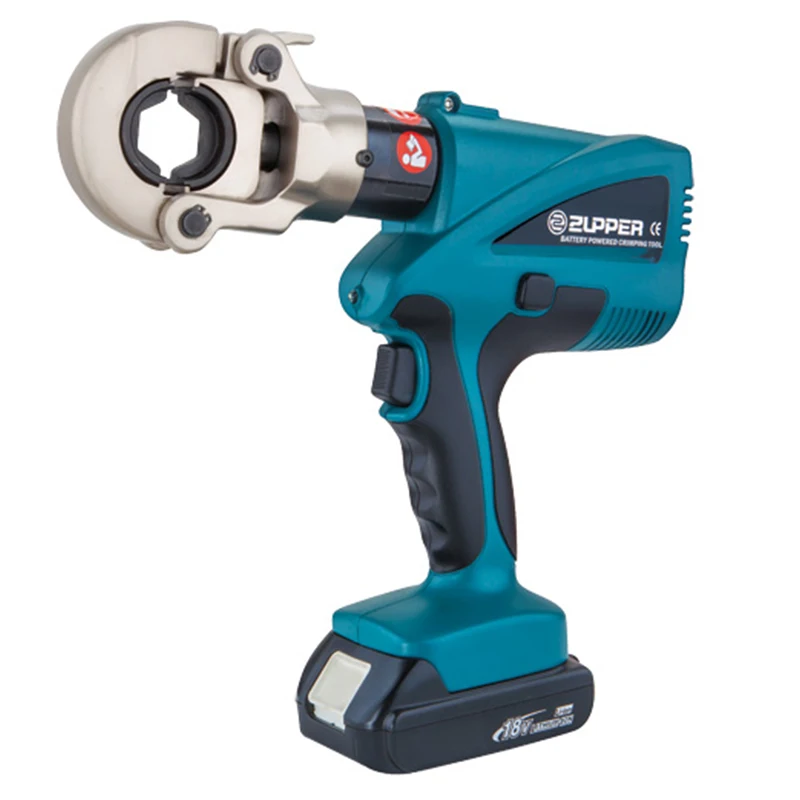

BZ-300B New Design Battery Hydraulic Crimping Tool

Crimping Force

60KN

Stroke

17mm

Crimps per charge

300 times  (Cu 150mm2 )

Battery voltage

18V

Battery capacity

3.0Ah

Voltage

100-240V AC

Package

plastic case

Accessories

crimping Dies.

16, 25, 35, 50, 70, 95, 120, 150, 185, 240,300mm2

Battery

2pcs

Charger

1pcs

Sealing ring of cylinder

1set

Sealing ring safety valve

1set

1. All tools can be controlled by one key-press the trigger to start working, half loosing the trigger means stop

forcing pressure, loosing fully means piston return to the original position.

2. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display,

also we can special making for customer to show the pressure if necessary.

3. Air Cooling Heat dissipation system to extend using.

4. Heads Rotates 350 degree in order to gain better access to tight corners or other difficult working areas.

5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non operation

the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and

shorter charging cycles copare to NiMH batteries.

6. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion

7. USD coneect to memory crimping time
