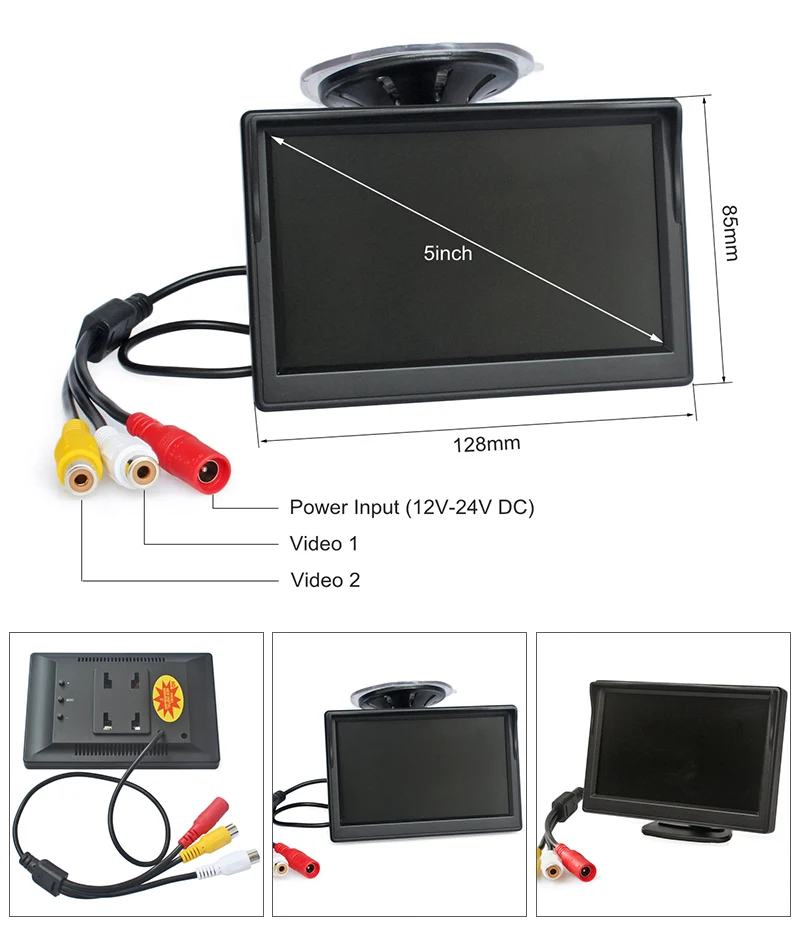

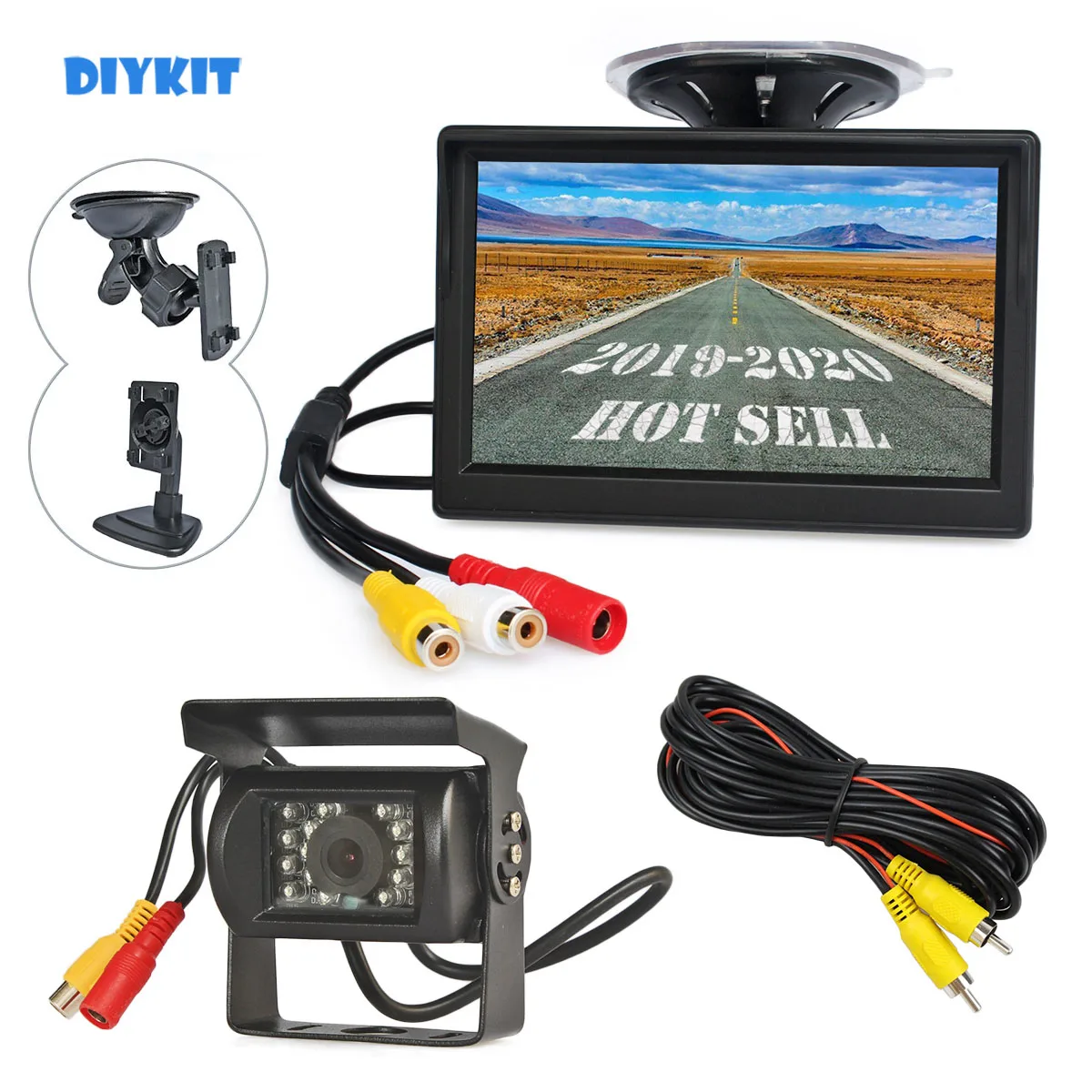

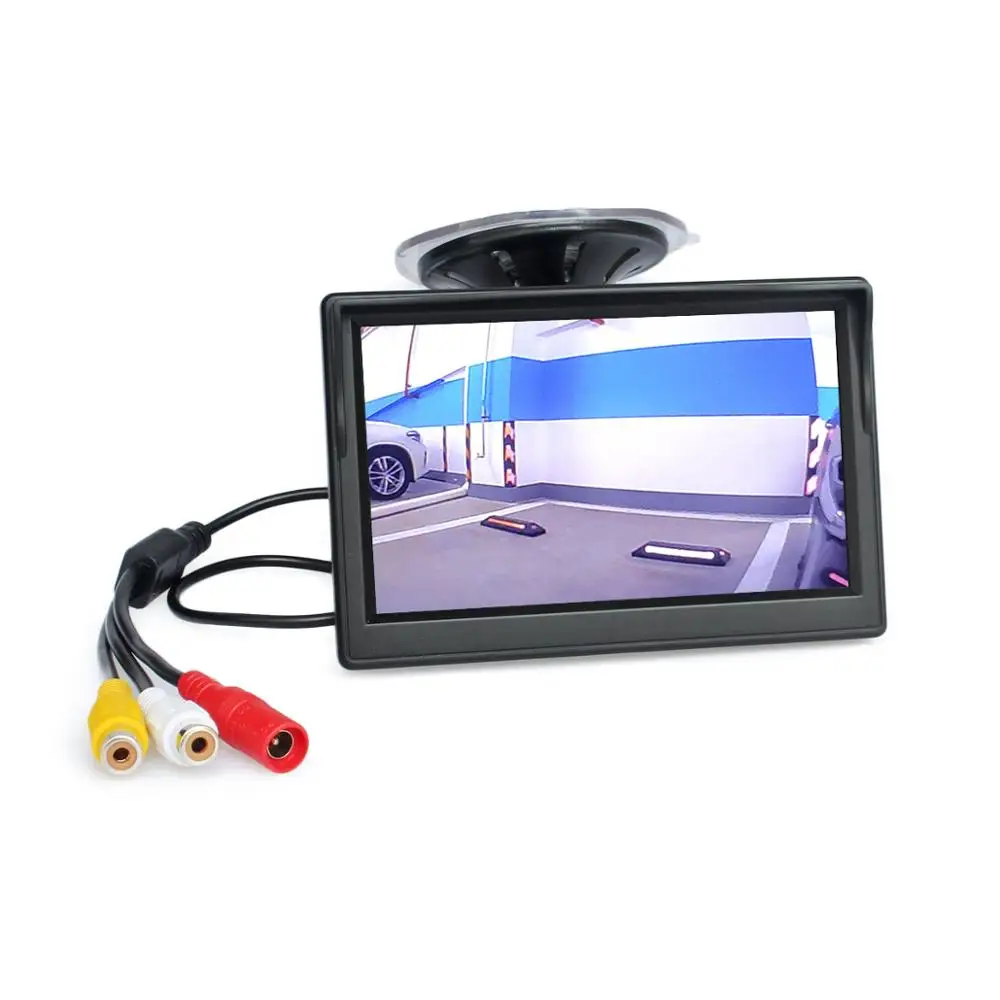

5" TFT LCD Car Monitor with 2 Video Input + both Suction Cup & Bracket

Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1.

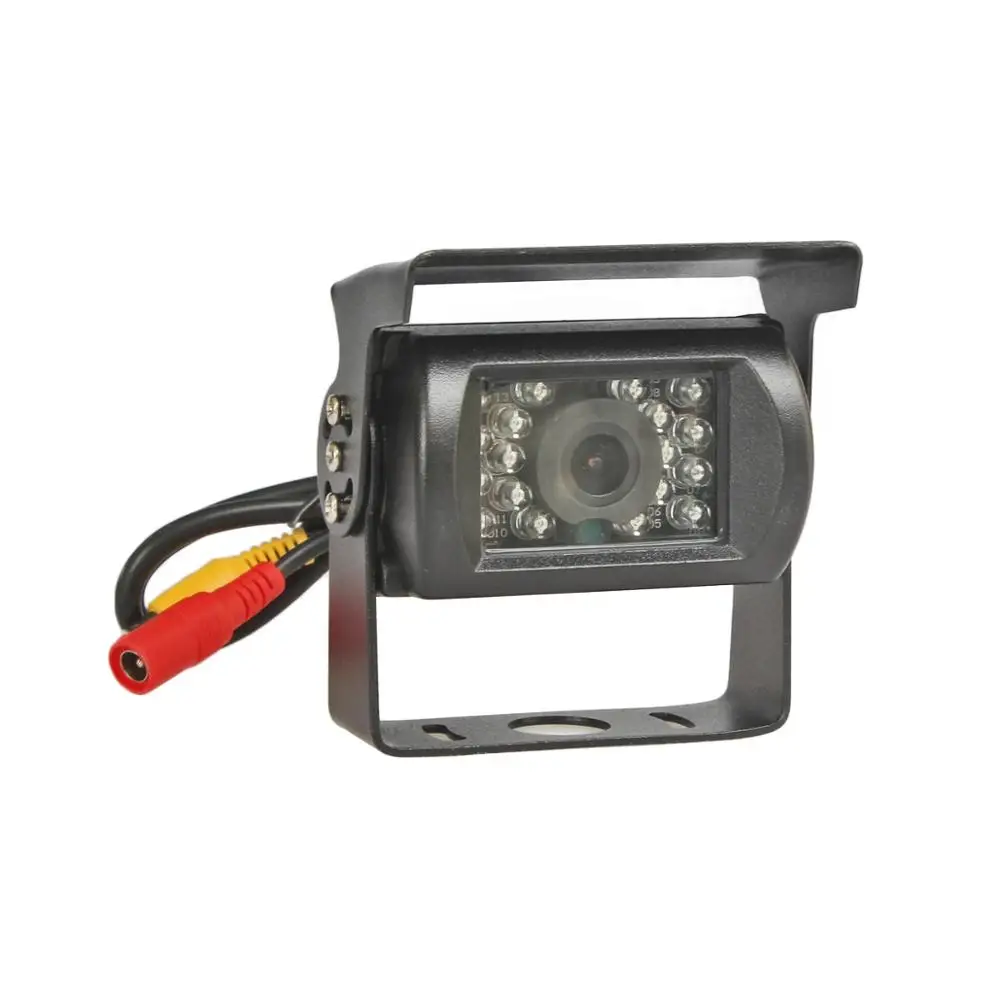

Camera:

The CCD image sensor outputs digital signals that has better picture's clarity, color contrasting and sharpness than CMOS camera, with its 18 individual Infrared (IR) LED, it shows clear images in low light especially at night circumstances.

High-definition and 120 degree wide view angles,

With good waterproof function,

Applicable to variety of Vehicles: car, truck, RV, bus,

Solve the issue of bad car rear view effect, can help reduce incidents and accident,

Support IR Night Vision CCD image,

With its elegant and contemporary design, this camera is very popular.

The difference between CCD and CMOS camera:

CCD lens Makes clear night vision even in a low light environment.

120 degree angle lens, ensure cars rear side for effective reversing and parking operation.

With this item, you can park your car easily, speedily and safely.It will be a lot safer for beginners or even professional drivers.As you never know when an accident will occur.You can only prepare for the worse.

Specifications:

Monitor :

Screen size: 5"

Display mode: 16 : 9

System: PAL / NTSC (Auto)

Definition: 800(H) x 480(V)

Nominal voltage: 12V-24V DC 10%

Power consumption: 3W

Way of control: Monitor button

Vedio input: Two way video input

Operation temperature: -20°c-60°c

Storage temperature: -40°c-60°c

Brightness: 350cd/m⊃2;

Contrast: 300:1

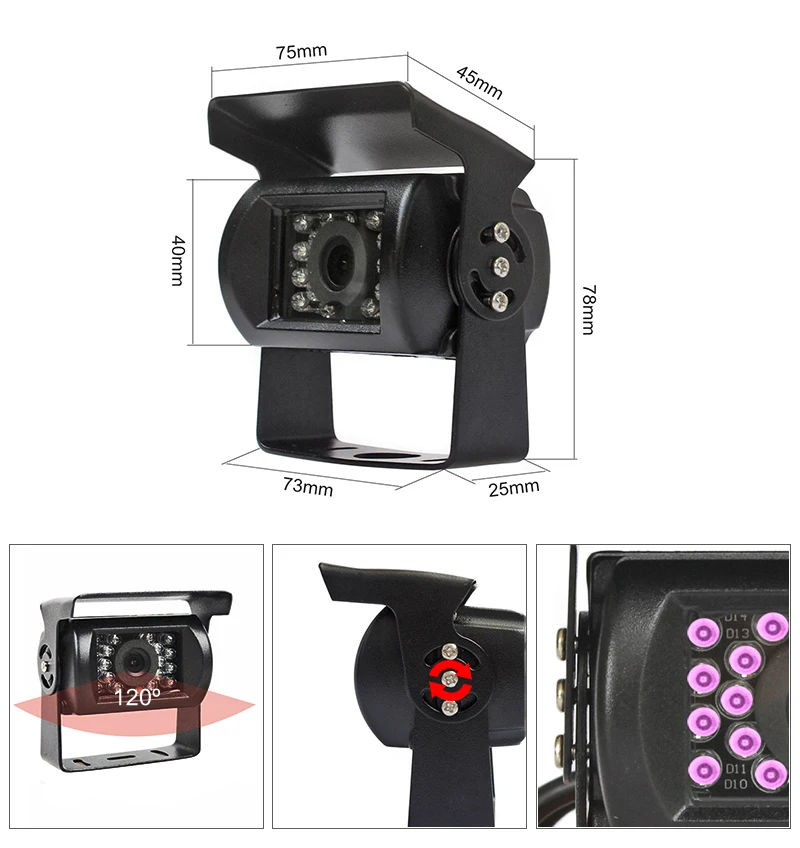

Camera:

Camera image type: High performance color image

Horizontal resolution: 480TV Lines

Usable illumination: 0.05Lux

Free viewing angle:  Diagonal Angle 120º, Horizontal Angle 90º

Waterproof: IP67

Shockproof: 10G

Video output: 1.0Vp-p75

Power supply: DC 12V-24V

Video system: NTSC / PAL
