There are three ways of generating ozone natually: Corona Discharge, Ultraviolet Light Radiation and Electrolyte Analysis.

The Electrolyte Analysis which can be divided into two kinds----Chemical Electrolyte Technology and Polymer Electrolyte Membrane (PEM) ozone technology.

PEM technology is based on Low-tension DC and high density current ,which connects anode and cathode of the special solid membrane and then water is electrolyzed. The water on the anode will lose atoms and hydrogen and oxygen will separate. Oxygen gets energy under high density current and polymerize into ozone.

The source used in PEM is only water, which can be decomposed into oxygen, ozone and hydrogen which can be exhausted into the air and the rest oxygen and ozone is completely safe. This method is the best up to now. It uses 3.5v low-tension DC voltage, which means that the wear on the anodes and cathodes is very low, thus ensuring a long life (the expected life time is longer than 10,000 hours).. The other technology used to manufacture Ozone is the air discharge technology which simulates a lightning strike, where dielectric substance dielectrics are placed parallelly between two parallel high-tension electrodes. Air which consists of oxygen (21%), hydrogen (78%) and other gases when subject to certain discharge period high-tension currents higher than 10000v are made to attack each other and the heat produced causes the oxygen to form Ozone. Some NOX nitrides are produced at the same time, which is internationally known as poisonous and can cause cancer. There is little possibility that high-purity ozone is made with air discharge technology because the amount of oxygen in the air is limited and the usage of high- tension current and wearing electrodesrestricts the useful life time and reduces the safety limits.

Specification

Model:  PEM-800PS

Power: 220V ; 50/60Hz

Ozone output:    800mg / h (± 10%)

Ozone gas concentration:   18-20% by  weight (250-280mg / L)

Ozonted Water Concentration:   2-7 PPM

Feeding Material:Pure water

Pure water conductivity <5us/cm

Power requirement: 3-5V / 12A (constant 15-30%)

Power Supply input: AC220V( AC110V is not available currently)

Tank interface:  Φ 9mm

Longlife Ozone Module:   > 10,000 Hours

Working Environment:   5-35 oC ( <85% RH)

Product Dimensions:   75 × 40 × 55 (mm)

Power Size:  200 x 110 x 50 (mm)

Feature

High Concentration 20% by weight;

No Secondary Pollution;

Wate source feeding;

High concentration ozonated water

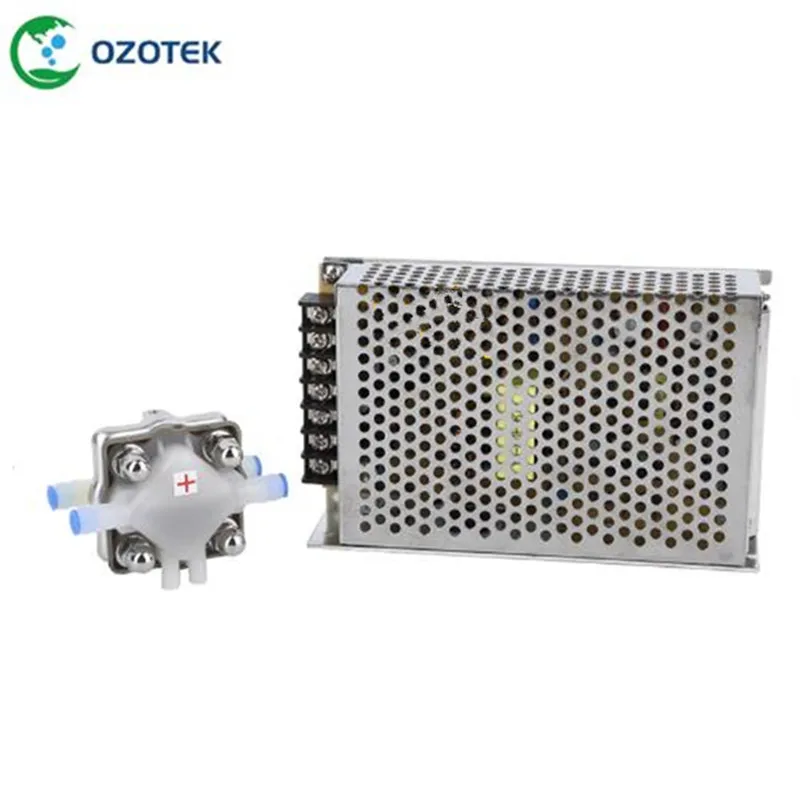

Packing

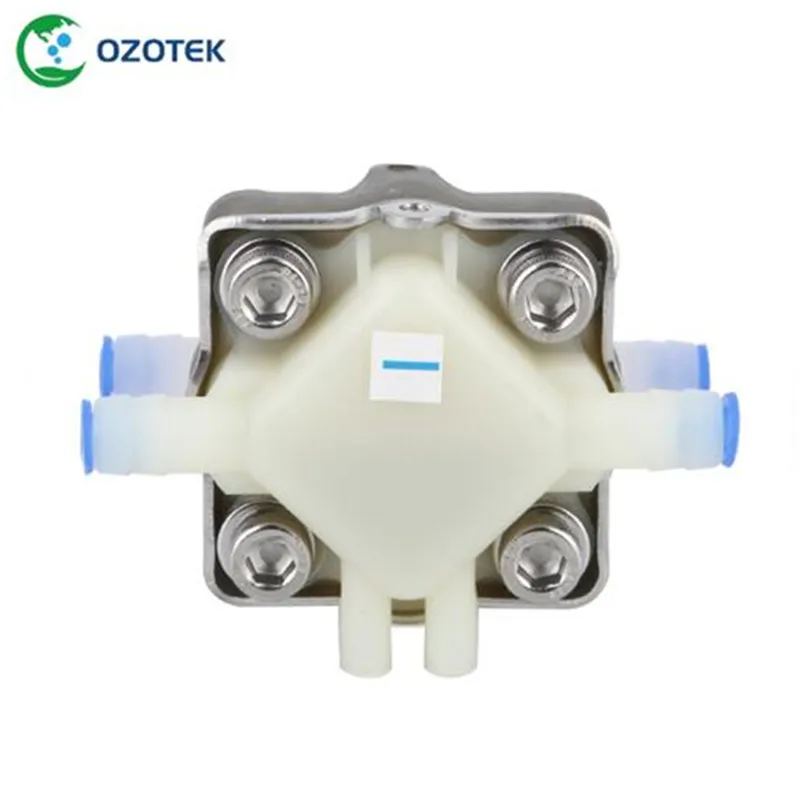

1 x PEM CELL

1 x Power Pack

Application

Pharmaceutical water,

Pure water

Water supply

Swimming pool water,

Sterilized water for food and beverage industry water Sterilization and disinfection,

Tap water,

Mineral water

Medical

Laboratory

Advantage

In the pharmaceutical and Food industry,Use PEM ozone generator with the reverse osmosis device which can achieve medicine or food water requirements. Also can be used to sterilize and disinfect on substance surface for transfusion, conveying pipeline, the reaction tank, storage tank, a closed container and filtering system and other various types.

The performance and characteristics of products:

ThisPEM Membrane electrode,with low voltage and DC power,to electrolyze pure water which producing ozone, Compared with traditional corona discharge ozone generator system,it is has the following advantage:

Ozone gas concentration is high, weight ratio is several times compare with the corona ozone generator,themaximumcan reach 20% by weight.The ozone gas is without Nox, no carcinogenic substance.

When the work environmental humidity is high which reach 85%, it can stably maintain the ozone production.

Due to the use of DC low voltage electrolysis, the work will not produce electromagnetic wave and noise.When it working with otherprecision instruments,it will not have interference.

Due to the high concentration of ozone gas,  It will have higher concentration ozone water and thoroughsterilization and disinfection onwater compare with the same amount ozone gas by corona discharge.

Have long life, much more ozone output amount than corona discharge, the membrane electrode servicelife is more than 10,000 Hours.
