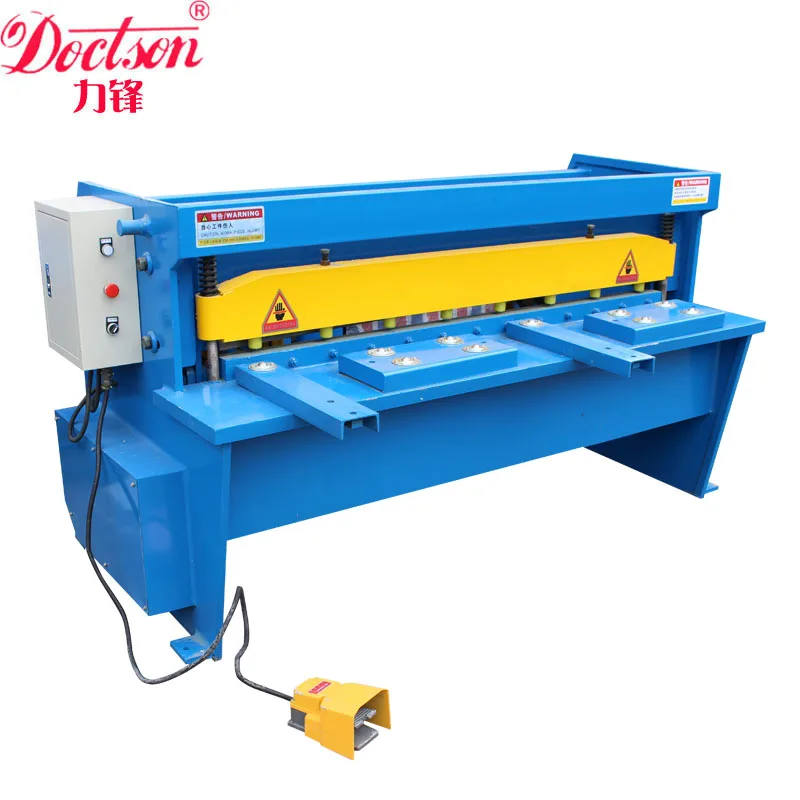

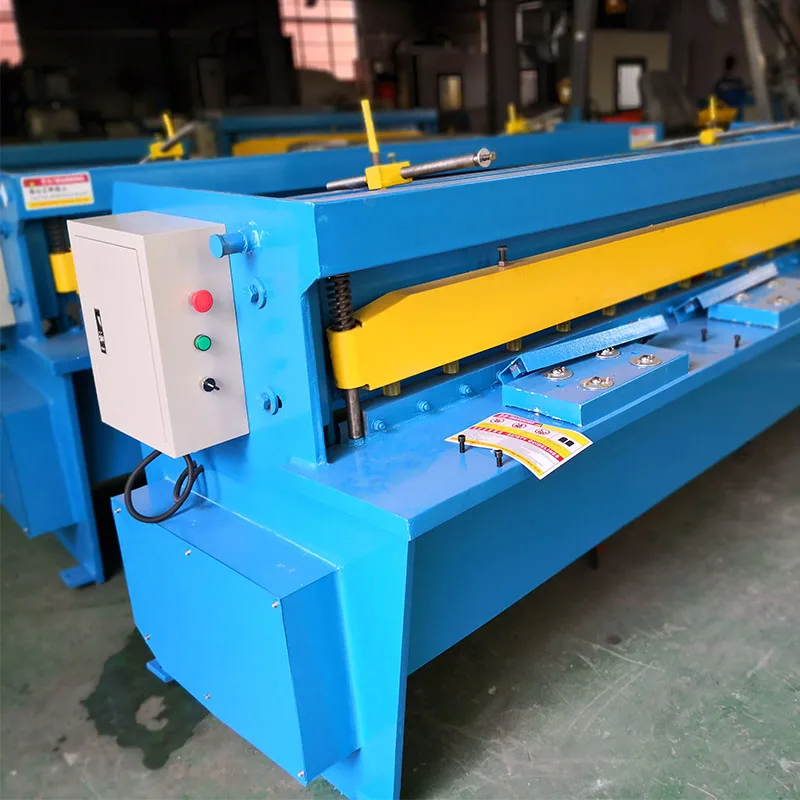

Q11 Sheet Metal Manual Cutting Machine / Shearing Foot | Инструменты

Q11 Sheet Metal Manual Cutting Machine / Shearing Foot | Инструменты

Product Description

 1. the whole machine body uses the integrally weld structure, ensuring the high strength and good rigidity of the machine.

2. Our electric sheet metal cutting machine adopts guillotine upper transmission, and fitted with the brake device.

3. the blade of the machine uses 6CrW2Si material, ensuring the good performance and long performance life.

4. the structure of the machine is simple, easy operation and low consumption.

Model

Max.width

(mm)

Max.thickness

(mm)

 Q11-1.5x1300

 1.5

1300

 Q11-1.5x2000

 1.5

2000

 Q11-2.0x1300

2.0

1300

 Q11-2.0x2000

2.0

2000

Q11-3.0x1300

3.0

1300

Q11-3.0x2000

3.0

2000

Q11-4.0x1300

4.0

1300

Q11-4.0x2000

4.0

2000

Features of the Manual sheet metal electric cutterfor metal with CE/ISO:

Q11 Manual sheet metal cutter for metal has simple structure,easy operation,elegant design, attractive appearance and low energy consumption.Mechanical shears Uses resist key structural form and open gear clutch transmission,and more advanced Electric operation (foot switch, manual switch) with low noise operation and easy maintenance.

Manual sheet metal cutter for metal machine is widely used in metallurgy,light industry,machinery, hardware,electrical,electronics,automotive repair,metal fabrication and other sheet metal processing.

1.Fabricated steel structure,with compact,construction,light weight and good rigidity stability

2.Integrated hydraulic transmission system, with good reliability

3.Back gauge use intelligent digital display device,shear quantity can be automatic counted,distance of back gauge can be set according to requirements of customers

4.The moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade,so you can gain fine shear surface.Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the sheared edge of the material

5.The hold-down assembly adopts the butterfly springs.There are antiskid heel block on the hold-down device of hold-down plate.The pressure is bigger,but it doesn’t damage the sheet-metal surface.

6.The machine is drived by a self-contained, totally enclosed gearbox mounted directly on the main shaft.Its construction is compact and the gear is well lubricated with low noise and long life.

7.The machine hasn’t the clutch and the flywheel.It shears the sheet-metal directly drived by the magnetic brake motor.This reduces the idle time of the motor and saves the energy.

8.The front and back gauges are provided with the scale plate displaying the scale. The back gauge may be easily adjusted in synchronism.
