This kind of wood pellet machine is specially designed to press wood pellets.

The raw material can be woody biomass residues from forest plantations,rice husk,bagasses ,corn cobs and wood (pine,beech)sawdust and so on.

One thing you should konw ,there are two kinds of pellet machine:animal feed pellet machine and wood pellet machine.

The animal feed pellet machine can not used to press wood pellets.
There are many reasons,such as the different structure and the raw material.

If you want to konw more about the pellet machine,please do not hesitate to contact me.

>>>>Brief Introduce of  Small Wood Pellet Machine

1.  Wood pellet mill is suitable for home use, especially for european and russian market etc.

2. Machine body and spare parts are made by our CNC system.

3. Die has went through two full heat treatment, from extern 1mm to inner 12mm.

4.This wood pellet machine can be driven by gaoline engine,diesel engine and electric engine.

5.This series pellet mill is an ideal option for pellet making business, it can deal with most raw

material, such as agro-forest wastes, agriculture waste, fruit shell, rank grass and any other wood

waste.

6.The wood sawdust pellet machine can be widely used for wood chips, sawdust,stalk, straw, rice

husk, peanut shells, paper, rubber and so on. The density of pellets made by our pellet mill is

around 1.0-1.4.

>>>>Technical Details of Small Wood Pellet Machine

Model

Powder (kw)

Diameter (mm)

Capacity (kg/h)

Measurement

(mm)

Weight

(kg)

YSKJ-200

11/15

2.5-8

150-200

1150*530*750

300

YSKJ-250

18.5/22

2.5-8

200-300

1250*600*850

400

YSKJ-300

22

2.5-20

250-350

1300*600*900

580

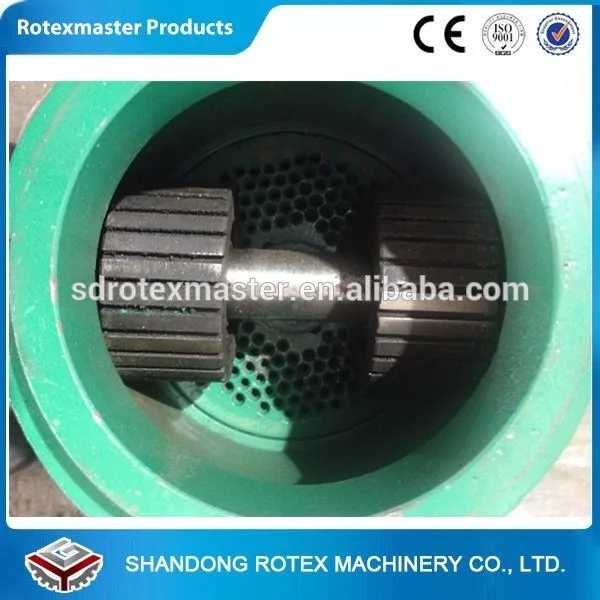

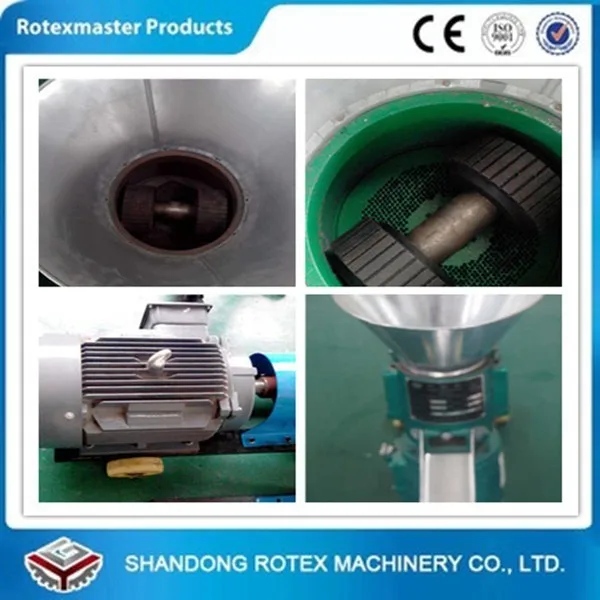

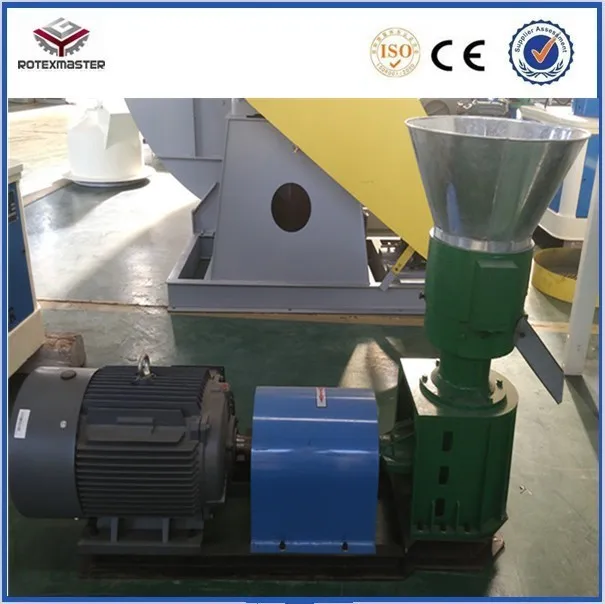

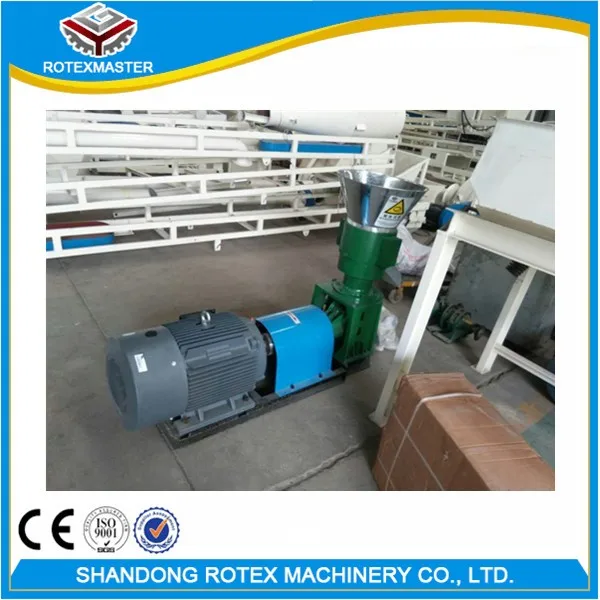

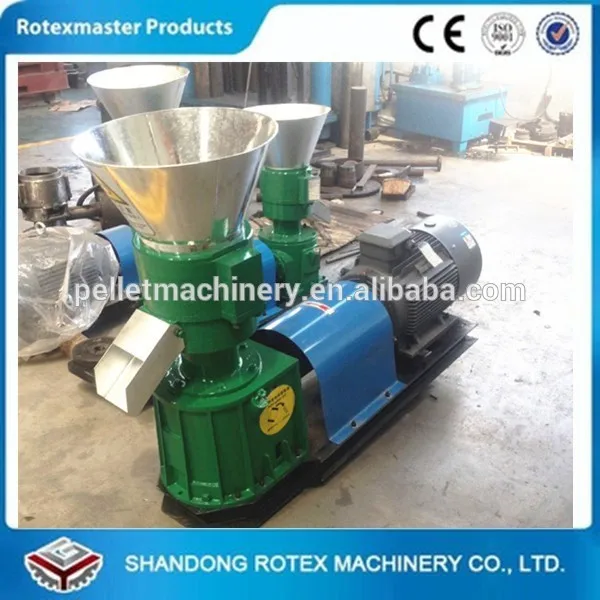

>>>>More pictures of pellet machine and spare parts

General description of Wood Pellet Machine Production Line

(The whole ling includes mainly many machines,not all of the machine is necessary.

You can choose  from the machines as you need.)

Step1:Wood Chips-- It is used to crush the logs into sawdust.

Step2: Screw conveyor---It is used to transfer the power to the dryer machine.

(You can also use  man power instead of this machine).

Step3:Dryer-- If the moisture of the power id more than 15%, you can use this machine to

dry.Duing  the drying, the moisture of the material should be less than 50%.

(You also can choose to dry the sawdust naturally.)

Step 4: Screw conveyor--It is used to transfer the power to the pellet machine.

If you are interested in our machine, please contact us.
