GPS / GPRS Vehicle Location Tracker for motorcycle school bus and coach fleet management GVT800

Thanks for purchasing our products!

Tracker is a GPS/ GPRS based tracking device designed for heavy motorbike,intercity bus,school bus and fleet management.

It has built-in terminals of GPS module and GSM communication module, which are used for getting the location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map; at the same time, the GPRS data can be sent to the internet server, which can realize the checking, monitoring and managing of the device on computer.

2. The device has the following features and functions:

Items

Specification

Power supply

DC 9-33V/1.5A

Backup battery

Rechargeable battery 750mAh (3.7V)

Normal Power Consumption

70mA

Size

84 mm*66 mm*30 mm

Weight

135g

Operating Temperature

-20 - +55 °C

Humidity

5% ~ 95% (Non-condensing )

GSM Module

Quad band GSM 850/900/1800/1900 MHz

GPS IC

UBLOX GPS IC

GPS sensitivity

-161dB

GPS frequency

L1, 1575.42 MHz

C/A code

1.023 MHz

Channel

50 channels

Positional accuracy

<10 M, 2D RMS

Speed accuracy

0.1 M/S

Time accuracy

Satellite Time: 1 microsecond time synchronization

Turnover time

Average 0.1s

Hot start

Average 1s

Warm start

Average 3s

Cold start

Average 37s

Maximum altitude

18,000M (maximum 60,000 feet).

Maximum speed

500 m/s (maximum 1000 knots).

Maximum acceleration

Less than 4g

Working time

About 7 hours

LED

3 LED lights to show Power, GPS and GSM status

Button

SOS button for making phone calls, sending position and giving a warning SMS

Port

3 digital outputs

3 digital inputs

2 analog inputs

4 RS232 ports

1 RS485 port

Insert the SIM card:

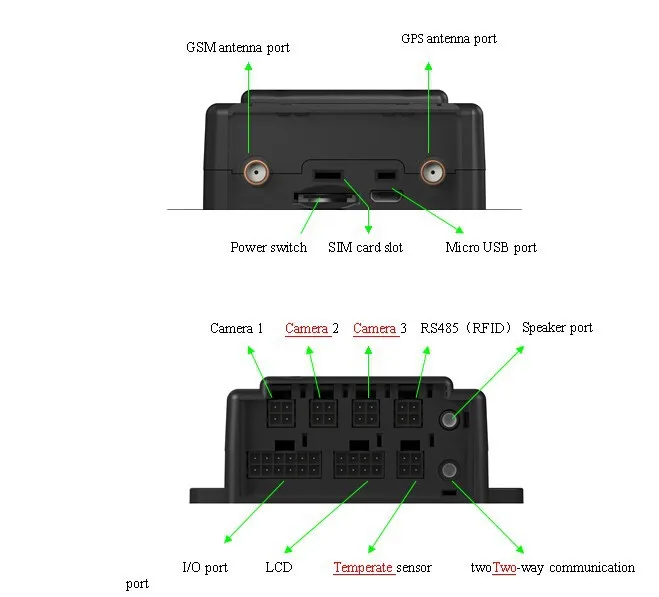

--Unscrew the front cover of the tracker, as follow:

Attention: The device must be turned off when you insert the SIM card

Please make sure the bevel edge of the SIM card is outward and its metal surface facing down when you find the SIM card slot and insert it, then slide the power switch to left and turn it on. As follow:

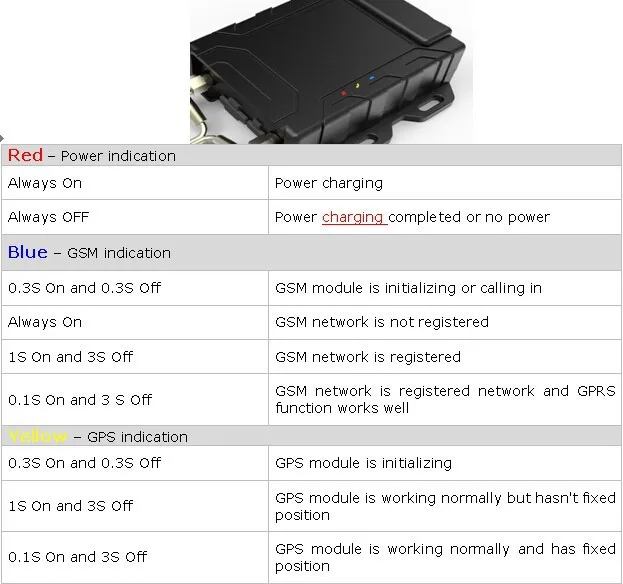

LED indication

Red – Power indication

Always On

Power charging

Always OFF

Power charging completed or no power

Blue – GSM indication

0.3S On and 0.3S Off

GSM module is initializing or calling in

Always On

GSM network is not registered

1S On and 3S Off

GSM network is registered

0.1S On and 3 S Off

GSM network is registered network and GPRS function works well

Yellow – GPS indication

0.3S On and 0.3S Off

GPS module is initializing

1S On and 3S Off

GPS module is working normally but hasn't fixed position

0.1S On and 3S Off

GPS module is working normally and has fixed position

Tracking  Platform: 3 months free using

hk.gpstotrack.com/gps

Test account: Guest

Passowrd:666666

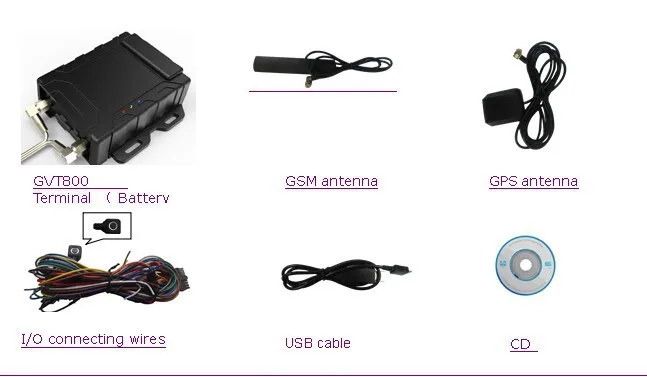

Standard Packing:(No box)

GVT800 main unit

GSM antenna

GPS antenna

I/O connecting wire

USB cable

CD
