35mm 9LEDs UCS1903 Pixel RGB LED Module Light Digital 5050 SMD Bulb DIY Addressable Solar Source Lamp Advertising Lightbox 12V

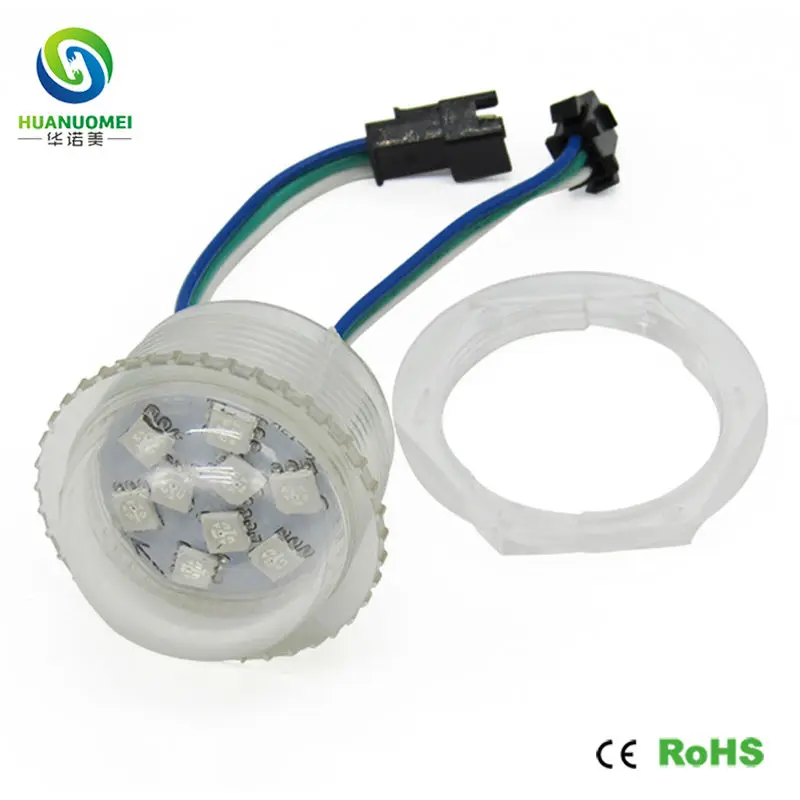

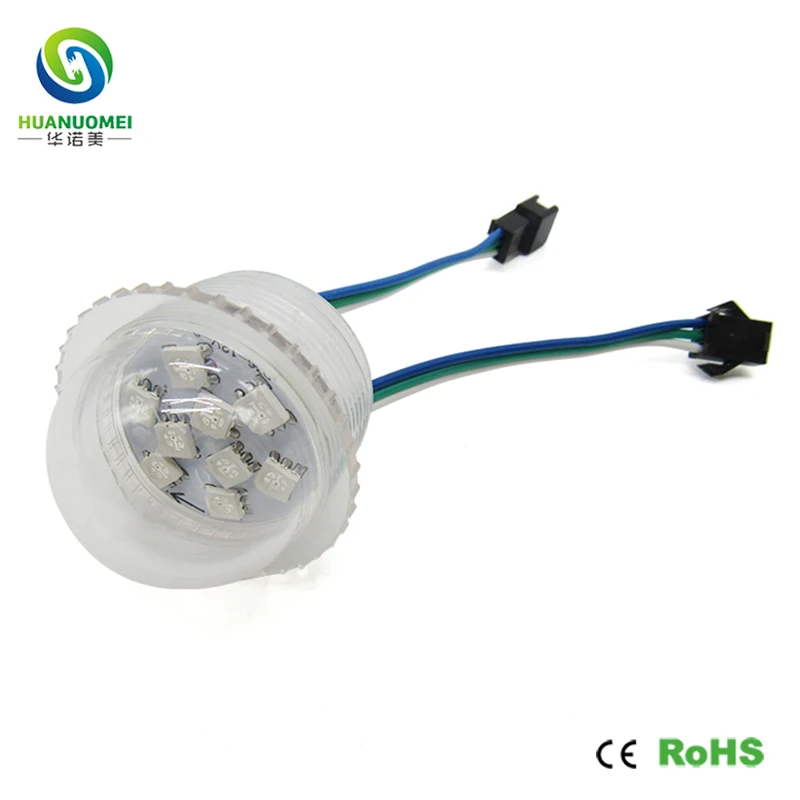

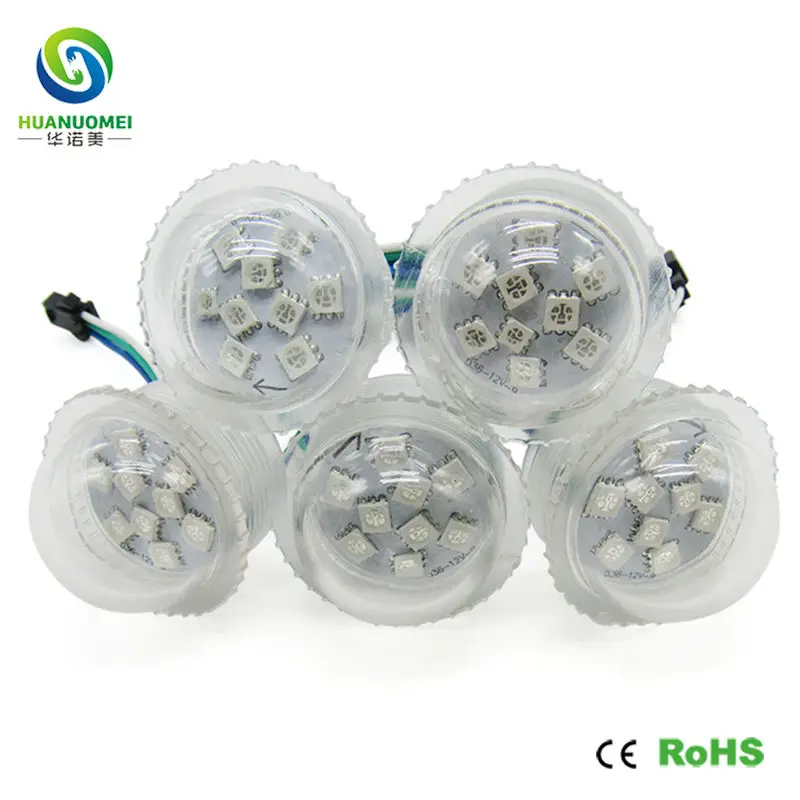

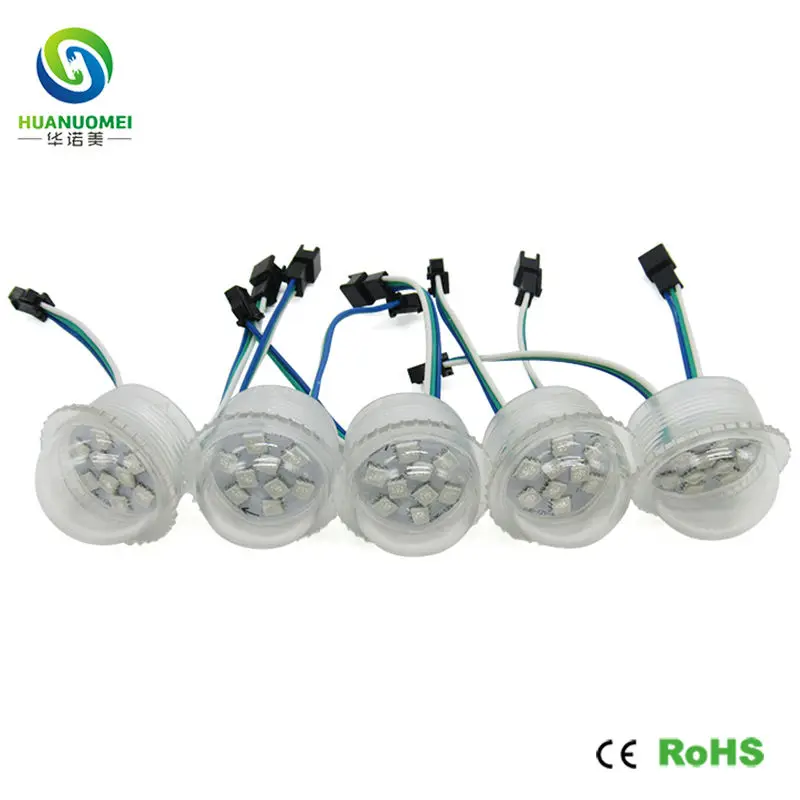

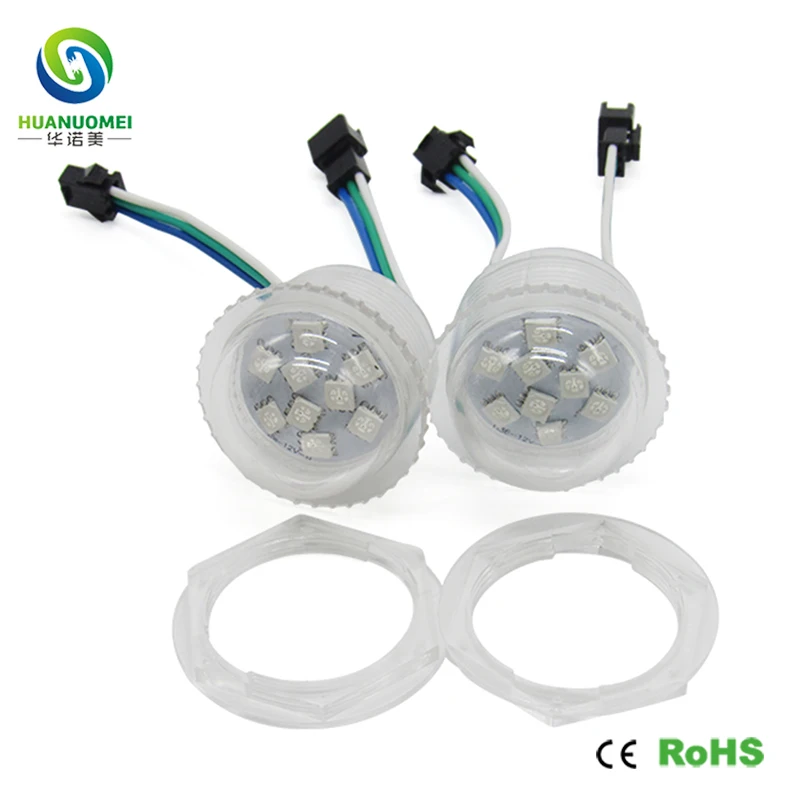

1. 35mm 9LEDs rgb pixel light is combinated by plastic housing, the PCB board and 3-pins JST male and female connector with white, green and blue wire (high temperature-esistant, cold-resistant UV-resistant), 9pcs 5050 RGB SMD LED, 1pcs ucs1903 IC. UCS1903 can use the same led program as WS2811.

2. 35mm 9leds rgb led pixel light is made by epistar chip with high brightness,  low voltage, rich colors, energy conservation & environmental protection, strong stability, long lifespan and little luminous decay.

3. 35mm 9leds rgb led pixel module need work with external led pixel controller, can realize RGB colorful gradient, jump, full color scanning,chasing, running water, heap up and horse racing, scan results, many kind effects. Depending on the installation of different ways,different colors can be changed in the composition of characters,patterns,and other dynamic effects. And also can make a matrix pixel display ,backlights which can show ad picture or play video. These pixel lights can DIY program and effects by led software.

4. This product widely used in building contour, hotels, building floor lighting, KTV entertainment, large shopping malls outside wall, Hotels, Bars, Discos, square street, outdoor AD signs, Logo, interior lighting and other places.

5. This product has the advantages of convenient installation, firm and stable, product unique screw directly twisted up, let the products much more fixed.

6. The products can be cascaded 20PCS , non-super-tandem. Thickness of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters) and a low pressure drop depending on the transmission line.

Note:

The price is only for the led pixel light, do not Included Power Supply or led Controller!

This kind led pixel light need work with DC12V Power Supply AND led pixel Controller.

If you without power supply and led controller, you can order them in our store together.

Specification:

Part No.

HNM-D35mm-9LED-UCS1903-12V-TC

IC Type

UCS1903 (can use the same led program as ws2811)

Emitting Color

digital full rgb color, 24bit, 256gray scale

LED Qty

9pcs 5050 SMD RGB LED chip

Working Voltage

DC12V input

Max Power

2.16W

Max Current

200MA

Driver Method

Constant current circuit

Dimension

Φ35mm (diameter 35mm)

Fixed way

35mm diameter open hole

Standard connection

each pixel with a 3pin JST male input and female output

Standard wire length

10cm (100mm)

Housing cover feauter

transparent Cover(milky cover can be choosen)

Protection Level

Waterproof IP67

Lifespan

≥50000 hours

Viewing Angle

≥140°c

Warranty

2years

Certification

CE & RoHS

Working Temperature

-40 ~50°c

Store Temperature

-50 ~60°c

Product Size:

Packing List:

10pcs X 12V 35mm 9LEDs UCS1903 led pixel light.

1. This product is popular hot sale in led market, contour marking, advertisement billboard, exposed luminous characters.

2. Channel Letters Back lighting;lights,cabinet lights,edge light.

3. Backlight of signage, channel letter, signs, light box;architectural lights for corridor, canopy, archway, lights for path.

4. Advertisement signs; Led screen, night clubs, wine bars, shopping malls.

5. Advertisement Light Boxes Back lighting;various shops, cinemas, beauty centers.

6. Decoration lights for bar, pub, club, disco;office fronts,living rooms.

7. Billboard Back lighting.even lights for household kitchens etc.
