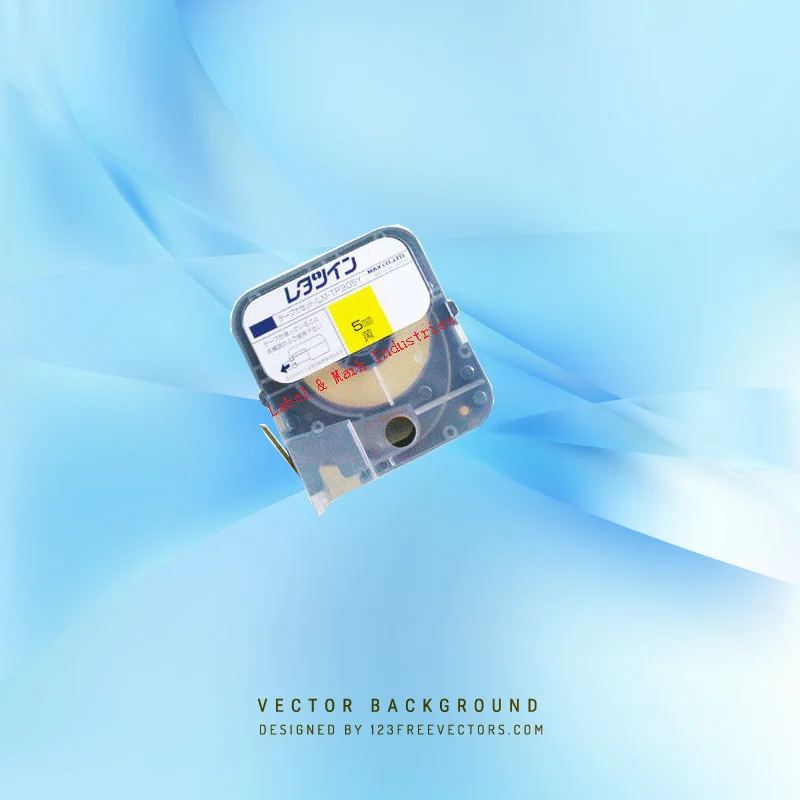

TAPE CASSETTE

LM-TP305Y(Yellow)

5mm(W) x 8m(L)/pc.

10pcs./box

LM-TP305W(White)

5mm(W) x 8m(L)/pc.

10pcs./box

LM-TP305T(Transparent)

5mm(W) x 8m(L)/pc.

10pcs./box

LM-309Y(Yellow)

9mm(W) x 8m(L)/pc.

10pcs./box

LM-309W(White)

9mm(W) x 8m(L)/pc.

10pcs./box

LM-TP309T(Transparent)

9mm(W) x 8m(L)/pc.

10pcs./box

LM-TP312Y(Yellow)

12mm(W) x 8m(L)/pc.

10pcs./box

LM-TP312W(White)

12mm(W) x 8m(L)/pc.

10pcs./box

LM-390A/PC

Electronic Lettering Machine

INK RIBBON CASE
LM-RC310
10pcs./box 50pcs./ctn

ECONOMICAL INK RIBBON
LM-IR300B(BLACK)
50m/roll 5rolls/box20rolls/ctn
LM-IR300B(WHITE)
32m/roll 5rolls/box20rolls/ctn

LM-TU432L White

3.2mm dia. x 200m/roll

1Roll/box

LM-TU436L White

3.6mm dia. x 200m/roll

1Roll/box

LM-TU442L White

4.2mm dia. x 200m/roll

1Roll/box

LM-TU452L White

5.2mm dia. x 135m/roll

1Roll/box

LM-TU464L White

6.4mm dia. x 100m/roll

1Roll/box

LM-TP305Y(Yellow)

5mm(W) x 8m(L)/pc.

10pcs./box

LM-TP305W(White)

5mm(W) x 8m(L)/pc.

10pcs./box

LM-TP305T(Transparent)

5mm(W) x 8m(L)/pc.

10pcs./box

LM-309Y(Yellow)

9mm(W) x 8m(L)/pc.

10pcs./box

LM-309W(White)

9mm(W) x 8m(L)/pc.

10pcs./box

LM-TP309T(Transparent)

9mm(W) x 8m(L)/pc.

10pcs./box

LM-TP312Y(Yellow)

12mm(W) x 8m(L)/pc.

10pcs./box

LM-TP312W(White)

12mm(W) x 8m(L)/pc.

10pcs./box

Features

*High-speed marking
LM-390A has an enhanced feeding and half-cutting system that provides
you with marking speed at 35mm/second.
LM-390A can make 50pcs of 20mm-length tube
per minute.

*Maximum 100,000 characters : built-in large memory storage

*Easy access from your PC with USB
LM-390A features USB port for direct connection with
Windows personal computer, as well as USB memory slot
for off-the-line data exchange with PC by "LETATWIN PC EDITOR.


*Large and backlit LCD display
Backlit LCD display makes your operation easy,
even if the workplace is dim.
 *Cutting Depth Adjustment
You can adjust the half cutting depth with the "Half cutting depth adjustment lever",when half cutting is too deep.

*The pitch can be set up to maximum 60mm.
Marking on tape : 4 up to 60mm
Marking on tube : 10 up to 60mm

*Marking Materials

2.5mm - 6.5mm dia. tubes are applicable. MAX genuine
tapes of 5mm, 9mm and 12mm width are available
+ Heat-shrinkable tube.


*Economical refillable
ink ribbon

Specifications

Name

MAX ELECTRONIC LETTERING MACHINE
LM-390A/PC

Dimensions

275(W) x 300(D) x 91(H)mm

Weight

2.3kg

Printing method

Thermal transfer method(300dpi)

Display

LCD dot matrix :
64 x 160Pixel (Backlit)

Printing speed

35mm/s(Standard)
20mm/s(Low temperature mode)

Maximum printing length

Tube : 20m, Tape : 5m

Maximum number of characters to input

5,000 characters per file

Character size

2,3,4,6mm height

Usable tube size

Dia. 2.5mm to 6.5mm (PVC, Shrinkable tube)

Usable tape size

Width 5,9,12mm (MAX genuine tape)

Tube cutting method

Auto half cut, manual full cut

Internal memory

100,000 characters(Maximum 50 files)

External memory

USB memory

Interface

USB 2.0 full speed

Power supply

DC 12V, 3.3A
[Use only specified AC adapter(100V-240V)
included in the package.]

Power consumption

16W (max.)

Operating environment

10 to 35 degrees celcius
