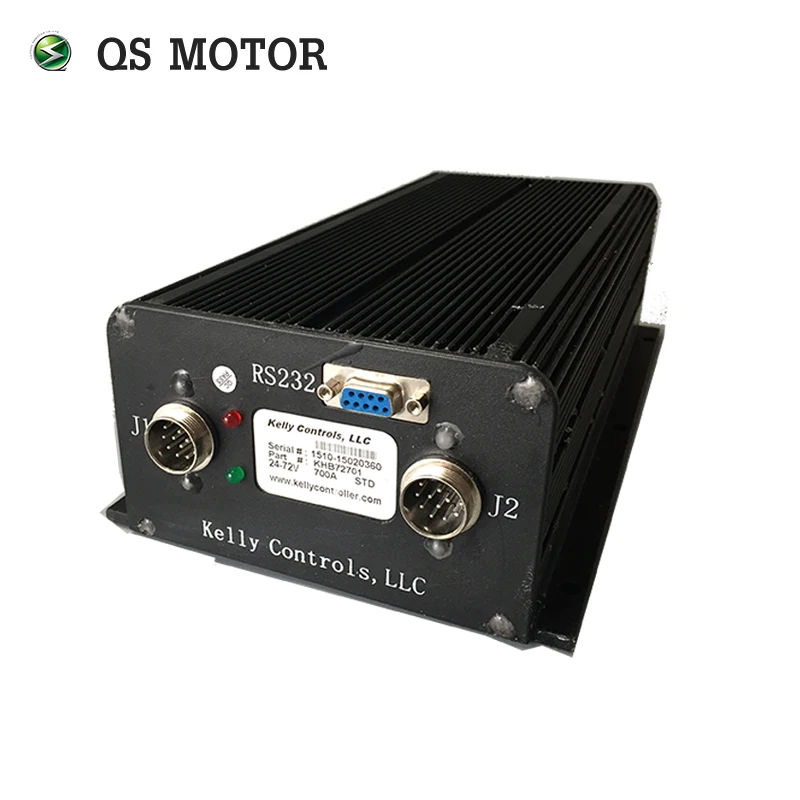

It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 8000W.

1). Very Easy connect

2). Can match with almost brushless DC motor

3). Soft start can be adjusted

4). Programmable by bluetooth

Pls. click below hyperlink of picture.

1. sine wave controller, programmable, with regen function

2. Motor Current Limit, 20 seconds:1000A ,Motor Current Limit, continuous: 500A

3. Battery Voltage: 24-72V rated, max. 90V

4. Thermic Probe: KTY83-122

5. Including one controller + USB convertor cable + matched plug

6. controller size: 194mm*148mm*89.5mm

7. net weight: 5.5kg

8. waterproof IP54

9. default not including bluetooth, waterproof(those function are optional);  CAN BUS

Here are the clear and easy adjustment software interface.

Here is drawing of our normal QSKHB72101.

Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.

1). If you want to buy the controller separately, please advise us the parameters of your matching motor?

Such as Motor Voltage, Wattage, Speed...

2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!

If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.
