Беспроводная ip-камера Boavision 1080 P 5.0 Мп Wi-Fi 5X/10X оптический зум автофокус

Беспроводная ip-камера Boavision 1080 P 5.0 Мп Wi-Fi 5X/10X оптический зум автофокус

HD 1080P Bullet Wifi PTZ IP Camera Audio 5X / 10X Optical Zoom Auto Focus Lens 2MP Wireless CCTV IP Camera Outdoor Onvif CamHi View

HD 1080P / 5MP Bullet WIFI PTZ IP CAMERA

Optional Purchase

Application Scenarios

Support IPHONE, ANDROID APP

Built-In Microphone

Pan Tilt Rotation

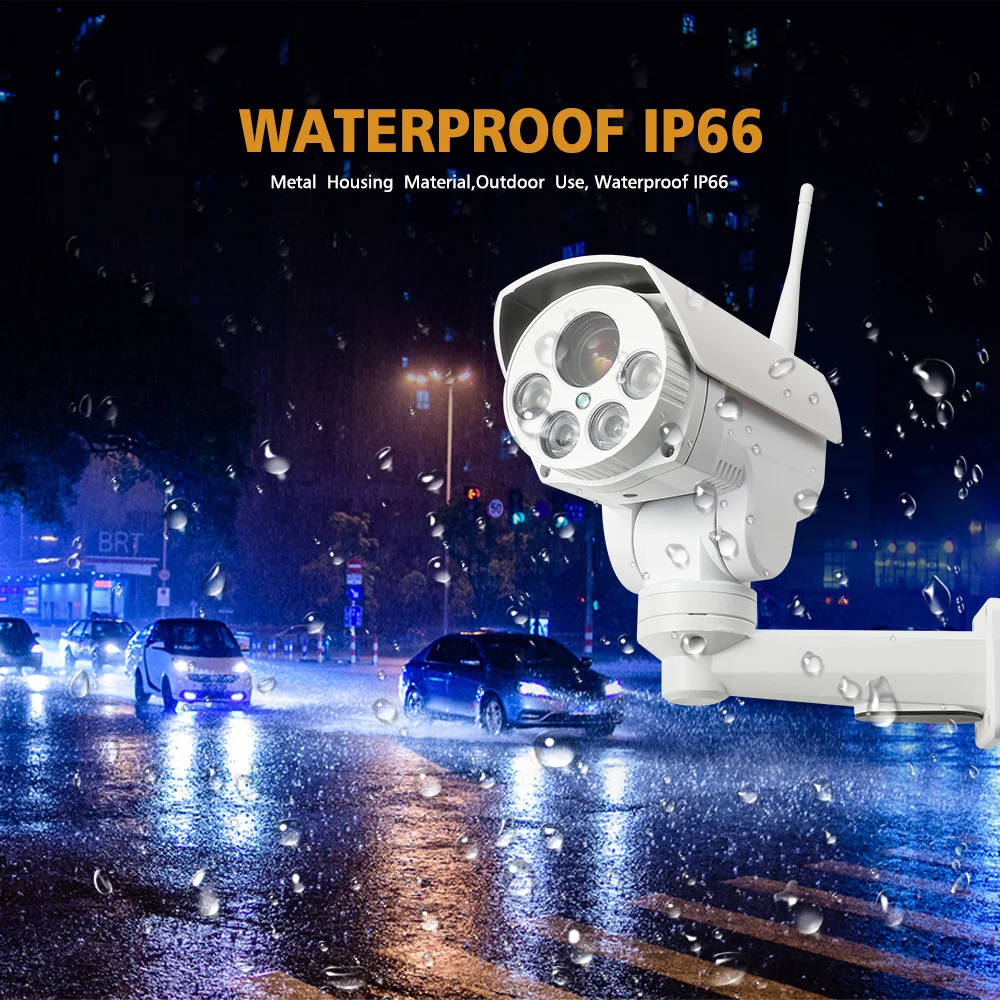

Waterproof IP66

Night Vision Function

5X ZOOM / 10X ZOOM (Optional)

Support TF / Micro memory Card

H.264 Video Compression Format

Product Size

Packing List

View Via Mobile Phone APP CamHI

Features :

Support WIFI Connection ,Support AP Mode

Support HD 1080P / 5MP High Quality Resolution

Support TF/Micro SD Card, up to 128G (Not Include)

5X /10X Optical Zoom Auto Focus Lens(Optional)

Pan tilt rotation, horizontal:300° & vertical:60°Ø

4Pcs Array IR LEDs, 50m Night Vision

Support P2P, View & Anywhere & Anytime

Elegant Outline And Easy Installation

Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m

Provide Android & ios APP (CamHi) and professional CMS PC client software

Outdoor Use,Waterproof IP66

Audio: Built-in Microphone

Support 8 Preset Points, Zoom lens status can be saved during the preset

Specifications:

Model

B987W

B985W-10X

B989W

B989W-10X

Operating system

Embedded Linux OS

Processor Sensor

 HI3516C+1/2.9" SONY323

 HI3518E+1/2.9" SONY323

HI3516EV300+IMX335

Resolution

2MP 1080P 1920*1080

5MP(2560x1920) or 4MP(2560x1440)

Lens

2.7-13.5mm

4.7-47mm

2.7-13.5mm

4.7-47mm

5X Optical Zoom

10x Optical Zoom

5X Optical Zoom

10x Optical Zoom

View angle

89.9°-26.2°

70°-9°

89.9°-26.2°

70°-9°

Min.illumination

0.05 Lux  / 0 Lux(IR on)

Day&Night mode

Auto IR-CUT

Night vision distance

4Pcs Array IR LEDS, 50M Night Vision

Video Compression

Standard

H.265/H.264 Main Profile/H.264 Baseline

Video streaming

Dual streaming

Video resolution

First stream: 1080p:1080P(1920x1080), 720P(1280x720)

First stream: 5MP(2560x1920) or 4MP(2560x1440)

Second stream: Q720P(640x480), QQ720P(320x240)

Second stream: 800x600 or 800x448

JPEG stream :(Monitoring for mobile phones),

JPEG stream :(Monitoring for mobile phones),

Q720P(640x352), QQ720P(320x176)

800x600 or 800x448

Video code rate

32 to 8192Kbps. supports constant bitrate/variable bitrate

Video frame rate

25fps

20fps

15fps

Image settings

Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror

Image enhancement

Backlight compensation,Automatic white balance,

Digital WDR, 3D digital noise reduction

Audio Input

Built-in Microphone

Audio Output

N/A

Motion detecting

Can set 4 independent detection region (1-100 sensitivity can be set)

Alarm linkage

Alarm send pictures to the specified mailbox,

 alarm upload pictures and videos to the FTP server,

alarm write pictures and videos to Micro SD card, alarm message push

Privacy mask

Maximum support 4 users to simultaneously browse

OSD

Support camera name, date and time information superimposed

User management

Supports user and rights management

Simultaneous viewers

Maximum support 4 users to simultaneously browse

Network protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP,

DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.

Connection protocol

Support ONVIF 2.0(backward compatible)

Wireless standards

IEEE802.11b. 802.11g. 802.11n Draft

Frequency range

2.4 GHz  to  2.4835 GHz

Wireless Security

64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS

Transmission rate

11b: 11Mbps,11g :54Mbps,11n :135Mbps

Rotation angle

Horizon:0° to 300°. Vertical: 0° to 60°

Horizontal speed

12°/S

Vertical speed

12°/S

Preset

Support 8 preset points, Zoom lens status can be saved during the preset

Power interface

1 5.5mm power interface

Ethernet

1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface

TF card Slot

1 TF card slot. up to 128G(Not Include)

Reset button

Support

Power supply

DC 12V 2A

power

Day: 3W;  Night: 8W

Operating temperature

-20 to +60 degree

Operating humidity

10% to 95%

Material

Metal Housing Material,Outdoor Use, IP66

Installation

Rack mounting

Size(W*D*H)(mm)

156*155*75mm

Weight(kg)

1.0kg

Accessories

1*1.5M Power supply. 1bag*Screws. 1*manual,1*antenna

Package Size(W*D*H)

204*184*133mm

Package Weight

1.2kg

Packing List:

1*Wifi IP Camera

1*Power Supply

1*Manual

1*Screws Bag

1*Antenna

1*Network Cable
