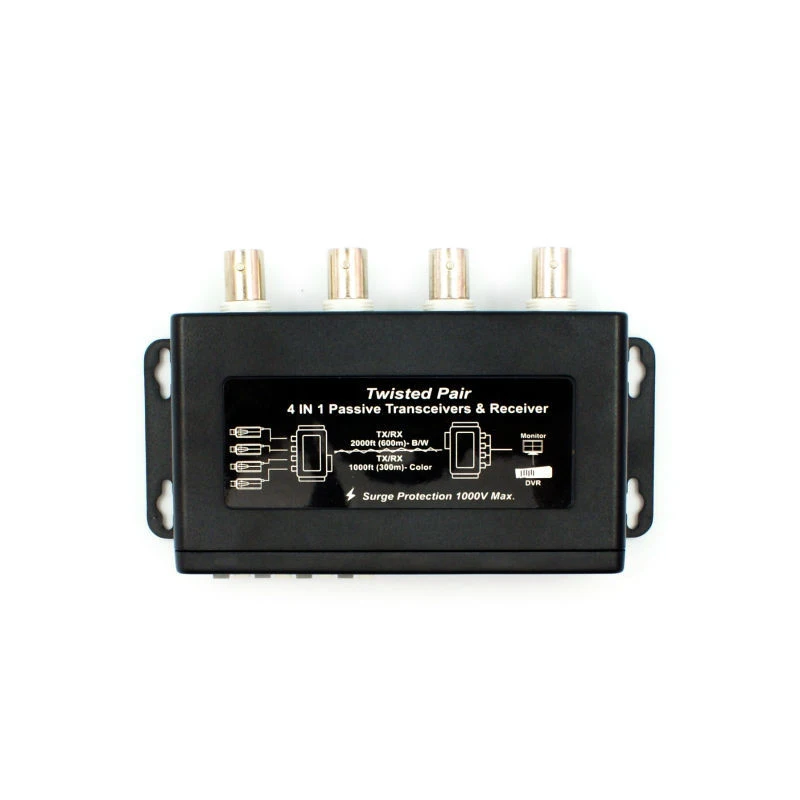

 4ch Passive Surge Protect Utp Transmit Video Balun

Fearture:

No power required simplified project wiring

4chs transmitting and receiving

plug and play,real-time transmit cctv video single

video is clear and stable,the image quality is high

Anti-interference,super lightning product,ESD

ITEMS SPECIFICATION

Transmission Distance

Transmission Distance with passive 400-600m

Video

Video Format PAL,NTSC,SECAM

Operating Frequency DC to 6MHz

Common-mode/Different-mode rejection 15KHz to 5MHz   60 dB typ

Attenuation 1.5dB typ Max

Impedance Female BNC:75Ω

terminal:100Ω

Wire type

Network Wiring One Unshield Twisted Pair(for each video signal)24-16AWG(0.5-1.31mm)

Category Type 5 or better

Impedance 100±20ohms

DC Loop Resistance 52 ohms per 1000ft(18 ohms per 100m)

DC Loop Resistance Different Capacitance

Power

No External power required No External power required

Protection

Surge Protection Renewable solid state surge protection

Video Input 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Video Output 2KV(common mode),10/700us IEC6100-4-5/1995(GB/T 1726,5-1999)

Connector

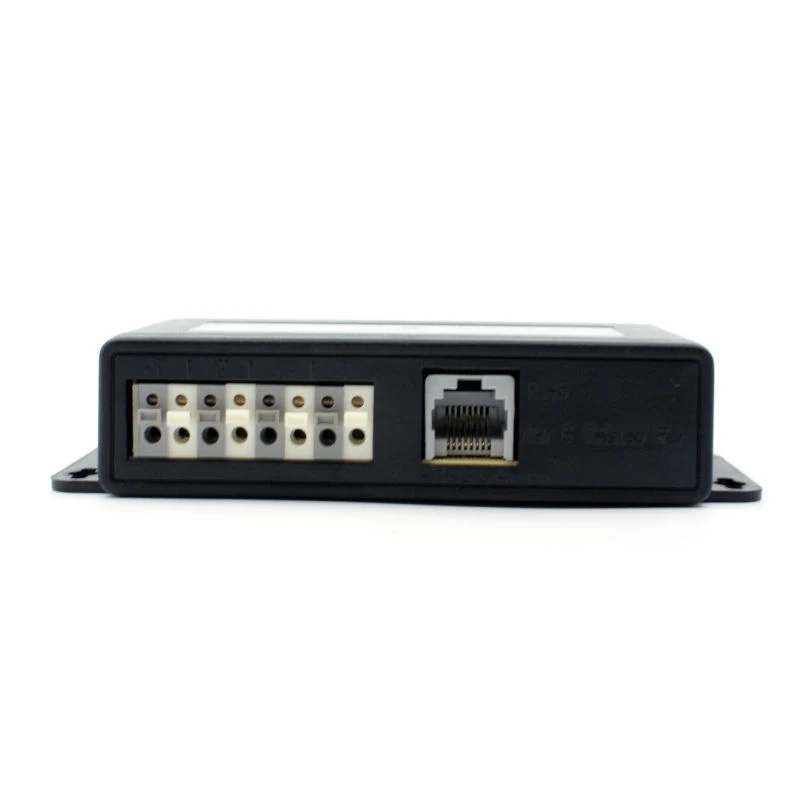

Video input/output Female BNC / RJ45 Port / Push Pin

Mechanical

Housing ABS engineering plastic

Body Color Black

Dimensions 127*76*28mm

Gross weight 170g

Environment

Operating Temperature -20°C-70°C

Relative Humidity 0-95%(non-condensing)

Storage Temperature -40°C-80°C

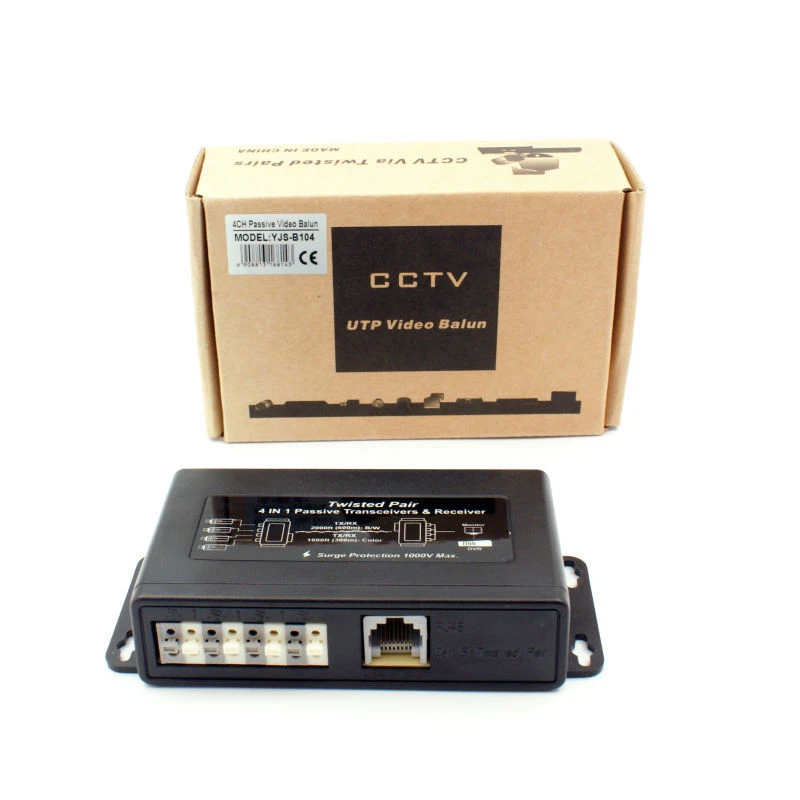

Package Included:
- 1 x Transmitter
- 1 x Receiver
