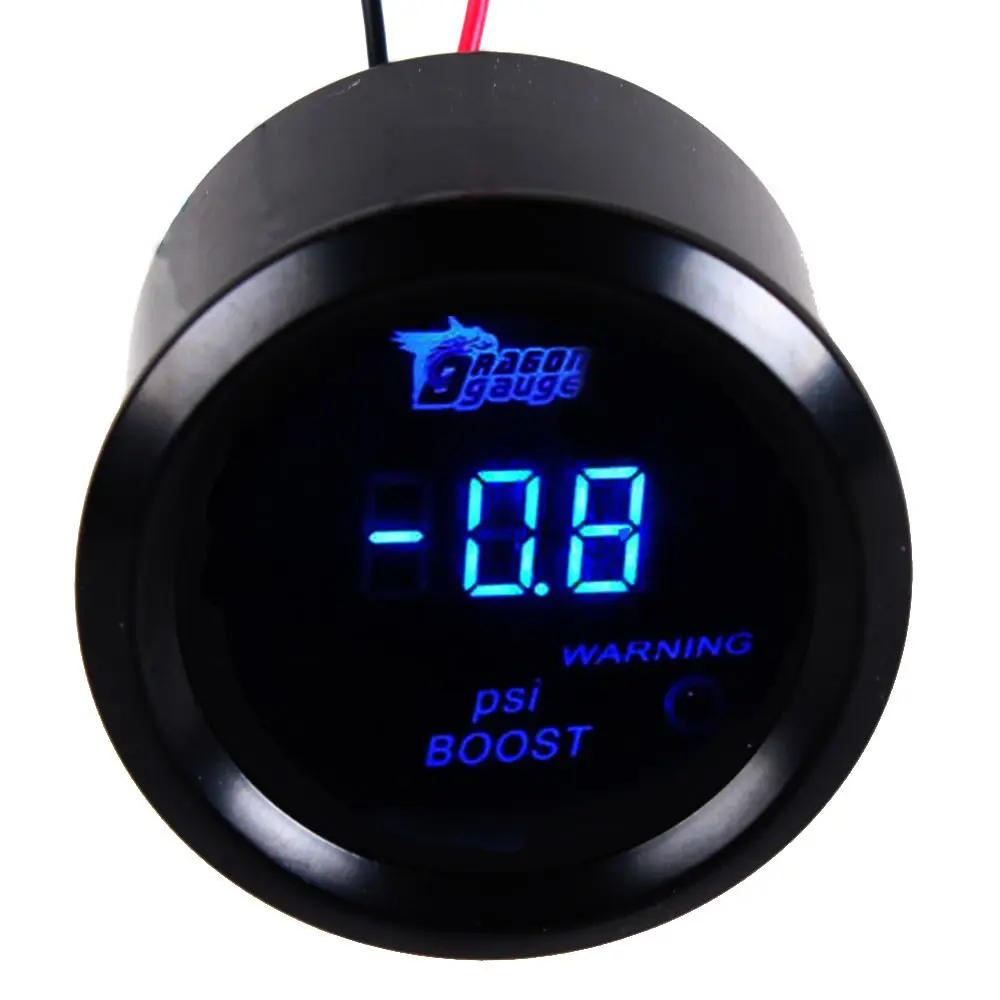

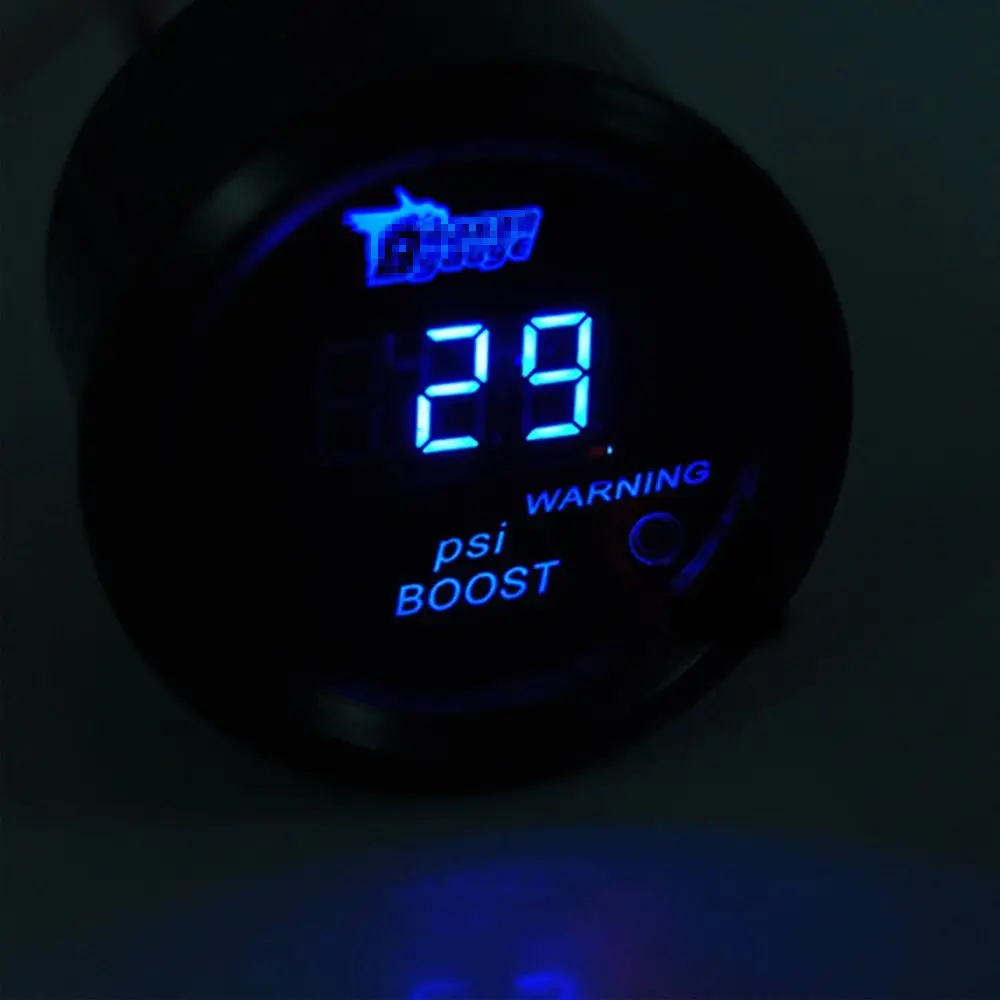

2" 52mm Auto Gauge  Car Universal Digital Turbo Boost Gauge Meter Blue LED Black Cover

Product Description:

    * Unit:psi

    * (-14~29) PSI Readout

    * 6 Months Warranty

    * Power: 12V / MAX 0.3A

    * Style :Blue Digital Readout

    * Size:2 inch gauge or 52 mm diameter

    * Warning light will light up when vacuum reaches over 21 psi

    * Universal fit for: most of cars or motors


How to installation:

    1.Gauge May Be Mounted In 2"/52mm Dia holes Or In Auto Gauge Custom Mounted Panels .Secure Gauge With Mounting Clamps Supplied.

    2.Drill 3/8" Dia .Holes And Install Rubber Grommets Where Pressure Or Vacuum Line Passes Through Sheet Mental Such As Firewall.

    3.Attach Nylon Pressure Line To Fitting On Back Of Gauge Using Adaptor ,Ferrule ,And Compression nut .Route Line Through Grommets To Engine Compartment .Connect Line To Pressure port On Engine By Using 1/8" Adaptor Ferrule And Compression Nut For Turbo And Prossure Gauge Or 1/8" Adaptor And Fitting For Vacuum Gauge.

   4.Start Engine And Thoroughly Check Installation For Leaks.
Twist In Light Socket Assembly And Connect One Wire(Yellow) To Dash Lighting Circut Or Other 12V Power Source And The Other Wire(Black) To A Good Ground.

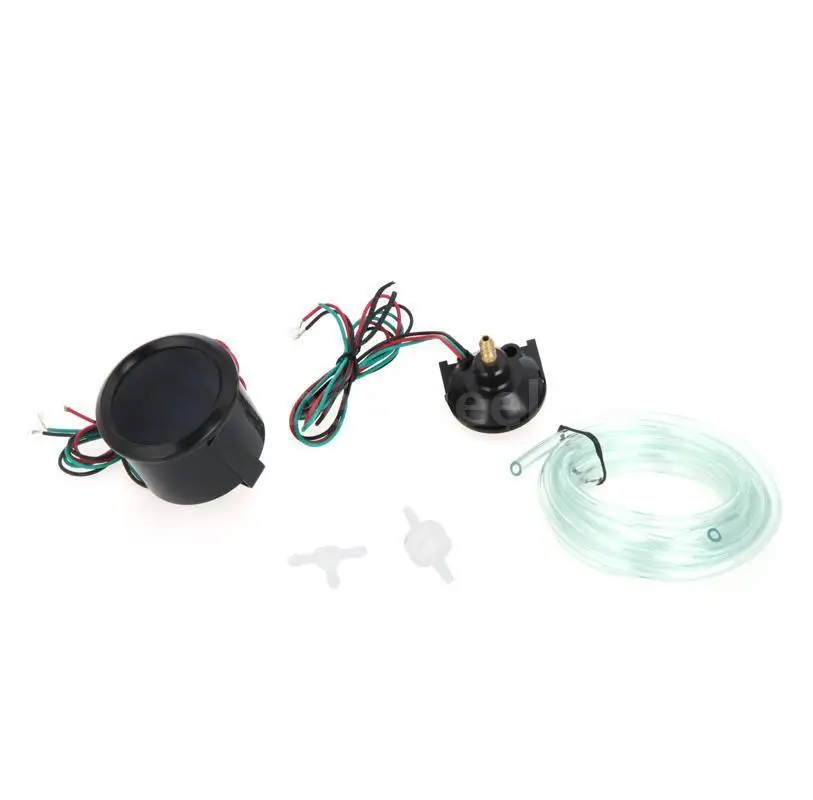

Package :
    * 1 X Boost Gauge
    * 1 X Sensor
    * 1 X PVC Hose(6 feet)
    * 1 X T-Fitting
    * 1 X AIR FILTER
