23 inch wide NEW Type IR touch frame multi touch points 10 touch points- This Product is 23" IR touch frame with 10 touch points only. Windows/linux/android supported. USB plug and works.



IR Touch Frame Bezel Drawing:

Drawing for Touch Bezel



Support Operation system

*APPLE OS PLS LET US NOW BEFORE ORDER. We will use different firmware ..

Please Notice: If working on Android, confirm with us first ,thanks~

IR touch frame Specification

MECHANICAL P/N Obeytec Slim Version Overlay Thickness 8mm Overlay Frame Width Top 17.0 mm/Buttom 18.5 mm Glass 3 mm Vandal proof Glass Housing Aluminum frame TOUCH CHARACTERISTICS Input Method Finger or touch pen Touch Points 2/4/6/10 (Standard 2 touch points) Touch Activation Force Non Minimum activation force Position Accuracy 1mm Resolution 4096(W)×4096(D) Response Time Touch: 6ms Drawing : 6ms Cursor Speed 120 dot/sec Glass 4mm glass Transparency : 92% Object Touch Size  ≥ Ø5mm Touch Intensity Over 60 millions   ELECTRICAL Operating  Voltage DC 4.5V ~ DC 5.5V Power 1.0W (100mA at DC 5V) Anti -Static Discharge Touch Discharge，Grade 2：Lab Vol 4KV (Standard :B) Air Discharge，Grade 3：Lab Vol 8KV ENVIRONMENT Temperature operating：-10 °C ~ 60 °C storage：-30°C ~ 70 °C Humidity operating：20% ~85% storage：0%~95% Relative Humidity 40 °C，90% RH Anti – glare Test Incandescent lamp (220V,100W) , operating distance over 350mm Altitude 3,000m Interface USB2.0 full speed Detection Method Infrared rays Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof) Working Environment Directly Under sunlight ,indoor and Semi-outdoor Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks SOFTWARE Scanning Auto full screen scanning Operate system Window xp,Windows 7,Windows 8,Windows 10, Andriod,Linux Calibration tool Plug and works

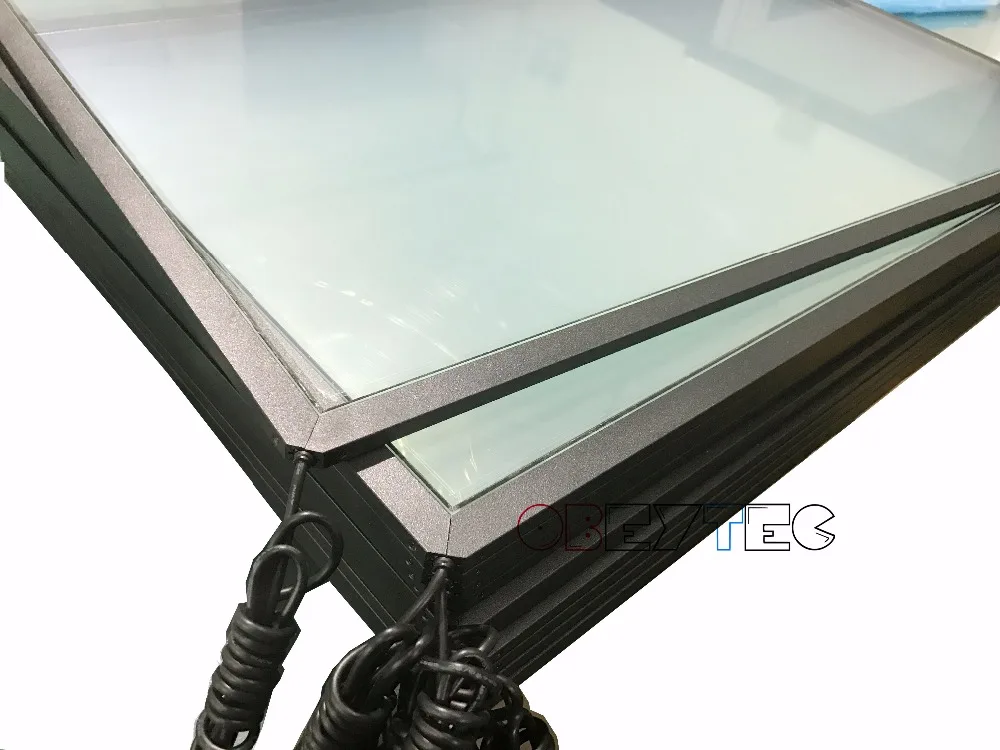

Ir touch frame photos









IR touch frame testing before shipments

Photos of productions

Shipping method

Ship with Glass Normally. For Sizes Over 32 inches we ship without glass. Because shipping too expensive. If you want ship with glass and disassembly packed into Tube Packaging. Pls contact if you need ship with glass.
