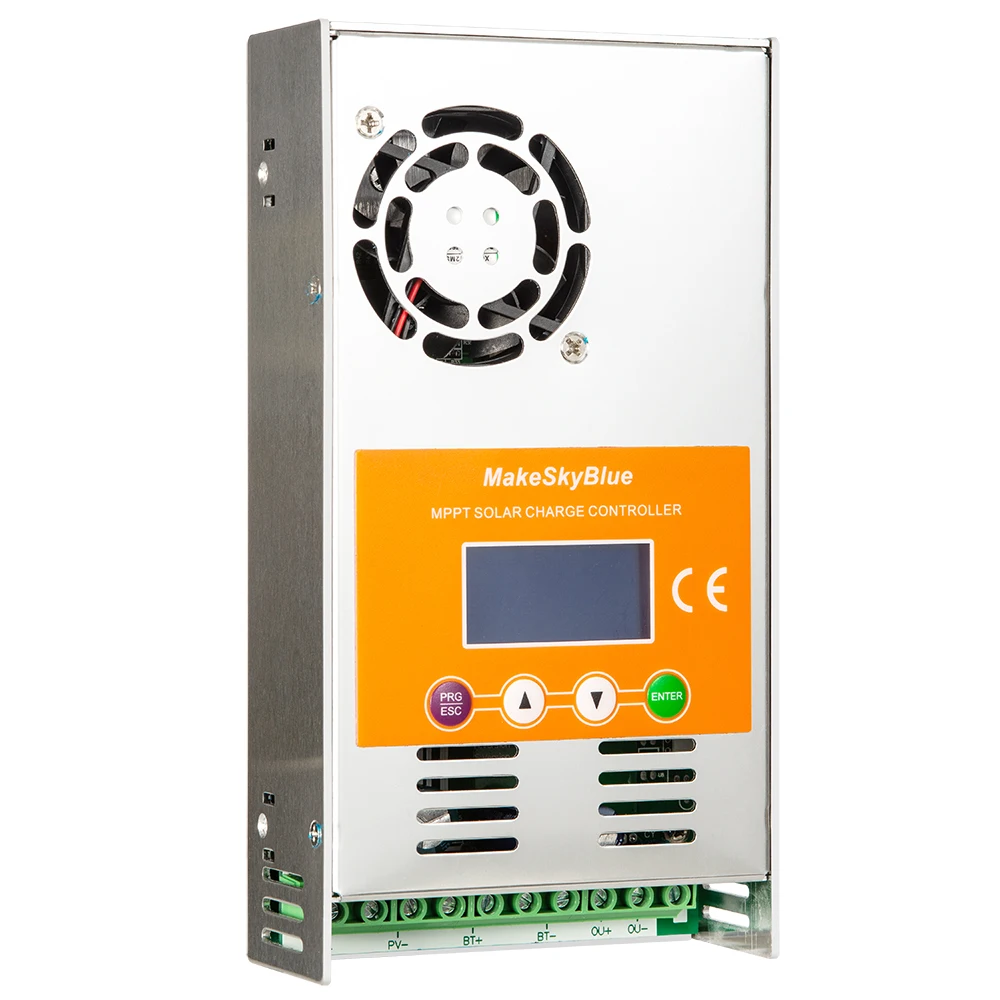

MakeSkyBlue 120A MPPT Solar Charge Controller Max 160V 5600W Panel Auto for 12V 24V 36V 48V Battery Pack of 2pcs 60A V118 | Обустройство

MakeSkyBlue 120A MPPT Solar Charge Controller Max 160V 5600W Panel Auto for 12V 24V 36V 48V Battery Pack of 2pcs 60A V118 | Обустройство

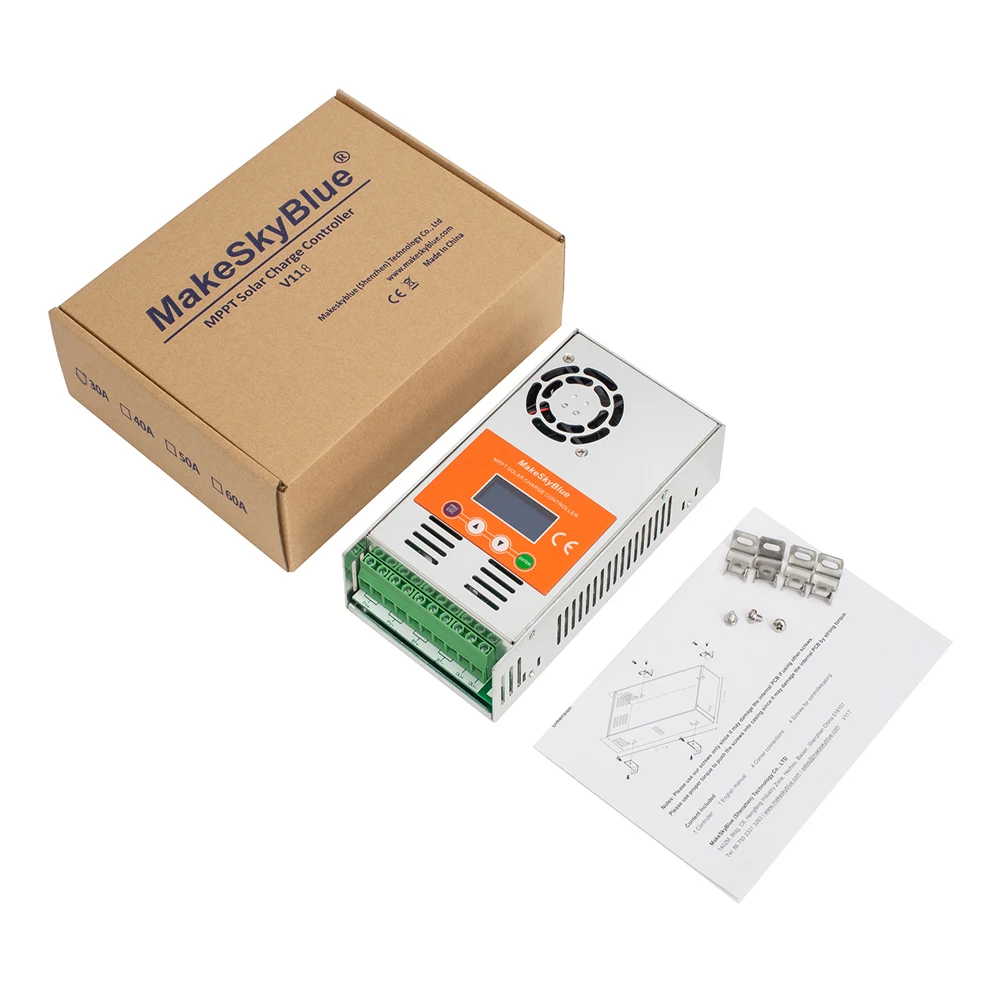

Content included:

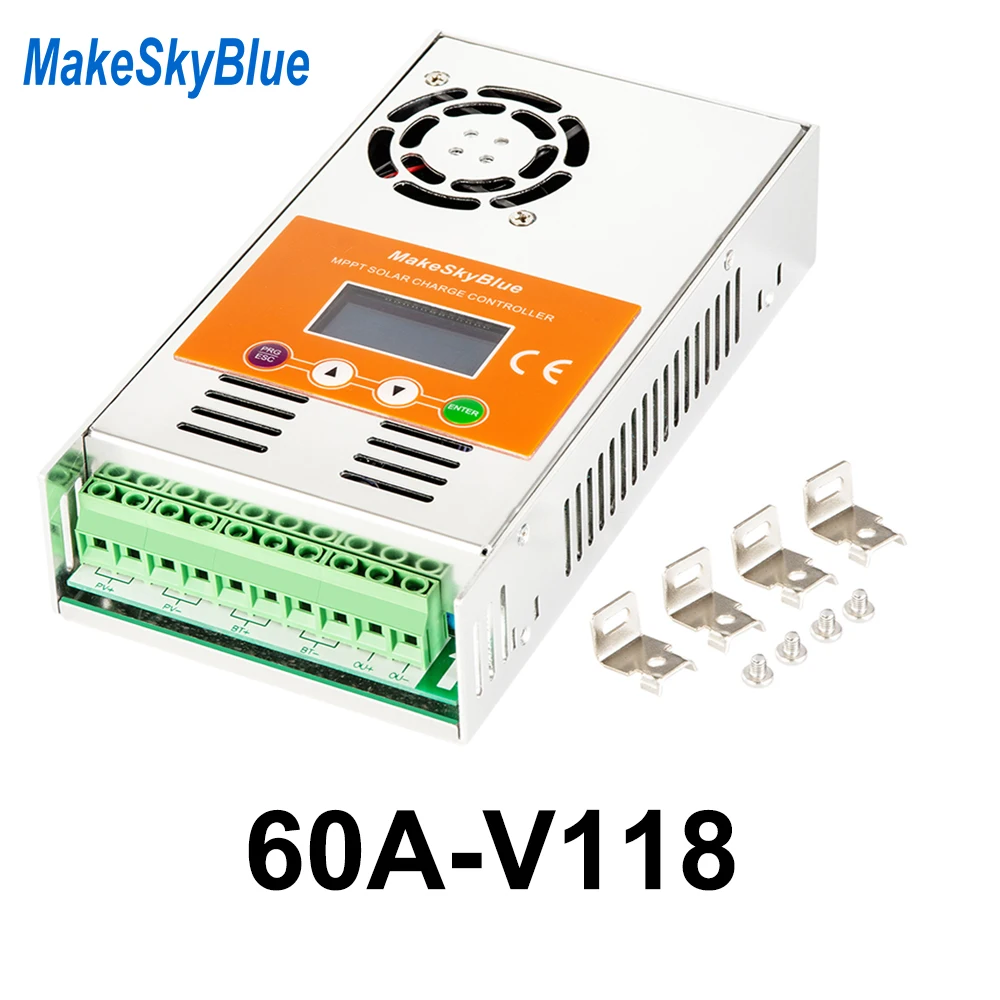

2pcs 60A-V118  MPPT Solar Controller

2 manual

2 set of parts for shell mounted

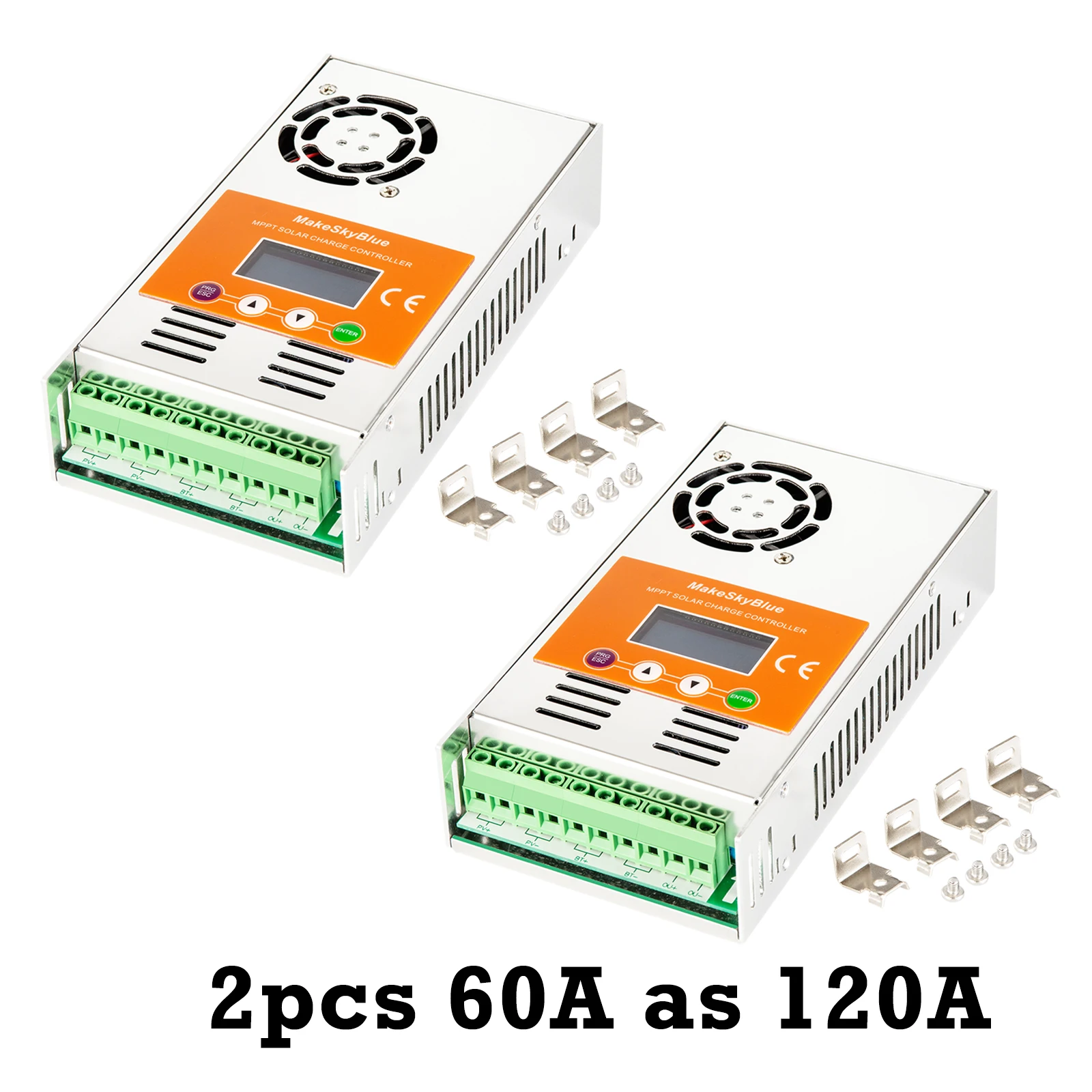

Please notes you will get 2pcs 60A then you could make them in parallel total as 120A.

Most  buyer are concerned

There are some fake products on the market including Amazon, Ebay, Aliexpress and Alibaba. We'll not provide the warranty for counterfeit and it will be risk for your battery. Please see the details as below to help you find an original one.

Notes:

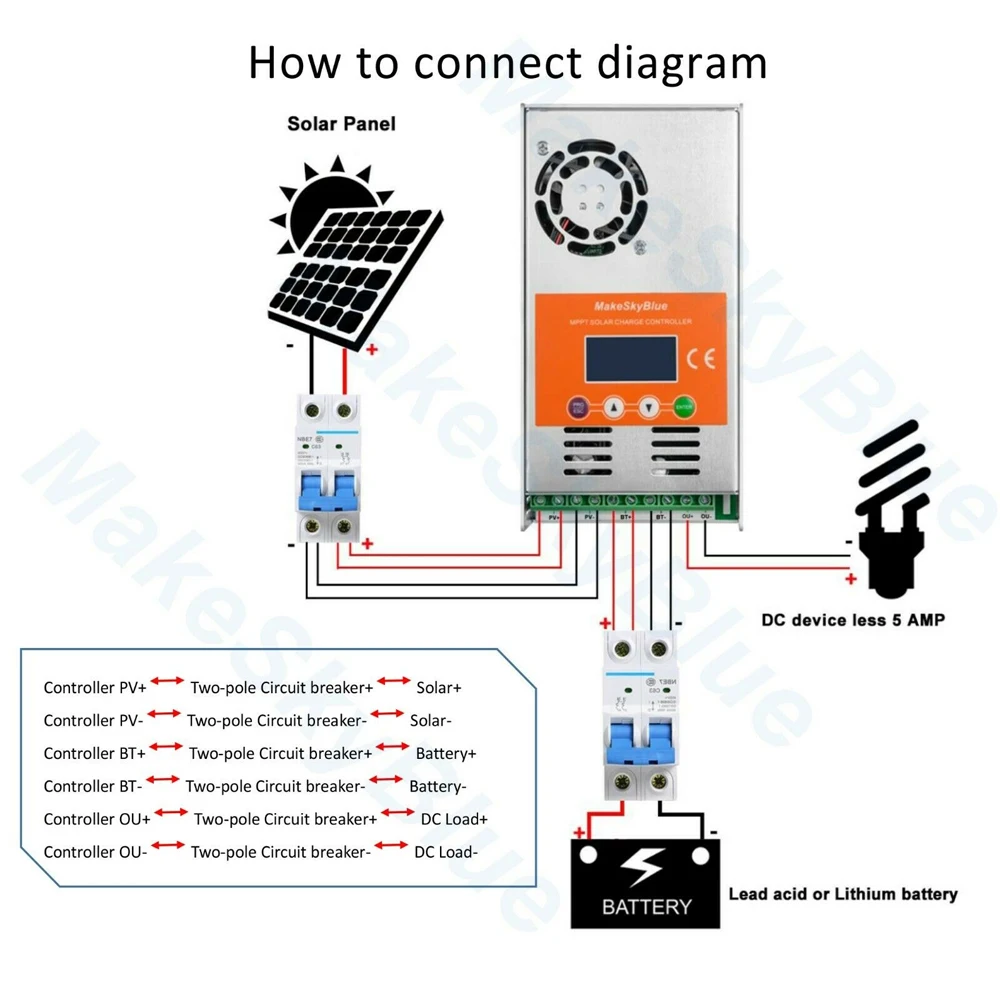

The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Model No.

S3-60A*2

Charging mode

MPPT Maximum power point tracking automatically

Charging

3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge

System type

DC12V/24V/36V/48V Recognition automatically

System voltage automatic recognition

12V system (DC9V-DC15V)

24V system (DC18V-DC29V)

36V system (DC30V-DC39V)

48V system (DC40V~DC60V)

Soft start time

≤1S

Dynamic response and recovery time

100us

Max efficiency

≥98.1%  (Voc is 1.5 or 2 times than battery, then it’s best efficiency)

PV utilization

≥99%

Input specification

Voc from PV

( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )

12V system (DC20V~DC80V)

24V system (DC37V~DC105V)

36V system (DC50V~DC160V)

48V system (DC72V~DC160V)

The maximum PV input power

(The total power rated of PV can’t be over this watt that will break the controller.)

12V system (720W)*2

24V system (1440W)*2

36V system (2100W)*2

48V system (2800W)*2

Output specification

Selectable battery type(default is Sealed)

Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

Absorption Charging Voltage

Refer to Batteries charging reference

Floating Charging Voltage

Refer to Batteries charging reference

Overcharging protection voltage

12V system (15V)

24V system (30V)

36V system (45V)

48V system (60V)

Rated output current

60A

Temperature Coefficient

±0.02%/ ℃

Output voltage ripple-peak

100mV

Output voltage accuracy

≤±1%

Indicating

LCD display

See LCD display instruction

Protection function

Output over-voltage protection

See output specification

Input Anti-intrusion protection

yes

Temperature Protection

75 ℃

Fan-on temperature

>45℃

Fan-off temperature

<40 ℃

Other parameters

Acoustic noise

≤40dB

Cooling way

Forced air cooling.

Components

Imported materials, Accord  to EU standards, Industrial grade range.

Environmental requirements

Meet 2002/95/EC; No cadmium, hydrides and fluorides

Properties

Size (mm)

215x115x50

Net weight(Kg)

1.1

Gross weight(Kg)

1.2

Security Level

Accord to CE, PSE, FCC, EMC, EN60950

Electromagnetic Compatibility

Accord to EN61000, EN55022, EN55024

Enclosure

IP21

1. The advanced application for V118 30A, 40A, 50A and 60A:

​If you want to control a big current load such as 100A, you could use the OU terminals to control it as below pictures.

(Figure 1)：Using a relay to control a small current switch to achieve an inverter switching machine.

(Figure 2)：Use relay to control high current load input circuit-loop.

2. The advanced application for V118 50A and 60A:

If your load device is shorted or over-current, the controller will start output short-circuit protection to close the output condition. When you disconnect the load and press ENT over 5 seconds, then output will turn on again. Please note that 30A and 40A do not have this function.

3. The advanced application for V118 50A and 60A:

If your load device is shorted or over-current, the controller will have output short-circuit protection and close the output. When you disconnect the load and press ENT over 5 seconds, then output will turn on again. Please note the 30A and 40A don't have this function.

The MPPT output of the battery voltage will not rise suddenly, and the controller doesn't cause the output voltage to overshoot through the  BMS protection board.

​By the way, the charging voltage of V118 version can be set from 12V to 17V compare to the fake products is from 13.5V to 17V.

​The discharge voltage can be set from 9.8V to 14V.

4. The advanced application for V118 30A, 40A, 50A and 60A:

The time and light control for OUTPUT will be accurate when you connect the lamp or other DC loads less 5A. The fake product can't use the time and light control and can't connect other DC load except the lamp.
