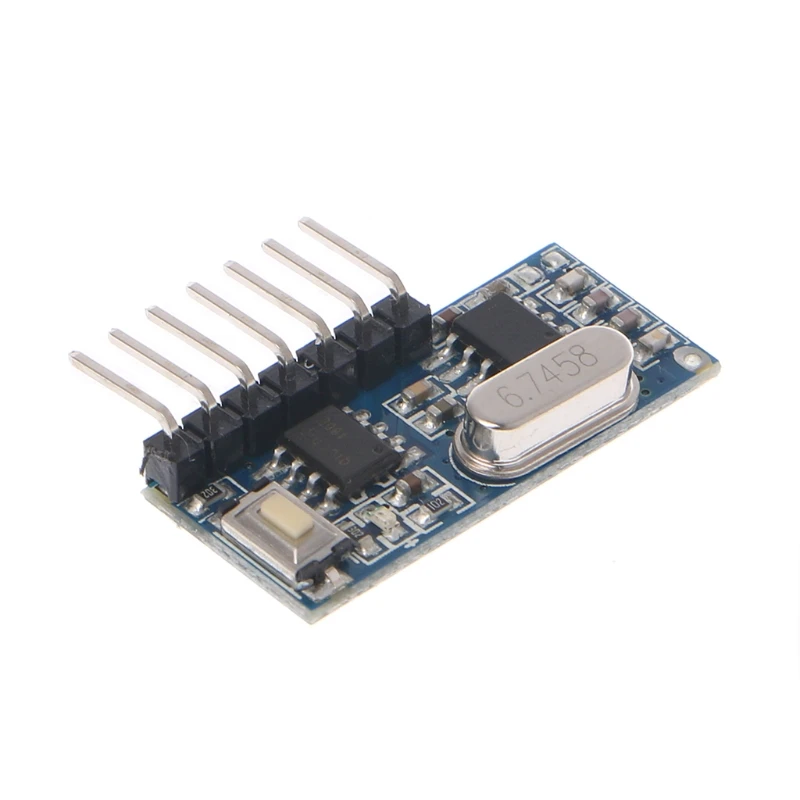

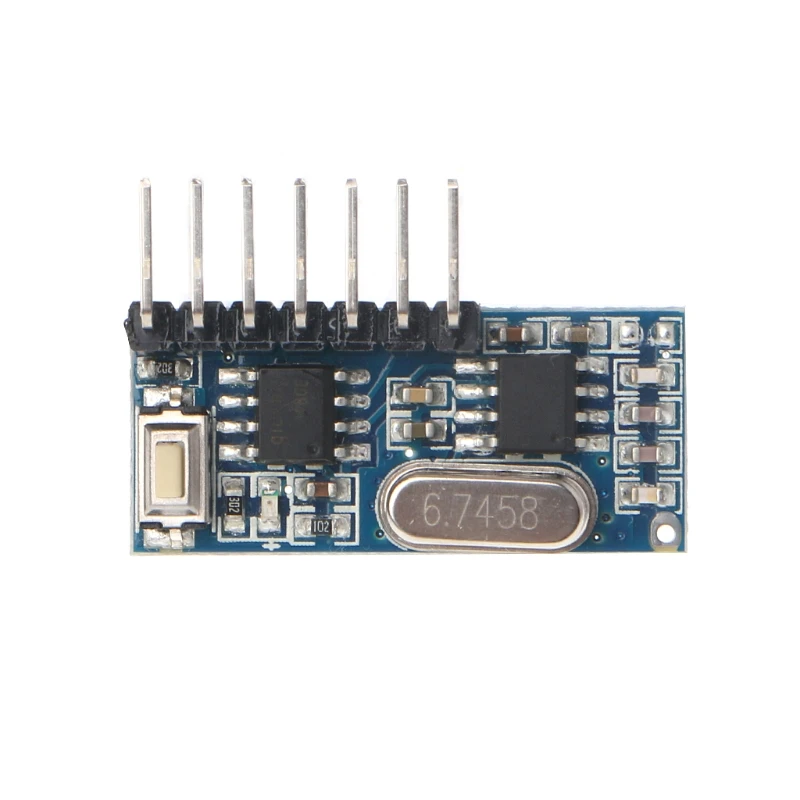

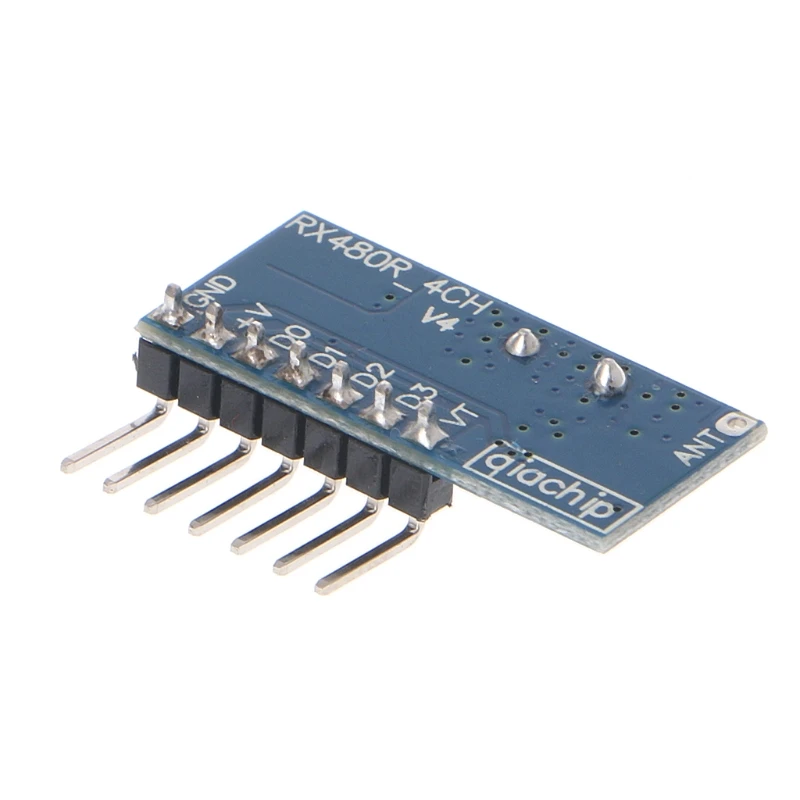

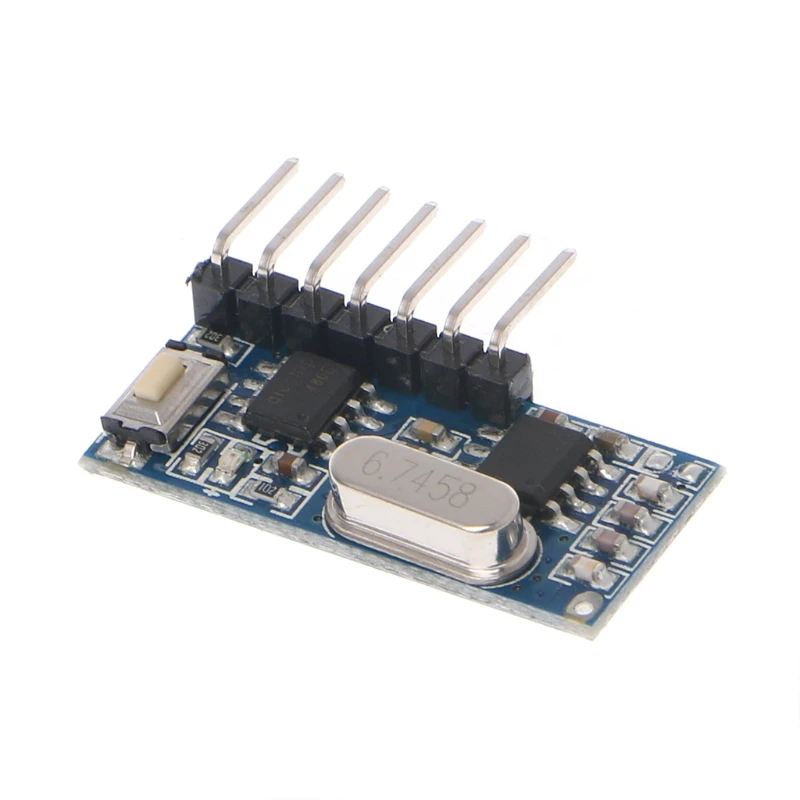

433mhz RF Receiver Learning Code Decoder Module Wireless 4 Channel output Diy kit For Remote Control 1527 encoding W315 | Обустройство

433mhz RF Receiver Learning Code Decoder Module Wireless 4 Channel output Diy kit For Remote Control 1527 encoding W315 | Обустройство

Application Environment:
Remote control switch, motorcycle, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, LED remote control, remote control electric remote control audio ports, remote control of the garage door, remote control of retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle electric remote control cars, MP3 remote control.
Attention please:
Compatible Transmitter Encoding Type: EV1527
If you are not using the transmitter EV1527, encoding will not be applied to the receiver.

Specifications:
Product Model: RX480-E4
Working Voltage: DC 3.3-5V
Holding Current: ≤5mA
Working Frequency: 433 MHz
Receive A Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency range: ±0.2 MHz
Working temperature: -25℃~75℃
Working mode: Motion point, auto-lock, interlock
The output: 4 CMOS signal level channel Corresponding to ABCD 4 remote control buttons.

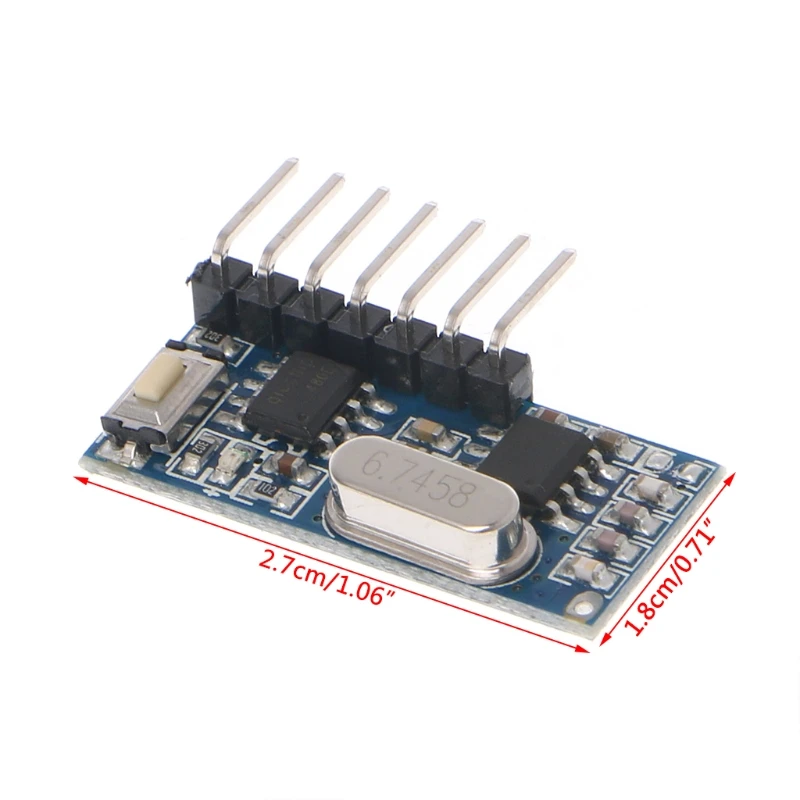

Size: 2.7x1.8cm/1.06x0.71"
Quantity: 1 Pc
Note:
Please allow 0-1mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package
Package Contents:
1 x 433 Mhz Receiver Module
