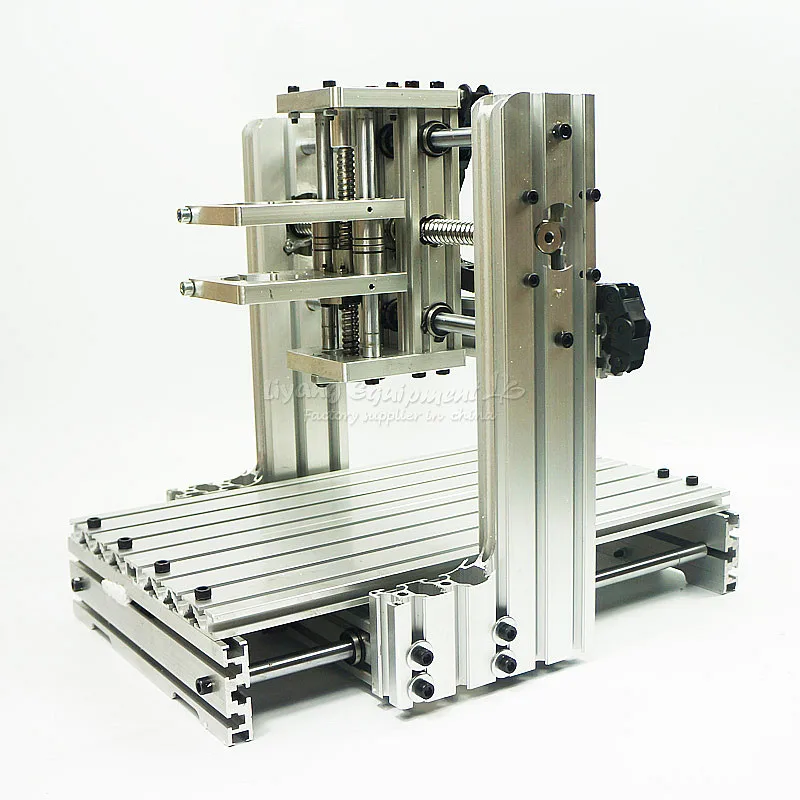

3020 CNC настольная рама из алюминиевого сплава | Инструменты

3020 CNC настольная рама из алюминиевого сплава | Инструменты

CNC Engraver Suitable User:

- Advertising & Design staff

- PCB Engineer

- Woodwork fans

- Model fans

- NOT Ready for Nowise (beginner)

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty

Model and Technical Parameters

MODEL

3020 metal

Attribute

3axis

4axis

Only frame

Axis

3axis

4axis

3axis

Interface

USB Port

USB Port

No

Spindle Motor:

400W

400W

No

Weigh

22

26

16

Max. working stroke

XYZ=180*270*95mm

Acceptable material thickness

≤95mm

Rail type

X Y 1605 ball screw, Z 1204 ball screw,

12 mm optical axis

Spindle motor

400W  DC spindle , 0-9000r/min

Collet type

ER11,1/8"(3.175mm) Collet

Stepper motor and drive

57HS56

Repeat positioning Accuracy

0.02mm

Communication interface

USB Port

System requirements

Win-XP / Win 7 Win 8 Win10

Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

22kg

Rotation Axis (4th Axis)

Description:

Center height: H = 51mm

Maximum turning diameter: ≤ 81mm

Deceleration ratio: 4:1

Stepper motor: 57HS56

Weight: 4.0KG
