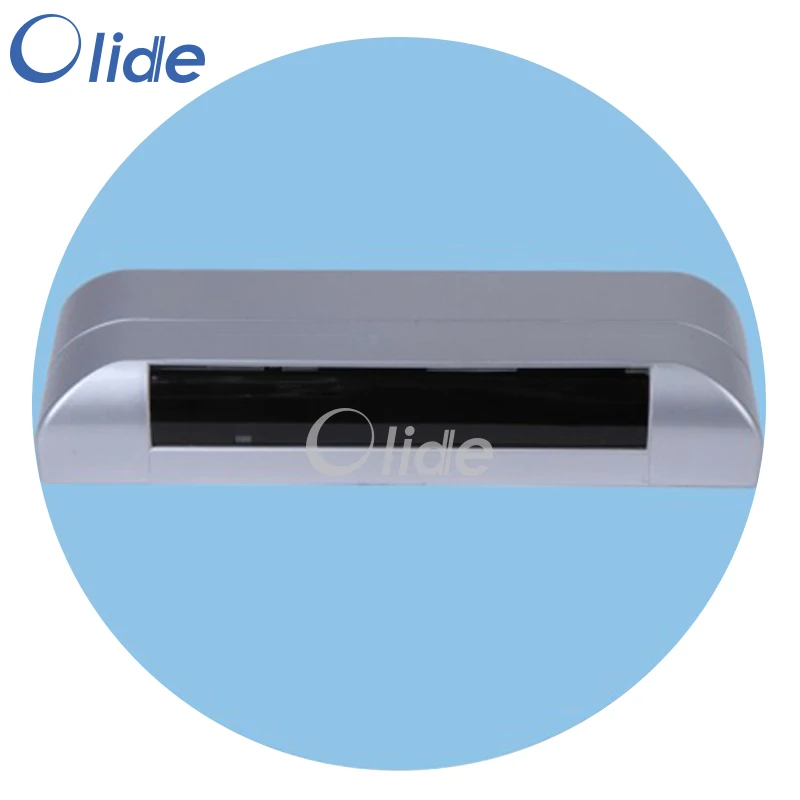

Active Infrared Sensor For Autodoor

Product Application

This product is a type of active infrared sensor using infrared electrical transmitting and receiving optical tube imported from Japan, characterized by flexible and convenient sensing range regulation and accurate distance control, strong anti-interference ability, high sensitivity, extremely low possibility of misoperation, convenient for uses as supporting action sensors of a variety of autodoors, especially for occasions with narrowing entrance space or street-side occasions with frequent human body motion.

General Characteristics

1. Be of state-of-art appearance using internationalized structure and process, precision optical lens of advanced structure adjusting device design. 2. Use of an advanced background analysis technology can automatically carry out learning and analysis of the background at boot initial state and lock up the background information. 3. It is provided with a special setting switch for door opening width range, and the combination of dial switch can achieve free selection between wide sensing range and narrow sensing range. 4. Adjustment of the flaps of main body and side range, coupled with the sensitivity selecting and setting switch can realize a precise adjustment of front sensing distance.

Technical parameters

Beam number: 6 beams for transmitting,6 beams for receiving Power supply: AC/DC12-36V+/-5% Function category: moving objects detection and motion sensing Sensing area: 1500 (D) X2000 (W)mm Maximum mounting height: 3000mm Outline size: 221 (L) X74(W) X35(H)mm Sensitivity adjustment function: Yes (adjusted by rotatory button)

Product Size
