Product introduction

The power splitter is called a power divider. It is a device that divides the energy of one input signal into two or more equal or unequal power outputs. It can also synthesize multiple signal energy into one output. This can also be called Combiner.

 A certain degree of isolation should be ensured between the output ports of a power divider. The power dividers are usually divided 2Way (one input and two outputs) ; 3Way (one input and three outputs) ;4Way (one input and four outputs)according to the output.

  The main technical parameters of the power divider are power loss (including insertion loss, distribution loss and reflection loss), voltage standing wave ratio of each port, isolation between power distribution ports, amplitude balance degree, phase balance degree, power capacity and frequency band. Width and so on.

Specification:

Model No.

OS-S111

Item

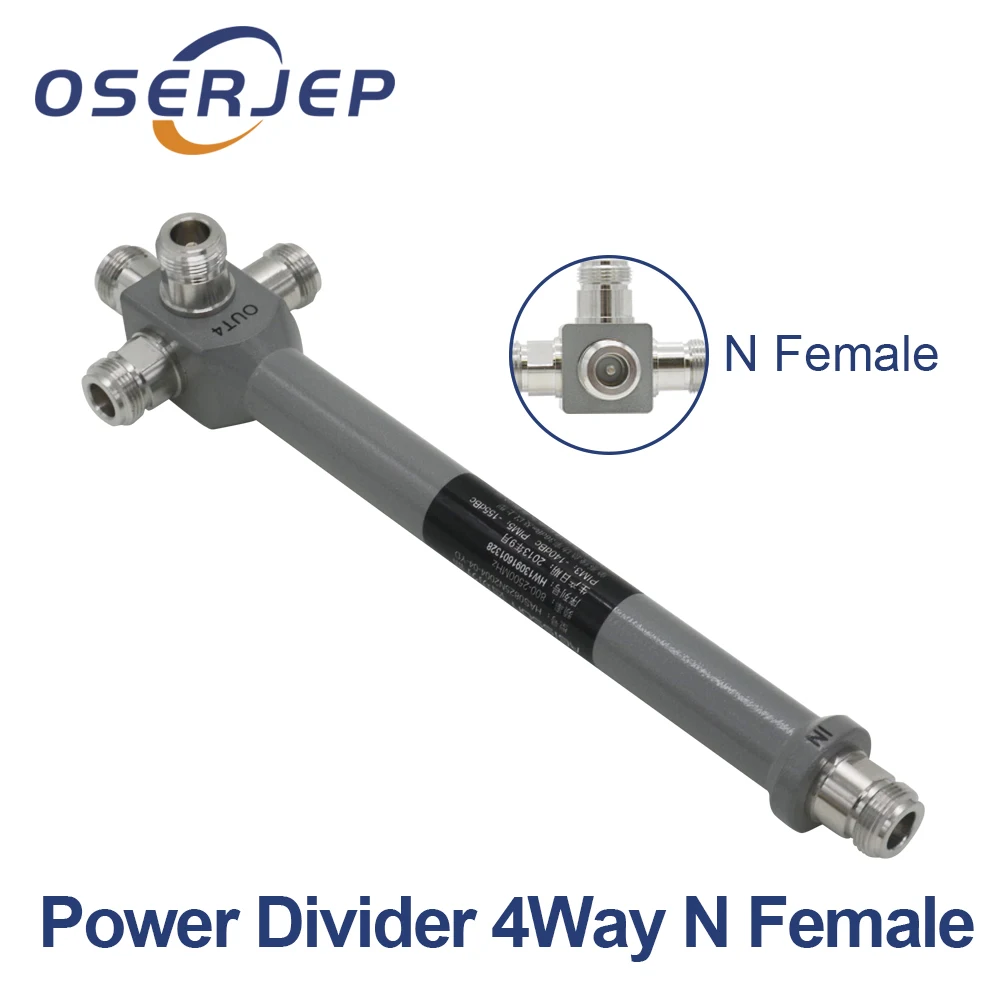

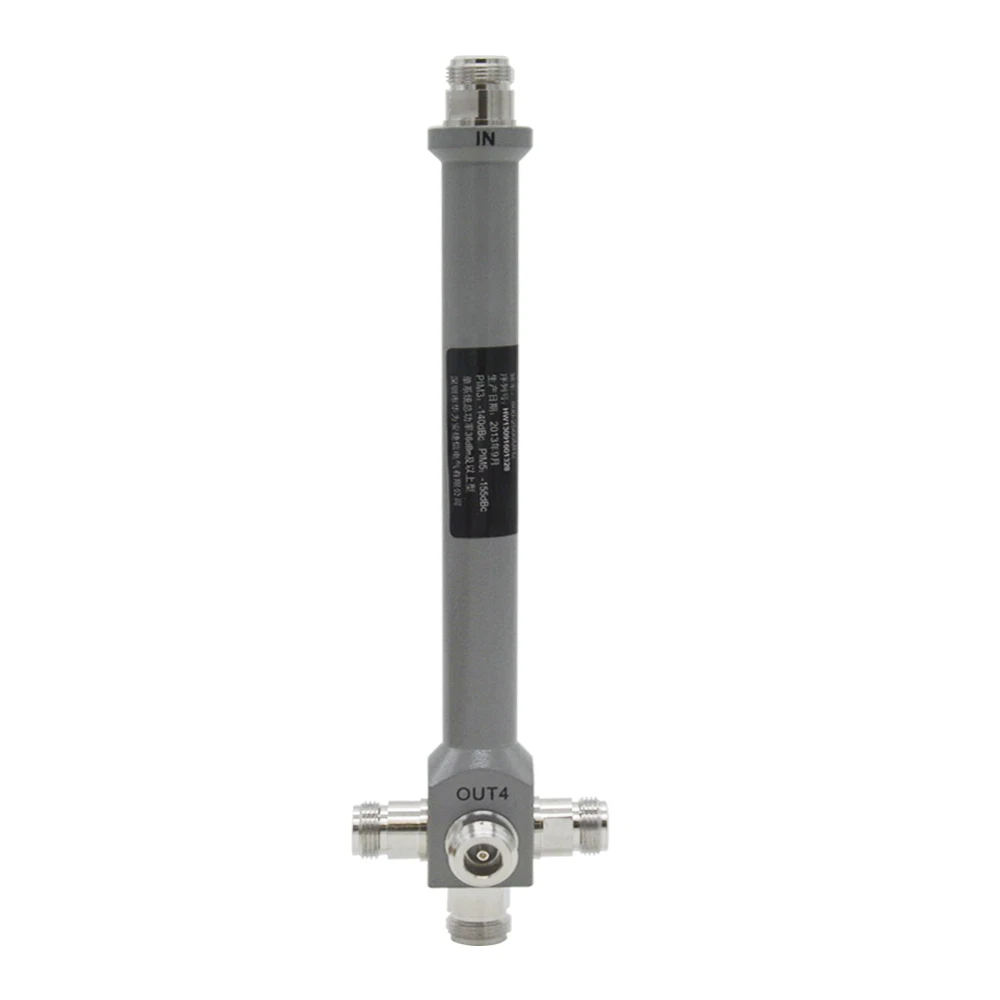

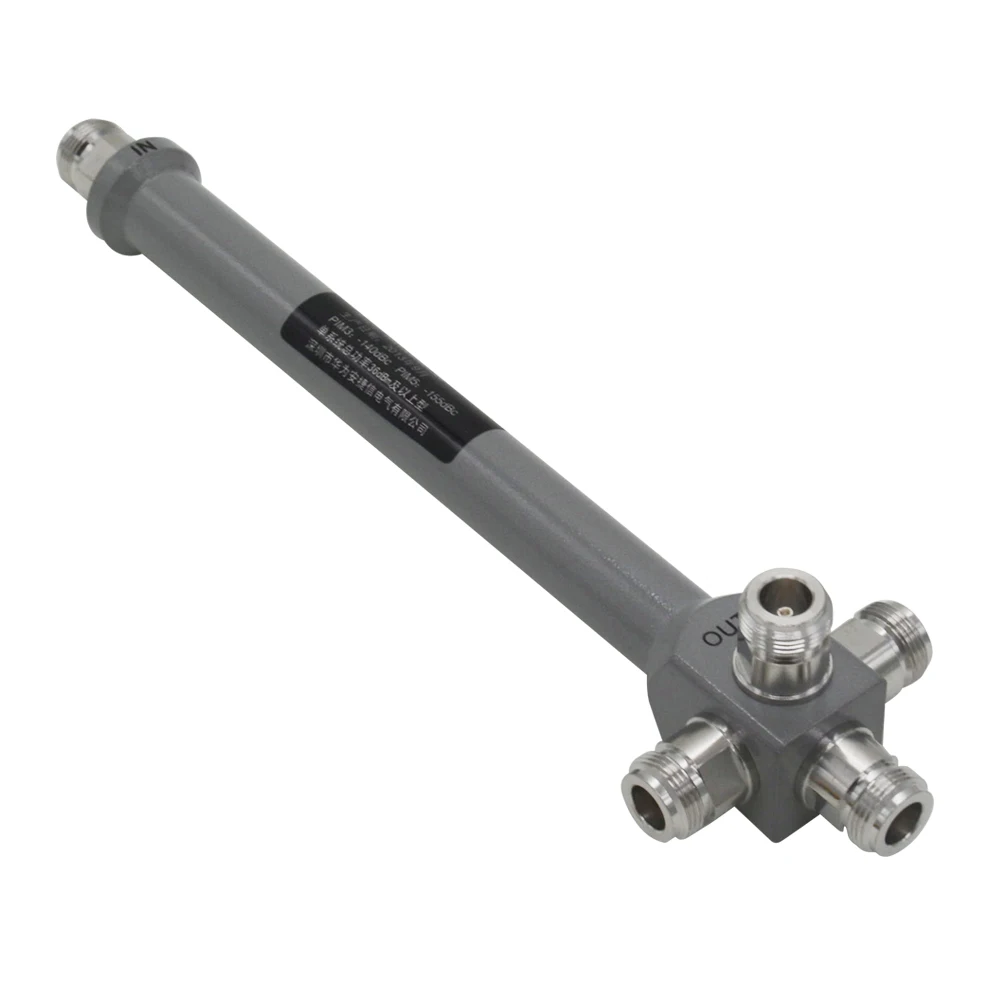

Cavity 4Way splitter

Output

One Input Four Output

Operating Frequency

 800-2500MHz

Power Capacity

 50W

Ripple

 0.3dB

Impedance

50/N

Isolation

 20 dB

Insertion Loss

 3dB

VSWR

 1.2

Operating temp.

 -25 - +55

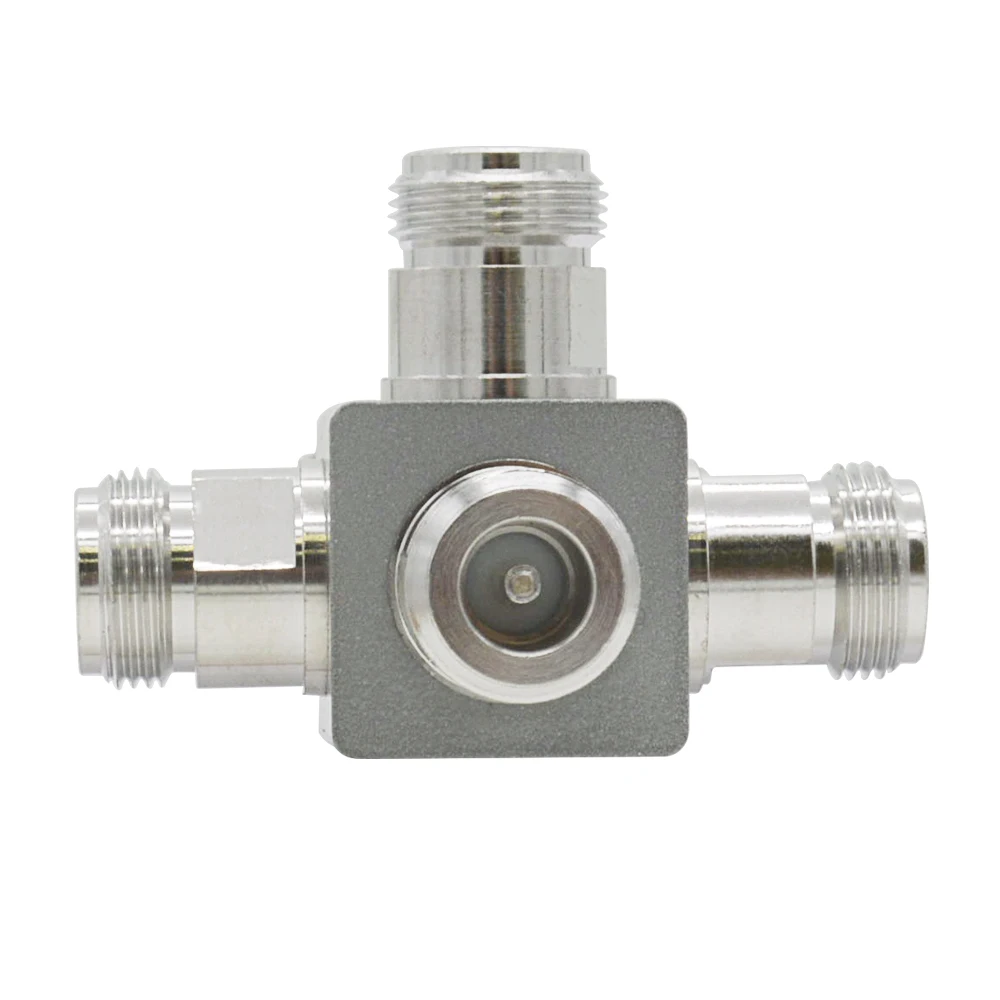

Connector Type

 N female

Materials

 Alloy

Product Size

140*72*34mm

Product Weight

 250g

Package Include :

1 X Cavity 4Way Splitter
