38mm 6LEDs 9LEDs UCS1903 led pixel light, smd 5050 magic smart pixel rgb led module 12v digtal lamp, diameter 38mm, waterproof IP68

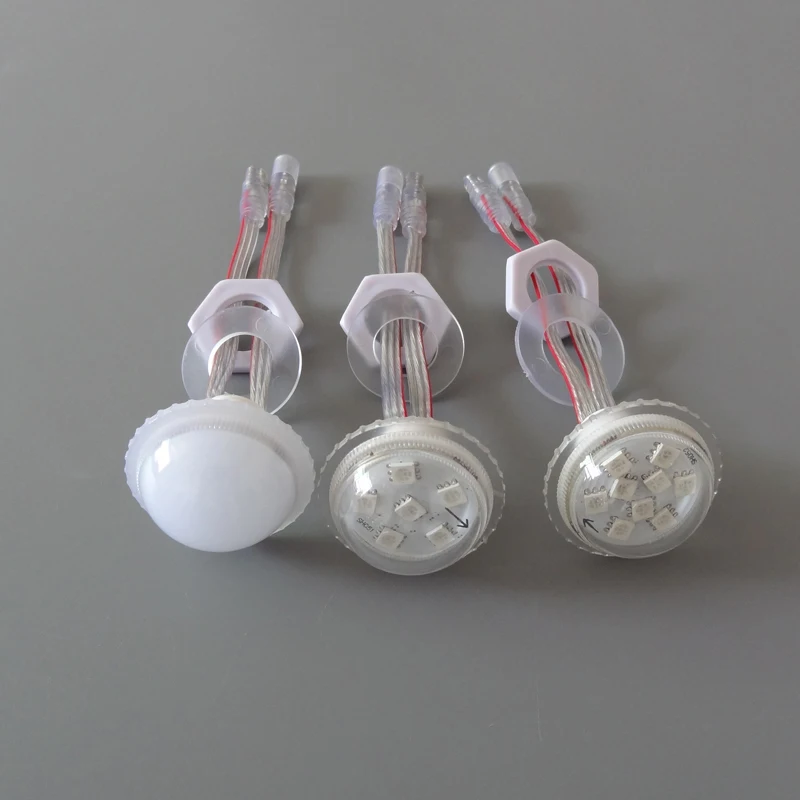

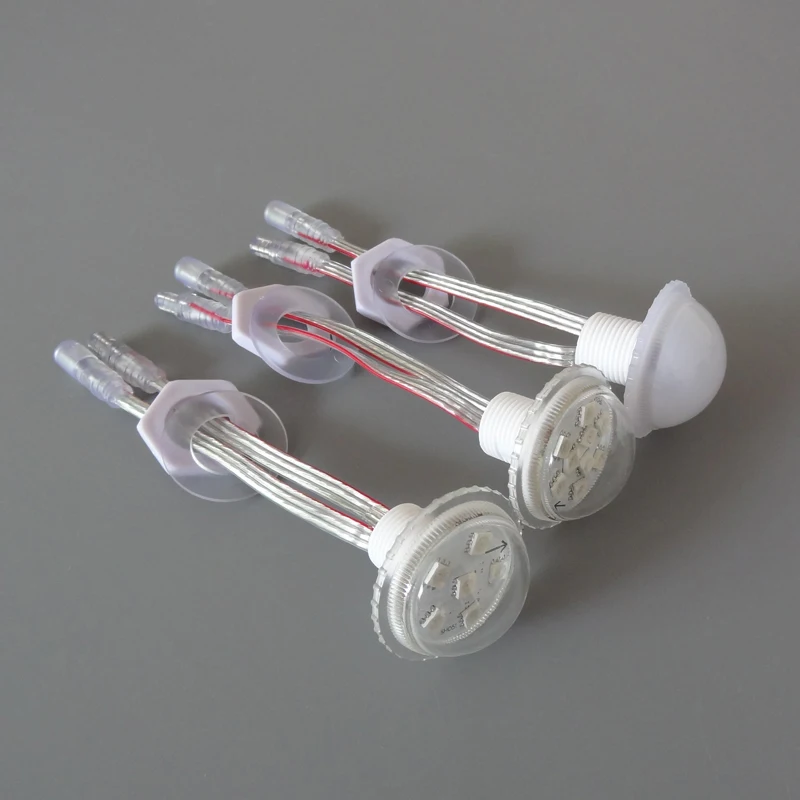

1. 38mm 6LEDs / 9LEDs rgb pixel light is combinated by plastic housing, the PCB board and 3-pins waterproof connector (high temperature-esistant, cold-resistant UV-resistant), 6pcs / 9pcs 5050 RGB SMD LED, 1pcs ucs1903 IC. UCS1903 can use the same led program as WS2811.

2. 38mm rgb led pixel light is made by epistar chip with high brightness,  low voltage, rich colors, energy conservation & environmental protection, strong stability, long lifespan and little luminous decay.

3. 38mm rgb led pixel module need work with external led pixel controller, can realize RGB colorful gradient, jump, full color scanning,chasing, running water, heap up and horse racing, scan results, many kind effects. Depending on the installation of different ways,different colors can be changed in the composition of characters,patterns,and other dynamic effects. And also can make a matrix pixel display ,backlights which can show ad picture or play video. These pixel lights can DIY program and effects by led software.

4. This product widely used in building contour, hotels, building floor lighting, KTV entertainment, large shopping malls outside wall, Hotels, Bars, Discos, square street, outdoor AD signs, Logo, interior lighting and other places.

5. This product has the advantages of convenient installation, firm and stable, product unique screw directly twisted up, let the products much more fixed.

6. The products can be cascaded 20PCS , non-super-tandem. Thickness of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 5 meters) and a low pressure drop depending on the transmission line.

Specification:

 Part No.

 HM-G38mm-UCS1903-12V

 IC Type

 UCS1903 (can use the same led program as ws2811)

 Emitting Color

 digital full rgb color, 24bit, 256gray scale

 LED Qty

 6leds/modue, 9leds/module

 Working Voltage

 DC12V input

 Max Power

 6leds ----1.8w/, 9leds ----- 2.7W

 Max Current

 250MA

 Driver Method

 Constant current circuit

 Dimension

 Φ38mm (diameter 38mm)

 Fixed way

 20mm diameter open hole

 Standard connection

 each pixel with a 3pin waterproof connector

 Standard wire length

 10cm (100mm)

 Housing cover feauter

  milky cover, transparent cover can be choosen

 Protection Level

 Waterproof IP68

 Lifespan

 ≥50000 hours

 Viewing Angle

 ≥140°c

 Warranty

 2years

 Certification

 CE & RoHS

 Working Temperature

 -40 ~50°c

 Store Temperature

 -50 ~60°c

Product Size:

Packing List:

200pcs D38mm UCS1903 LED Pixel Module

1. This product is popular hot sale in led market, contour marking, advertisement billboard, exposed luminous characters.

2. Channel Letters Back lighting;lights,cabinet lights,edge light.

3. Backlight of signage, channel letter, signs, light box;architectural lights for corridor, canopy, archway, lights for path.

4. Advertisement signs; Led screen, night clubs, wine bars, shopping malls.

5. Advertisement Light Boxes Back lighting;various shops, cinemas, beauty centers.

6. Decoration lights for bar, pub, club, disco;office fronts,living rooms.

7. Billboard Back lighting.even lights for household kitchens etc.

​
