36V 500W Bafang 8fun BBS02B Mid Drive Motor Kits Crank C965 C961 Eletric Bicycle Ebike Kits With 36V 13AH Lithium Ebike Battery

With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 500W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes.

Specification:

1. Voltage: 36V current Limit:25A

2. Power: 500W

3. Motor Weight: 4.2kgs
4. BB Length: 68mm (Suitable for 68mm or 73mm length BB Bike Modification)
5. Working Temperature of Dsplay: - 20- 80
6. Waterproof Grade: IP65

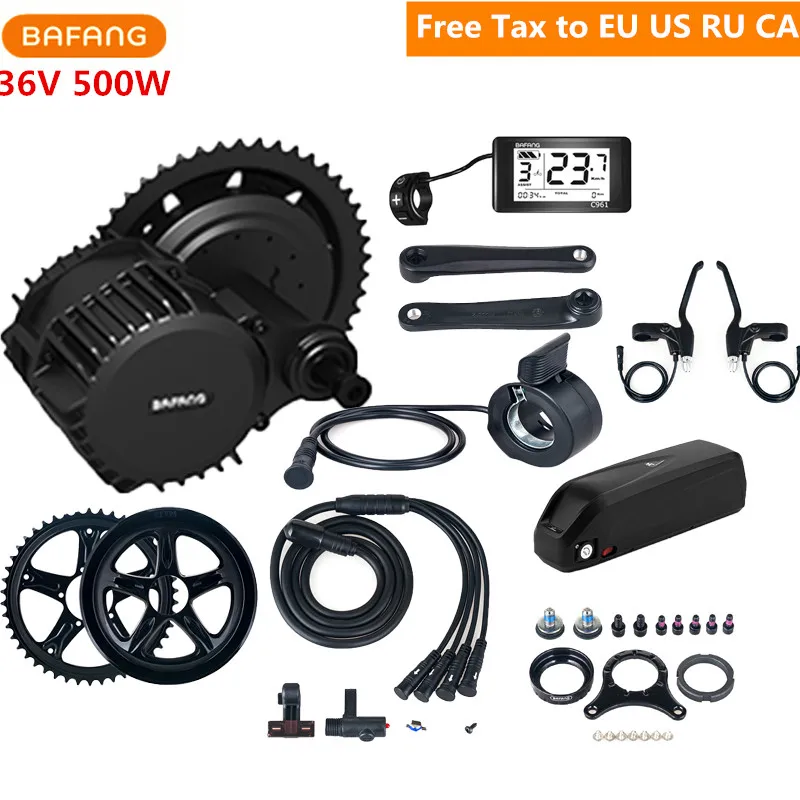

Packaging included:

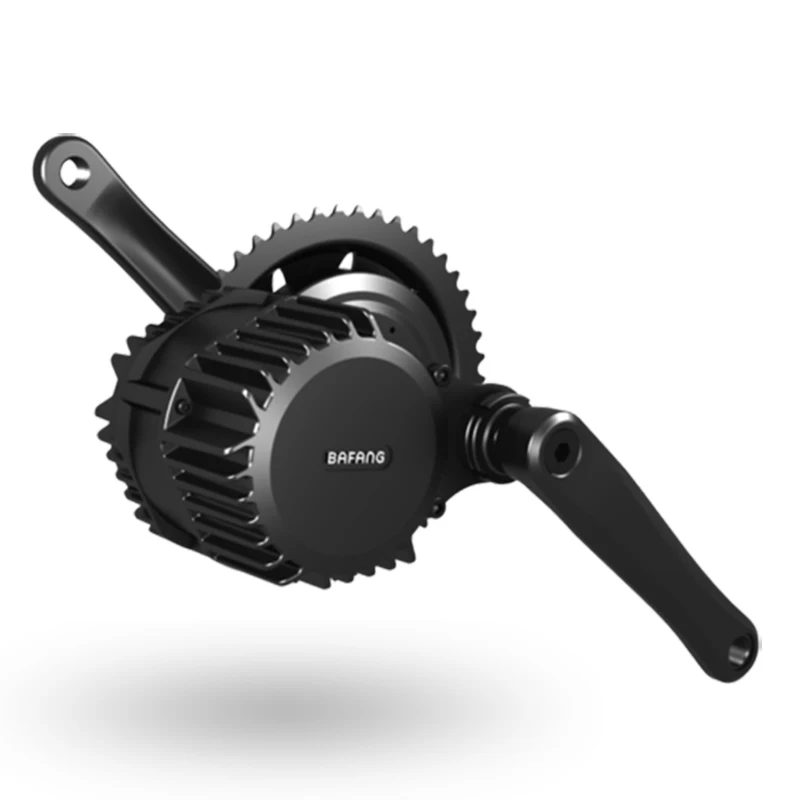

1 * 36V 500W Mid Drive Motor

1 Pair * Brake Level

1 Pair * Crank

1 Pair * Chainwheel (opition)

1 Set * Thumb Throttle

1 Set * Speed Sensor

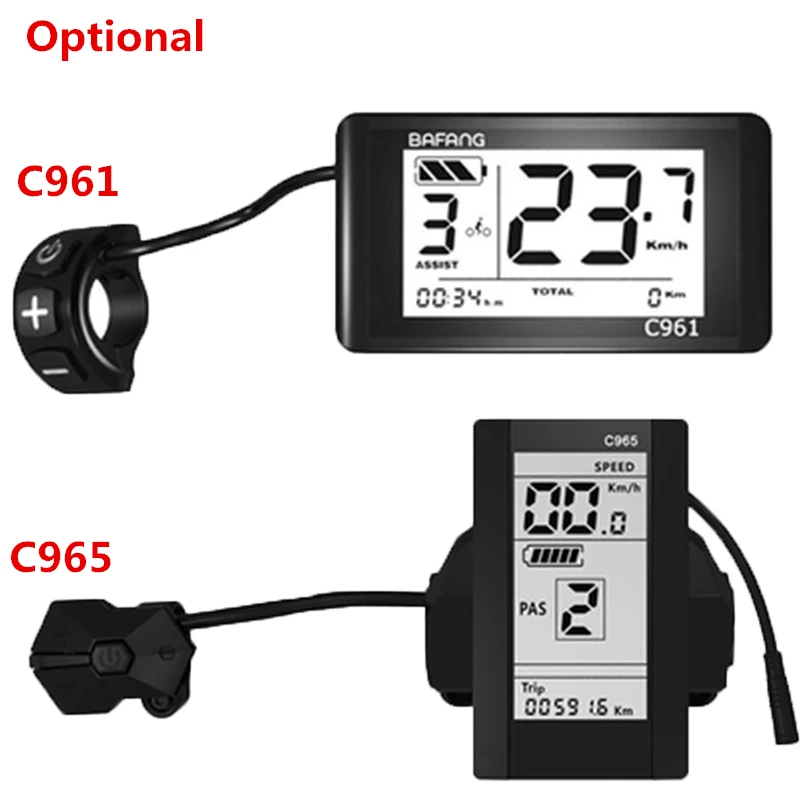

1 * Display (opition)

1 * 4 in 1 Cable

1 * Accessories

1 * 36V 13AH Battery

Photo:

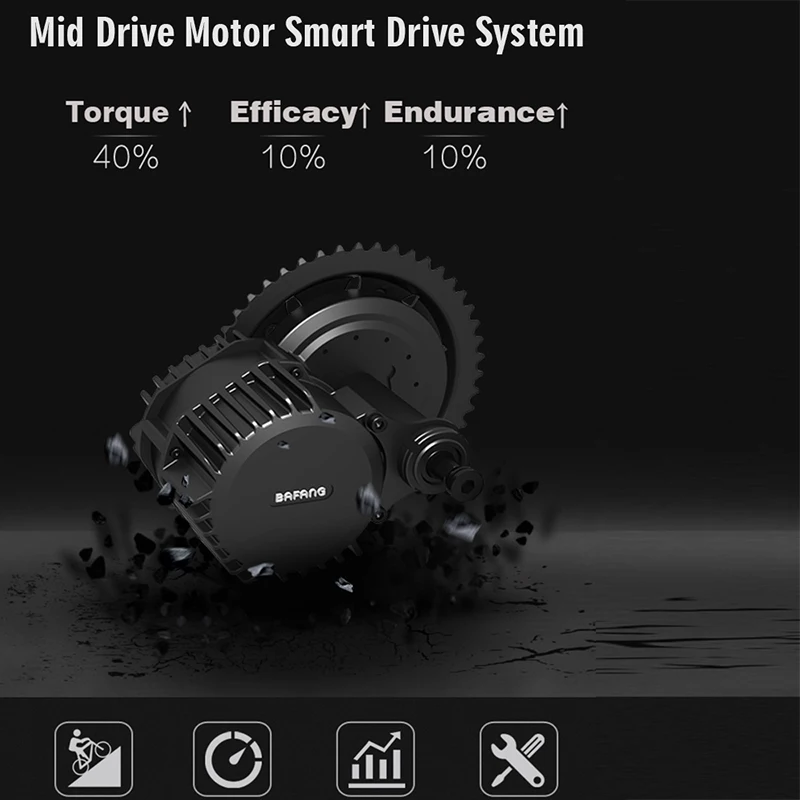

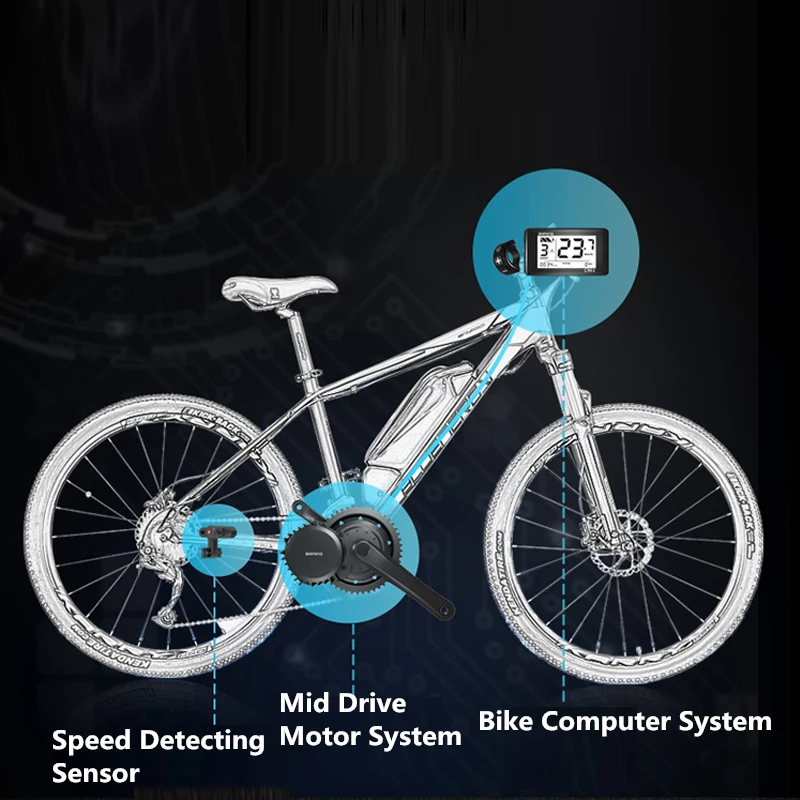

Mid drive motor smart drive system
climbing 50
5 levels gear shift
data display
easy to install

what's the advantage?
compare with the hub motor,much advantages:
torque    add 40%
efficacy      add 10%
endurance    add 10%

mid motor preferred
abandon the disadvantages of traditional motor, easy to ride,install and repair

 specifications of mid motor:

1000w size          250/350/500/750w  size

BBS01B/02B  68-73MM Application
BBSHD     68-120MM  Application


BBS01B/BBS02B
type : 44T  46T   48T   52T
size:   7.1"  7.5"   7.8"  8.5"


Electric Bike Battery Specifications:

Nominal Voltage: 36V

Nominal Capacity: 13Ah

Composed Type: 13Series 5Paralles  13S5P

Cells: 18650 3.7V 3350mAh Power 3C Cells

BMS: 30 Amp continuous 60±10Amp maximum

Fit Motor Power : 36V 350W 500W

Charge Current: 2-5A

Charge Cut-off Voltage: 54.6V

Discharge Cut-off Voltage: 39V

Discharge Temperature: -20 to 65°C

Charge Temperature: 0 to 45°C

Dimensions:  90*110*360mm

Battery Weight: 4.5kg

Cycle life: ≥80% capacity after 800 cycles

Photo:

 package list:
