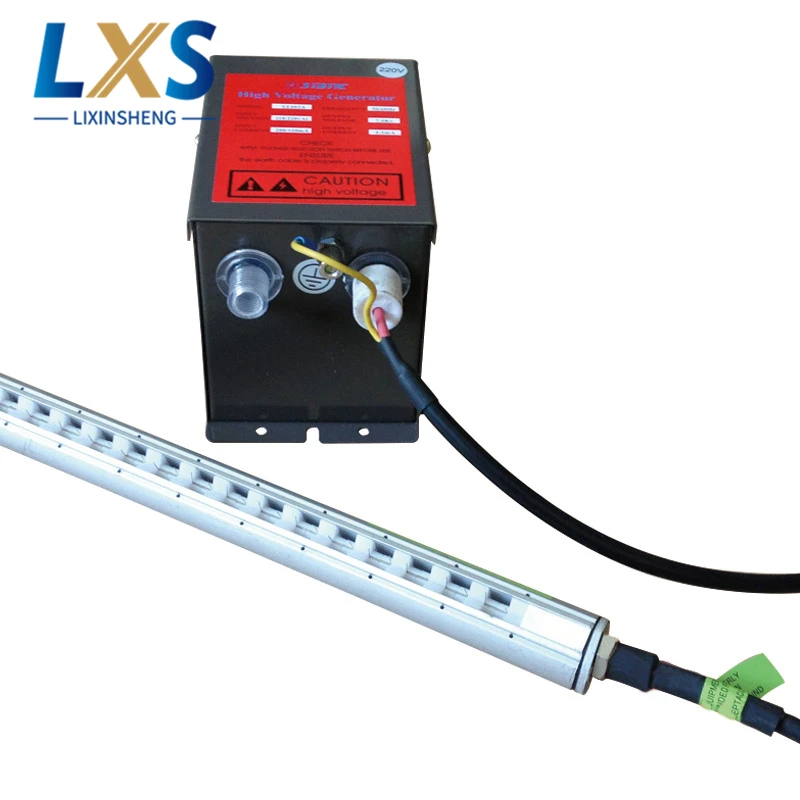

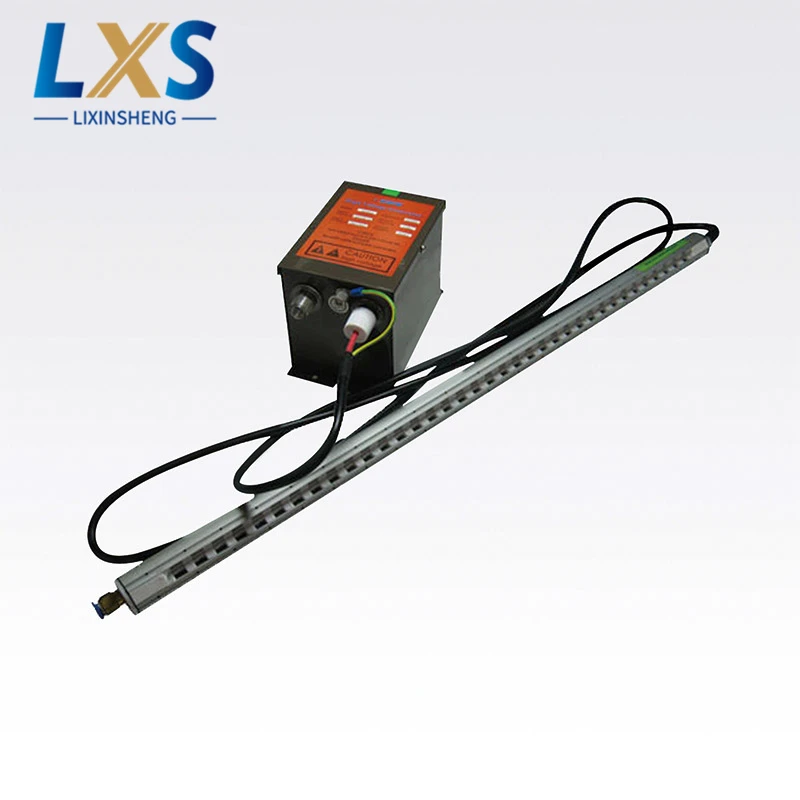

Two Ionizer Air Bar L500x560mm With 7.0KV Transformer Use in Bag Making Machine

Pls contact online with the OTHER ion bar's LENGTH you need !

Saled by TWO ion bars + ONE transformer

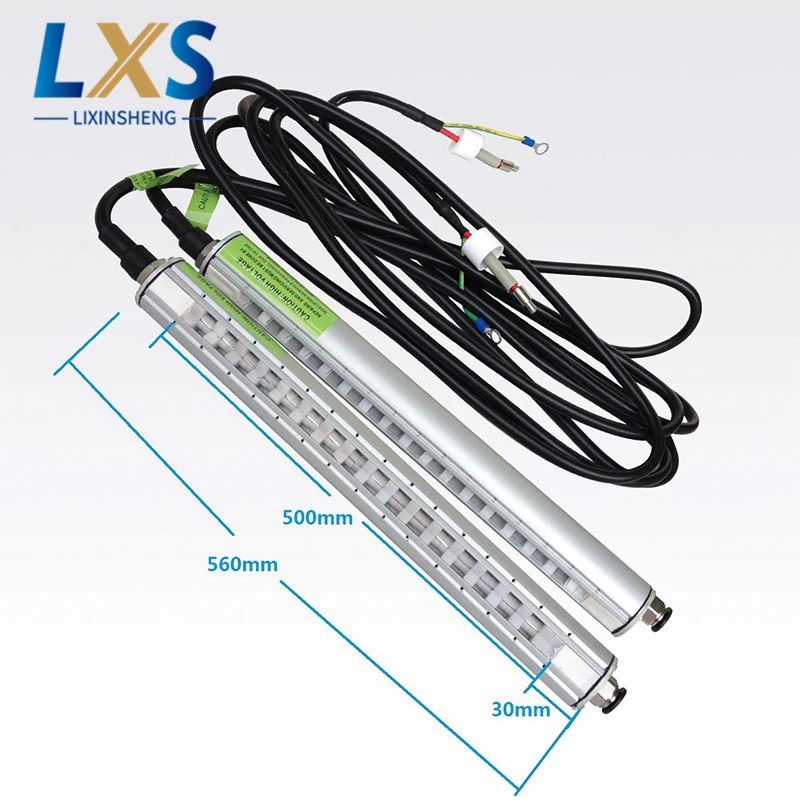

Ion bar's effective length 500mm, total length 560mm (30mm each end for installed, the more space for installed, pls contact online ! )

Working principle:

The anti-static ion bar can produce plenty of positive  &  negative ions, which can neutralize the products' ions that go through the ion radiation area. When the products surface with negative ion, it will attract radiation  area’s positive ion; when the products surface with positive ion, it will attract radiation area’s negative ion, so  that static on products surface will be neutralized, and then eliminate static electricity.

Features:

1. Use hard aluminum alloy material, beautiful appearance;

2. No electric shock design, more safe;

3. Built-in an unique high air volume tube;

4. Neutralize static electricity quickly

5. Stable and safe working performance

6. Easy and convenient installation

7. The ion bar has good ground protection

8. Ion bar should be equipped with a 7.0 KV generator

Suitable Industries:

It is suitable for anti-static in a flat occasion like thin material processing, slitting, coil stock, etc.

Technical data:

Input voltage

220V~230V/50HZ  (Special:110V~120V/60HZ)

(If you need the special voltage, please contact online or leave messages.)

Output voltage

7.0KV

Current consumption

0.52mA/M

HV Cable Length

3m

Working temperature

0~50 degree

Anti-static time

< / = 2S

Anti-static distance

Within 100mm

Weight

1.68Kg/M

Air pressure

5-7Kg

Airflow rate

10m/sec

Ion bar’s length

Customized

Safety indication:

1. operating point must connect ground well

2. do not use the bar under inflammable and explosive environment

3. do not repair by yourself

Installation and operation:

The bar must work with generator. Plug the bar’s connecting line terminal into the output plughole of the generator, and connect the bar’s ground wire into the generator’s ground pole, after confirm ground connection is well, plug the generator’s attaching plug into the socket with ground wire(attention to the operating voltage of generator),install the bar to suitable position, turn on the generator’s power supply, then it can work.

Cleaning method:

After using for some time, there is dirt retention on bar’s ion needle and copper tube wall, it must clean at regular intervals, and must turn off power supply when clean.
