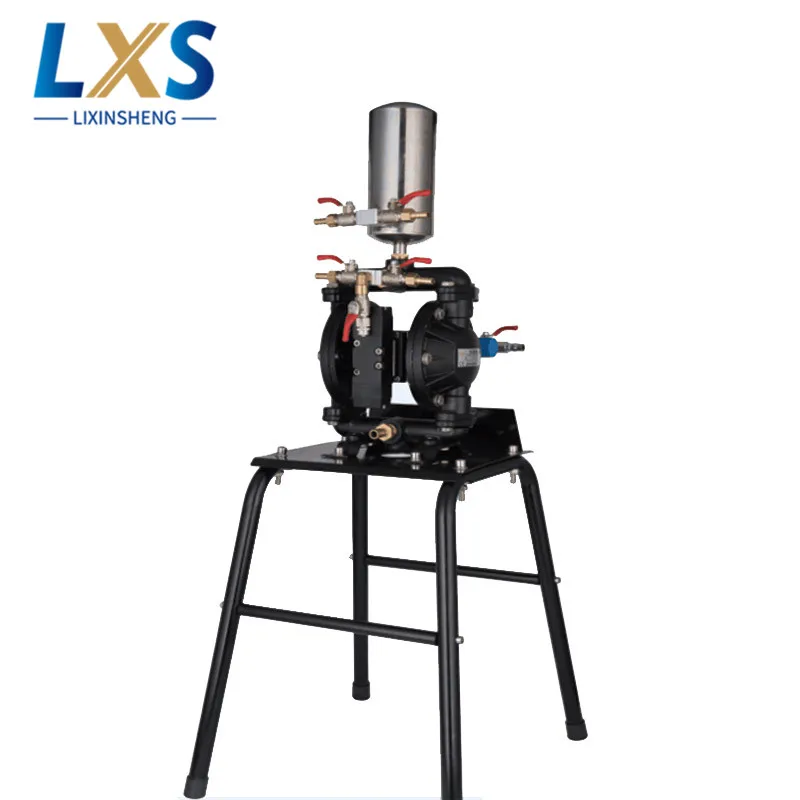

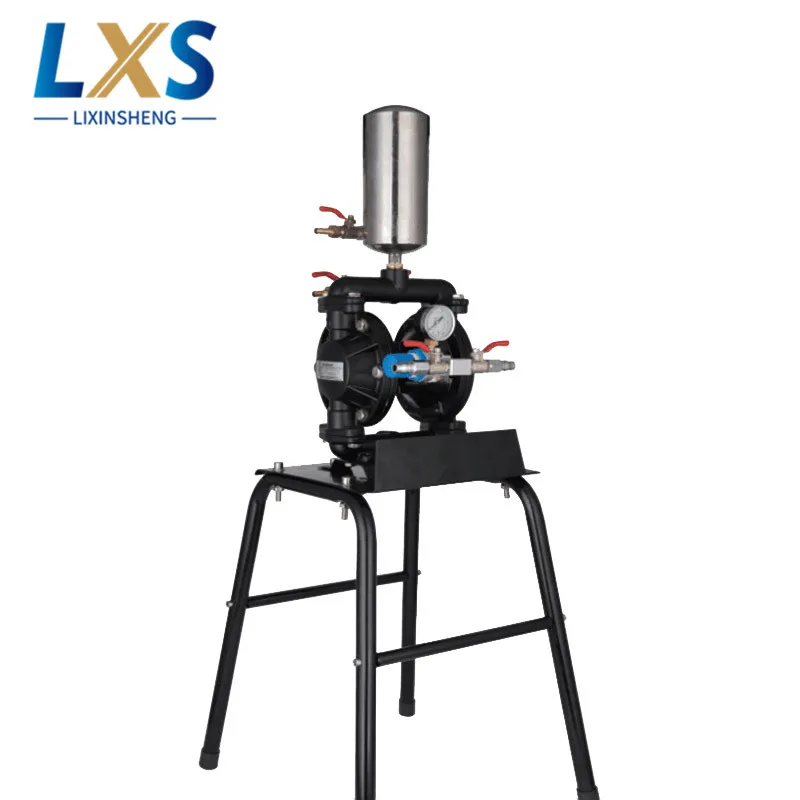

Aluminum Alloy Double Way Pneumatic Diaphragm Pump BML-15# Spraying Suit With Shelf

 Double Way Pneumatic Diaphragm Pump 15#

 Product’s Parameter:

Double Way Pneumatic Diaphragm Pump 15-C

Place of Origin: China

Model Name: Double Way Pneumatic Diaphragm Pump

Model Number: 15-#

Material of Pump: Aluminum Alloy

Material of Diaphragm: Teflon

Caliber Diameter of inlet or outlet: 13.33mm

Flux: 35L/Min

Solid particle limit: 2mm

The Max. air supply pressure: 0.7Mpa

Note: Can add a configuration extra: The buffer tank and the barometer, to equip these two configurations can use for paint spraying and connect the paint spray gun by the way.

Description:

Pneumatic diaphragm pump is a new conveying machine, which is the latest novel kind of pump. Compressed air as the power source, it can be use in any corrosive liquid, liquid with particle, high viscosity, easy volatile, inflammable, highly toxic liquid.

There are four materials in Pneumatic Diaphragm Pump: plastic, aluminum alloy, cast iron and stainless steel. The diaphragm pump will adopt different materials, such as Buna-N rubber, Chloroprene rubber, fluororubber, Teflon, according to the different liquid and to meet customers’ need. Place in all kinds of special occasion; use to pumping the medium which the general pump cannot do so. And it is gain a satisfied effect.

Thus the above features that pneumatic pump possessed, this kind of pump is gradually invaded other pump market when it is born and cover a part of it. Such as painting, ceramic industry, printing industry, the pneumatic pump has an absolute dominant position.

Features:

1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and explosive environment.

2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.

3. Diaphragm Pump can pump particle liquid;

4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.

5. Diaphragm Pump is small, light and easy to move.

Applicable industries:

Used for coating, circulation, transmission of water-based ink printing machine, gravure printing, flexo printing and the ink on the compound machine, glue, and the liquid with particle, inflammable liquid.
