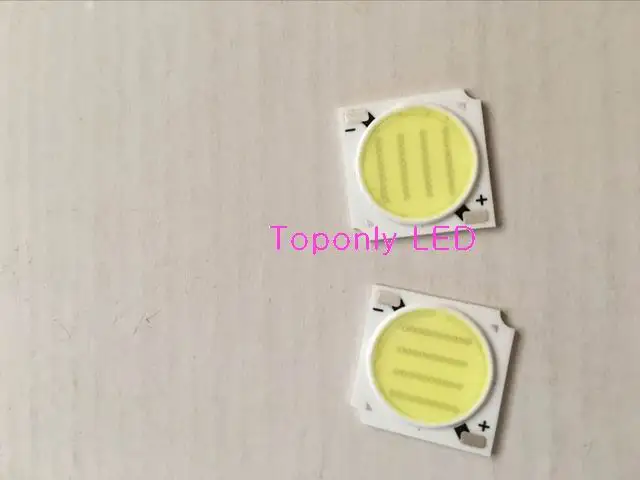

20watt high power led backlight cob module lamp

1.LED Emitter: 40pcs x high brightness Epistar LED Chips

2.Beam Angle: 120 degree

3.Color temperature : 2800~3200K(warm White)  6000-6500k(pure white)  4000-4500k(natural white)

                                     10000-12000k-15000k-20000k(cold white) ,other cct also could be customized by client`s requirement.

4.Forward Current(IF): 600mA

5.Intensity Luminous(IV):  1800-2000lm (warm white)    2000-2400lm (pure/natural/cold white)

6.Forward Voltage(VF): DC 30.0-34.0v

7.Lifespan Time: > 50,000Hours

8.CRI > 80

9.anti-staticz

10.low heat dissipation

11.good light decay: <3%/1000hours

12.energy saving

13.compact appearance

14.high light convertion

15.skillfully control the glare

16.R&D department directly support the products` good quality.

17.CE&ROHS

18. 3 years warranty

1.cold white (10000k/12000k15000k/20000k)also available by the same price, please contact first if need,thanks.

2.For Russian clients,we would ship by EMS or China Post Air Mail Service,thanks.

3.please kindly tell the right color temperature(ww/nw/pw/cw) as you want ,thanks.

1.High service life Saves the electricity

2.High shine Efficiency Coldlight source

3.Photo source energy conservation Environmental protection

4.Solid state green illumination

Parameter

Red/Yellow series

Blue/Green/White series

ViewingAngle(°)

120±5

120±5

peak pulsed Forward Current(mA)1/10s

2000

2000

Reverse Voltage(V)

≥18

≥24

Reverse Current(nA)

≤30

≤50

ESD Sensitivity(V)

2000

2000

Storage Temperature(°C)

-35 to +60

-35 to +60

Operating Temperature(°C)

-35 to +60

-35 to +60

Lead Soldering Temperature(°C)

300 for 5 Seconds Max

300 for 5 Seconds Max

Part Number

Emitting

Color

Forward

Corrent(mA)

power

Dissipatiom(W)

Wavelength

(nm)

Drive

Voltage(V)

Luminous

Flux(lm)

TPY2-PGBH-W20W20C

Daylight

white

600

20

6000

30-34

2000

Min

6250

30-34

2200

Avg

6500

30-34

2400

Max

TPY2-PGBH-L20W20C

Warm

white

600

20

2800

30-34

1800

Min

3000

30-34

1900

Avg

3200

30-34

2000

Max

the dimension units:mm

1.widely used for the component of all kinds of led light.

2. lighting source for led flood light /tunnel light

3. DIY led component parts

----------------------------------------------------------------------------------------------------------------------------------------------------------------------
