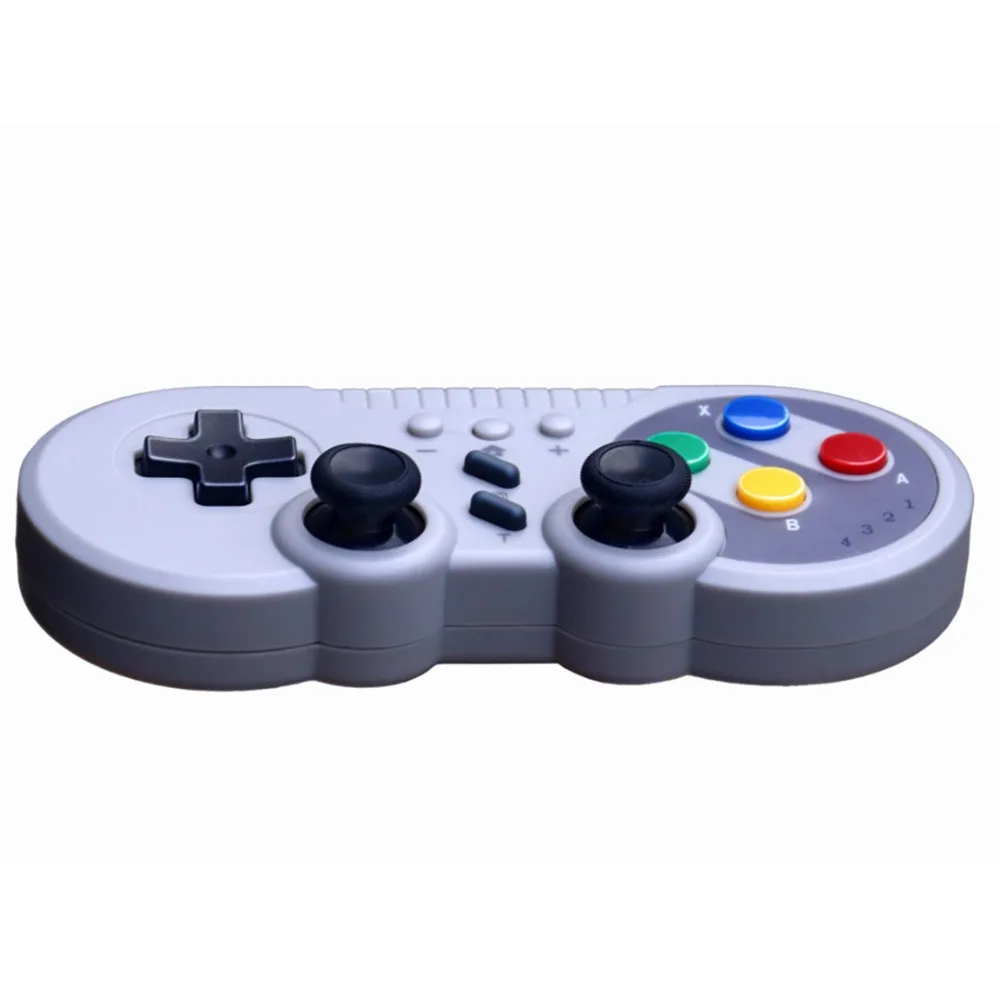

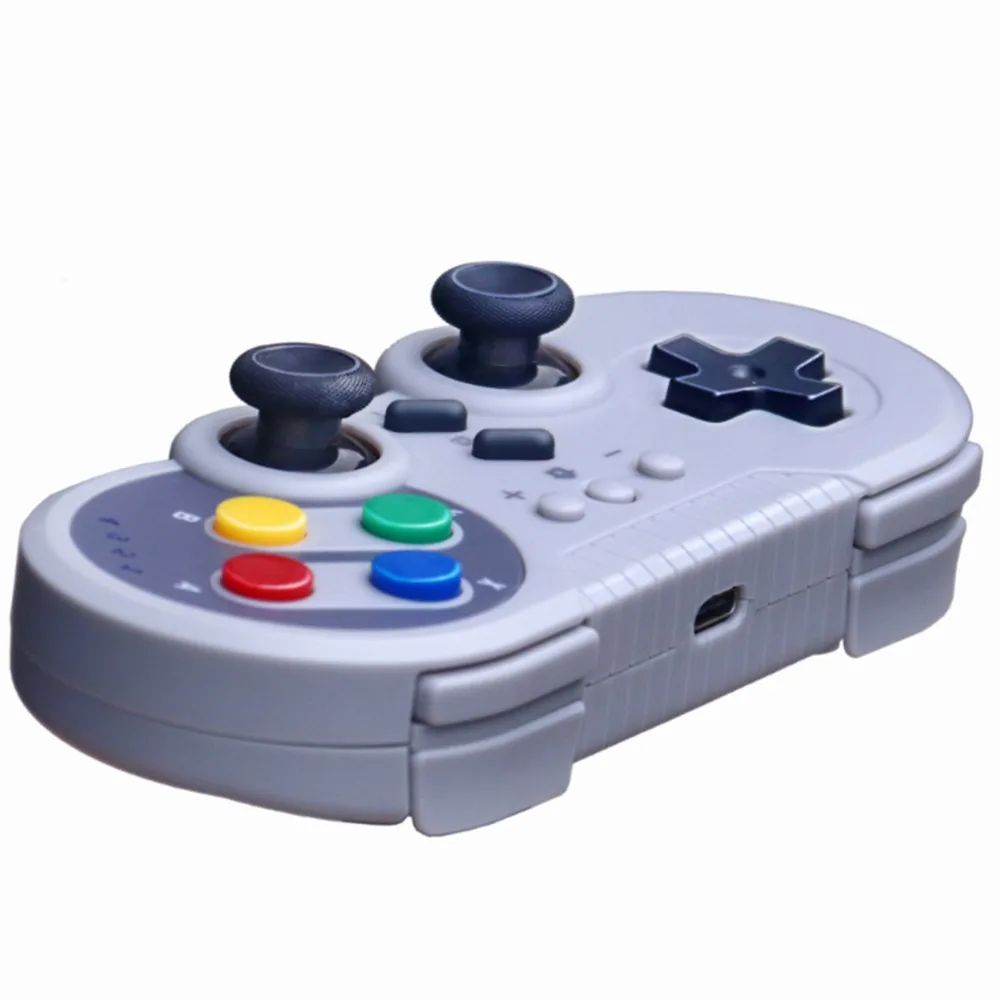

Wireless Pro Game Controller for NS Nintend Switch Console Switch Gamepad Joystick

Notice:Do not support for Andriod

Descriptions:

1. Handle features

l 1) This Pro handle is compatible with Switch host, and also supports Windows computers and android devices.

l 2) Not need any driver, the handle can be used after connecting with the Switch host.

l 3) Wireless bluetooth V3.0 connection, strong anti-interference ability, stable connection signal, easy control.

l 4) Built-in 300 ma polymer lithium battery, which can last for about 5 hours after being fully charged.

l 5) The handle supports gyro shaft function and dual motor vibration function.

l 6) Up to 4 wireless handles can be connected to the host at the same time.

l 7) Can be used normally even during charging.

l 8) Ergonomic design makes players feel comfortable.

l 9) This handle can be upgraded by connecting to computer, using update software.

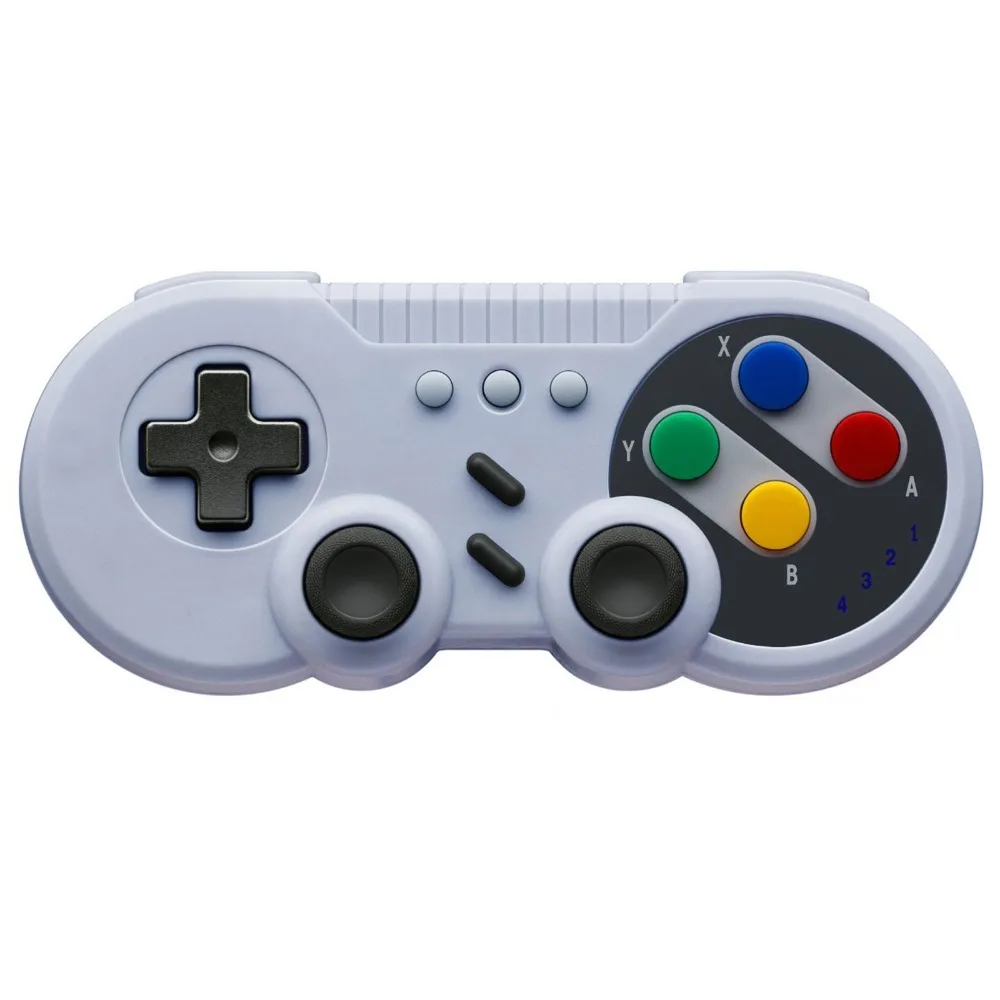

2. Introduction to keys

l 1) HOME button *1: open the handle or execute the orders of the from Switch console.

l 2) Arrow keys *1 group: up, down, left and right.Easy operation in eight directions.

l 3) Function control keys *4: A, B, Y and X.Perfect key design, finger touch operation is more sensitive and fast.

l 4) Left and right rockers *2:3D rockers with novel design and precise operation at 360 degrees.

l 5) Function keys *4: L1, R1, L2, R2.New spring back button design, quick response.

l 6) Screen shot *1: press the screen shot button in the game to take a screenshot and save the current screen.

l 7) TURBO key *1: hold down any function key on the right side (A/B/X/Y/L1/R1/L2/R2), then press TURBO key to set up the acceleration flash function, and press TURBO key again to cancel the acceleration function.

l 8) Reset key *1: press the reset key in the hole on the back of the handle to close the power supply of the handle and disconnect the handle from the host;Handle reset.

3. Connection instruction

1) Connect Switch host via bluetooth:

l A. First connect the handle to the host: open the Switch host, in the main menu interface of the host, touch with your fingers and click Controllers，Change Grip/order, enter the host pairing mode interface Press L + R on the controller, ignore L + R;On the handle, long press the combination key of "Y" + "HOME" for 5 seconds to open the handle and enter the pairing mode. The four leds on the handle begin to flash in a fast cycle. When one LED keeps long bright, the handle is successfully paired with the host.Press "B" to return to the main menu interface.

l B. Connect the handle to the host again: long press the HOME button for 2 seconds to open the handle, and the handle will automatically connect with the host.

l C. Wake up handle: when the handle is asleep, press the HOME button to wake up the handle, and the handle will be automatically connected to the host.

2) Connect Switch host via USB cable:

l Connect a controller to a switch console by a USB cable, LED 4 in the controller will be blinking slowly; on the main interface of the console click “Settings” → “Controllers and Sensors” → “Pro Controller Wired Communication” → “ON”, the controller will be connected to the console via wired connection, LED 1 will be blinking slowly during wired connection.

3) connect Windows computer through USB cable:

l Firstly, you need to download the PC 360 driver to the Windows computer, and then connect the gamepad to the computer with USB cable. The four LEDs on the gamepad flash slowly.After the automatic installation of the driver, LED1 and LED4 on the handle will flash slowly, and the handle can be used.Support PC 360 mode games.

l Note: under the wired PC 360 mode, has vibration function and no axis function.

4) Connect android devices via Bluetooth:

l When the handle is off, long press "A" + "HOME" combination key for 2 seconds to start up, and the indicator LED1 will flash rapidly.At the same time, open the Bluetooth of an android device, and click "Bluetooth" to search for Bluetooth devices. In the list of "available devices", find and click "Gamepad" for pairing. After matching, LED1 will turn on normally and the handle will enter android mode.

l Note: under android mode, no vibration function and no axis function.

4. LED indication instruction

l 1) 4 LEDs blinking quickly and circularly: this controller is searching for Bluetooth to be paired; this controller is connecting back to console via Bluetooth code match.

l 2) LED solid bright: this controller is connecting to console normally via Bluetooth.

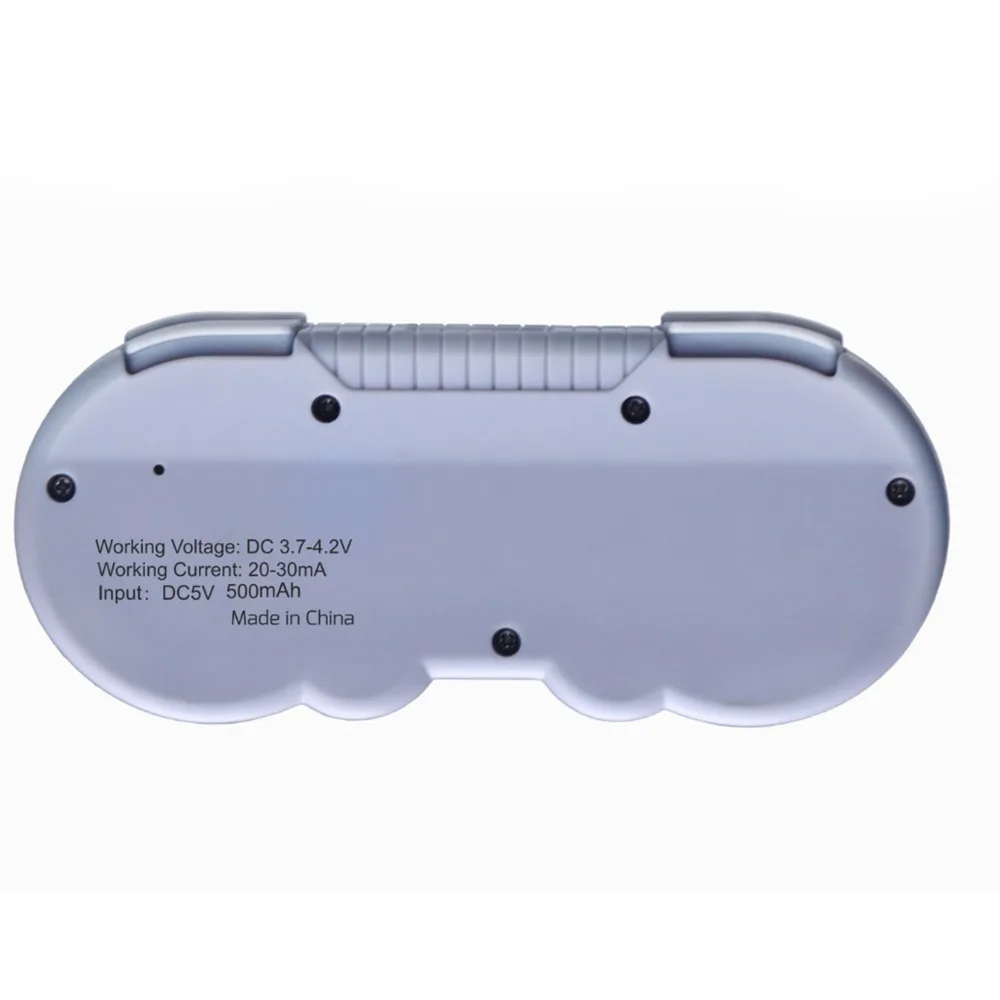

l 3) LED blinking quickly: this controller battery voltage is lower than 3.6V; if the voltage is lower than 3.4V, the controller will be shut off automatically and can’t be powered on.

l 4) LED blinking slowly: this controller is connecting to console via USB cable; when this controller is being charged via connecting to a charger, four LEDs are blinking slowly, the four LEDs will be off after fully charged.

Packing includes:

l 1 x Wireless game controller for Nintend Switch

l 1 x Manual

l 1 x USB cable
