Specification:

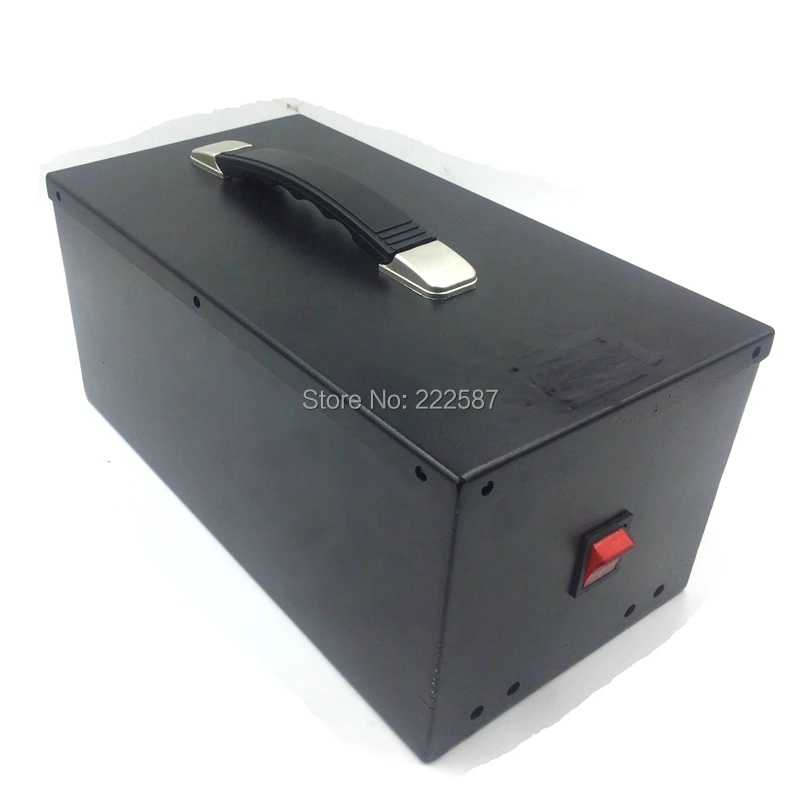

48V 40AH Bike Li-ion Battery with metal case,BMS and Charger.

Recommend to use for 48V 200W, 48V 250W, 48V 350W , 48V 500W  48V 1000W 2000W

Parts included:

1. 48V40Ah Lithium Battery with metal case

 2. Built-in BMS board

3. Charger

Product Specifications

Battery Model

48v 40ah

Nominal Voltage (V)

48v

Nominal Capacity (AH)

40ah

Source Resistance (mΩ)

about 40

Cell Specification

3.7V 2.5AH

Cell Combination

16-parallel  13-series

Cell Size

18650

Cell Quantity (parallel*series)

208pcs

Discharge Cutoff Voltage (V)

40+/- 1V

Charge Cutoff Voltage (V)

54.6v

Rated Discharge Current (A)

50A

instantaneous Maximum Discharge Current (A)

150A

Maximum Continuous Discharge Current (A)

50A

Maximum Continuous Charge Current (A)

5A

Charge Mode

CC-CV

Standard Charge Current (A)

2A

Charge Time under Standard Charge Current

20hours

Fast Charge Current (A)

5A

Charge Time under Fast Charge Current

8hours

Charge Temperature Range

-20-55°C

Cell Size (L*W*T )

Battery Weight

About13KG

Battery Power

2000w

Feature:

1. Cells - A grade cells to make sure batteries in high and full capacity

2. Protection - Dual IC chips, that can anti-short circuit, anti-over charger,

anti-over current, anti-overload

3. Compose Type : Injection Technology to make battery more stable.

4. Certifications : CE,UL,FCC, RoHS, ISO9001

5.  Long life cycle, No memory, environment friendly.

Advantages:

·Fast charging

 Large overcharge tolerance and safe performance

·Self balance

·Simplifying battery management system (BMS) and battery charger

·1000 times cycle life

·High temperature performance

Applications:

·Electric Vehicles, such as E-bike, E tricyle,E motorcyle, E-cars, E-bus;

·Electric boats, such as trolling fishing boat;

·Robots for industries and military;

·Remote data transfer system;

·Satellite communication station;

·Un-manned submarine;

·Un-manned aircrafts;

·Power tools, such as drilling, cutting and polishing tools;

·Power station for low temperature application, such as -40;

·Power supplier for Training systems, such as Torpedo Trainer

 Notice:

1. When the voltage between the two electrodes is over 36V, the safe voltage of human beings, do not contact the positive and negative terminals of battery pack with body.

2. It is strictly forbidden to immerse the battery in water or seawater, keep the battery in a cool and dry surrounding if it stands by.

3. Do not expose in the sun.

4. Do not expose in the rain or snow.

5. Do not use or leave the battery near a heat source as fire or heater.

6. Use the battery charger specifically for that purpose when recharging.

7. Do not reverse the positive and negative terminals.

8. Do not plug in the battery electrodes to an electrical outlet.

9. Do not discard the battery in fire or a heater.

10. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

11. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

12. Do not strike, trample or throw the battery.

13. Do not directly solder the battery and pierce the battery with a nail or other sharp objects.

14.Do not use the battery in a location where static electricity and magnetic field is great, otherwise, the safety devices may be damaged, causing hidden trouble of safety.

15. If the battery gives off strange odor, generates heat, becomes discolored or deformed, or in any way appear abnormal during use, recharging or storage, immediately remove it from the device or battery charger and stop using it.

16. In case the battery terminals are dirty, clean the terminals with a dry cloth before use. Otherwise poor performance may occur due to the poor connection with the instrument.

17. Do not expose to temperature above 60°C or heater;

18. Do not use the battery pack connected in series or parallel
