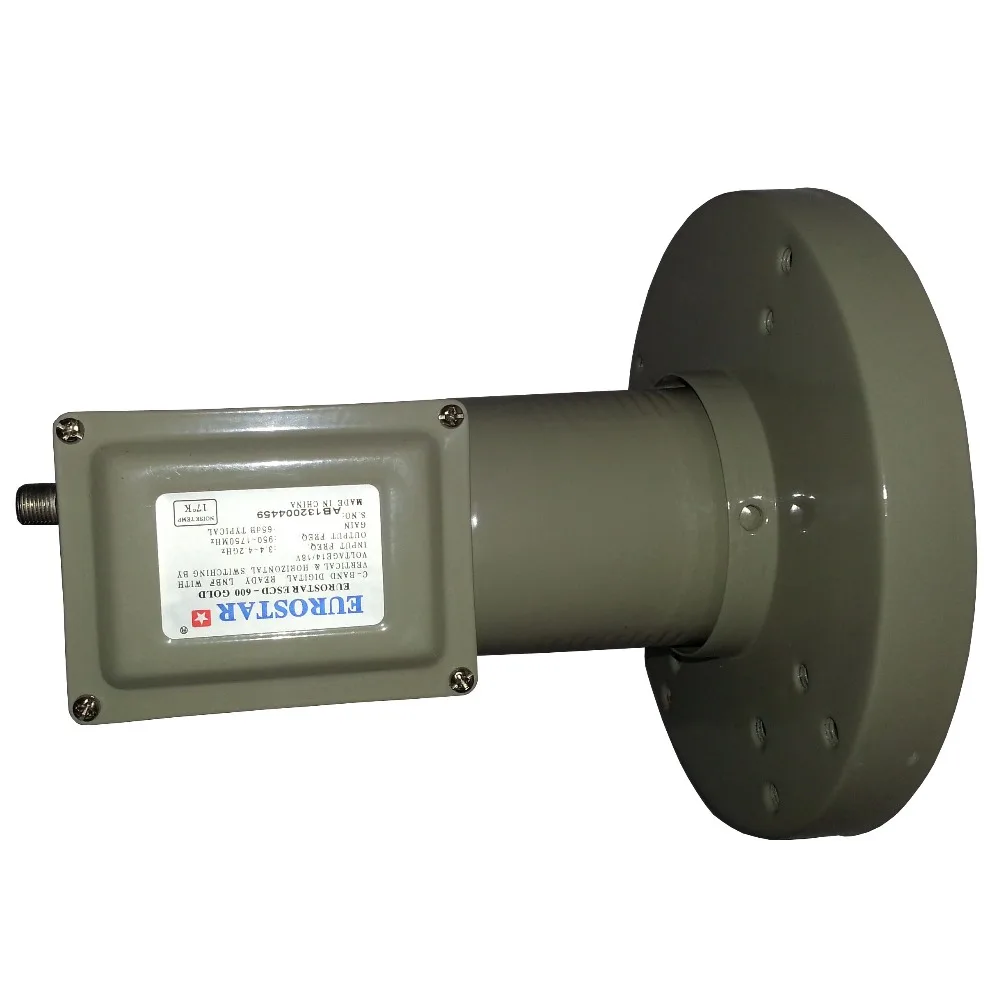

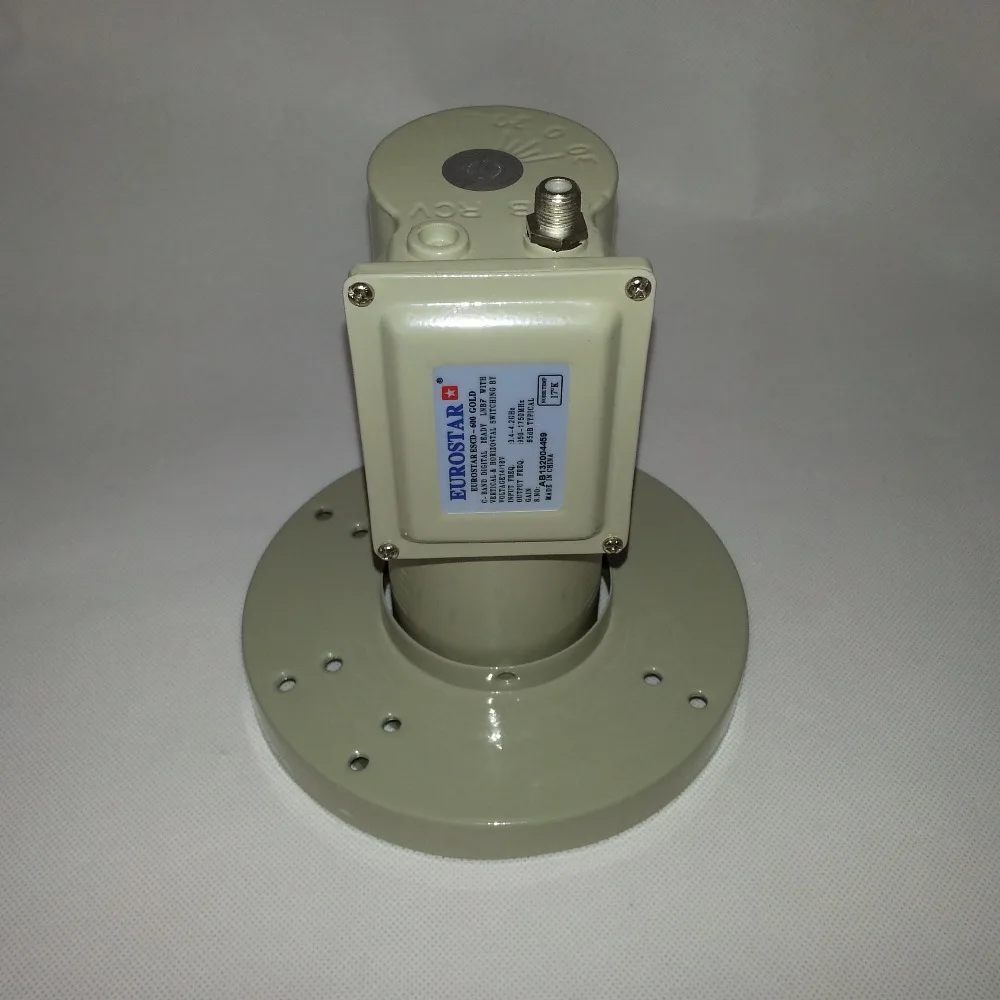

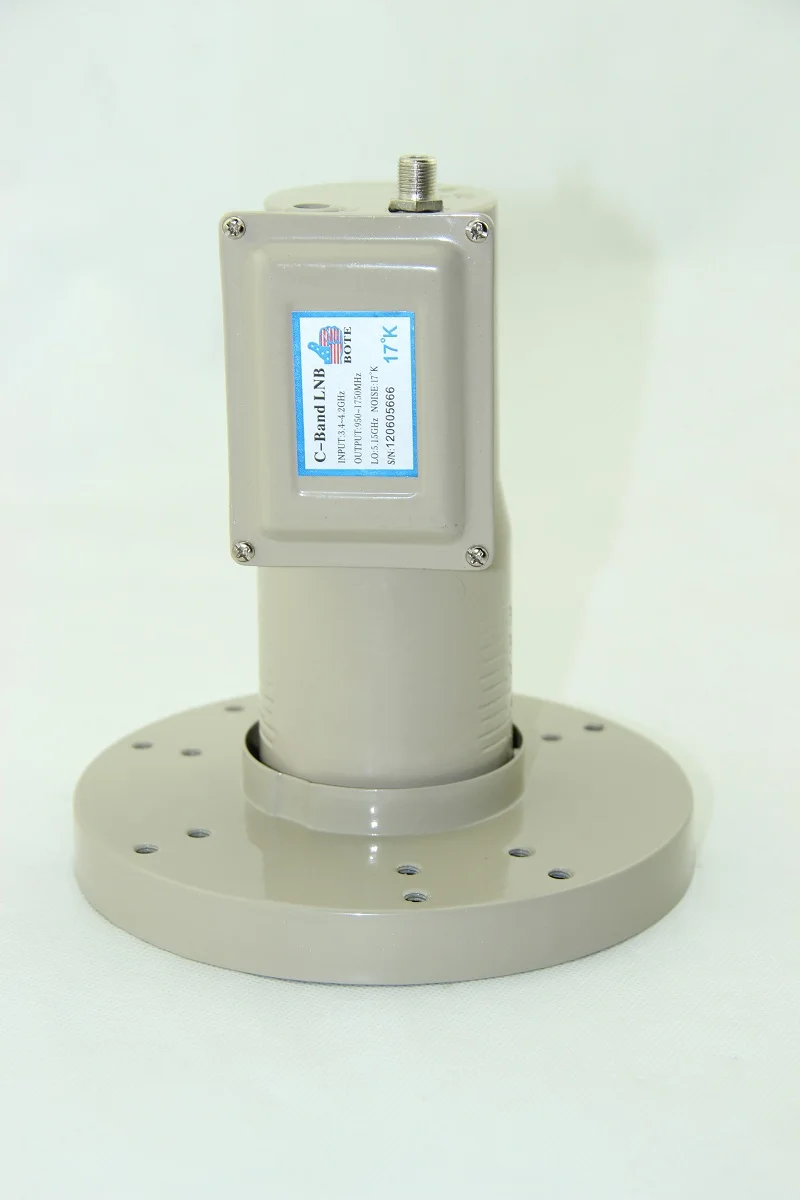

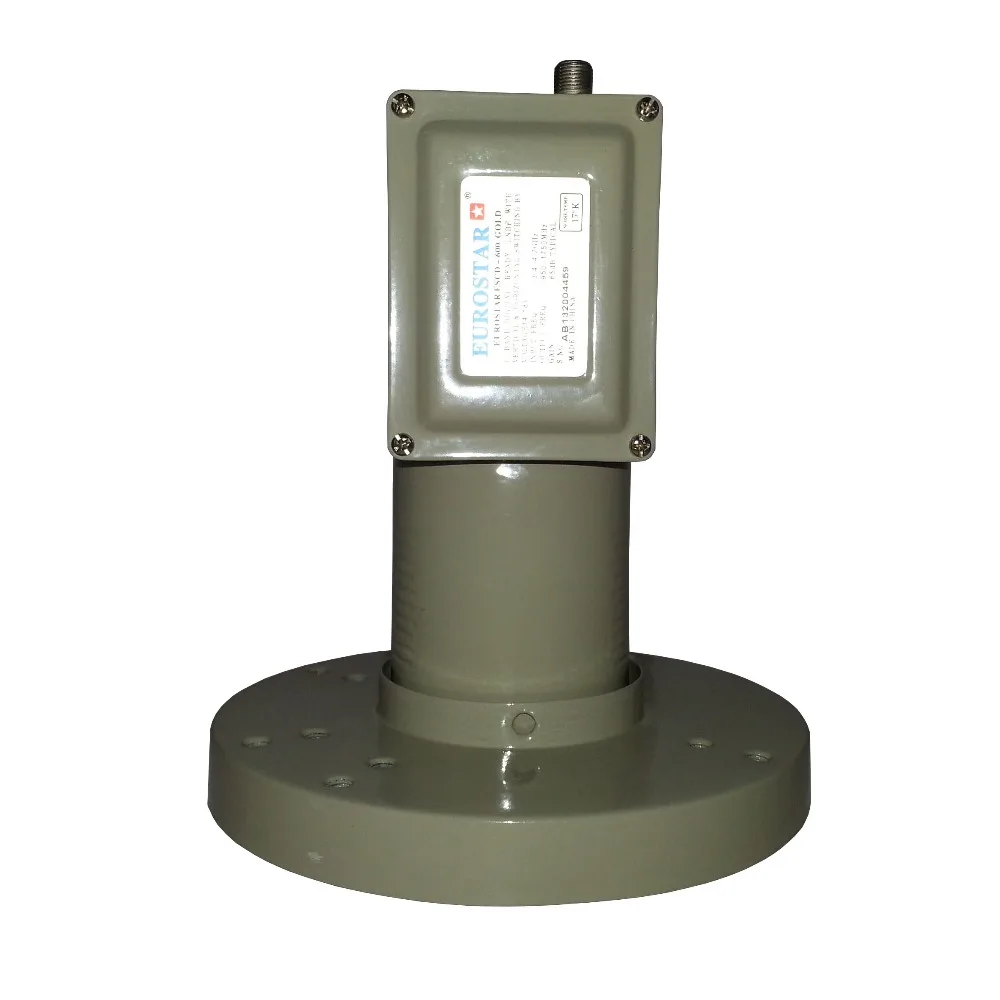

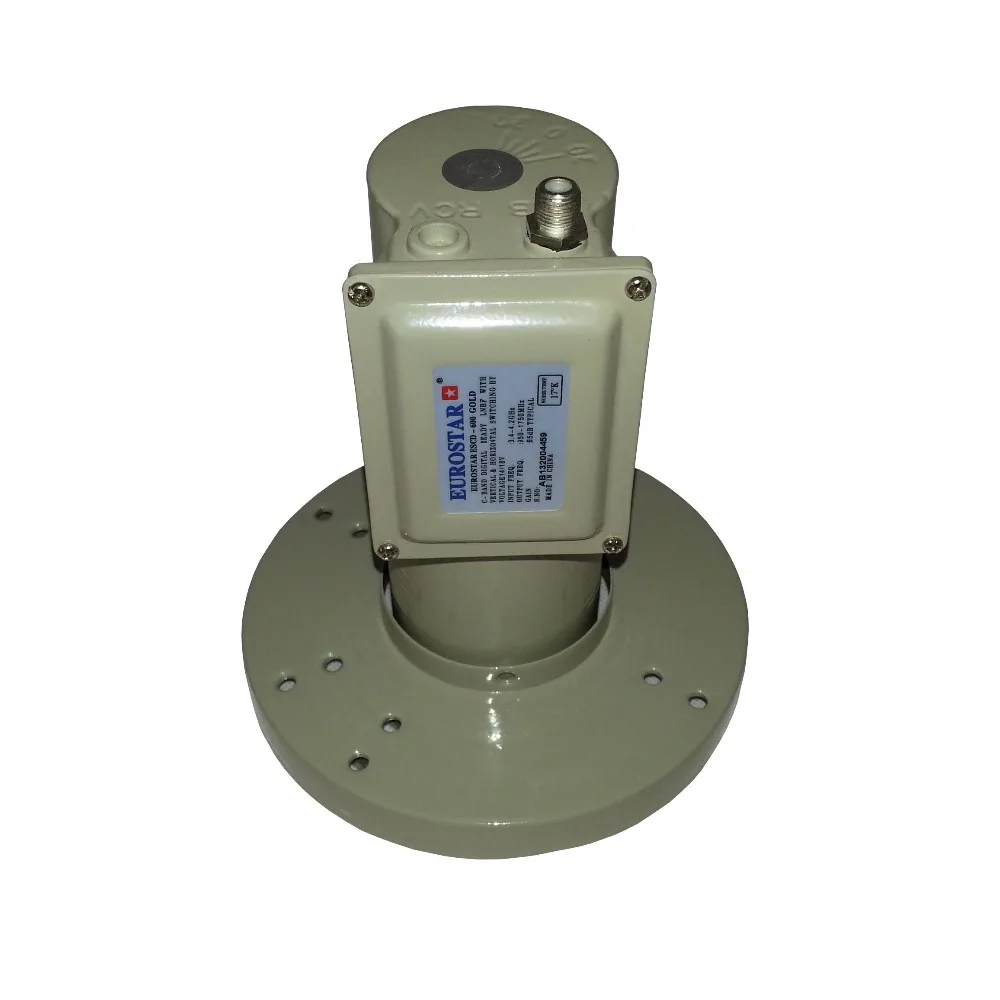

Anhui Bowei C Band Input Frequency 3.4-4.2GHZ Relative Humidity 0%-95% cheapest | Электроника

Anhui Bowei C Band Input Frequency 3.4-4.2GHZ Relative Humidity 0%-95% cheapest | Электроника

1.Input Frequency: 3.4 to 4.2GHz

2. L.O. Frequency:5150MHz(±500 MHz@25)

3.Output Frequency:950 to 1750 MHz

4.L.O. Leakage Input Port: 45dBm

5.L.O. Stability: ±1.5MHz(-40to+70)

6.Noise Figure:< 13,15,17°K typ

7.Conversion Gain:>65dB typ

8.Gain Flatness:±1 dBm(max)

9.Intput VSWR:2.5:1(max)

10.Output VSWR:2.0:1(max)

11.Output Connector:F-female Connector

12.Output Impedance:75Ω

13.Cross Polar Isolation:20dB(min)

14.Image Rejection:45 dB (min)

15.Phase Noise:-75dBc/Hz@10kHz(max)

16.Supply Voltage:

 1)11.5-14.0v(Vertical Polarization)

 2)16.0-19.0v(Horizontal Polarization)

17.Operating Temperature:-40to+70

18.Storage Temperature:-40to+80

19.Relative Humidity:0%-95%
