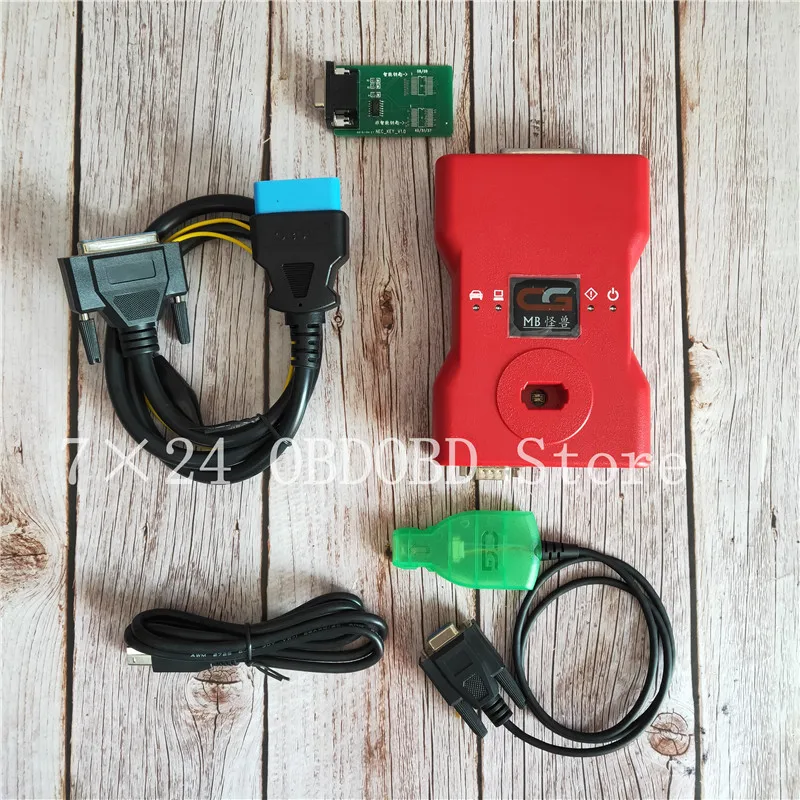

CGMB For Benz Key Programmer CGDI MB With ELV Simulator&AC Adapter&EIS Cable/ELV Repair Adapter NEC |

CGMB For Benz Key Programmer CGDI MB With ELV Simulator&AC Adapter&EIS Cable/ELV Repair Adapter NEC |

There are 2 different cable set to choose from the options : 7pcs and 8pcs

7pcs

8pcs

Top Reasons to get CGDI Prog MB:

EIS Function

1.Support OBD mode and infrared mode to automatically recognize EIS and read data. (FBS3/FBS4)

2.Support the identification of SSID and EIS number. (FBS3/FBS4)

3.Support to read/modify VIN. (FBS3 and FBS4 only support reading)

4.Support reading kilometers. (FBS3/FBS4)

5.Support reading KEY track code. (FBS3)

6.Support the detection of KEY usage and enabling status. (FBS3/FBS4)

7.Support to read the last used KEY position. (FBS3/FBS4)

8.Support reading the penultimate use KEY position. (FBS3/FBS4)

9.Support detecting EIS status. (FBS3/FBS4)

10.Support erasing EIS. (Online online, FBS3)

11.Support writing EIS data. (FBS3)

12.Support the protection of clearing TP. (FBS3)

13.Support disabling EIS. (FBS3/FBS4)

14.Support for enabling EIS. (FBS3)

15.Support activating EIS. (FBS3)

16.Support infrared mode to directly read the KEY password of W215 and a few W209/W211 EIS. (FBS3)

17.Support EIS type:

   W164, W251 -2009

   W164, W251 2009-

   W166, W197, W212, W218, W246

   W169, W209, W211

   W172, W204, W207, W212(ELV)

   W202, W208, W210(K)

   W203, W463, W639(K)

   W215, W220(K)

   W216

   W221

   W230(K)

   W639 2009-(CAN)

   W906

KEY Read And Write Function

1.Support infrared mode to directly read KEY basic information, including SSID, available times, used times, KEY location, KEY status, KEY version.

2.Support BE KEY infrared mode to directly read KEY password, erase, write new KEY data and activate.

3.Support KEY write data with 21DF status.

4.Support reading/activating the new BGA KEY.

5.Support KEY hopping code repair.

6.Support smart KEY (08/09) and non-smart KEY (40/51/57).

7.Only support reset KEY chip type:

  00043650 chip

  00040582 chip

8.Types of KEY chips that support reading, writing and resetting:

  00040229 chip

  567897041 chip

  567897051 chip

  567897061 chip

  567897071 chip

  567897081 chip

9.Support CGMB KEY frequency switching, 433Mhz/315Mhz, resistance control arbitrary switching.

Password Calculation Function (online)

1.Support for having car keys and keyless (all lost) calculation passwords, of which all lost support normal collection and fast collection.

2.To calculate the password, you first need to collect data, which takes about 3 minutes with the car key.

3.In 99% of cases, the password is calculated at one time, and the time is about one minute.

4.If there is a car key, calculate the EIS type supported by the password:

  for Mercedes-Benz A series after 2004

  for Mercedes-Benz B series after 2005

  for Mercedes-Benz C series after 2001 (including W210)

  for Mercedes-Benz E series after 2001 (including W203)

  for Mercedes-Benz CL series after 2001

  for Mercedes-Benz GLK series after 2004

  for Mercedes-Benz ML series after 2003

  for Mercedes-Benz R series after 2003

  for Mercedes-Benz G series after 2003

  for Mercedes-Benz S series after 2001 (including 220)

  for Mercedes-Benz SLK series after 2003

  for Mercedes-Benz SLS series after 2004

  for Mercedes-Benz Vito series after 2003

  for Mercedes-Benz Sprinter series after 2003

5.If there is no car key, calculate the EIS type supported by the password:

  W164, W216(2009-)

  W164, W221(-2009)

  W166, W197, W212(old), W212, W246

  W169

  W172, W204, W207, W209, W211

  W202, W203, W208, W210, W463, W639(K)

  W215, W220

  W230

  W639(CAN)

  W906

6.In the absence of a car key, some EIS support quick collection, the types are as follows:

  (Quick collection does not require repeated attempts and the collection speed is faster)

  W164, W251 2009-

  W164, W251 -2009

  W169

  W172, W207, W209, W211

  W202, W203, W208, W210, W463, W639(K)

  W216

  W221

  W639 2009-(CAN)

Generate KEY Data Function (online)

1. Load EIS data to generate KEY data.

2. The time to generate KEY data is about 10 seconds.

3. Support generating KEY data of HC05/908/912/9S12/NEC type EIS.

ECU/TCU/ISM Pogramming Function

1.Support reading data of ECU/TCU/ISM.

2.Support the erasing of ECU/TCU/ISM. (online)

3.Support ECU/TCU/ISM data loading and saving.

ELV Function

1.Support OBD mode to read ELV data directly. (Clamp on the ELV K line with a small yellow clip)

2.Support to erase ELV. (Online)

3.Support direct write direction lock data. (Online)

4.Support for synchronizing ELV data.

5.Support checking ELV damage.

6.Support for activating ELV.

7.Support to repair ELV.

8.Support ELV type:

  W209, W211

  W204, W207, W212

  W169

  W639(NEC)

  W906

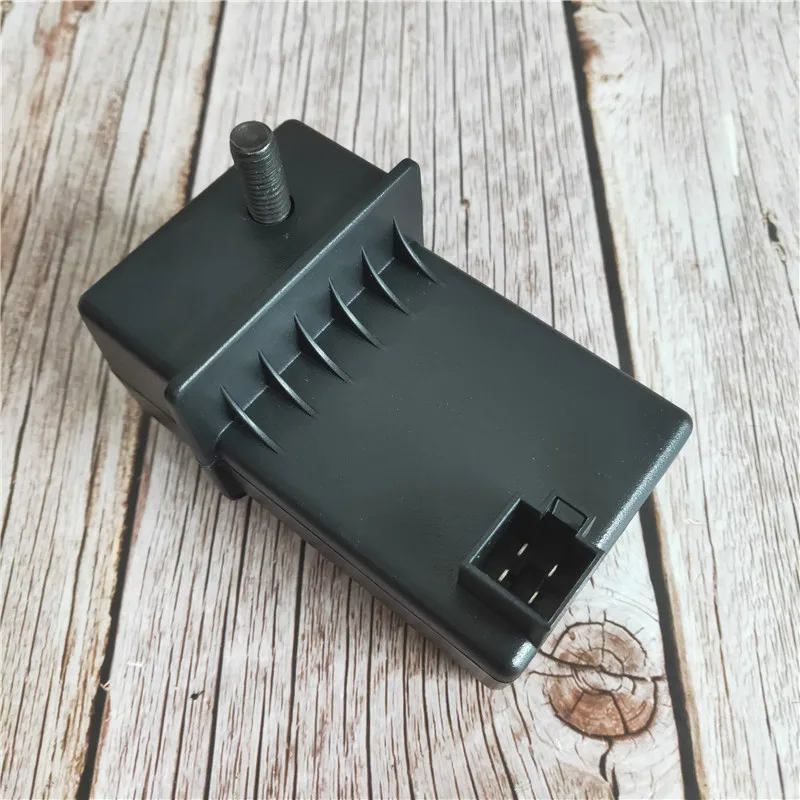

9.Support W204/W207/W212 ELV simulator function.

Car Mileage Repair Function

1.Support to read the internal data of the instrument, including serial number and mileage.

2.Support for writing mileage information.

3.Support to clear the fault code of the instrument.

4.Support EEPROM reading and writing of the instrument.

5.The supported instrument types are as follows:

  C-CLASS/CLK-CLASS: W203, W204, W205 (2014-2017), W209

  CLS-CLASS: W218, W219

  E-CLASS: W207, W211, W212

  GL-CLASS: X164

  GLK-CLASS: X204

  M-CLASS: W164

  R-CLASS: W251

  S-CLASS/CL-CLASS: W221, W222 (2013-2016)

  SL-CLASS/SLK-CLASS: R171

  SLS-CLASS: W197

  VITO/VIANO: W447(2014-2017)

ZGW Data Read And Write Function

1.Support ZGW's EEPROM/FLASH read and write.

2.The types of ZGW supported are as follows:

  C-CLASS: W204

  E-CLASS: W211, W212

  M-CLASS: W164

  R-CLASS: W251

  S-CLASS: W221

  CLK-CLASS: X204, W207

  CLS-CLASS: W218

  SLK-CLASS: R171

  GL-CLASS: X164

  CL-CLASS: W216

  SLS-CLASS: W197
