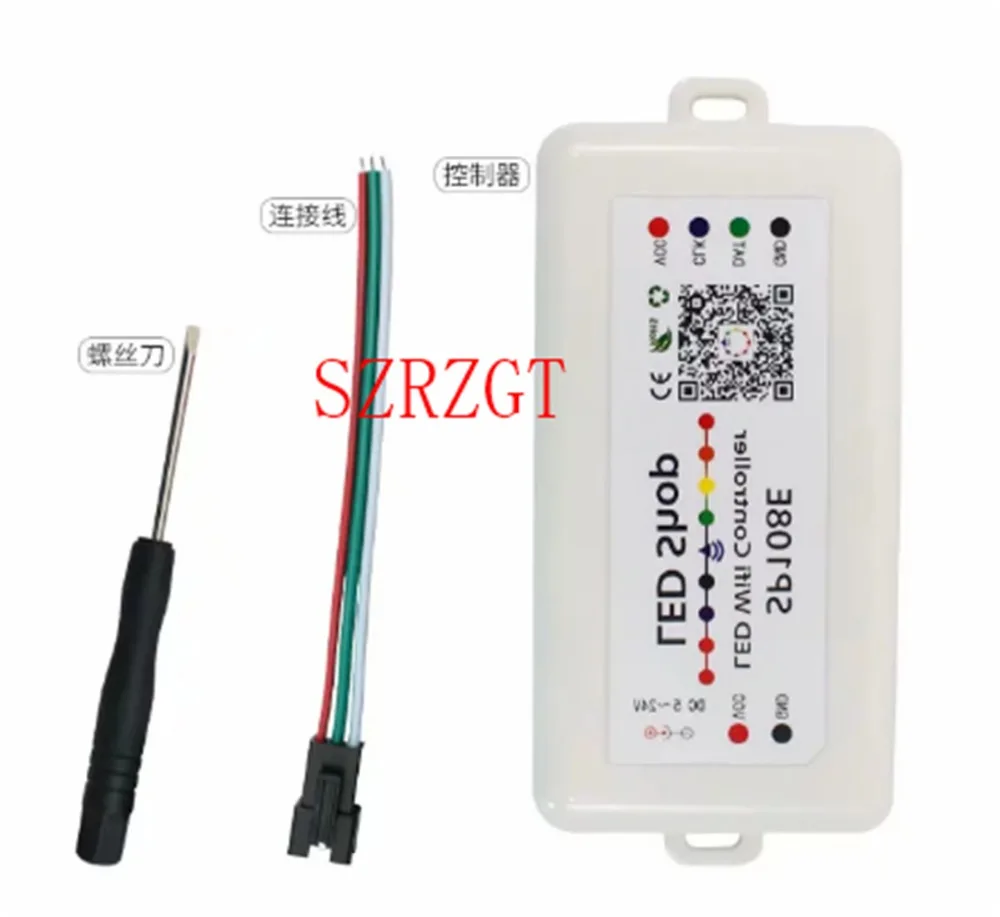

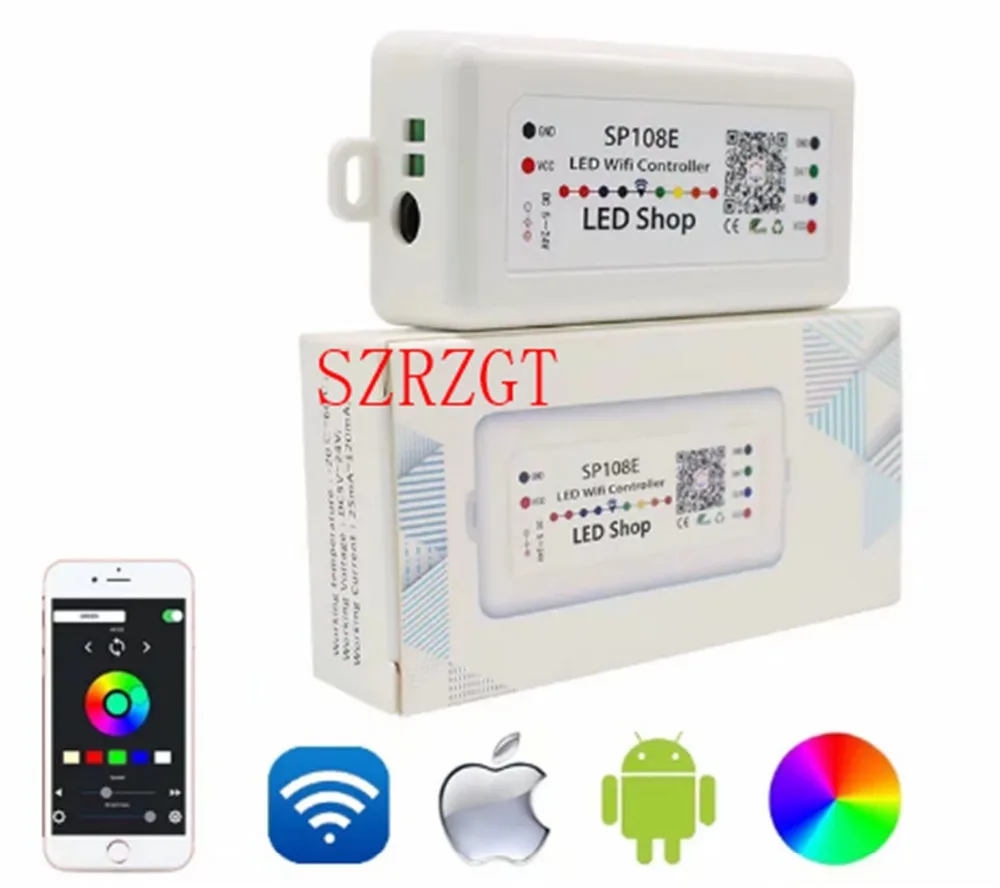

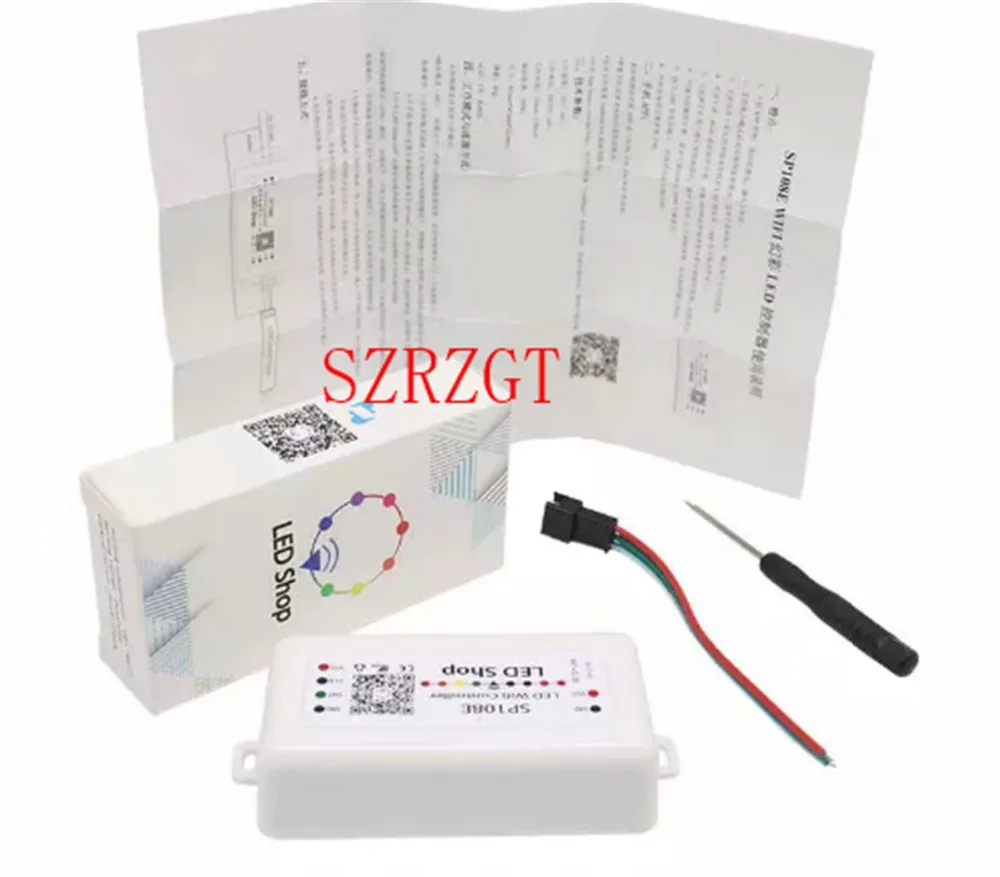

SP108E Wifi LED Pixel Controller By Smart Phone APP For WS2811 WS2812B WS2813  Led Strip Light DC5-24V



1 . Features:   1) Long distance APP remote control via WIFI;   2) Support routing mode(AP) and LAN connection mode(STA);   3) Support almost every kind of one-wire or two-wire LED driver IC ;   4) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;   5) Creatively usingfrom-image-to-effect method for user toDIYany effect;   6) Support setting pixel number and segments number, able to control up to 2048pixels;   7) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;   8) User setting saving;       2. App control:    Both IOS version and Android OS version are available. (hardware should support WIFI)   •Requires IOS version 10.0 or later;   •Requires Android OS version 4.4 or later;   •Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App:       3. Specifications:   Working temperature : -20~60 Degrees Celsius   Working Voltage : DC5V~24V;   Working Current :20mA~130mA;   Remote distance :30 Meters;   Product size : 85mm*45mm*22mm;   Product weight : 40g ;   Certificates : CE, RoHS;       4. Working Mode and Connecting:   AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.   Connect steps:   1) When the device is not connected to any WIFI network, power on the controller and wait for 20s and then controller will switch intoAP mode ;   2) In the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),   3)Open the LED Shop App ,then the controller will be showed on the device list;       *STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.   Connect steps:   1)When the device is not connected to any WIFI network,power on the controller,controller will be remain inWait-For-Connet mode for 20 seconds;   2) Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish;   3) When controller successfully enter the WIFI network, it will be showed on the device list;   4) User can select the controller and remove it out of the network by pressing theRemove Device button,then the controller will switch into AP mode.       Package includes:   1x SP108E WIFI SPI LED controller   1x Mini screwdriver   1x User manual   (Note: power supply/mobile/led strip not include!)
