off-grid soalr Hybrid power frequency pure sine wave inverter DC 12V 24V 48V to AC 220V build in MPPT charge controller 700W3000 |

off-grid soalr Hybrid power frequency pure sine wave inverter DC 12V 24V 48V to AC 220V build in MPPT charge controller 700W3000 |

New upgraded third generation MPPT controller

We continue to develop and upgrade, just to make more suitable products for you!

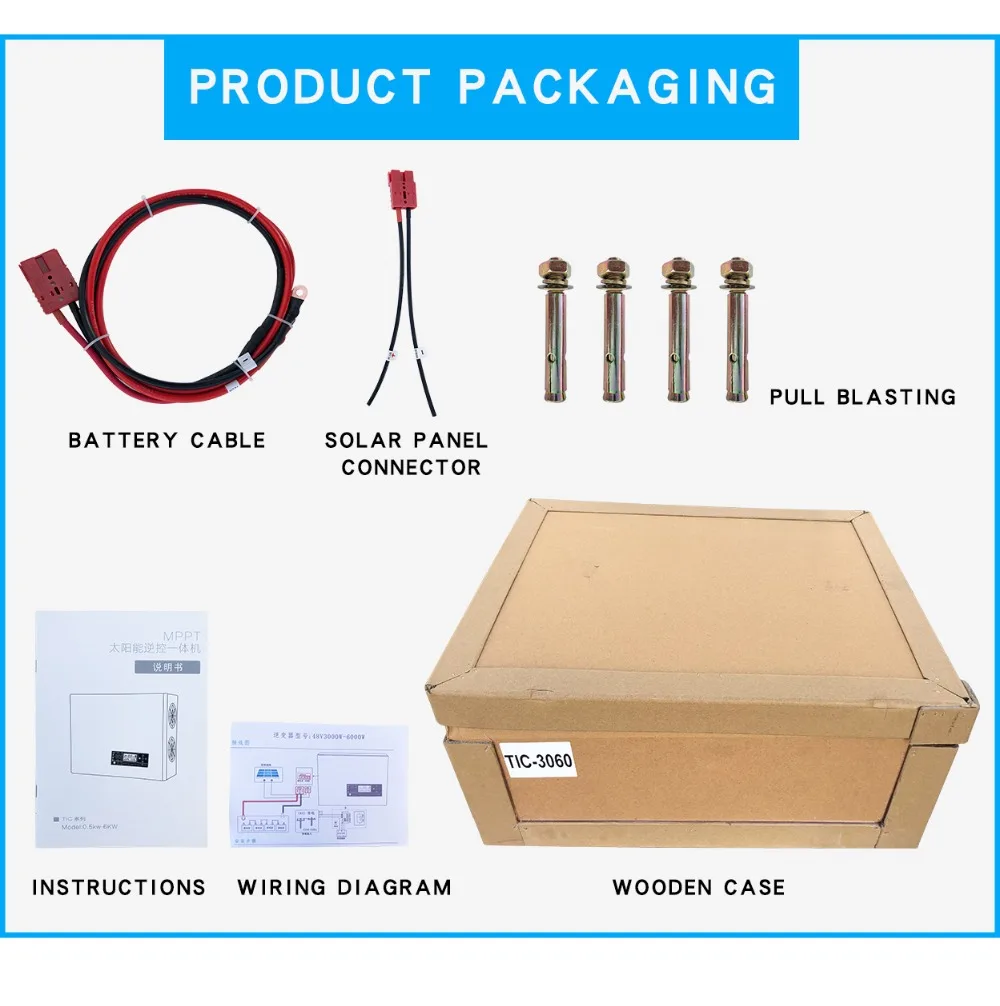

Packing List:

Inverter *1

Battery cable *1

Solar panel connector *1

Pull blasting *4

Instructions *1

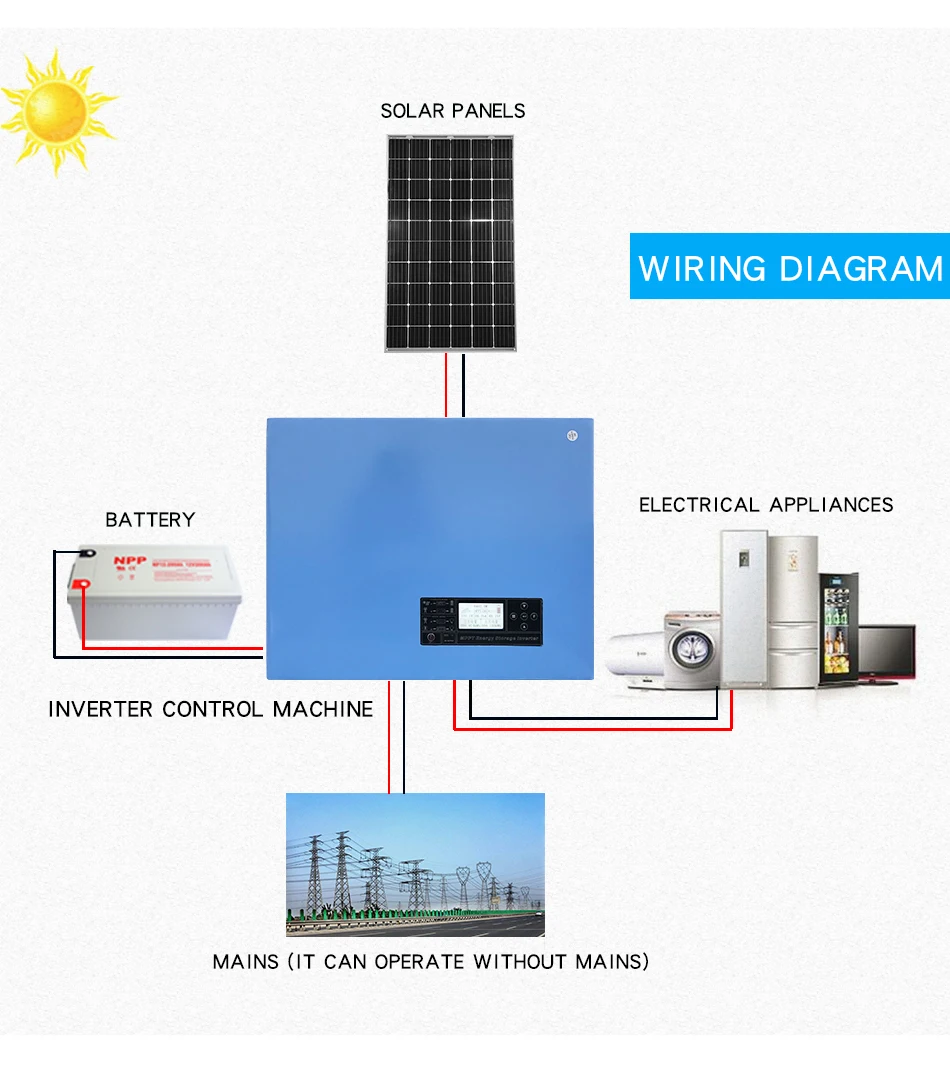

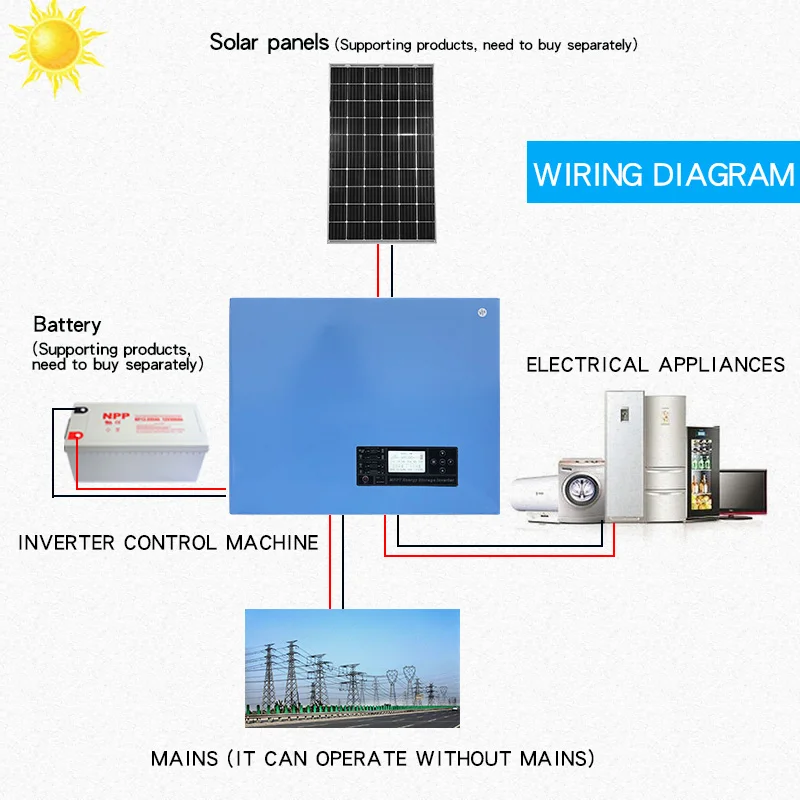

Wiring diagram *1

Main Features：

Support various types of batteries,Factory default lead-acid battery, can choose gel Battery, liquid battery. The charging voltage of lithium battery, ternary lithium battery and lithium iron phosphate battery can be adjusted according to the actual situation.

pure sine wave,can be used for various electrical equipment, will not damage electrical--The default working frequency is 50HZ, and 60HZ can be customized

Built-in MPPT controller, MPPT Peak power tracking technology Higher charging efficiency--MPPT peak power tracking technology: it can track the peak power of solar panel in real time and extract the peak power to charge the battery. However, ordinary PWM controller cannot track the peak power in real time.

If no mains charging is required, this function can be turned off (adjust to the photovoltaic charging priority mode).

Switching voltage can be adjusted--You can set the switching voltage between the battery and the mains.

Intelligent multiple protection--High temperature protection,undervoltage protection,overvoltage protection,overcurrent protection,overcharge protection,overload protection.

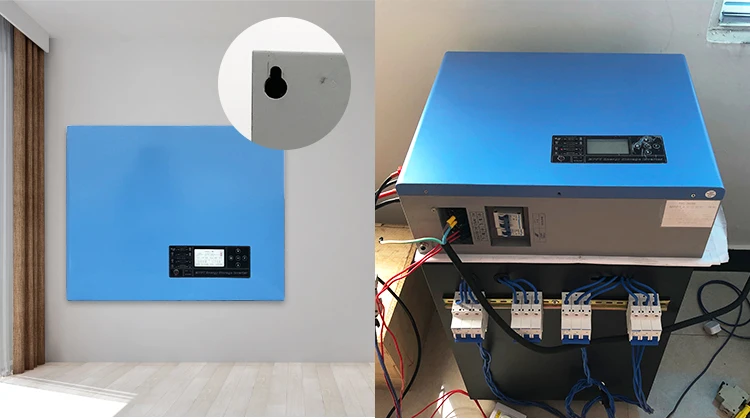

Two ways to use it:

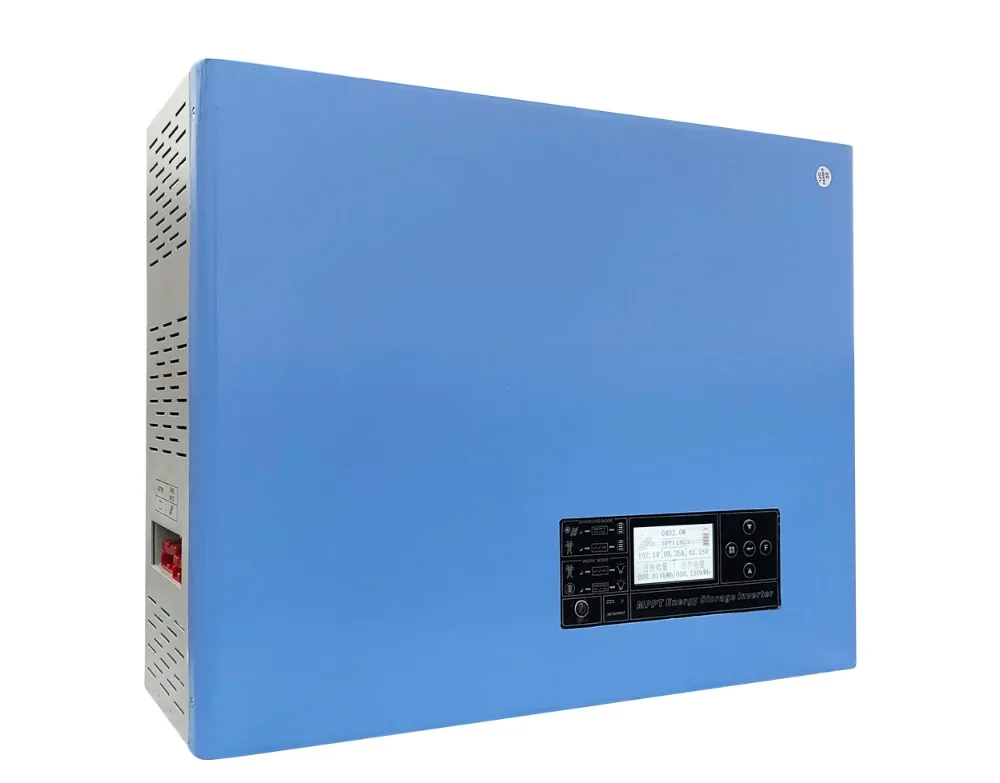

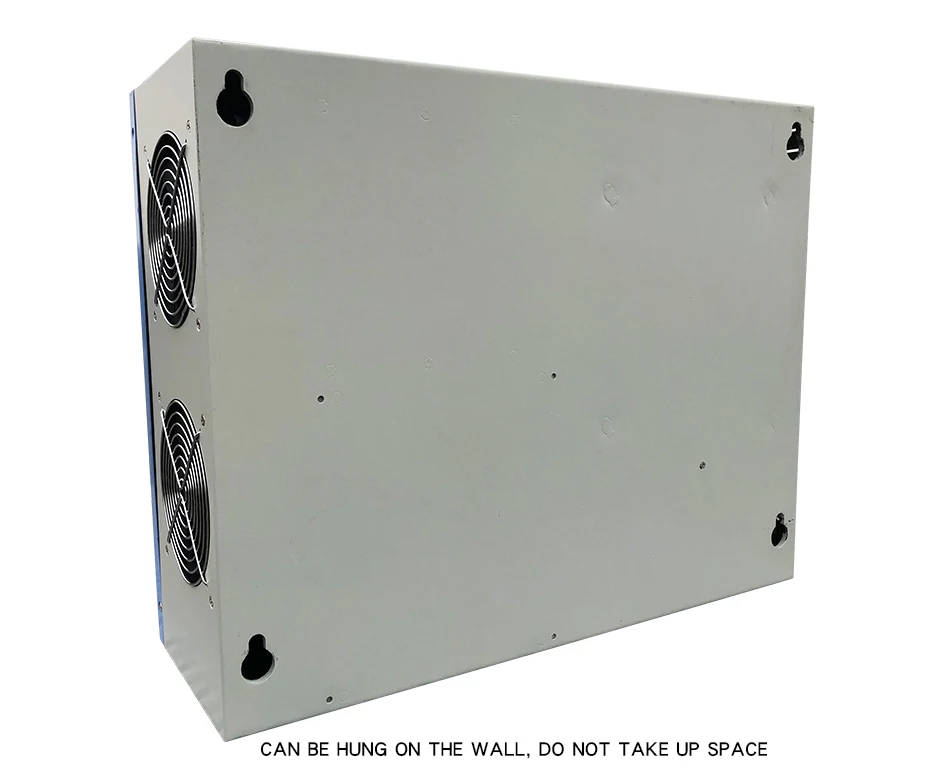

1.Wall hanging on the wall, does not take up space. 2.It can be laid flat on the shelf to save time and effort.

Four modes are available:

Battery first mode--battery first mode

1. The electricity from the solar panel is fed to the load first, and the excess electricity is stored in the battery.

2.When the energy from the solar energy cannot meet the user's load, the energy stored in the battery will be replenished to the load.

3.When the battery is out of power, it will automatically switch to the mains power supply, and the loaded appliances will not be shut down or affected; When the battery charge to a certain amount of power (user-defined), automatically restore to the battery power.

Mains priority mode--In the mode of mains priority, the power supply of the load is provided by the mains, which is output to the load through the system voltage stabilizer and isolation components to ensure the stability of the output power supply.

1.The mains power input is fed to the user's load, and the electricity generated by the solar panel only charges the battery.

2.When (AC) mains power is cut off or abnormal, the system switches to the battery to power the load.

Photovoltaic charging priority mode--No matter whether the system is in battery priority mode or mains power priority mode, only the solar panel is used to charge the battery, and the mains power charging function is turned off.

Pv + mains charging mode--Give priority to using solar panels to charge batteries. When the battery power is seriously insufficient, use the municipal power to charge the battery, so as to avoid battery power loss and damage. In battery first mode, the battery is fully charged. In mains first mode, the battery is partially charged.

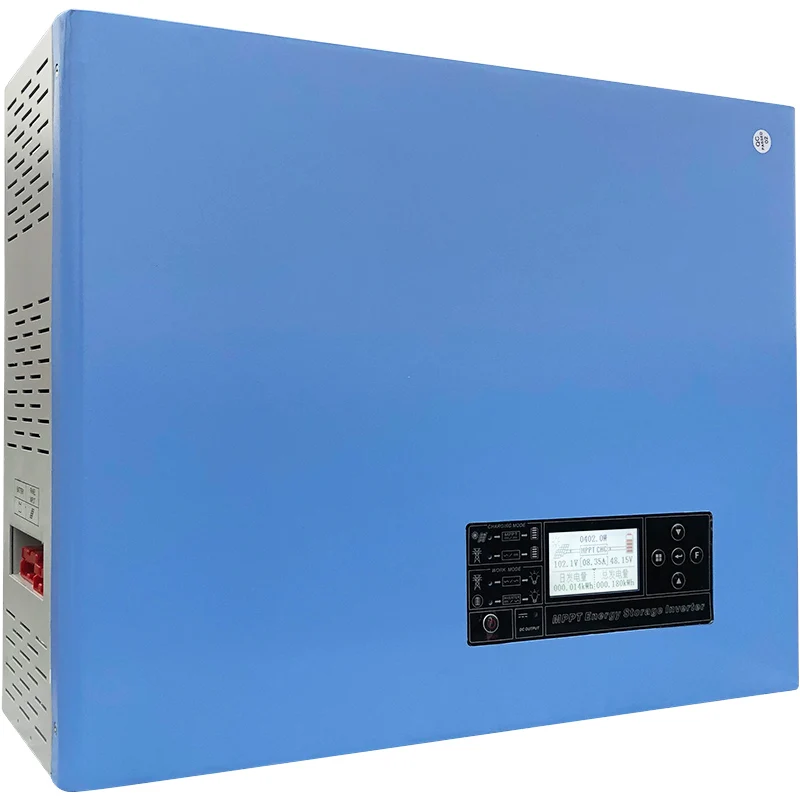

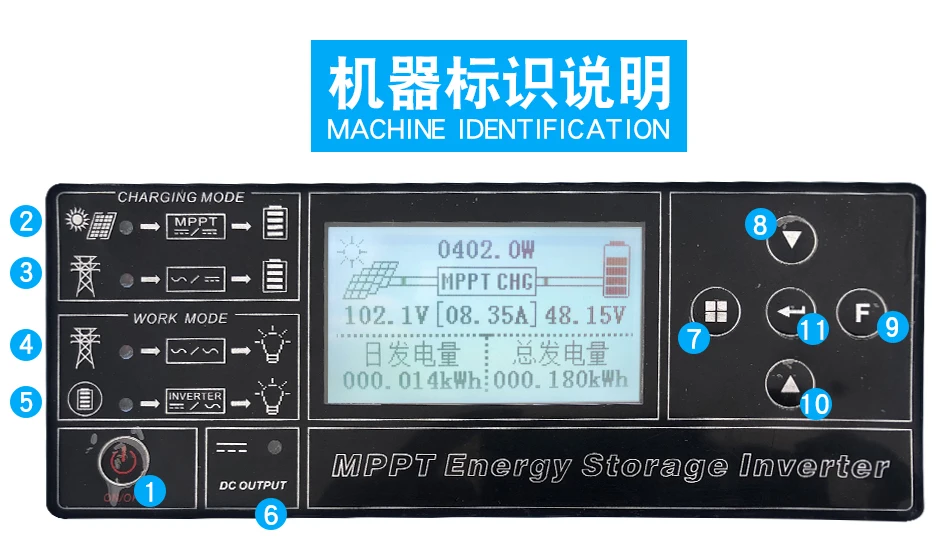

1.Mains switch

2.Solar charging mode - the indicator light is on

3.Mains charging mode - the indicator light is on

4.Mains power to load mode - the indicator light is on

5.Battery powered load mode - the indicator light is on

6.Dc output indicator light

7.Function menu button

8.Down button

9.Shortcuts

10.Upturn button

11.Identify key

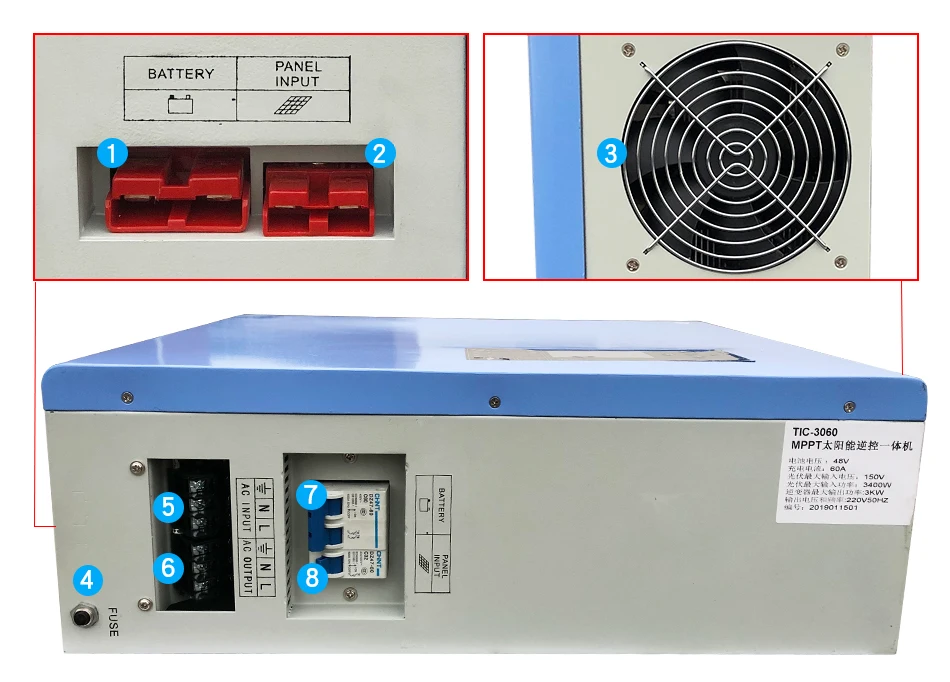

1.Battery port

2.Solar input port

3.Cooling fan

4.Reset protection switch

5.Public power output

6.Mains input

7.Battery switch

8.Solar charging switch
