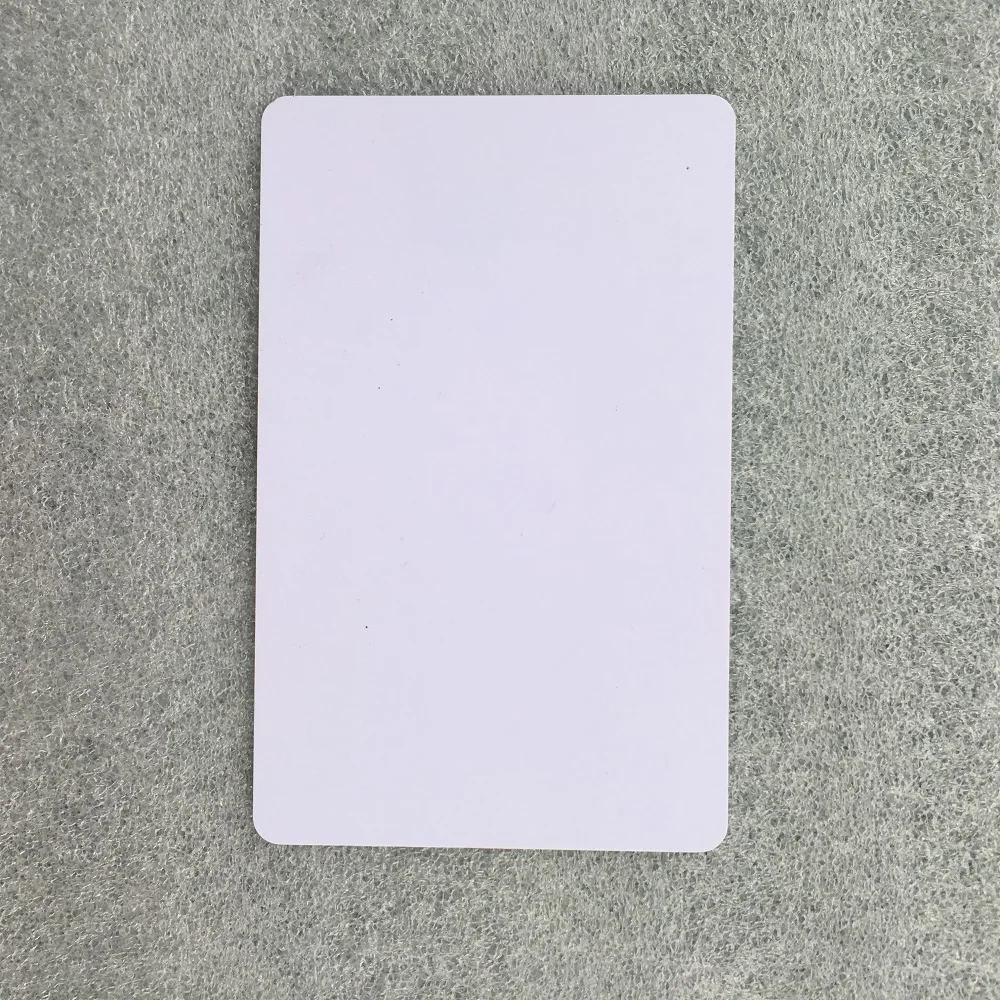

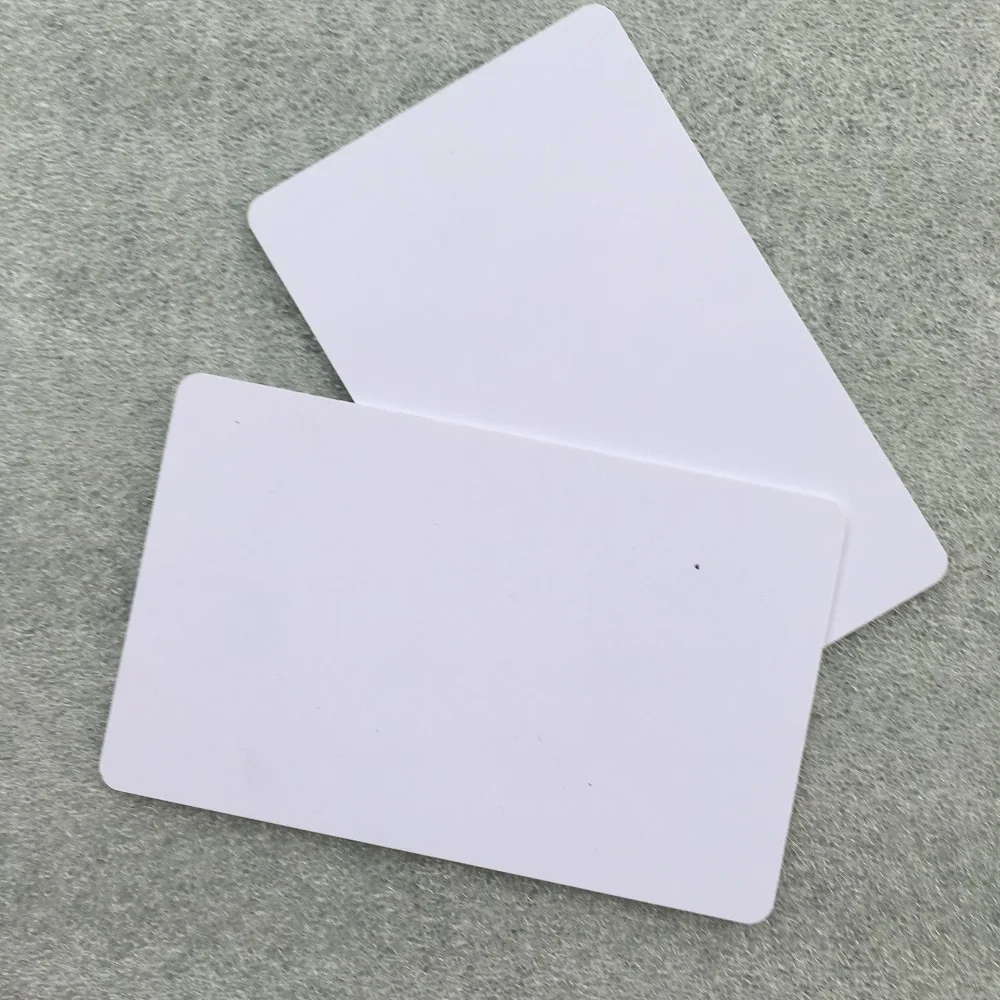

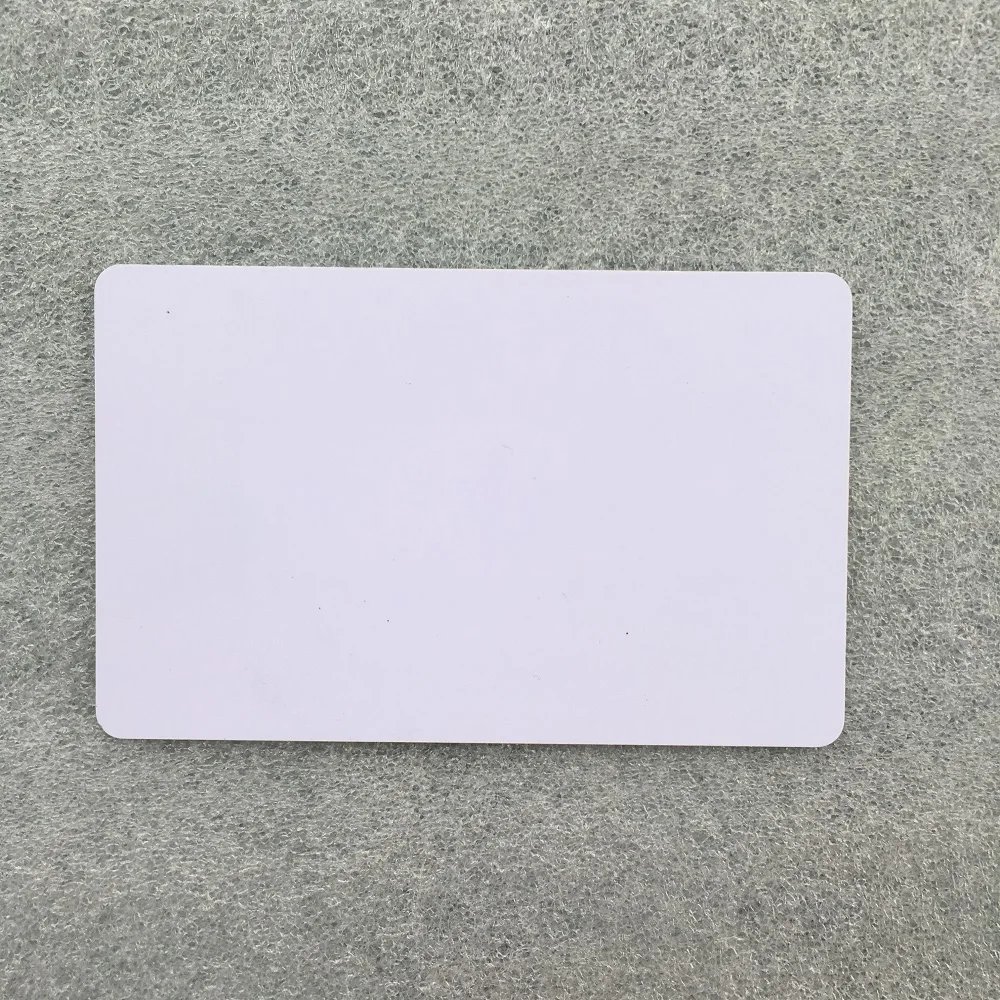

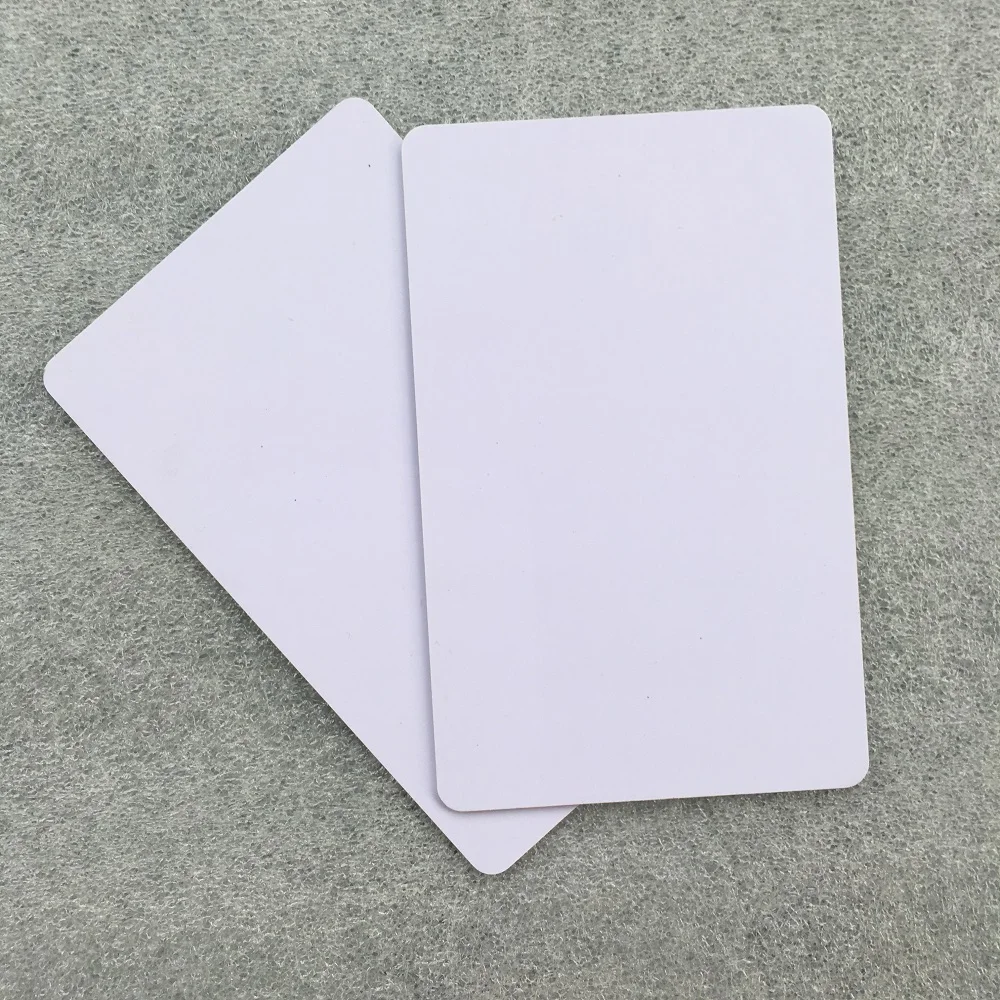

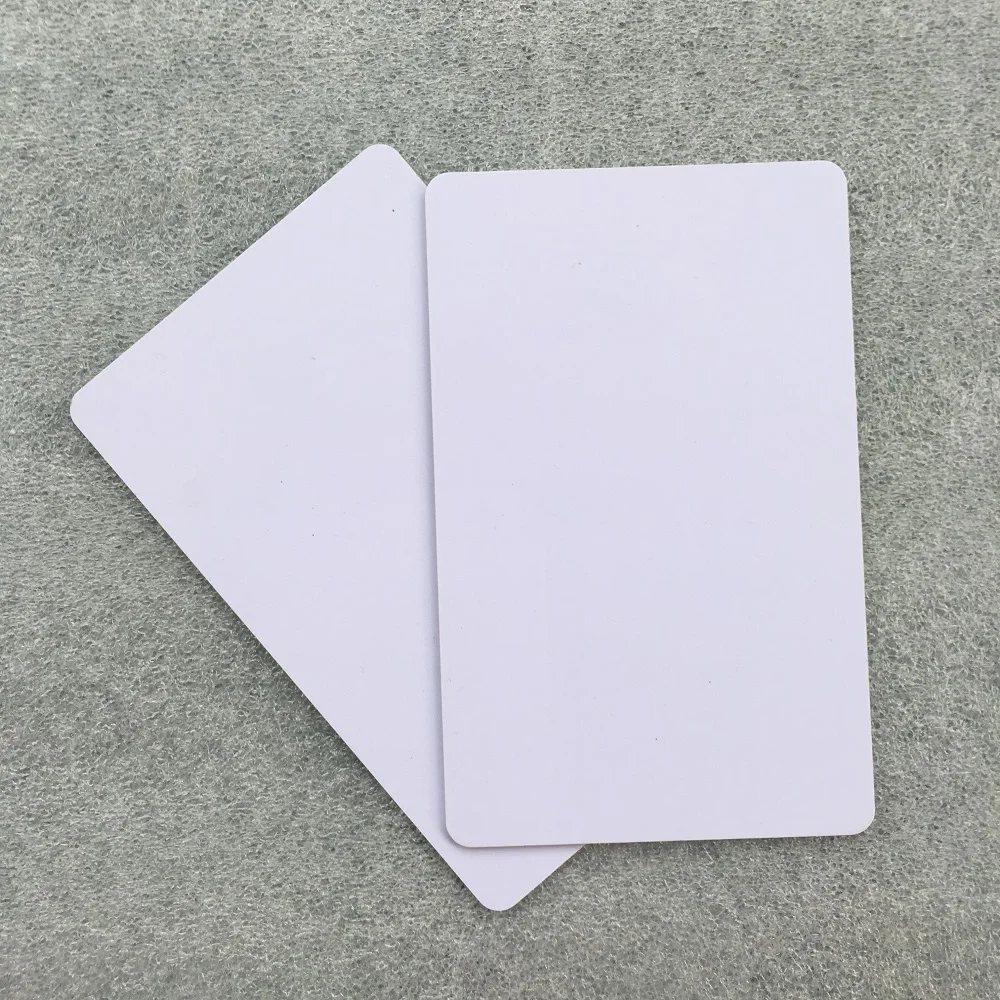

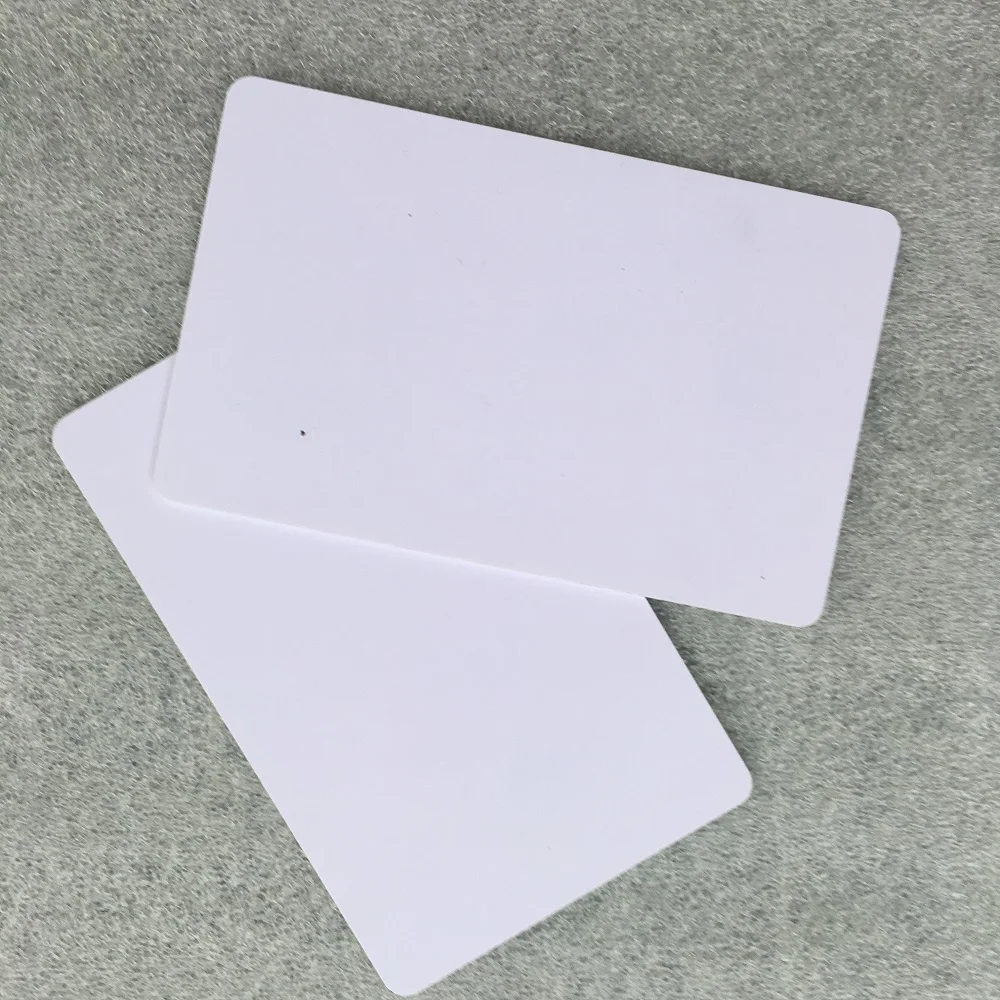

NXP M1S50 1K Classic Card

 has developed the M1 MF1ICS50 to be used in a contactless smart card according to ISO/IEC 14443 Type A.The M1 MF1ICS50 IC is used in applications like public transport ticketing where major cities have adopted M1 as their e-ticketing solution of choice.

Features:

M1‚ RF Interface (ISO/IEC 14443 A).

Contactless transmission of data and supply energy (no battery needed).

Operating distance: Up to 100mm (depending on antenna geometry)

Operating frequency: 13.56 MHz.

Data transfer: 106 kbit/s.

Data integrity: 16 Bit CRC, parity, bit coding, bit counting.

Anticollision.

Typical ticketing transaction: < 100 ms (including backup management).

EEPROM:

1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte).

User definable access conditions for each memory block.

Data retention of 10 years.

Write endurance 100.000 cycles.

Card features
> Dimensions: 86 x 54mm
> Thickness: 0.84mm
> Material: PVC, PET, ABS
> Surface: lamination (gloss/mate)
> Data storage time: minimum 10 years
> Operating temperature: -20 to +60℃
> Stockage temperature: -20 to +65℃

Printing options
> Full color offset printing
> Silk-screen printing
> Silver/Gold silk-screen printing background
> Personalization

Options for standart card
> Magnetic stripe: 300oe, 2750oe, 4000oe
> Numbering
> Barcode printing
> Signature panel
> Embossing
> Encoding (according agreement)
> frosted or matte

These card can be printed by ribbon printer Including

DataCard, Zebra, Fargo, Evolis, Magicard, NBS & etc.

(These Cards Will Not Work In Inkjet Printers such as Epson printer)
